Depth Tool

SEDRIS SDK Release 4.1.0

July 26, 2006

Synopsis
Description
Options
Examples
Sample Run
Environment
See Also

SYNOPSIS

depth [ options ] transmittal

DESCRIPTION

depth performs a depth-first traversal of the given SEDRIS transmittal and prints the objects and fields to stdout in text format. It also prints the number of objects and object classes encountered.

OPTIONS

-c [-|configuration_file_name]

Specify optional file of configuration information; if "-" appears with no file name specified, read the configuration information from stdin.

-d<maximum depth>

Specify the maximum depth of the traversal (the default is zero, for unlimited depth.

-fast

"Fast" version of depth. Object counts are inaccurate (shared objects are counted multiple times), but this is still useful for "just touching" every object in a transmittal, especially when used in conjunction with the quiet modes.

-f output_file_name

The name of the file where the processing results will be stored.

-q

Quiet mode. Count the objects, but don't print them.

-qq

Very quiet mode. Don't even show the counting update.

-s"[xmittal name]:object id"

Start traversal at the object with the given object ID.

-u<update rate>

Specify the counting update rate (the default is every 500 objects).

-v

Verbose mode. Print class names and fields of each object. (The default is verbose mode off. Only class names of each object are printed).

-vv

Very verbose mode. Print contents of <Data Tables> and <Images>.

EXAMPLES

depth transmittals/test.stf

traverses the transmittal starting at the root object

depth -q transmittals/test.stf

traverses the transmittal without printing the object fields.

depth -v -c my_configuration_file transmittals/test.stf

traverses the transmittal using the options specified in "my_configuration_file".

depth -v -s"urn:x-sedris:saic:stf_belle:1:1,1,12" transmittals/stf_belle.stf

traverses the transmittal starting at the object with specified ID.

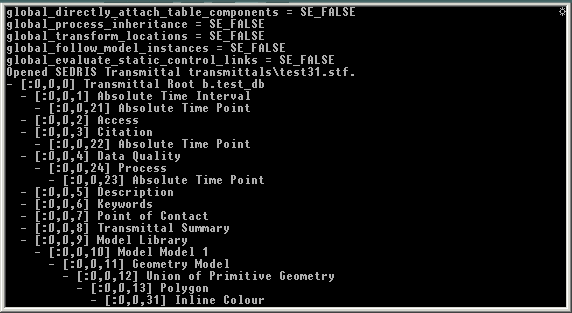

SAMPLE RUN

The following command (initiated in the "transmittals" directory):

depth -q test.stf

produces the following output:

global_directly_attach_table_components = SE_FALSE
global_process_inheritance = SE_FALSE
global_transform_locations = SE_FALSE
global_follow_model_instances = SE_FALSE
global_evaluate_static_control_links = SE_FALSE
Opened SEDRIS Transmittal test.stf.
Maximum Tree Height = 10


Total object count = 114

        1	Absolute Time Interval
        3	Absolute Time Point
        1	Access
        4	Ambient Colour
        1	Citation
        1	Data Quality
        1	Description
        4	Diffuse Colour
        1	Environment Root
        1	Geometry Model
        1	Geometry Model Instance
        4	Inline Colour
        1	Keywords
       29	LSR Location 3D
        1	Model
        1	Model Library
        1	Point Of Contact
        4	Polygon
        4	Presentation Domain
        4	Primitive Colour
        1	Process
        8	RGB Colour
        1	Spatial Domain
        1	Transmittal Root
        4	Translucency
        1	Transmittal Summary
        1	Union Of Geometry Hierarchy
        2	Union Of Primitive Geometry
       27	Vertex
Total object count = 114

ENVIRONMENT

See the SEDRIS SDK Runtime Environment variables.
