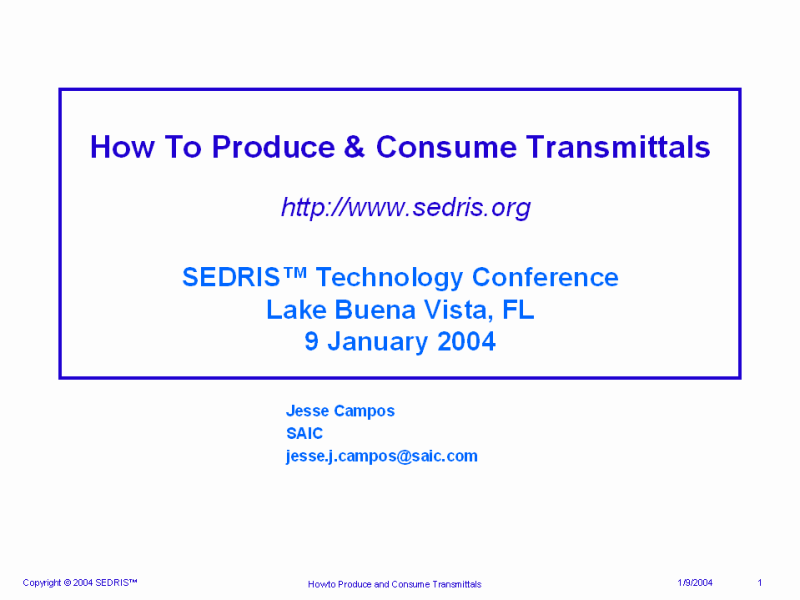

How To Produce & Consume Transmittals

2

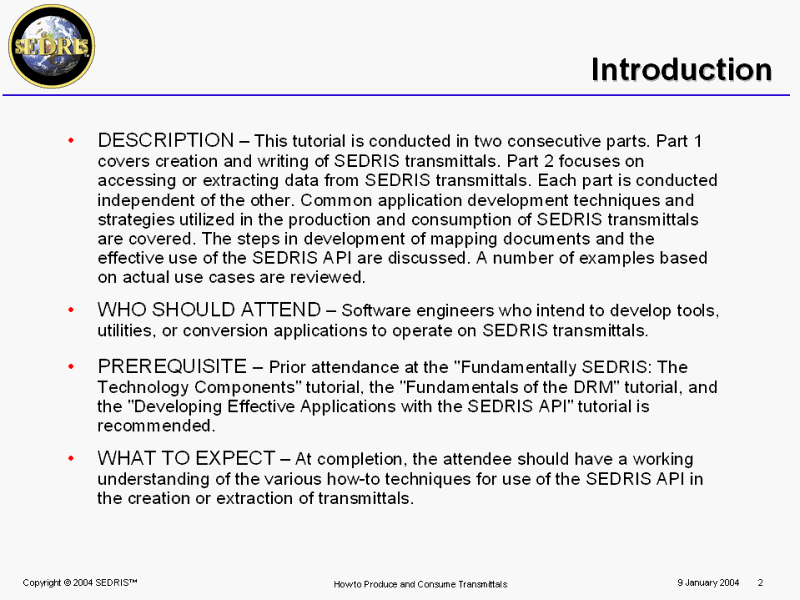

Introduction

3

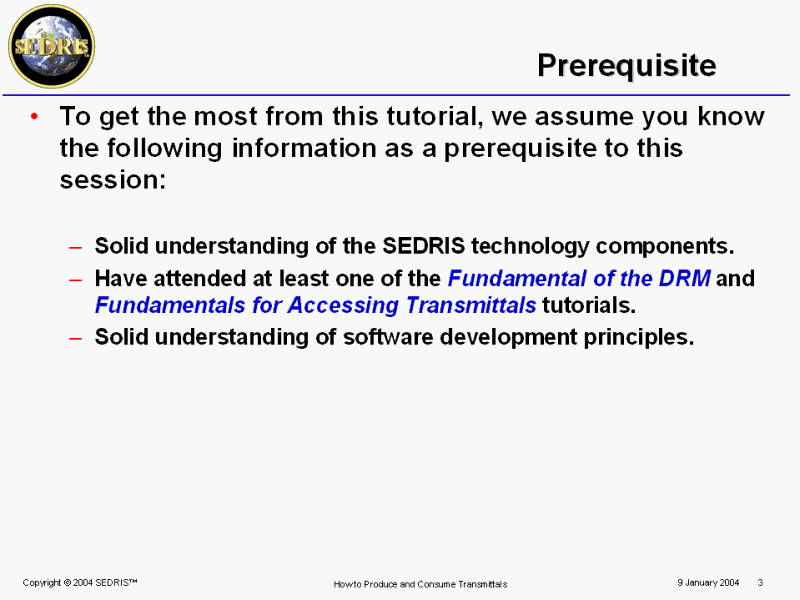

Prerequisite

4

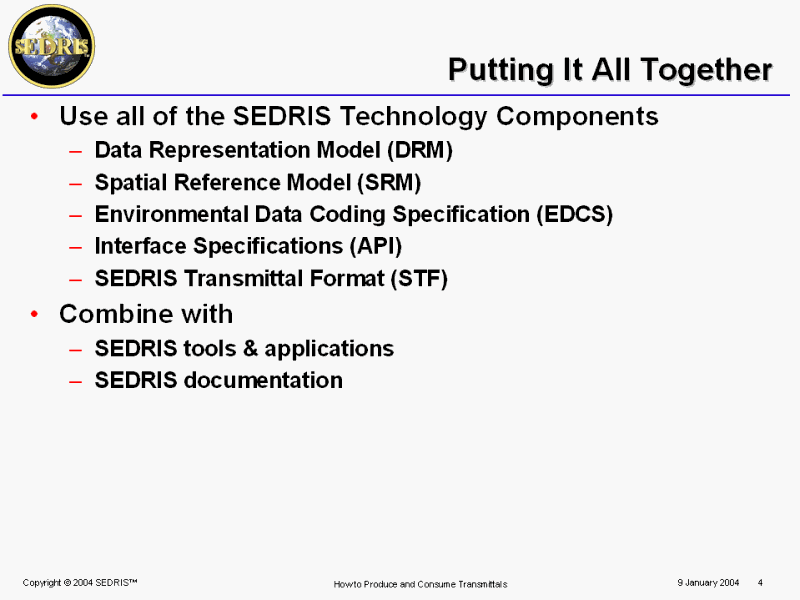

Putting It All Together

5

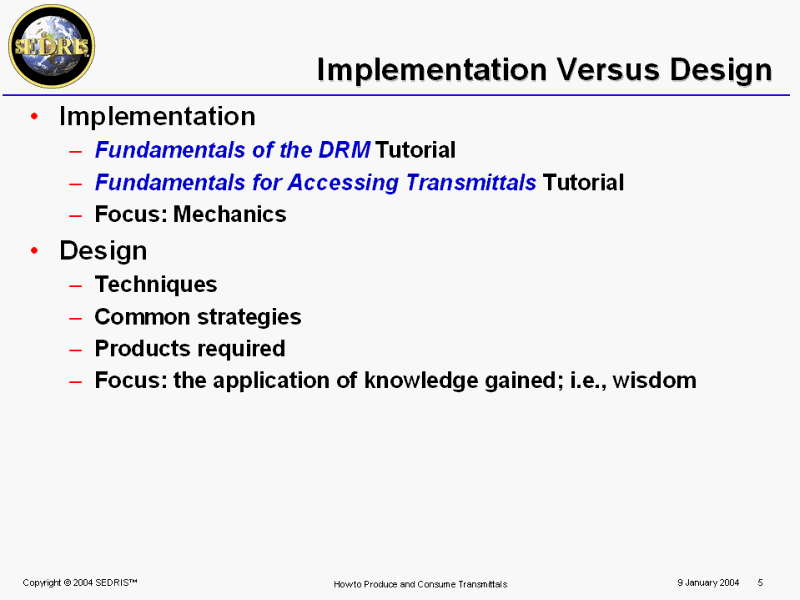

Implementation Versus Design

6

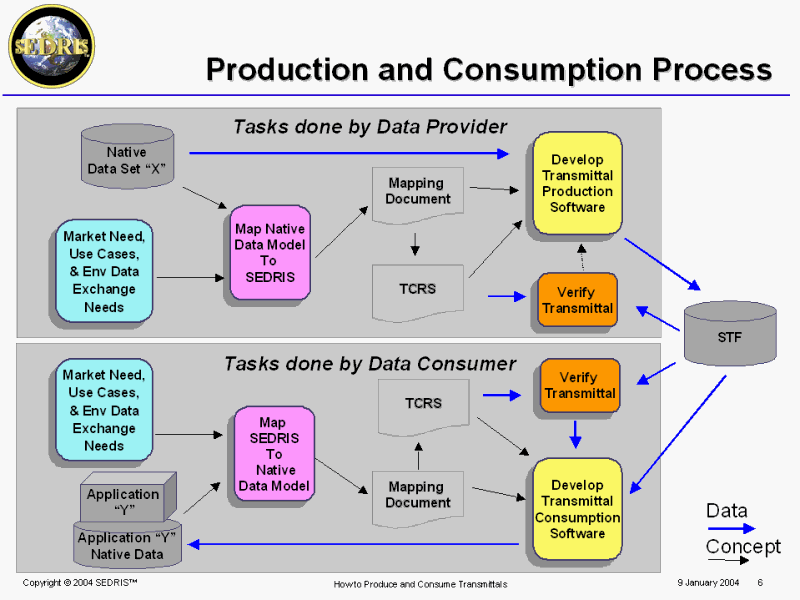

Production and Consumption Process

7

Agenda: Producing

8

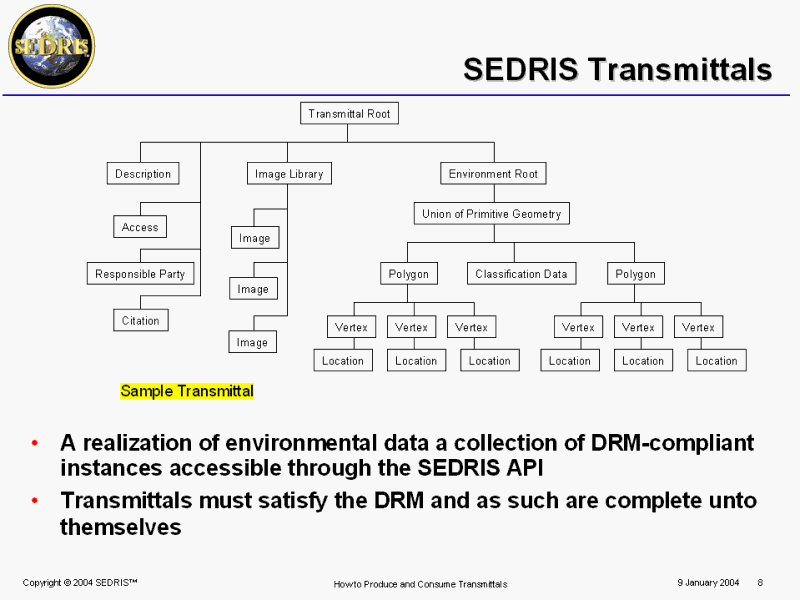

SEDRIS Transmittals

9

SEDRIS Transmittals [2 of 5]

10

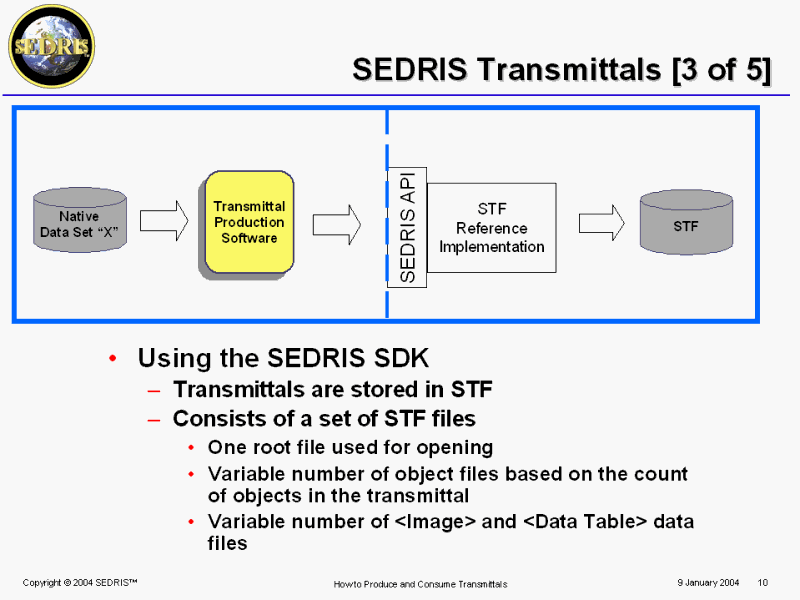

SEDRIS Transmittals [3 of 5]

11

SEDRIS Transmittals [4 of 5]

12

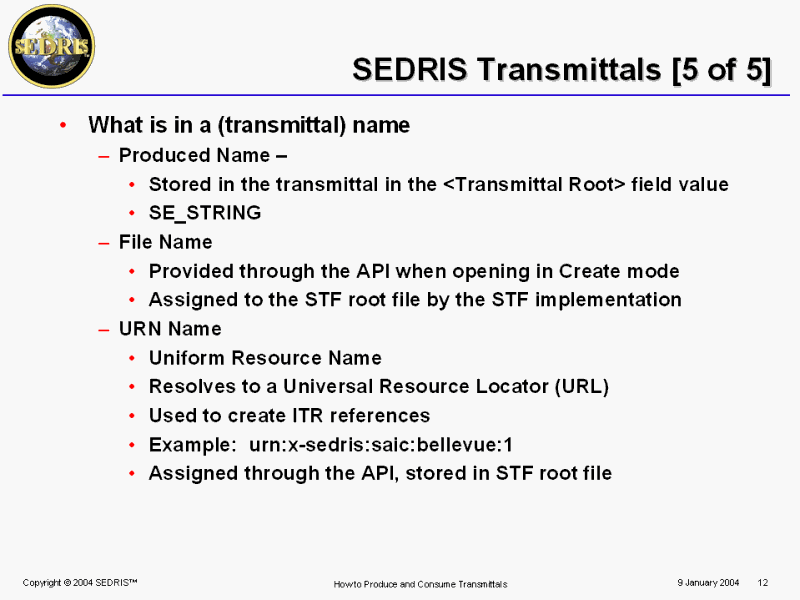

SEDRIS Transmittals [5 of 5]

13

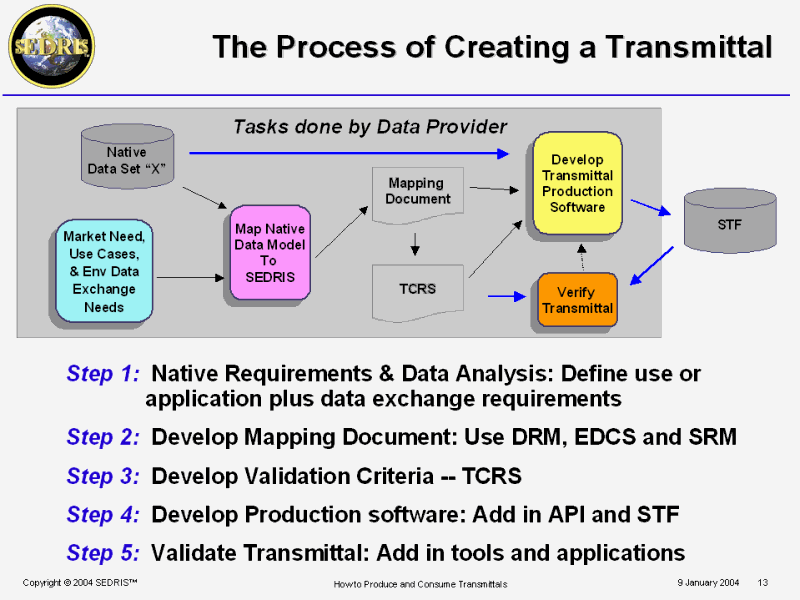

The Process of Creating a Transmittal

14

Step 1: Native Analysis

15

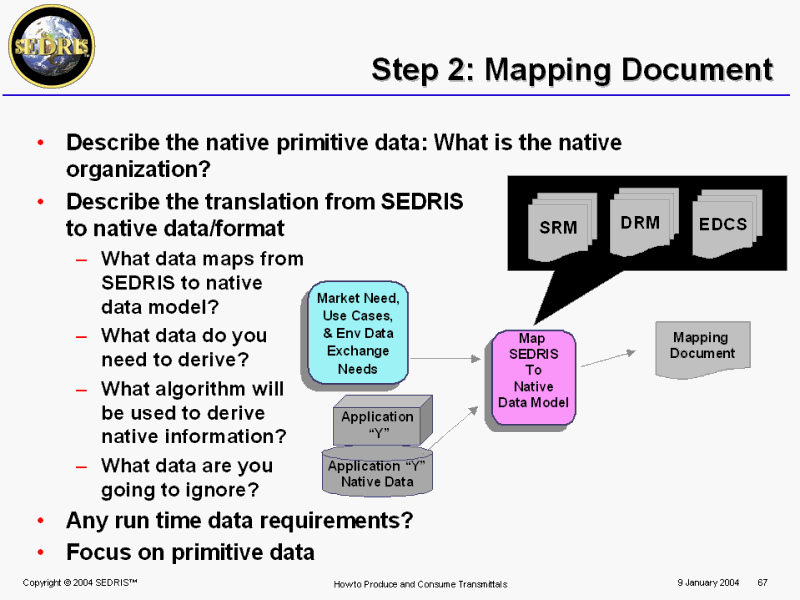

Step 2: Mapping Document

16

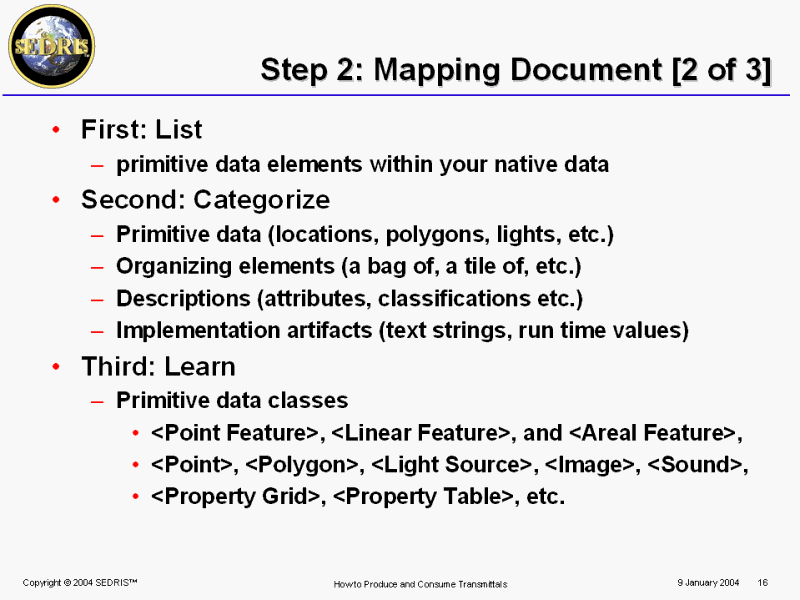

Step 2: Mapping Document [2 of 3]

17

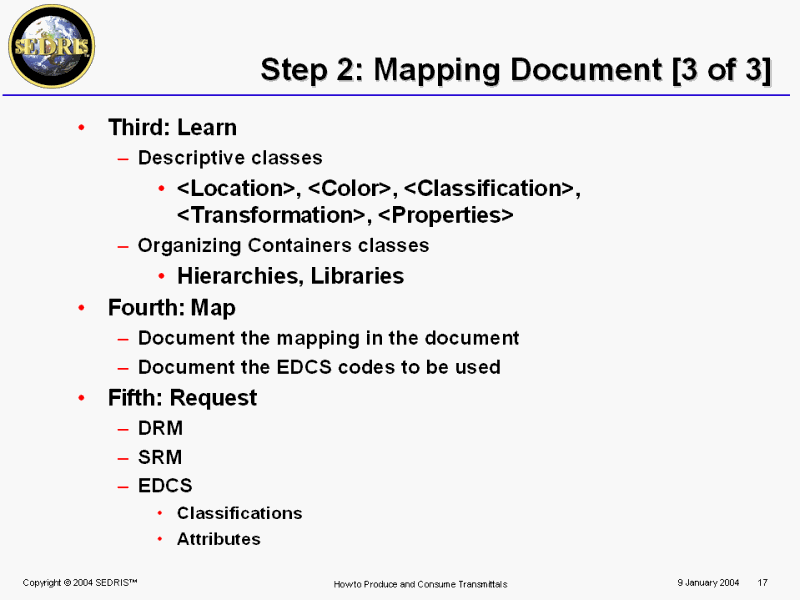

Step 2: Mapping Document [3 of 3]

18

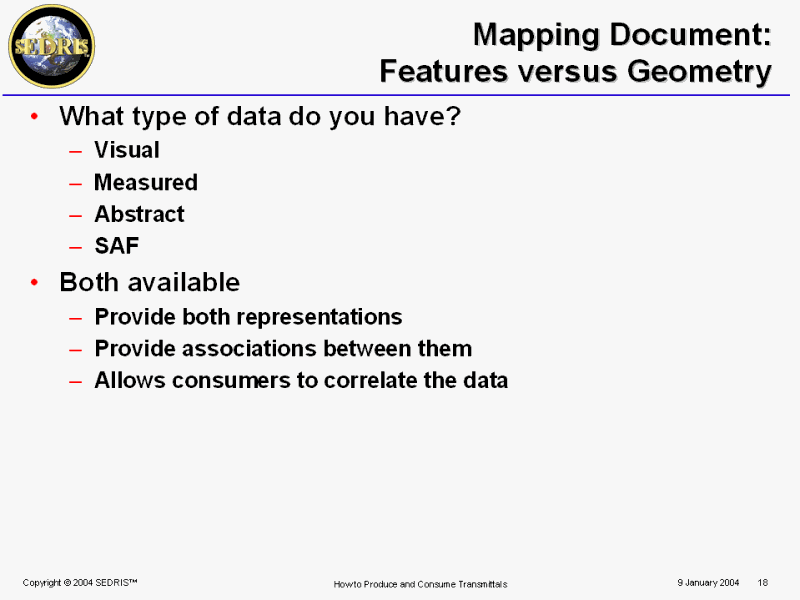

Mapping Document: Features versus Geometry

19

Mapping Document : Data Mapping

20

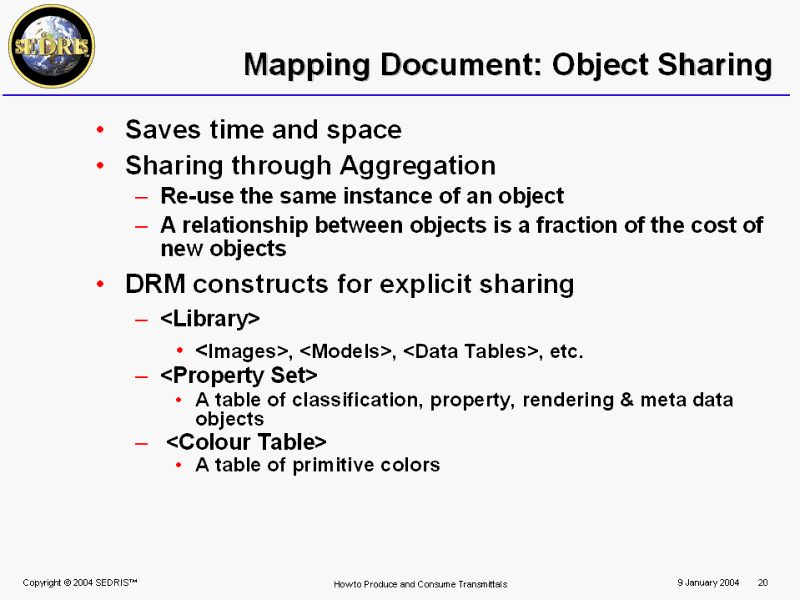

Mapping Document: Object Sharing

21

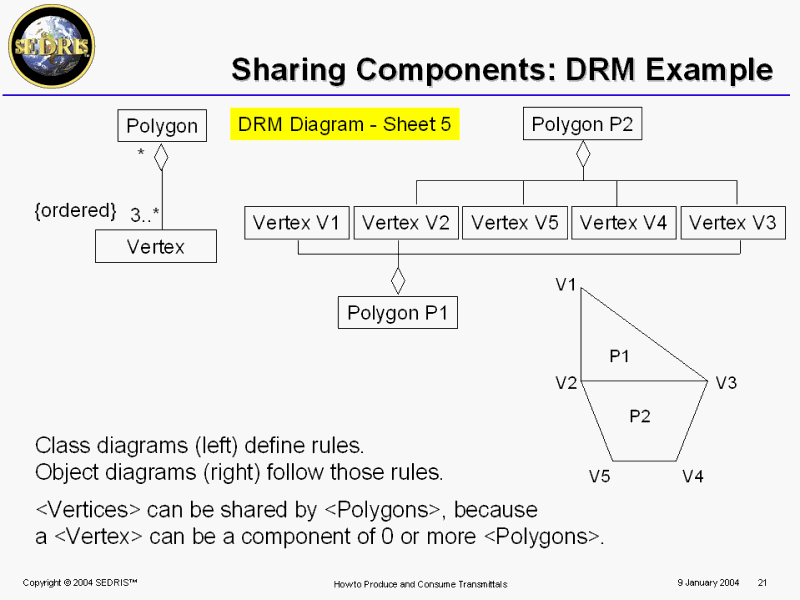

Sharing Components: DRM Example

22

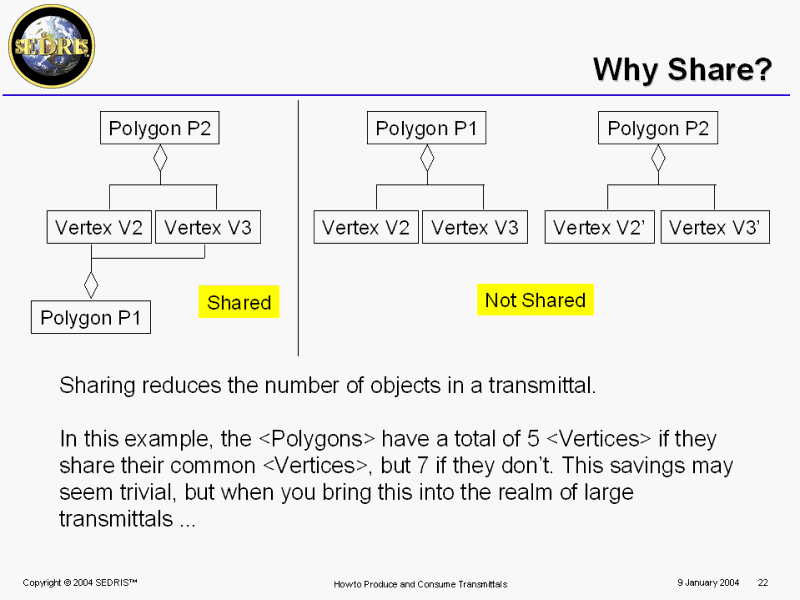

Why Share?

23

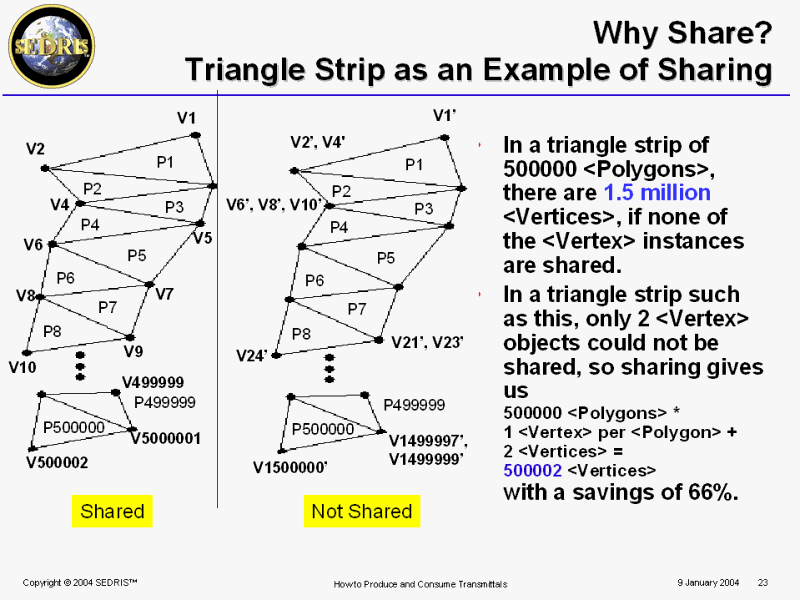

Why Share? Triangle Strip as an Example of Sharing

24

Mapping Document: Sharing with <Property Sets>

25

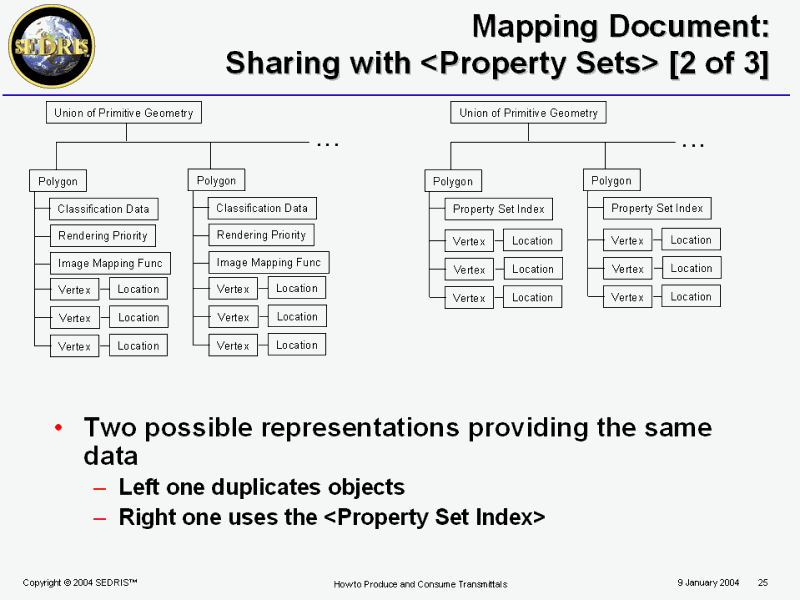

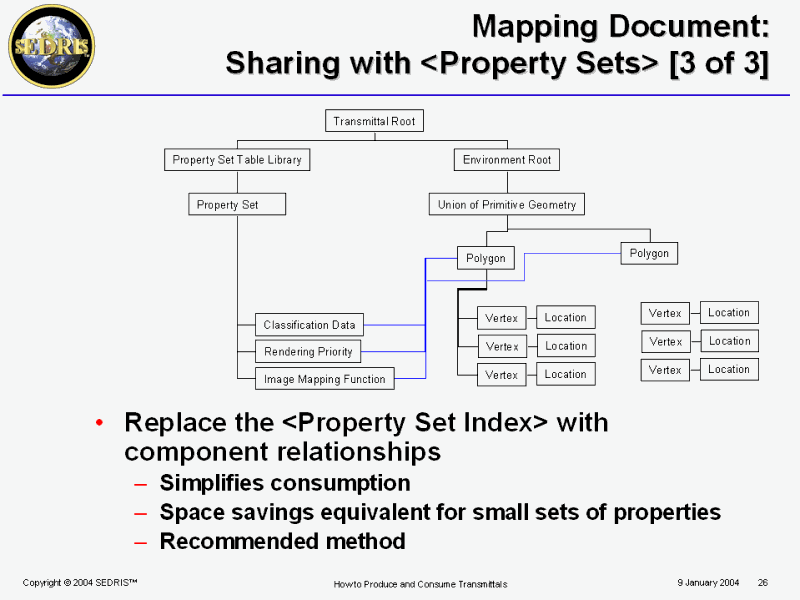

Mapping Document: Sharing with <Property Sets> [2 of 3]

26

Mapping Document: Sharing with <Property Sets> [3 of 3]

27

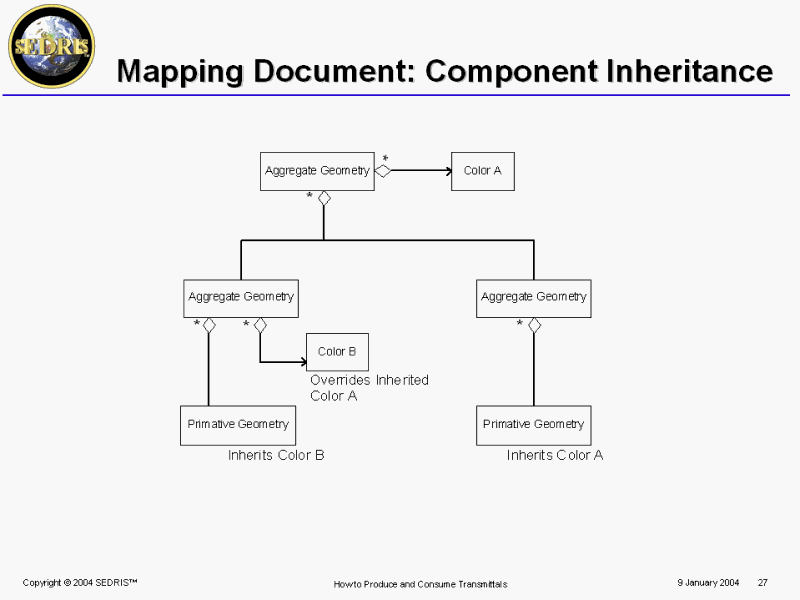

Mapping Document: Component Inheritance

28

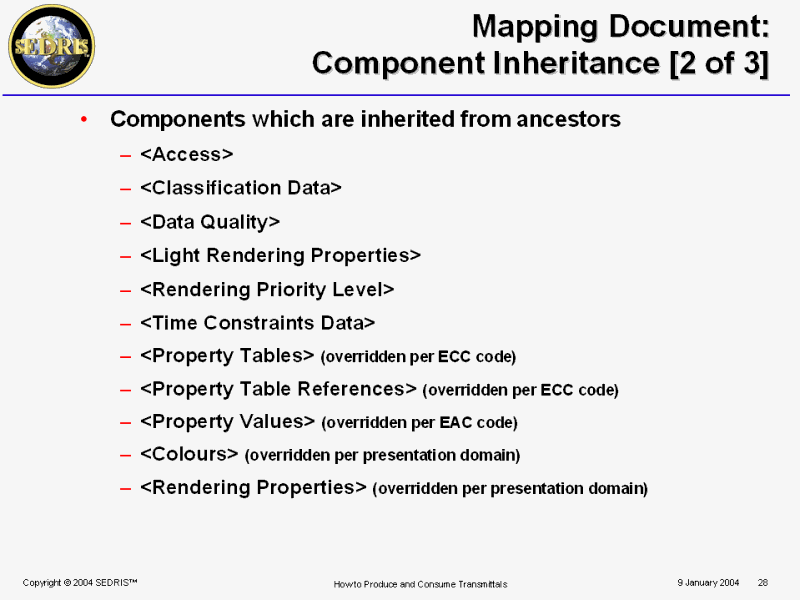

Mapping Document: Component Inheritance [2 of 3]

29

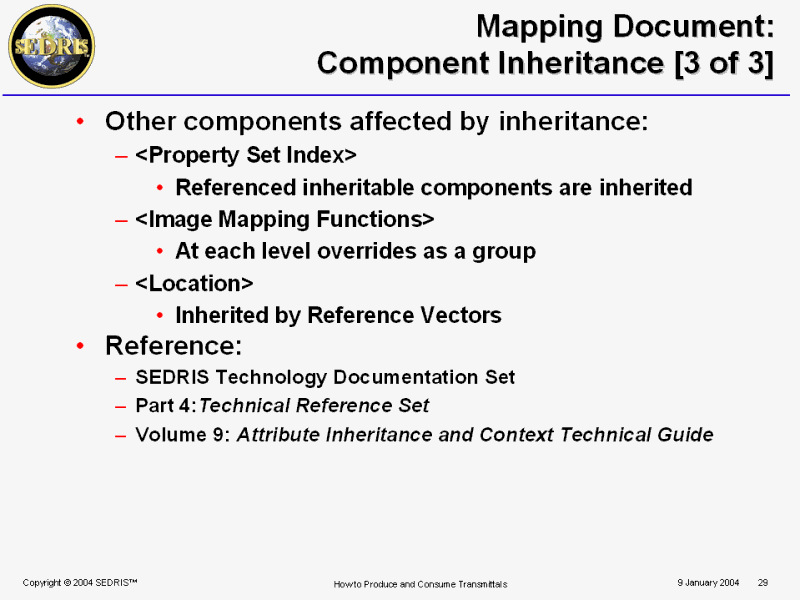

Mapping Document: Component Inheritance [3 of 3]

30

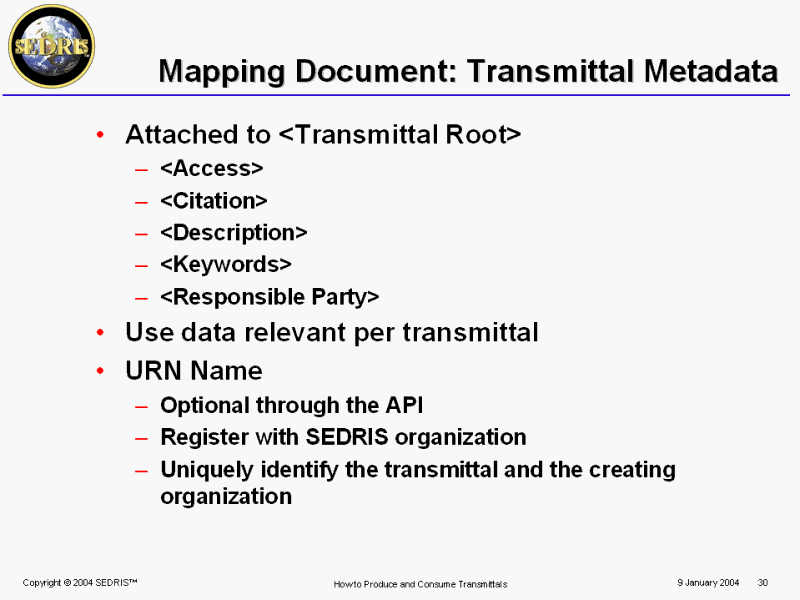

Mapping Document: Transmittal Metadata

31

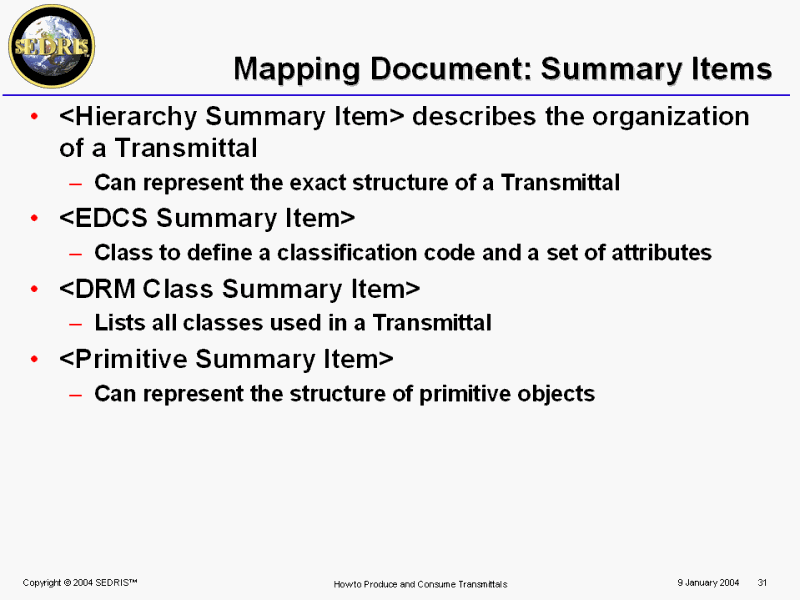

Mapping Document: Summary Items

32

Mapping Document: Summary Items [2 of 2]

33

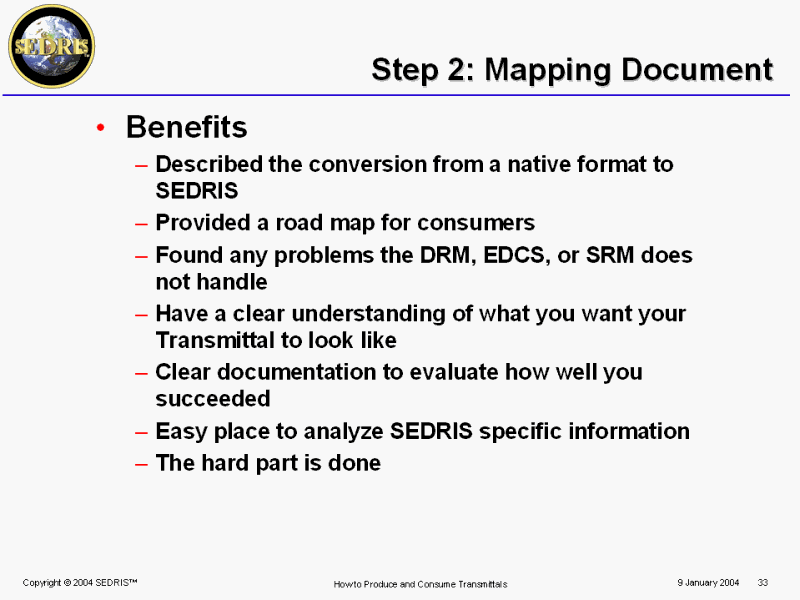

Step 2: Mapping Document

34

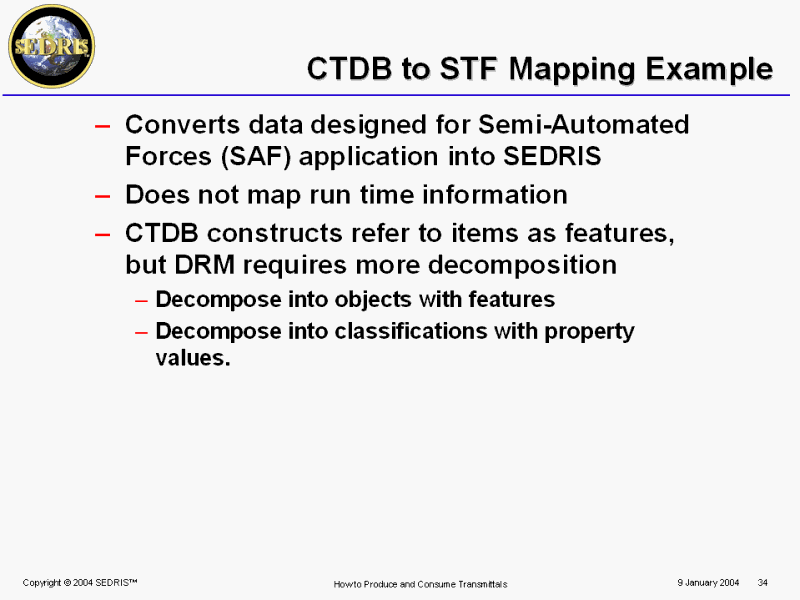

CTDB to STF Mapping Example

35

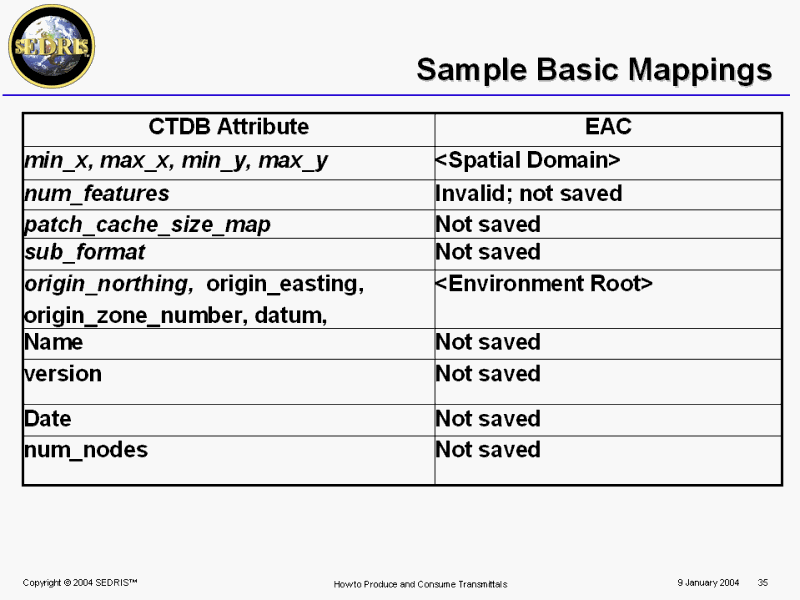

Sample Basic Mappings

36

Mapping Attributes of Water Characteristics

37

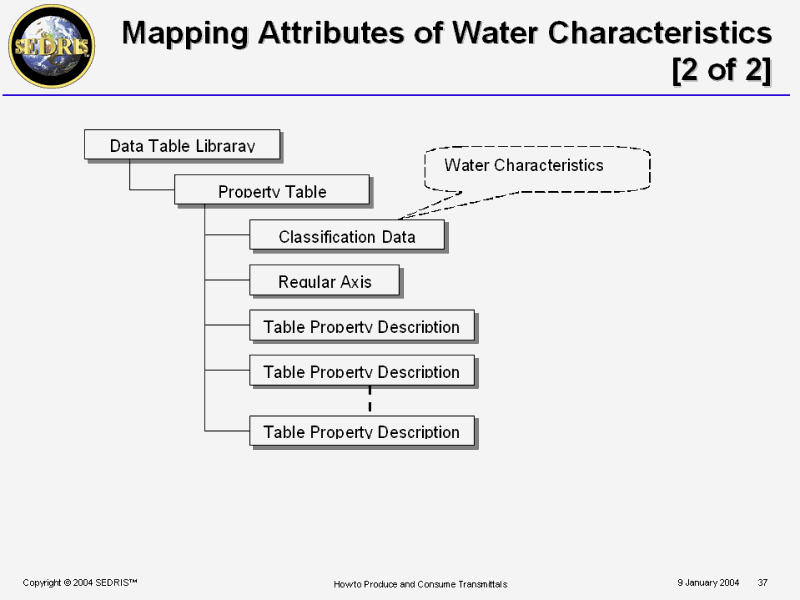

Mapping Attributes of Water Characteristics [2 of 2]

38

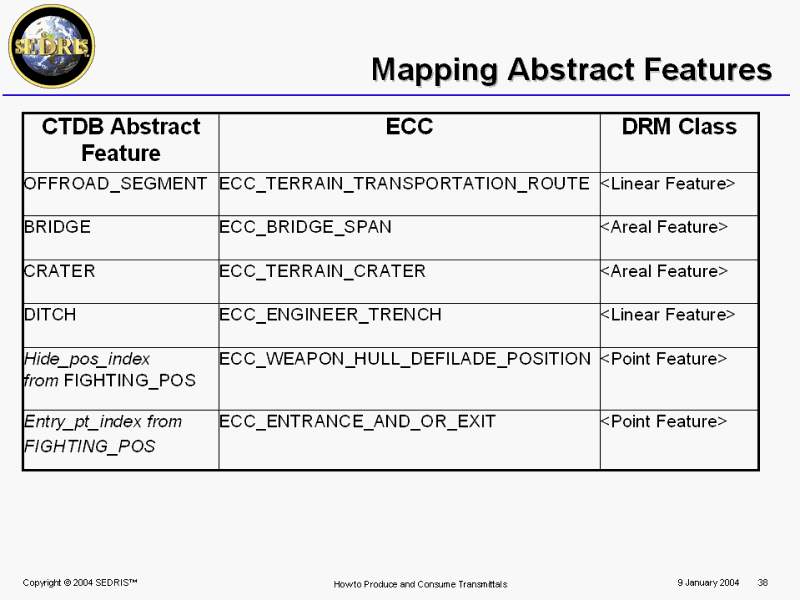

Mapping Abstract Features

39

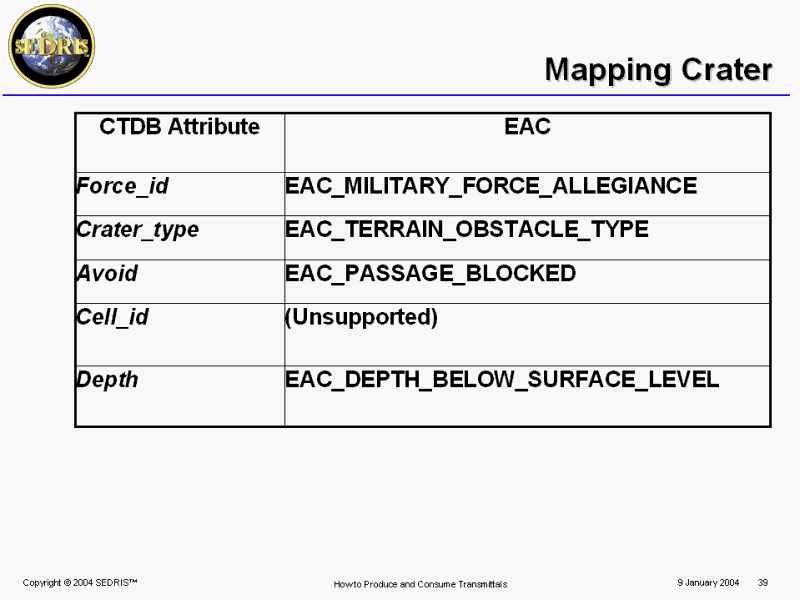

Mapping Crater

40

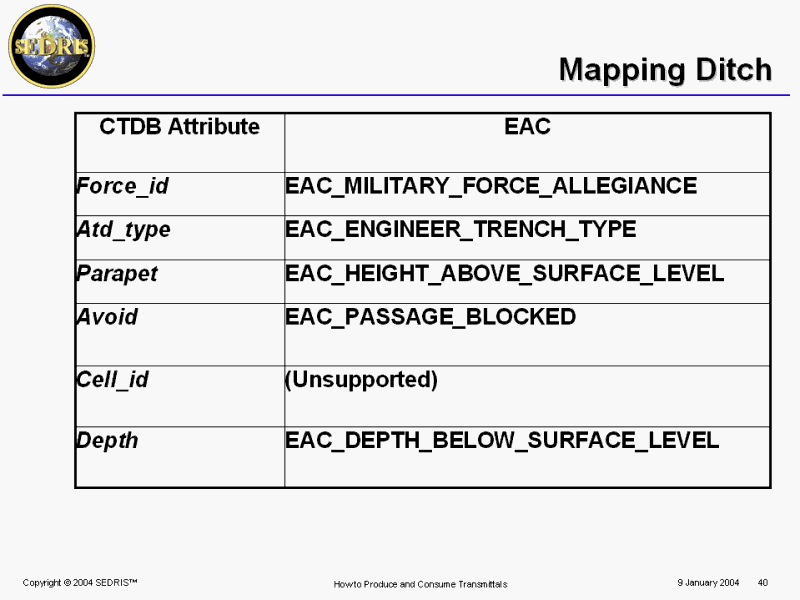

Mapping Ditch

41

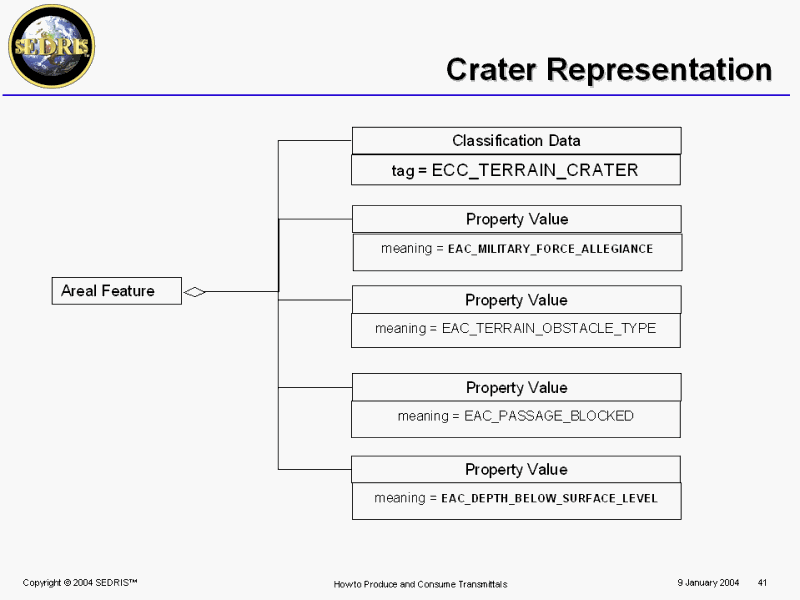

Crater Representation

42

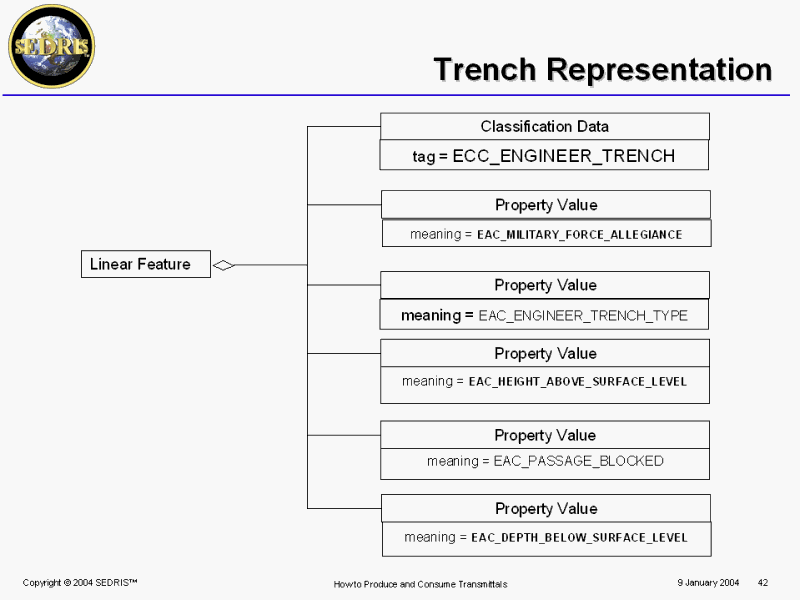

Trench Representation

43

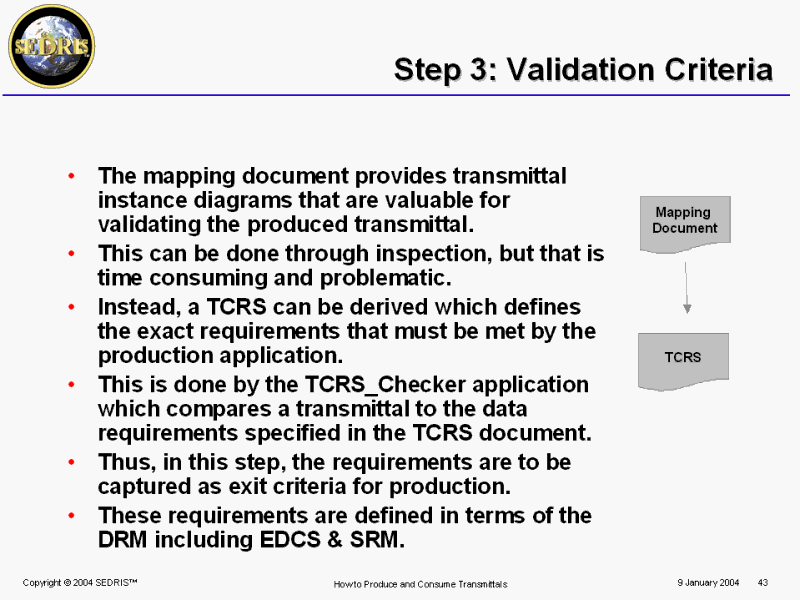

Step 3: Validation Criteria

44

Sample Transmittal Requirement #1

45

Sample Transmittal Requirement #2

46

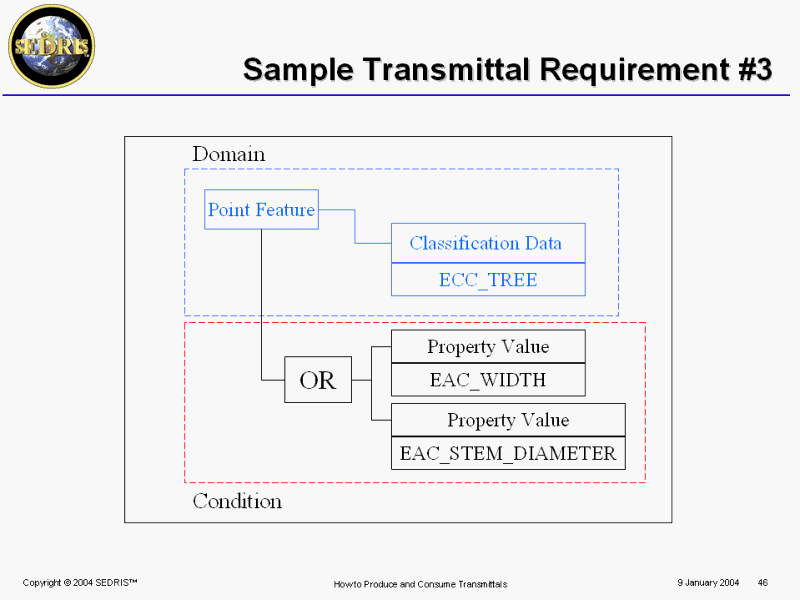

Sample Transmittal Requirement #3

47

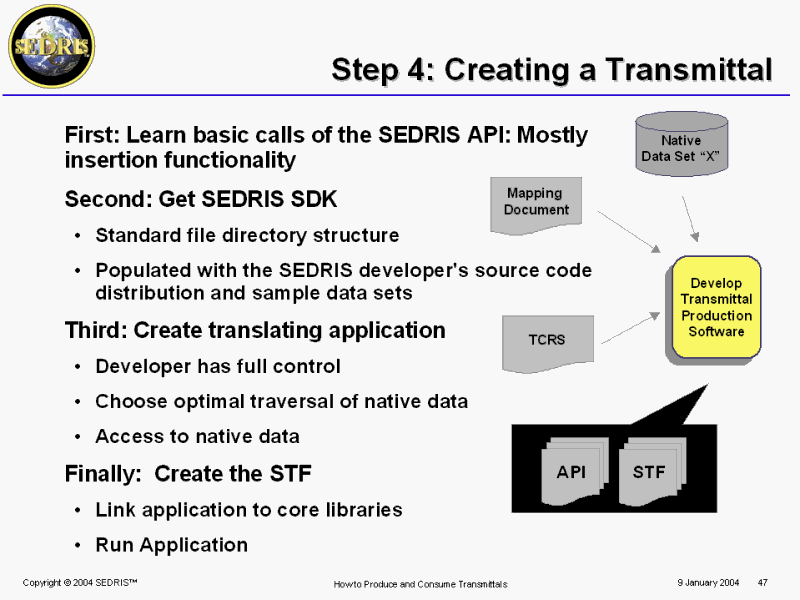

Step 4: Creating a Transmittal

48

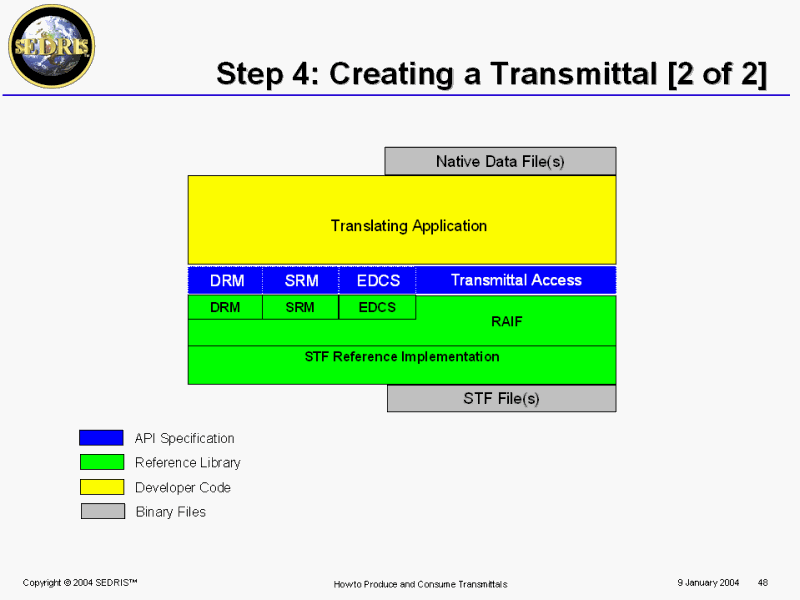

Step 4: Creating a Transmittal [2 of 2]

49

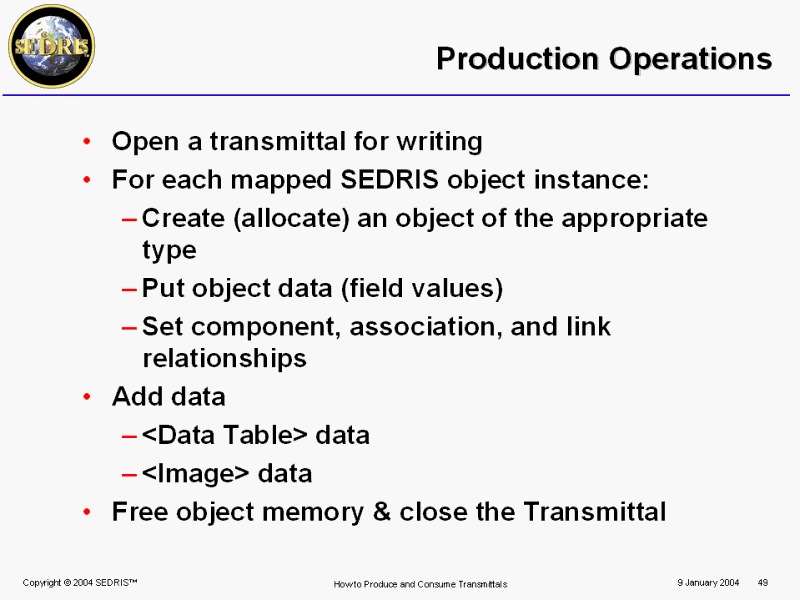

Production Operations

50

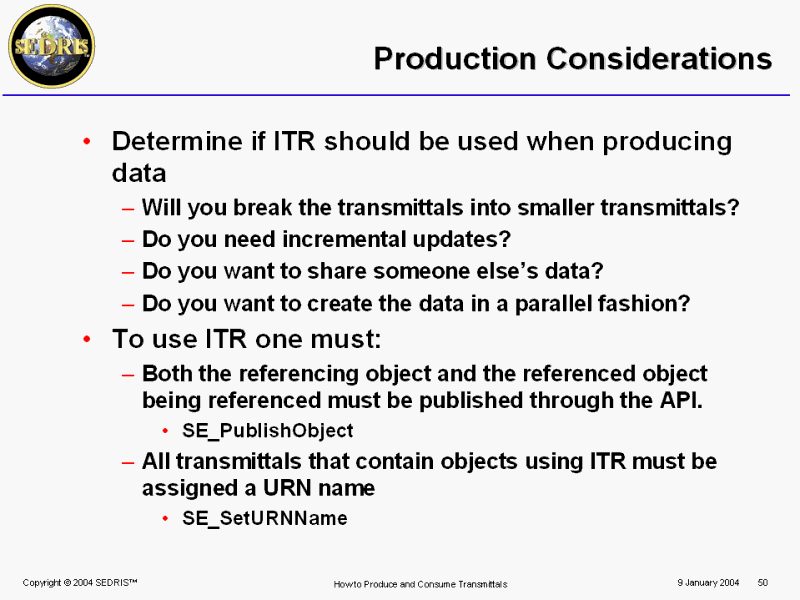

Production Considerations

51

Production Considerations [2 of 3]

52

Production Considerations [3 of 3]

53

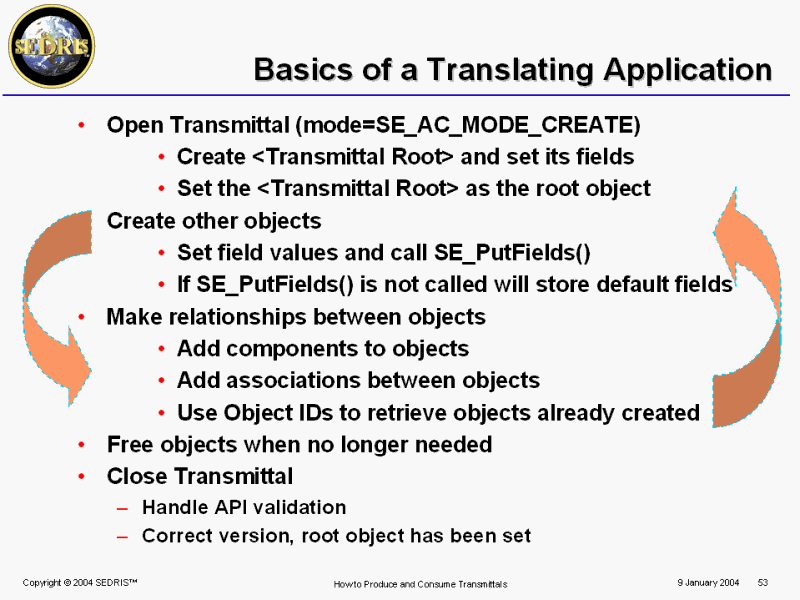

Basics of a Translating Application

54

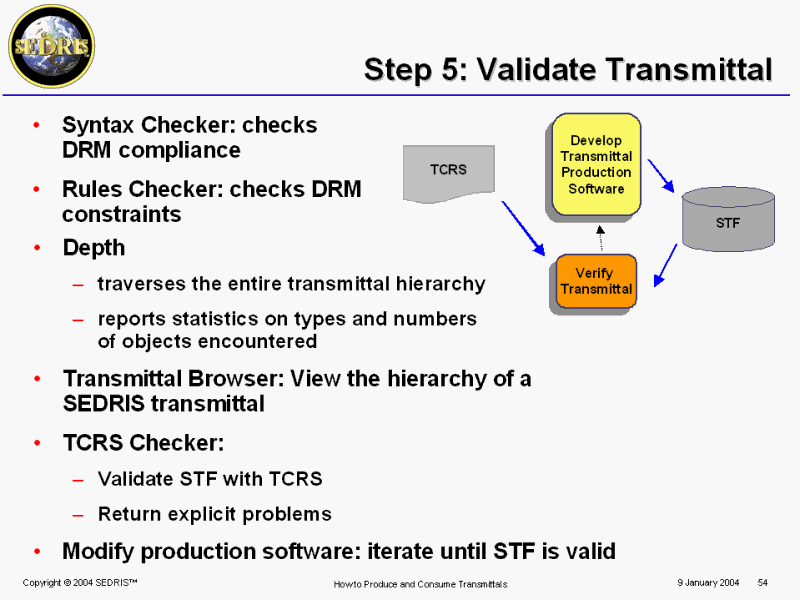

Step 5: Validate Transmittal

55

Questions ?

56

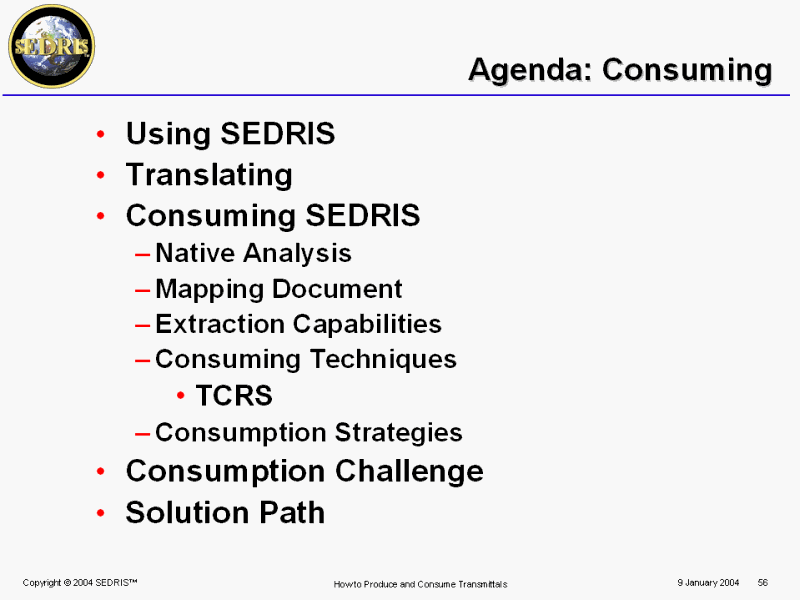

Agenda: Consuming

57

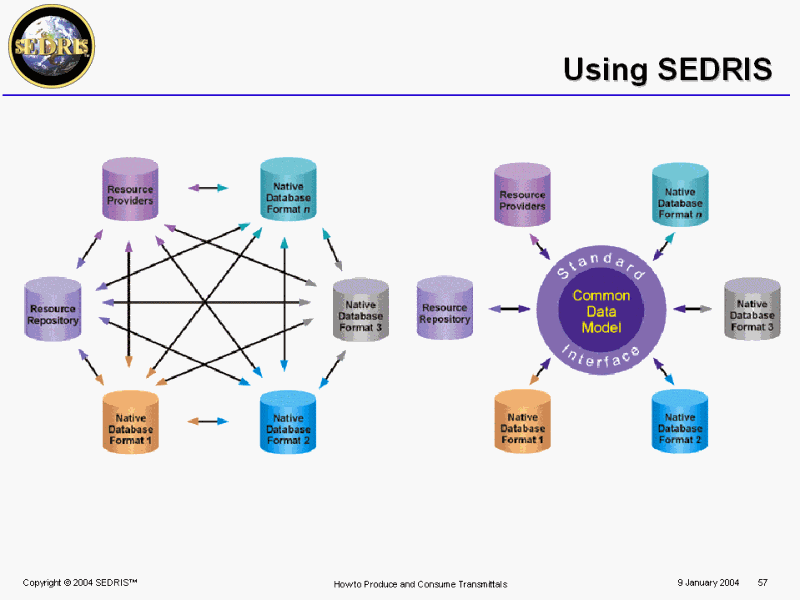

Using SEDRIS

58

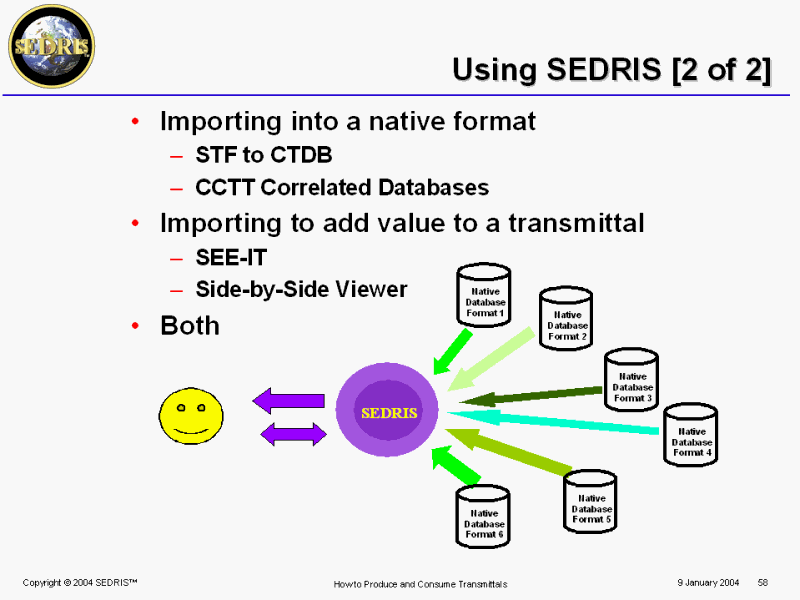

Using SEDRIS [2 of 2]

59

SEDRIS is about

60

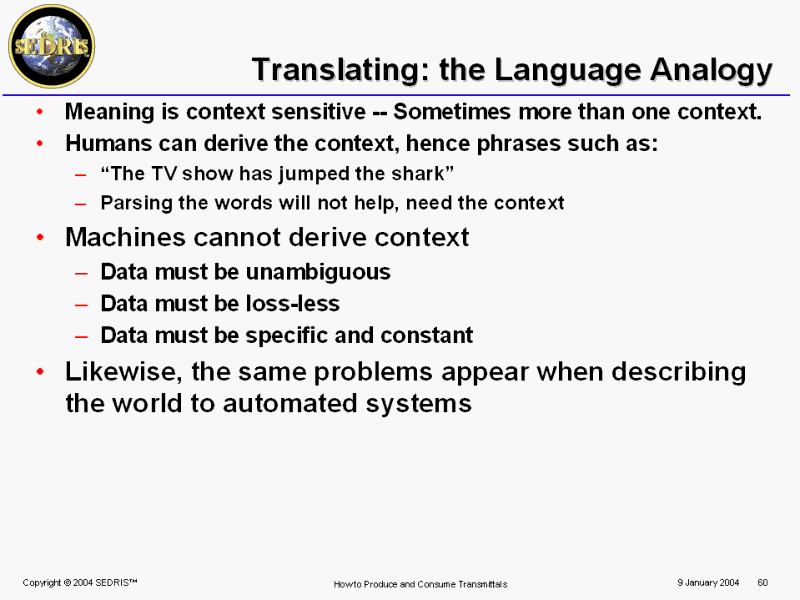

Translating: the Language Analogy

61

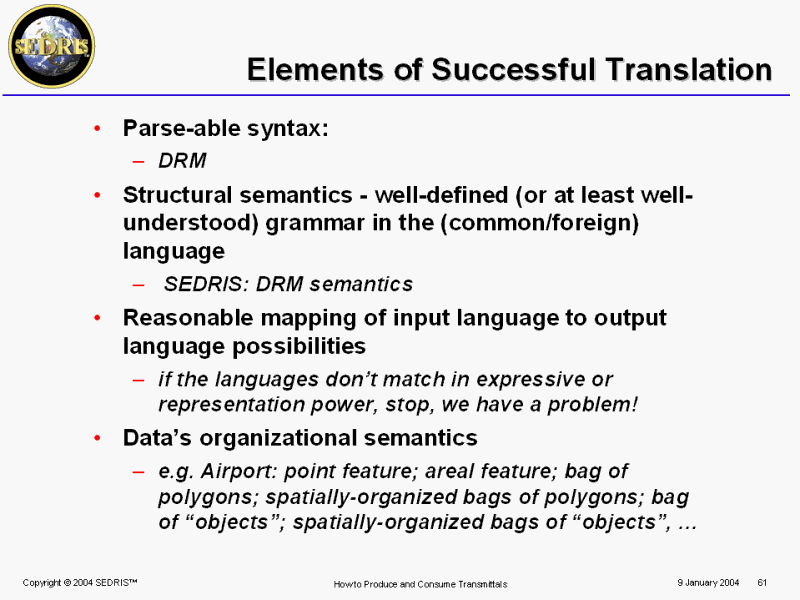

Elements of Successful Translation

62

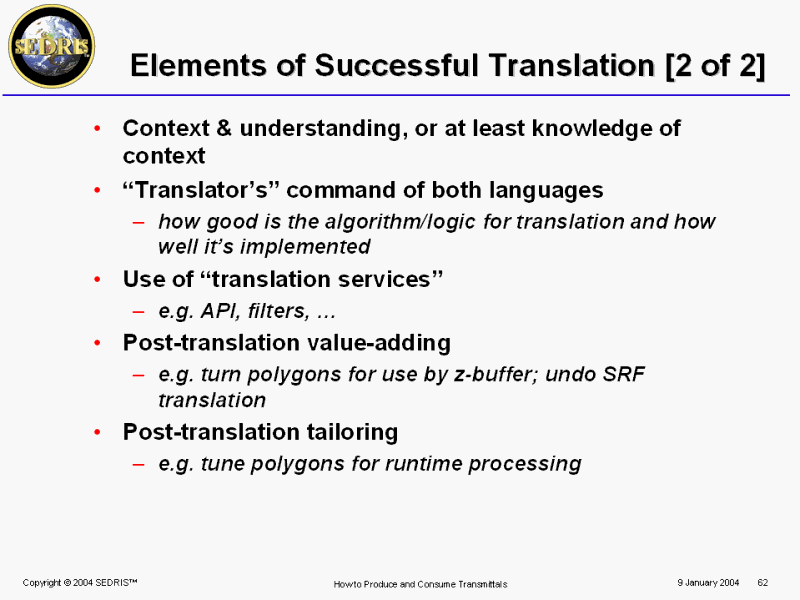

Elements of Successful Translation [2 of 2]

63

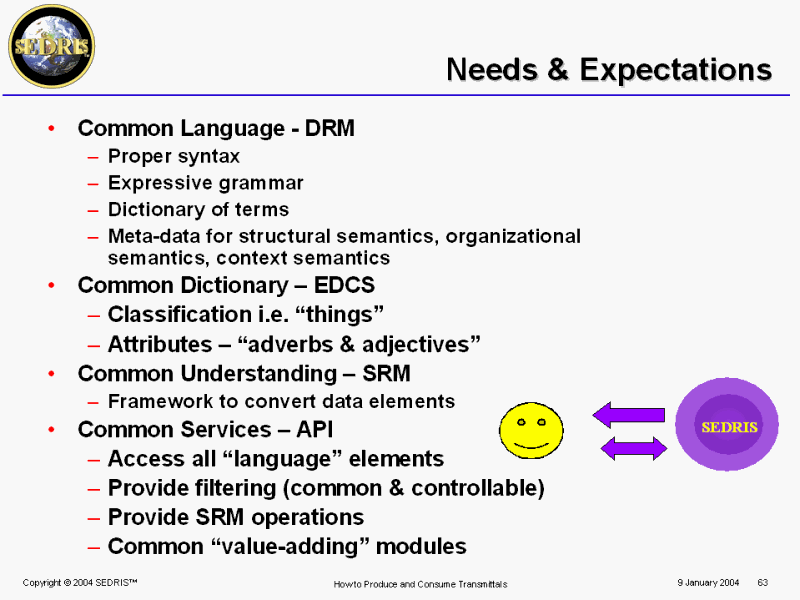

Needs & Expectations

64

Production and Consumption Process

65

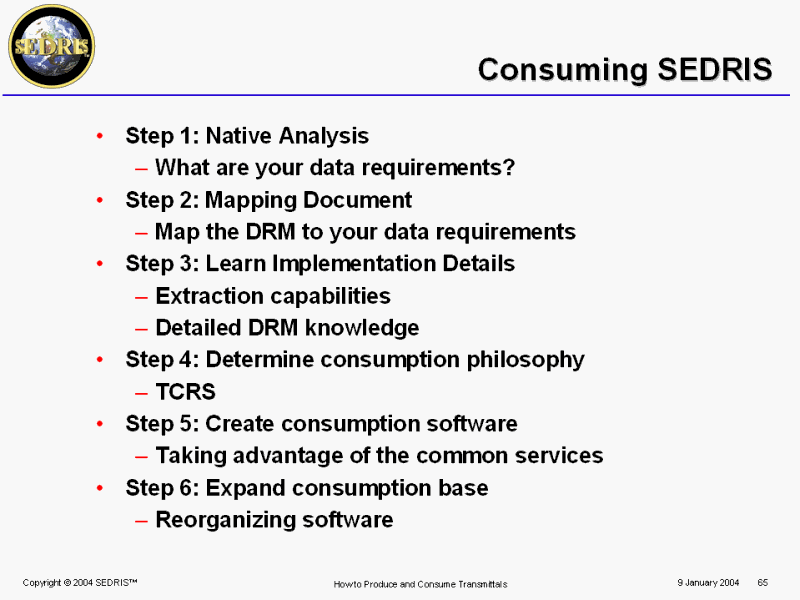

Consuming SEDRIS

66

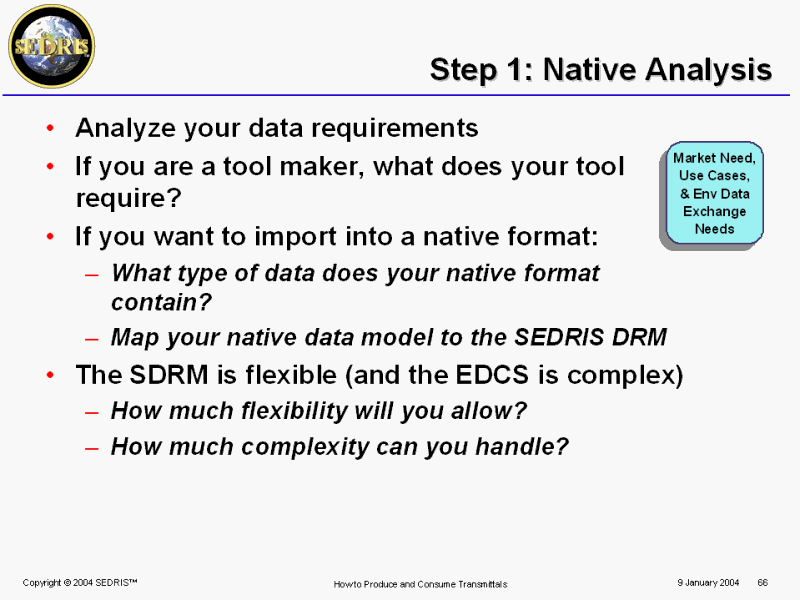

Step 1: Native Analysis

67

Step 2: Mapping Document

68

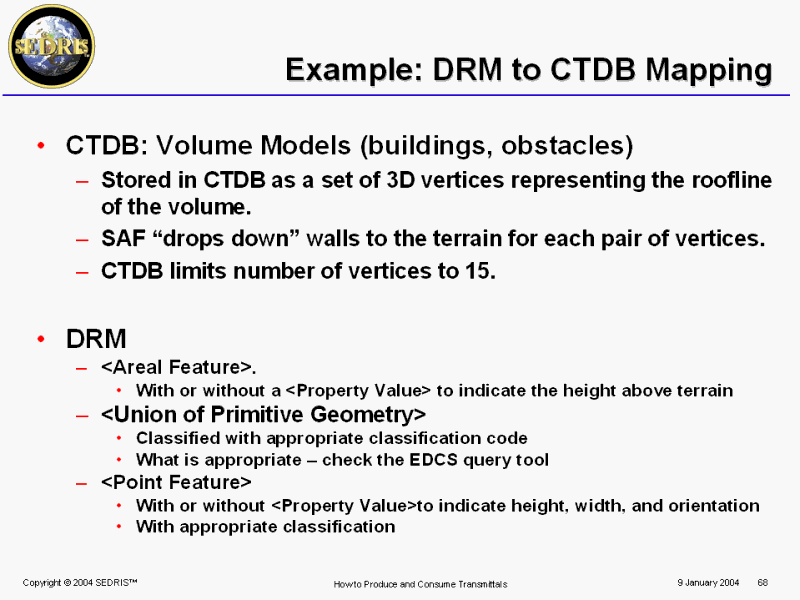

Example: DRM to CTDB Mapping

69

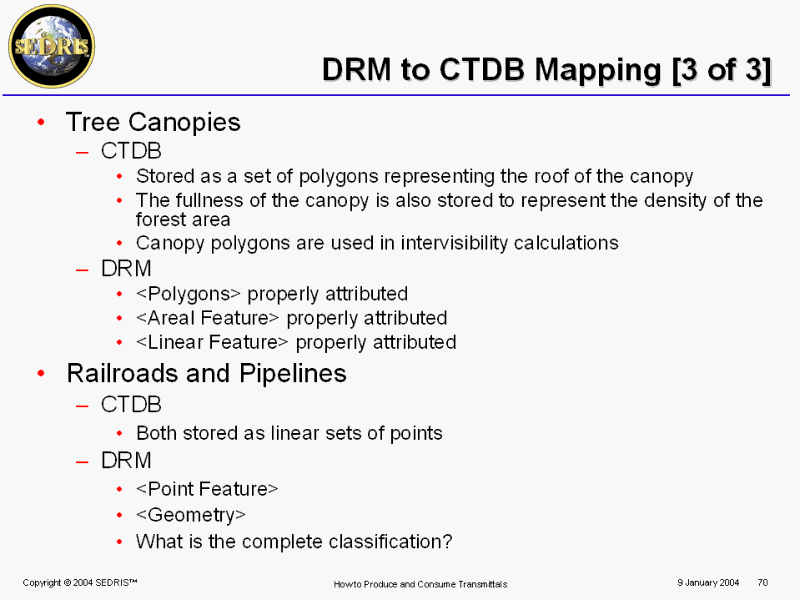

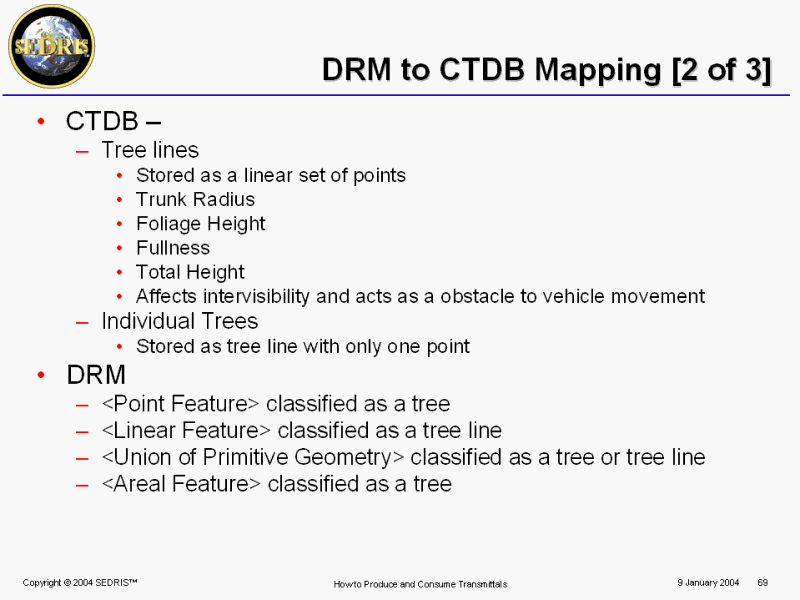

DRM to CTDB Mapping [2 of 3]

70

DRM to CTDB Mapping [3 of 3]

71

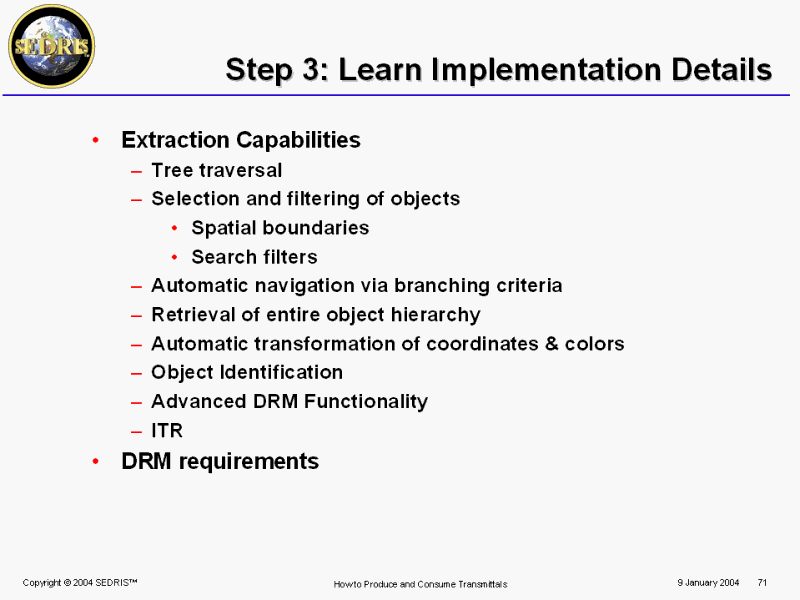

Step 3: Learn Implementation Details

72

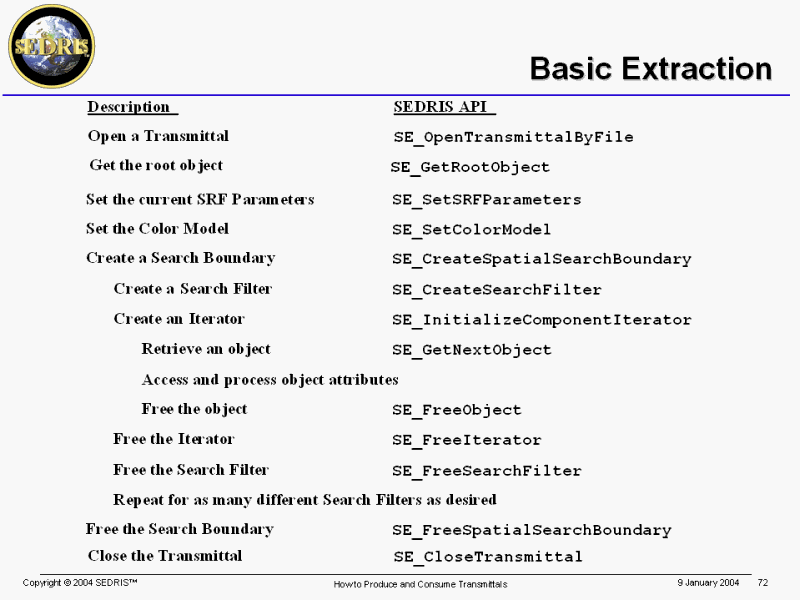

Basic Extraction

73

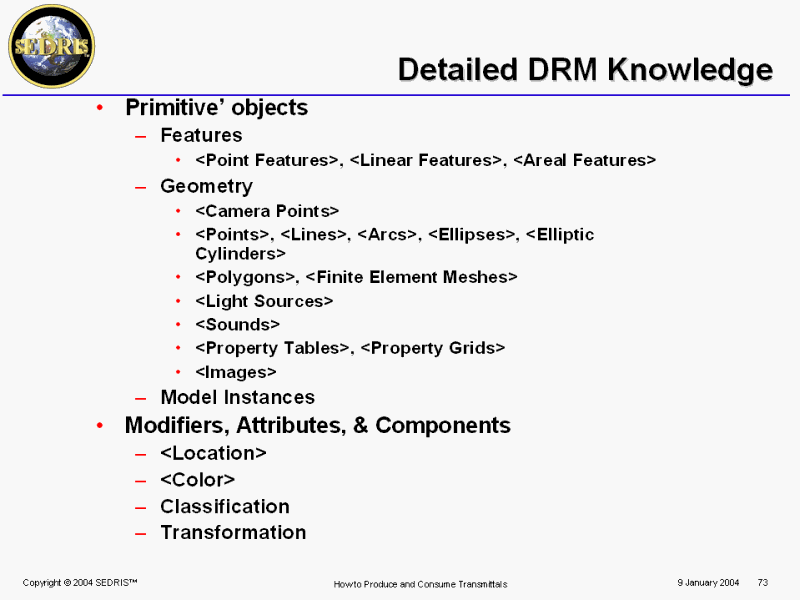

Detailed DRM Knowledge

74

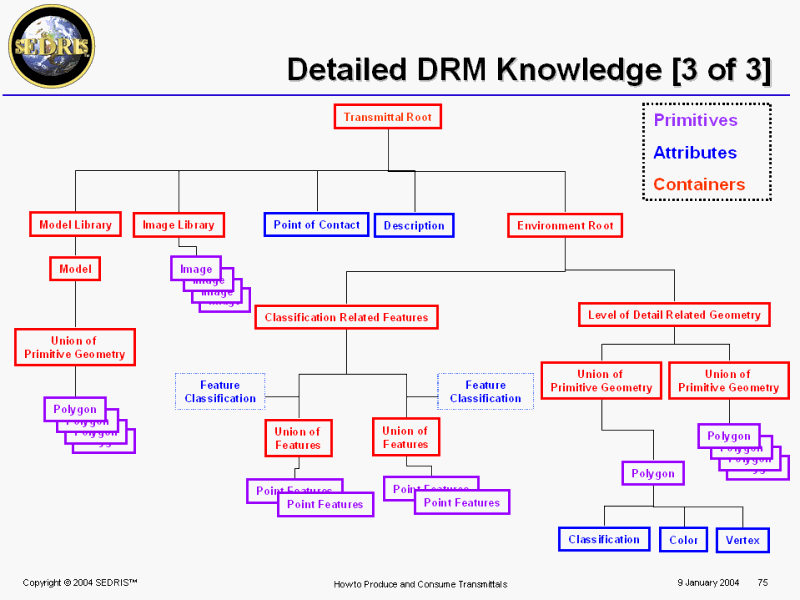

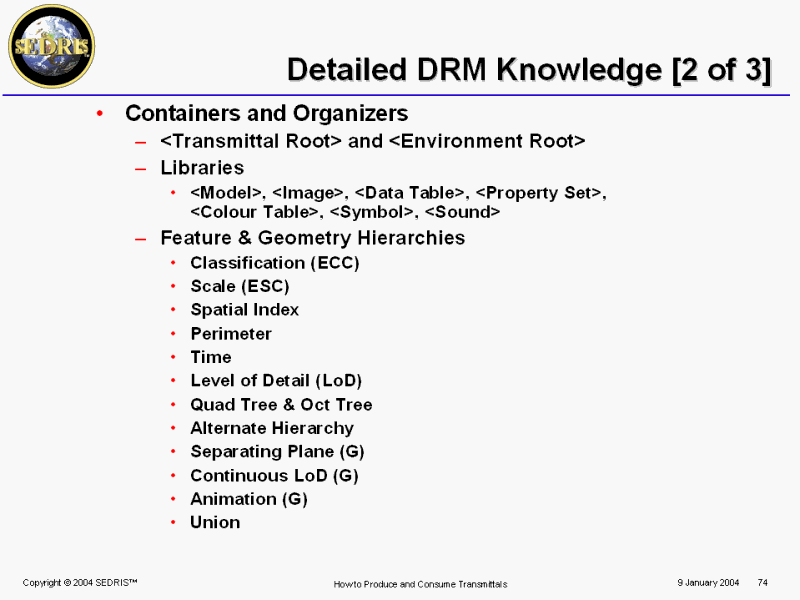

Detailed DRM Knowledge [2 of 3]

75

Detailed DRM Knowledge [3 of 3]

76

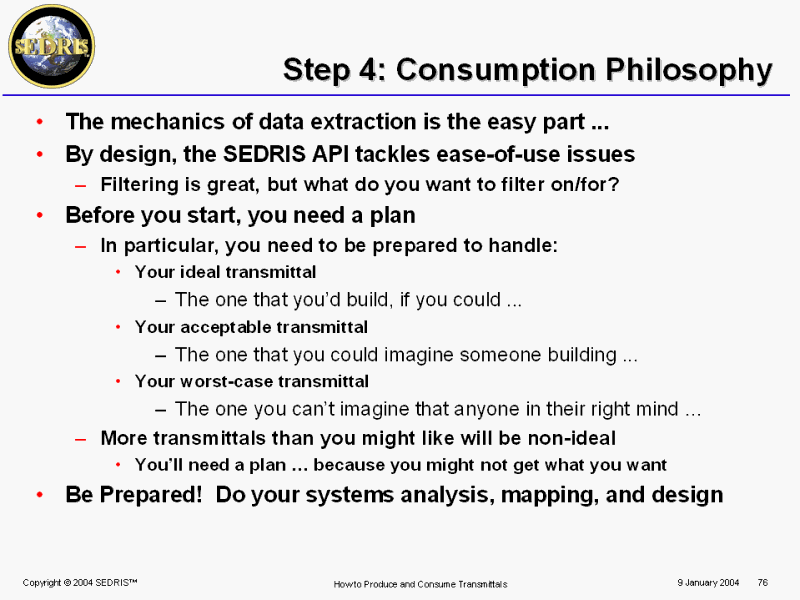

Step 4: Consumption Philosophy

77

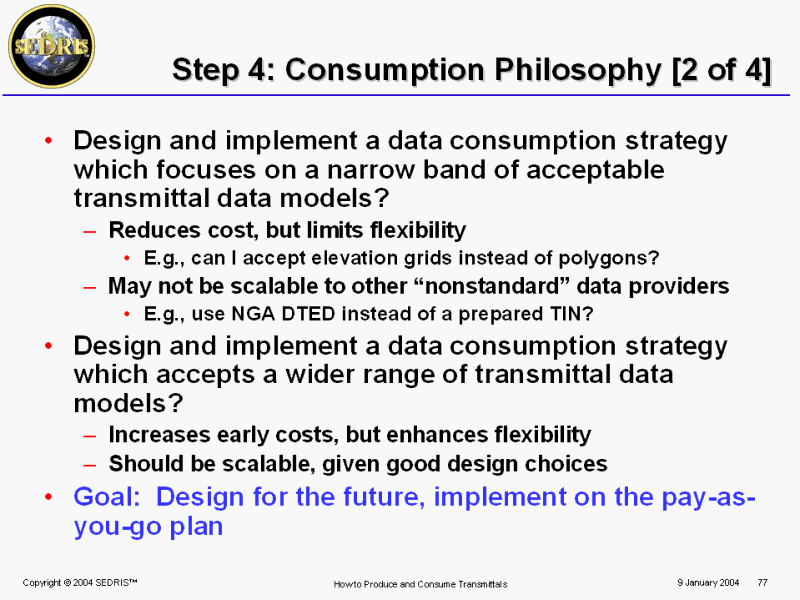

Step 4: Consumption Philosophy [2 of 4]

78

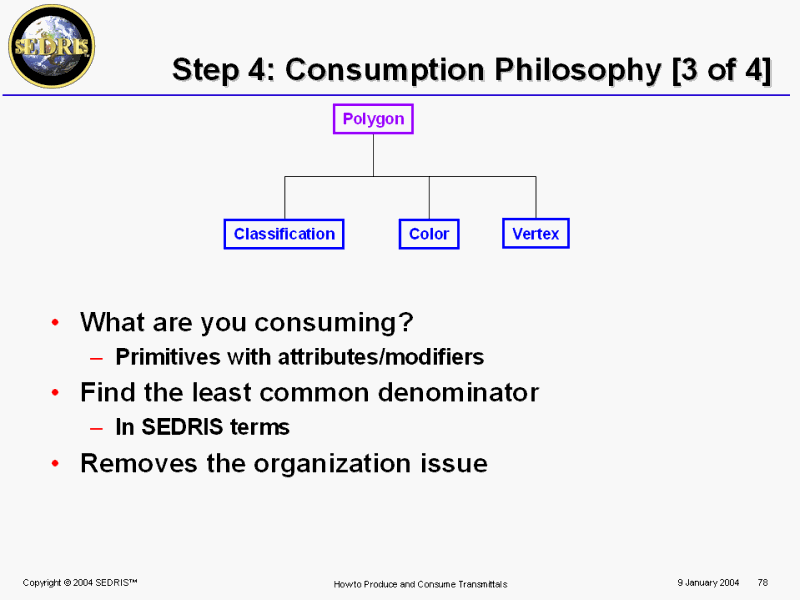

Step 4: Consumption Philosophy [3 of 4]

79

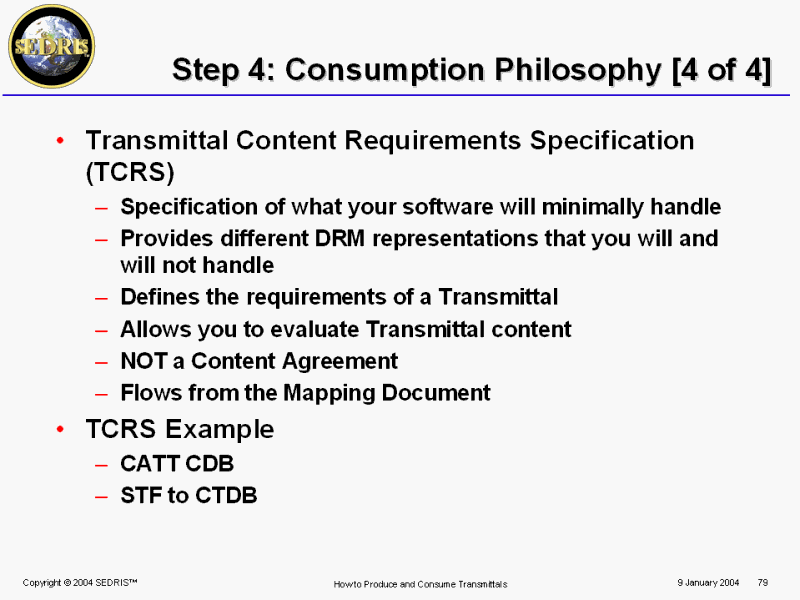

Step 4: Consumption Philosophy [4 of 4]

80

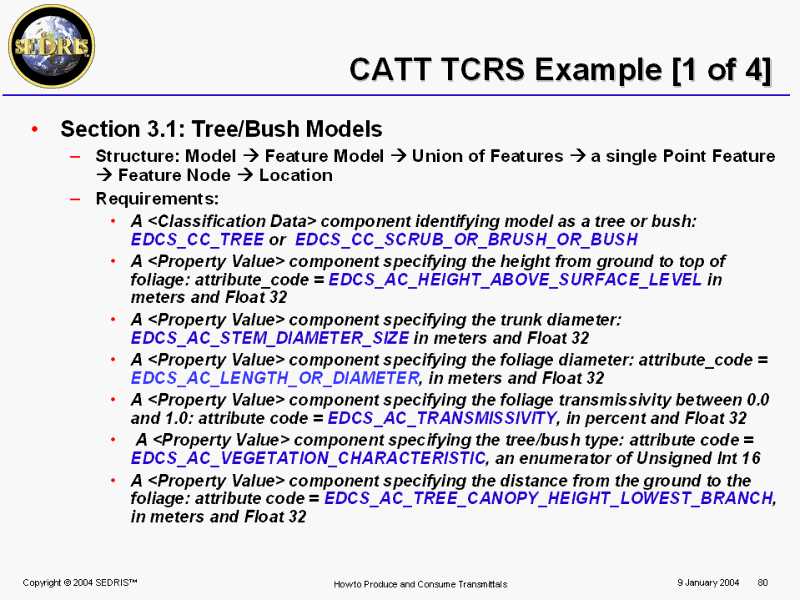

CATT TCRS Example [1 of 4]

81

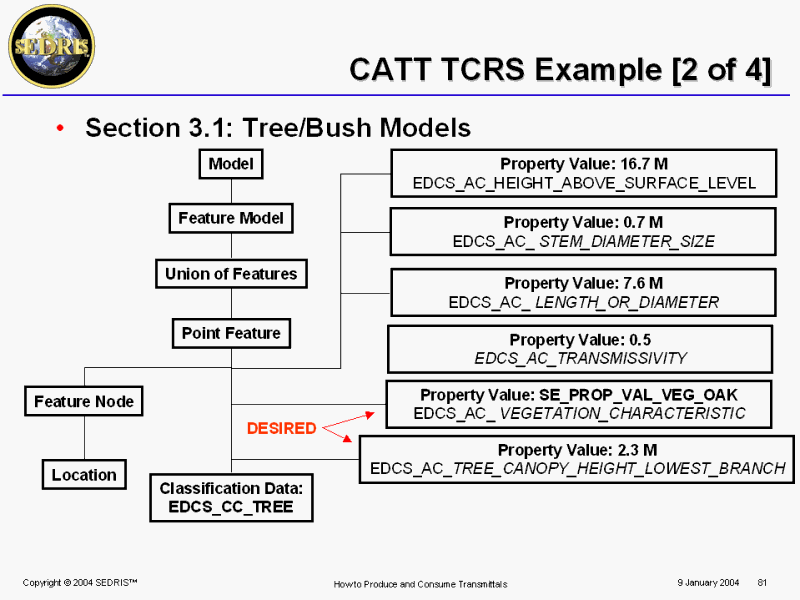

CATT TCRS Example [2 of 4]

82

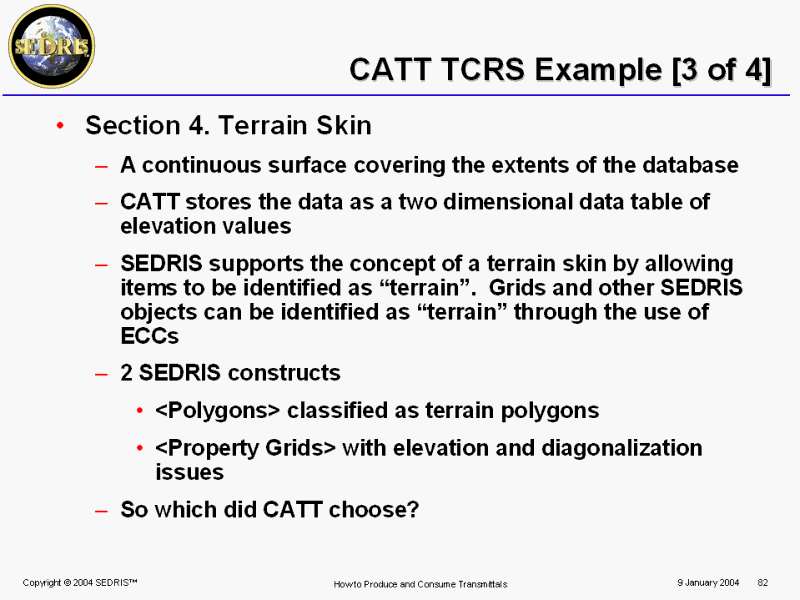

CATT TCRS Example [3 of 4]

83

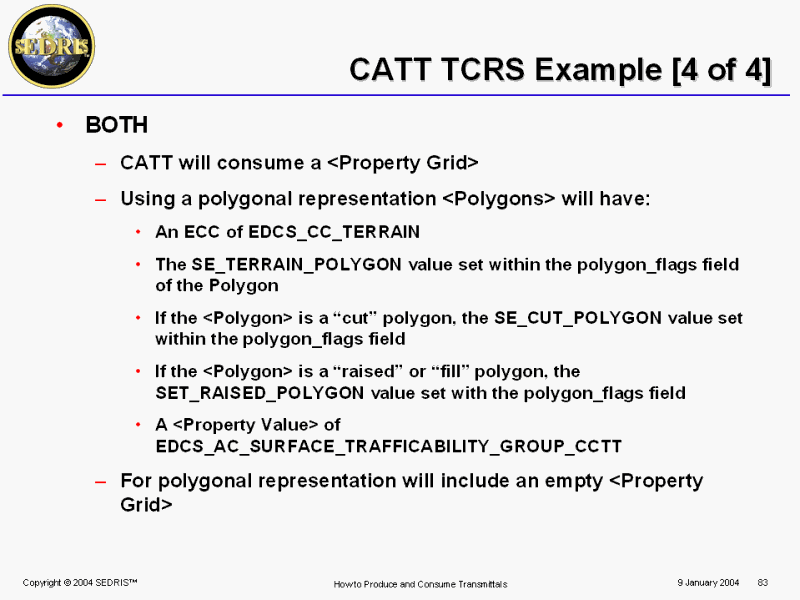

CATT TCRS Example [4 of 4]

84

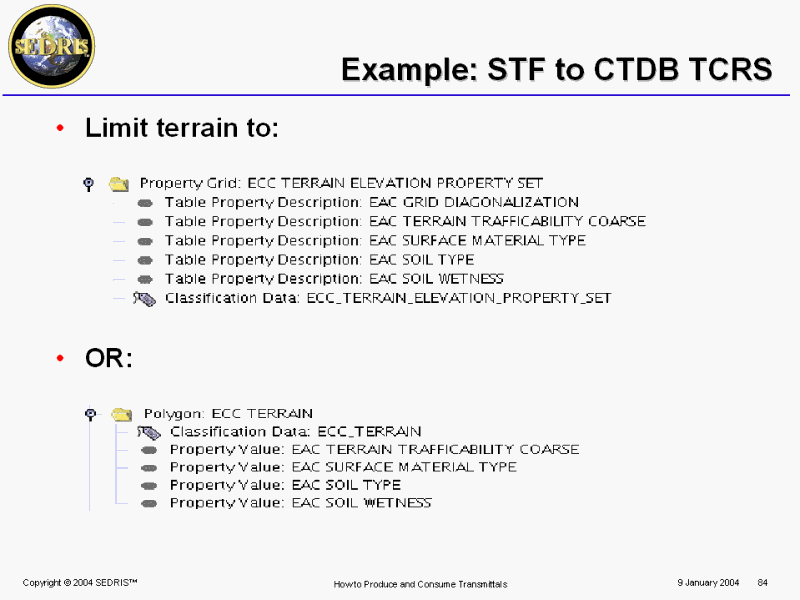

Example: STF to CTDB TCRS

85

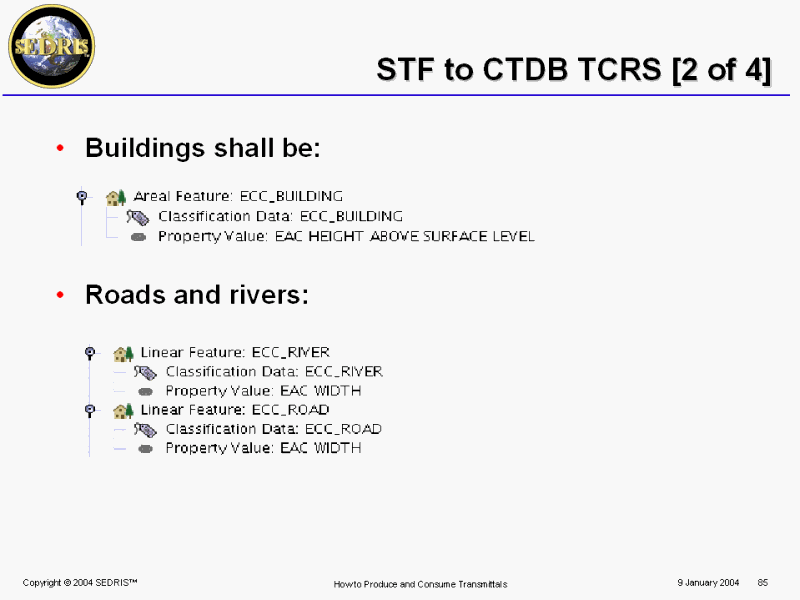

STF to CTDB TCRS [2 of 4]

86

STF to CTDB TCRS [3 of 4]

87

STF to CTDB TCRS [4 of 4]

88

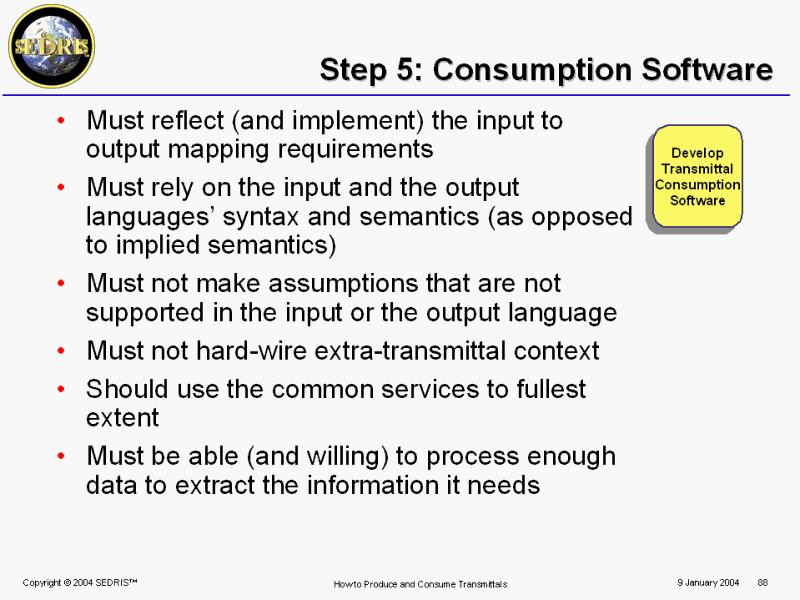

Step 5: Consumption Software

89

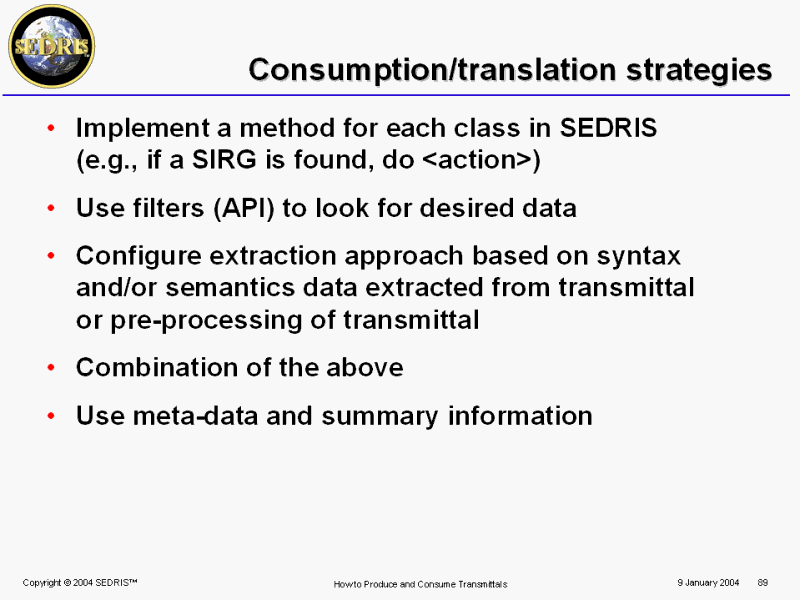

Consumption/translation strategies

90

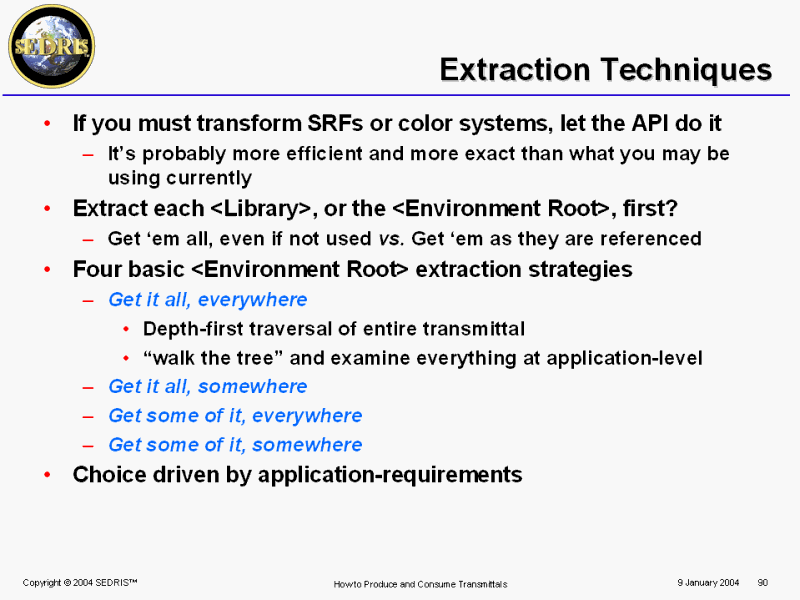

Extraction Techniques

91

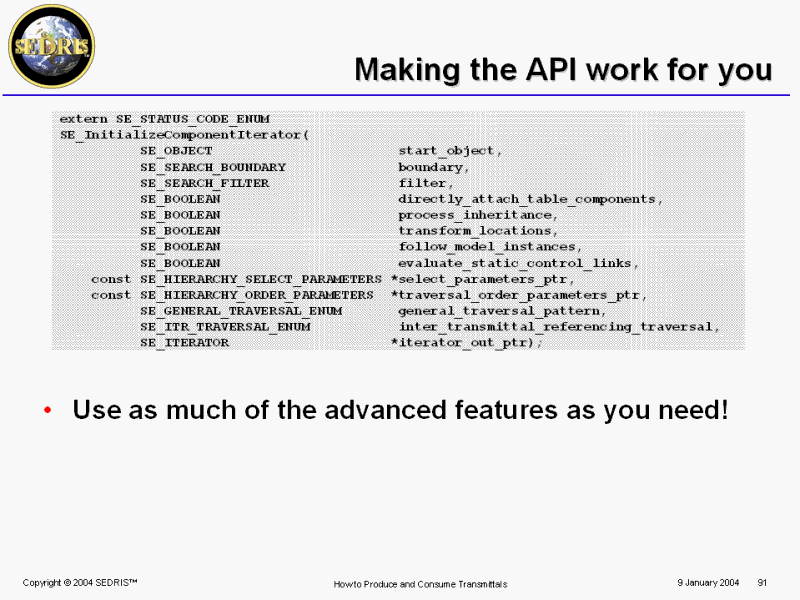

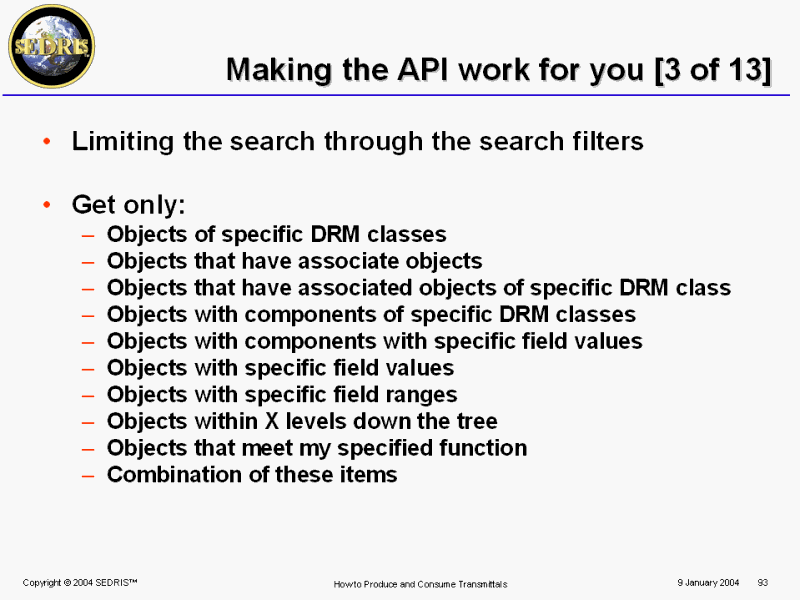

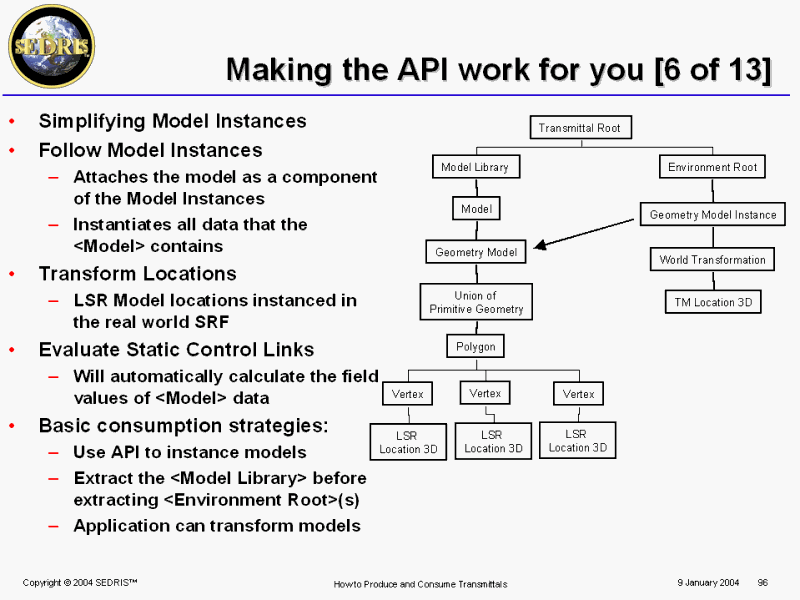

Making the API work for you

92

PPT Slide

93

PPT Slide

94

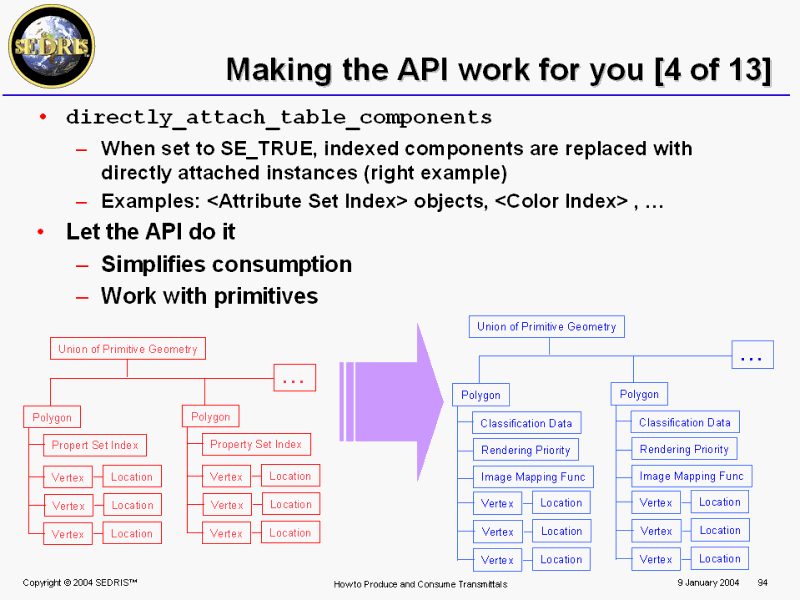

PPT Slide

95

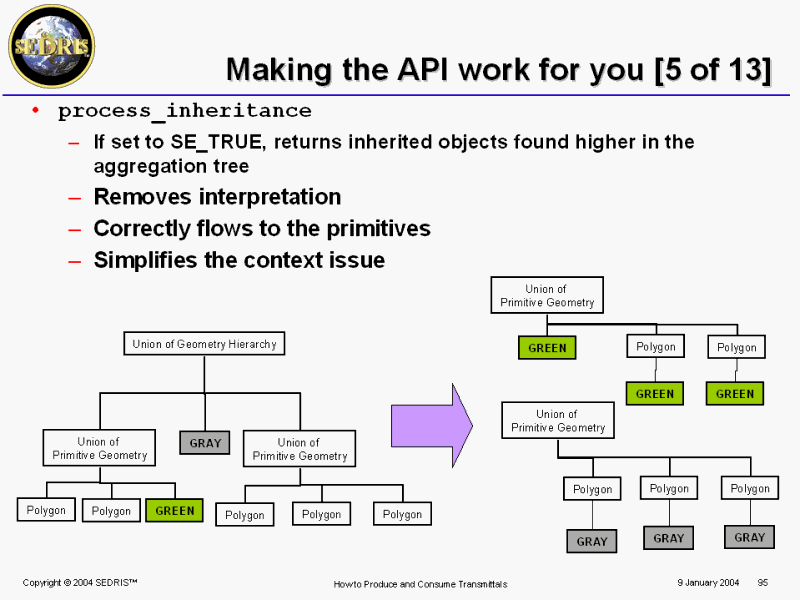

PPT Slide

96

PPT Slide

97

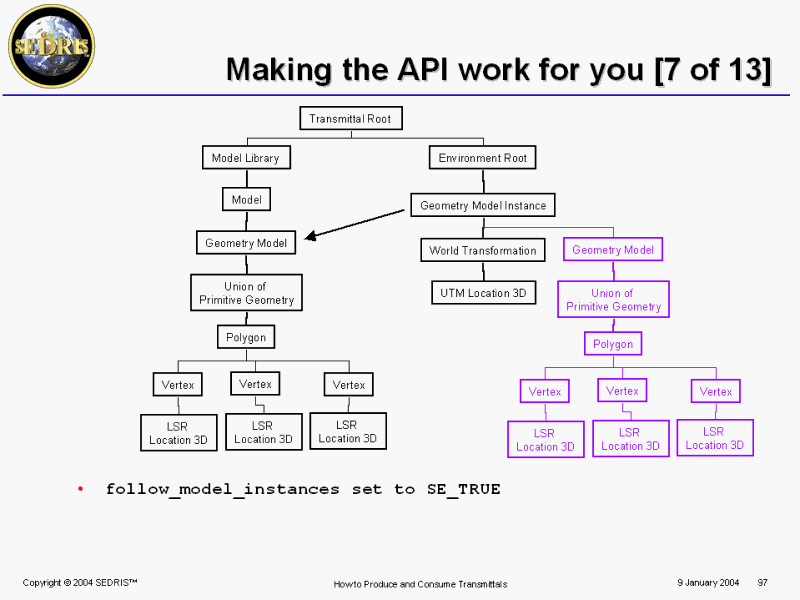

PPT Slide

98

PPT Slide

99

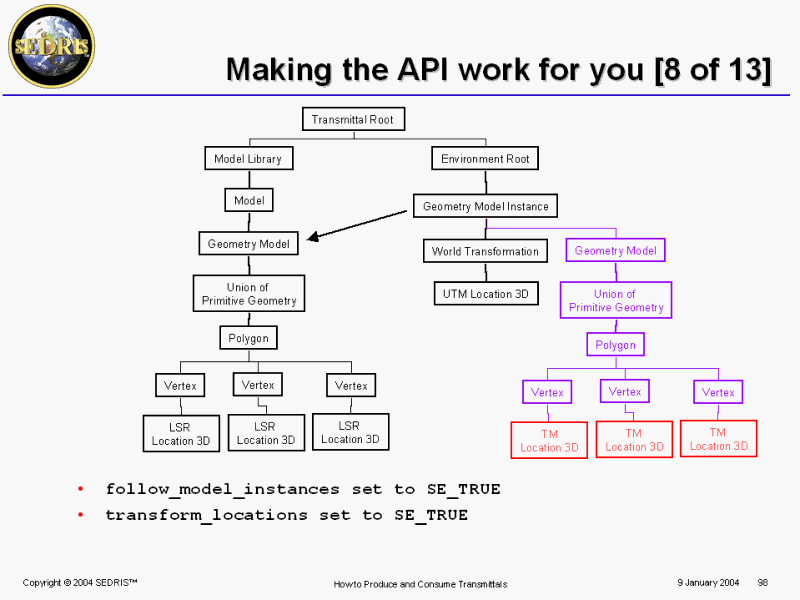

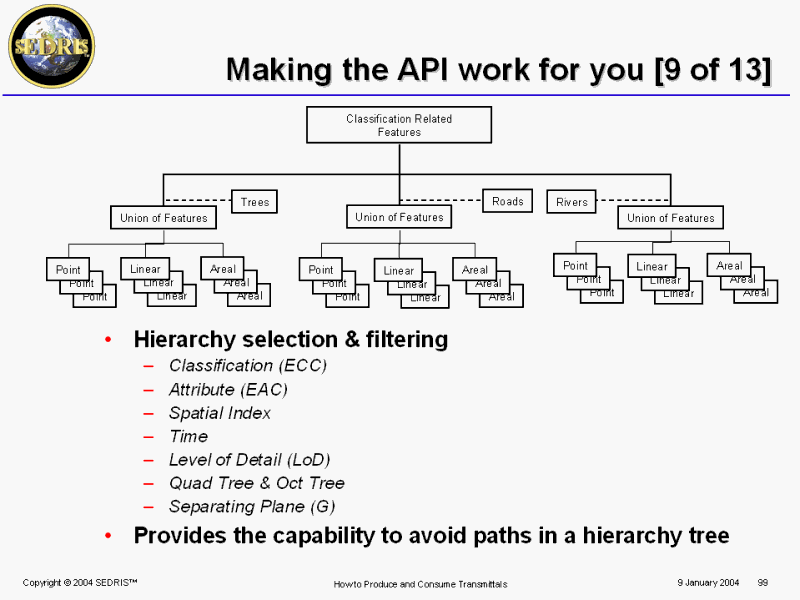

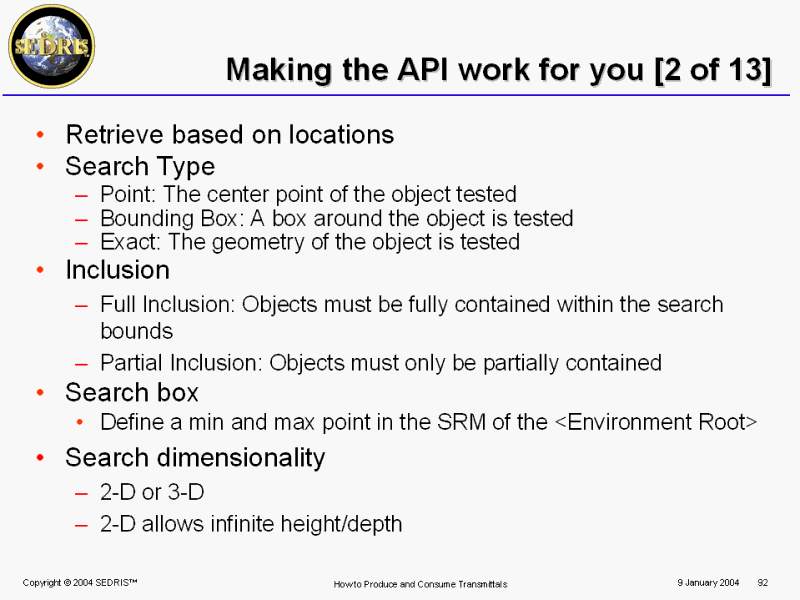

Making the API work for you [9 of 13]

100

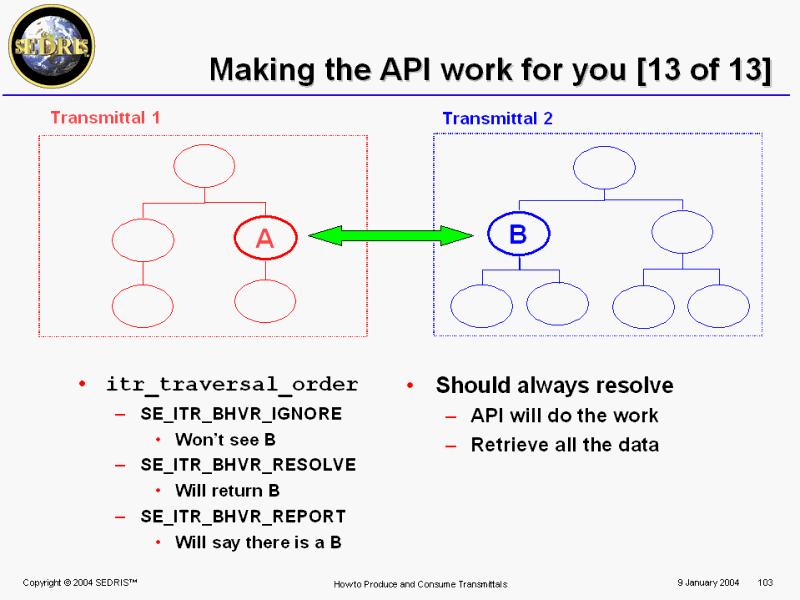

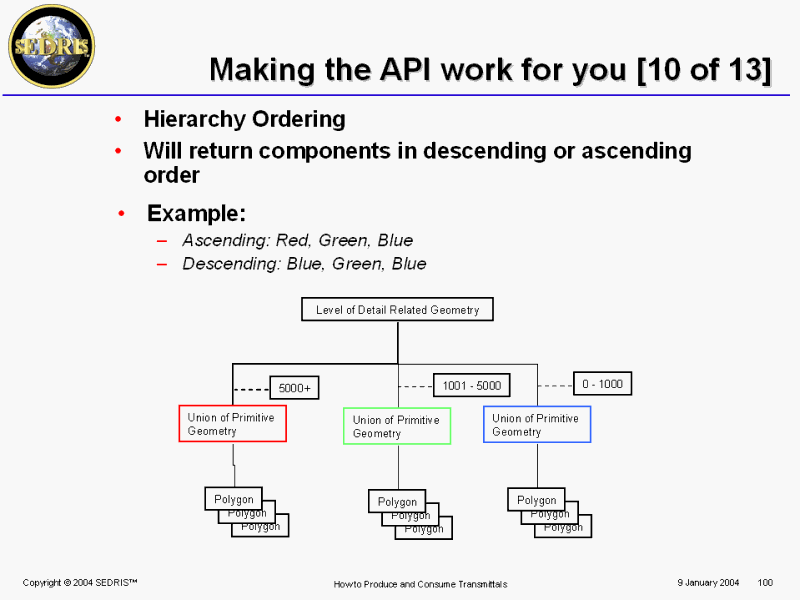

Making the API work for you [10 of 13]

101

Making the API work for you [11 of 13]

102

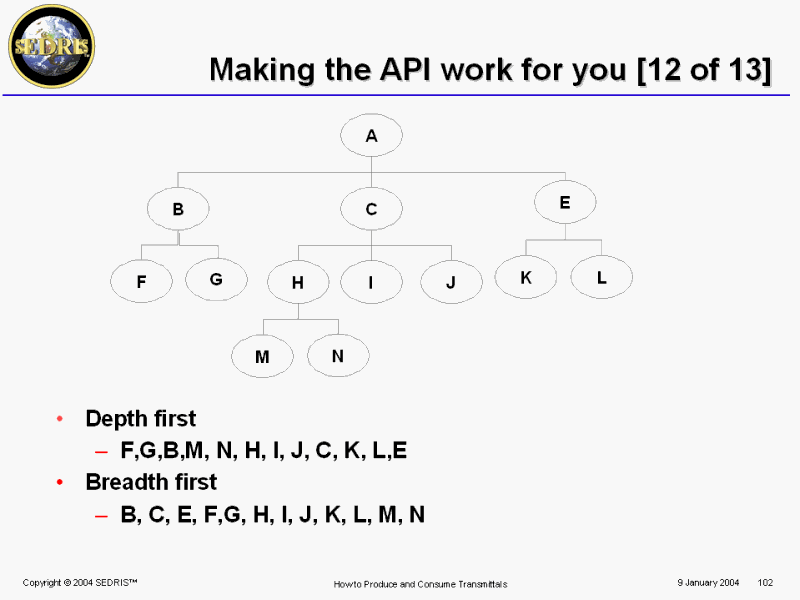

PPT Slide

103

PPT Slide

104

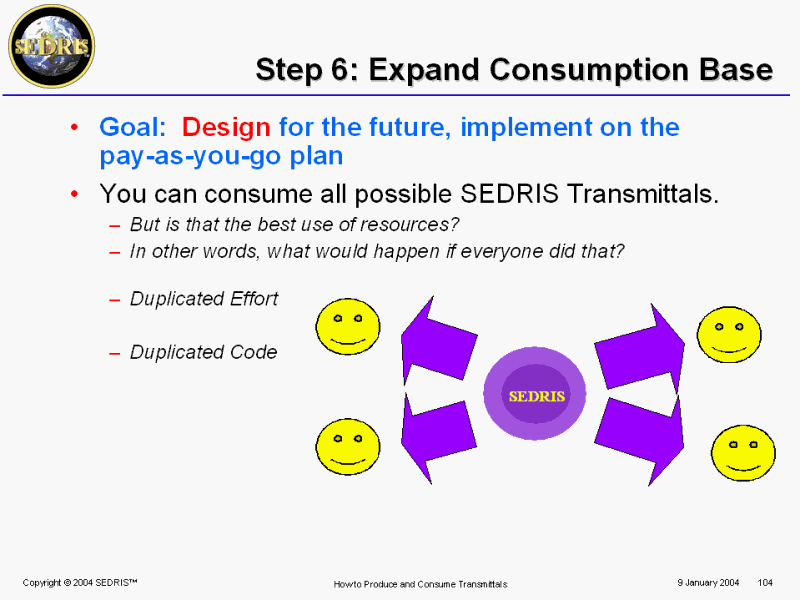

Step 6: Expand Consumption Base

105

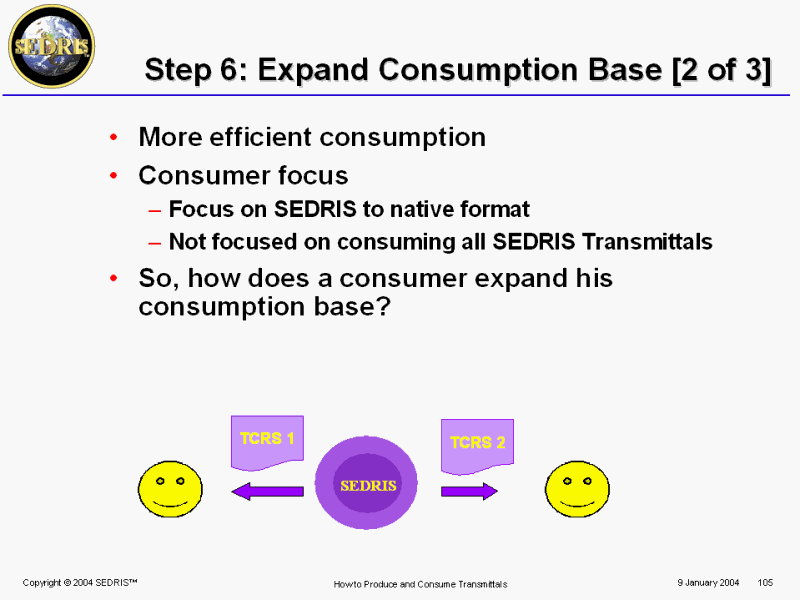

Step 6: Expand Consumption Base [2 of 3]

106

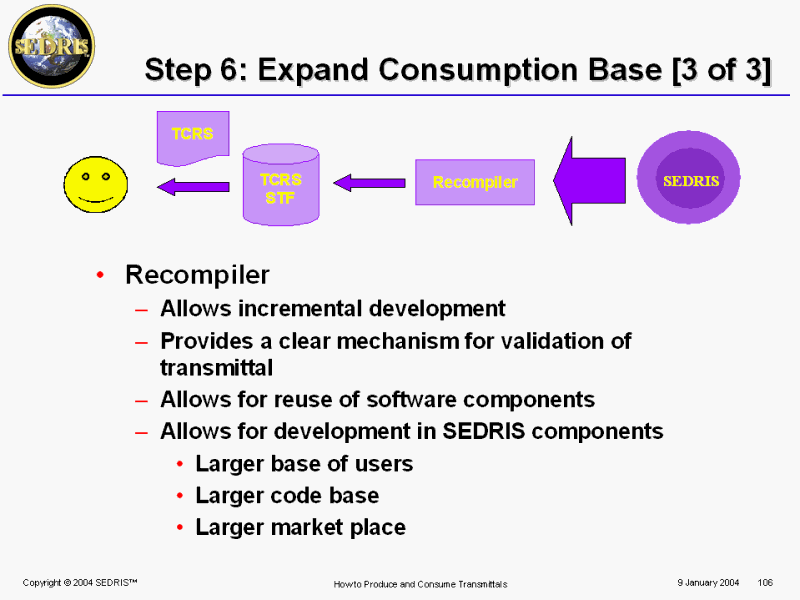

Step 6: Expand Consumption Base [3 of 3]

107

Case Study

108

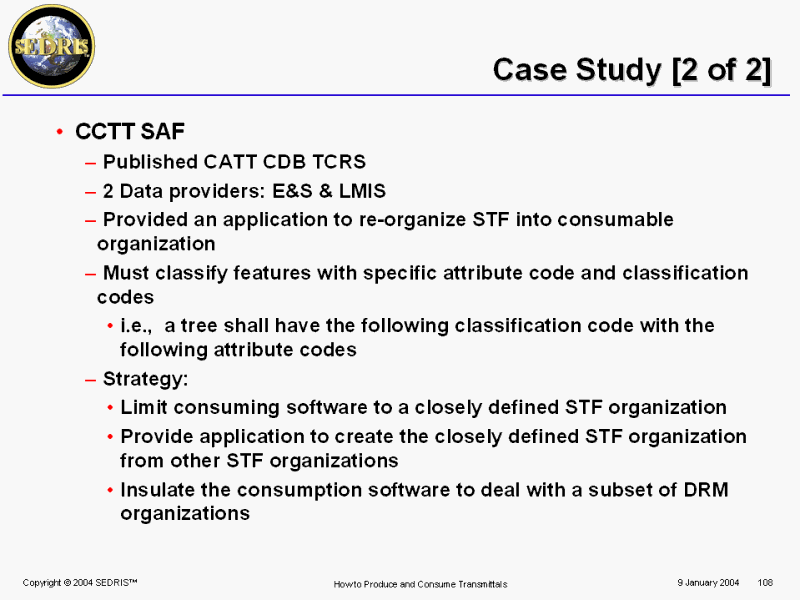

Case Study [2 of 2]

109

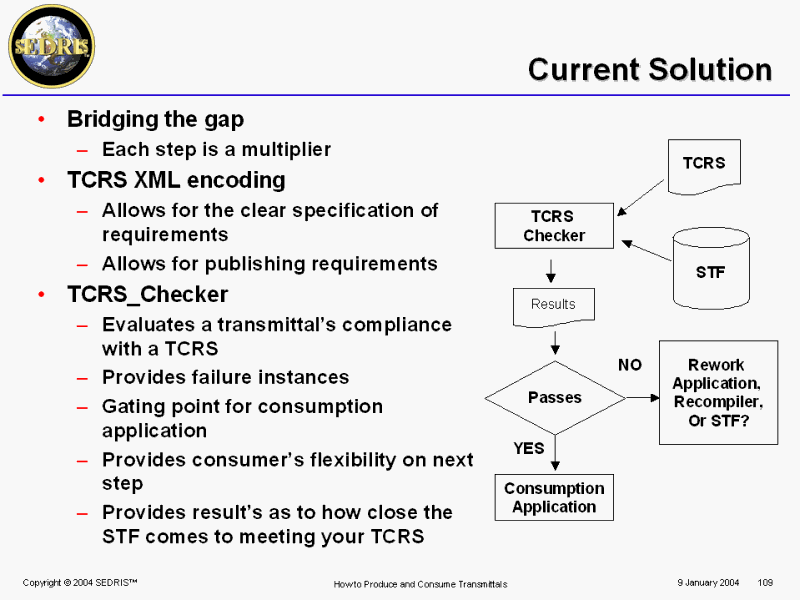

Current Solution

110

Final Solution Path

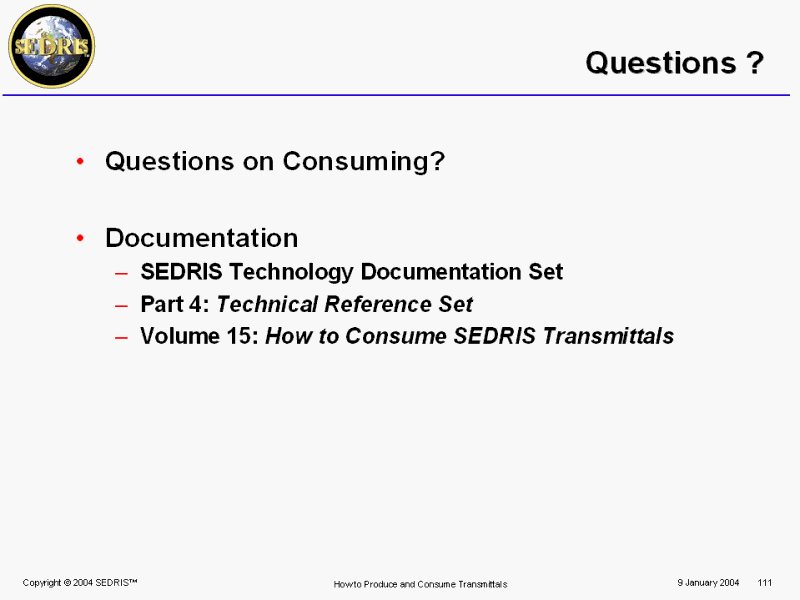

111

Questions ?

.
