The SEDRIS Data Representation Model
APPENDIX A - Classes
EDCS Use Summary Item

Class Name: EDCS Use Summary Item

Superclass - <SEDRIS Abstract Base>

Subclasses

This DRM class is concrete and has no subclasses.

Definition

Within the scope being summarized, an instance of this DRM class can specify either an ECC with an optional set of EACs, or just an individual EAC.

The <Classification Data> instance, which may be qualified by <Property Value> instances, represents the (potentially qualified) classification being described, if any.

Primary Page in DRM Diagram:

Secondary Pages in DRM Diagram:

This class appears on only one page of the DRM class diagram.

Example

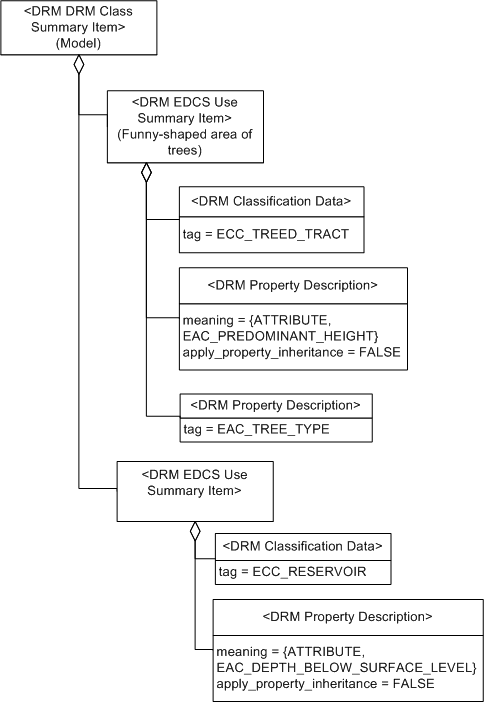

  1. A transmittal containing two different <Model> instances, one classified using ECC_TREED_TRACT with <Property Value> components and the other classified using ECC_RESERVOIR with <Property Value> components as depicted in Figure 6.15:

    EDCS Use Summary Item, Example 1

    Figure 15 — <DRM EDCS Use Summary Item> example

FAQs

No FAQs supplied.

Constraints

Composed of (two-way)

Component of (two-way)

Inherited Field Elements

This class has no inherited field elements.

Field Elements

SE_String description; 1

Notes

Fields Notes

description

The description specifies an abstract, human-readable description of the overall classification specified by the given instance. The description may be empty.
