Presentation Index


_

1

PPT Slide

2

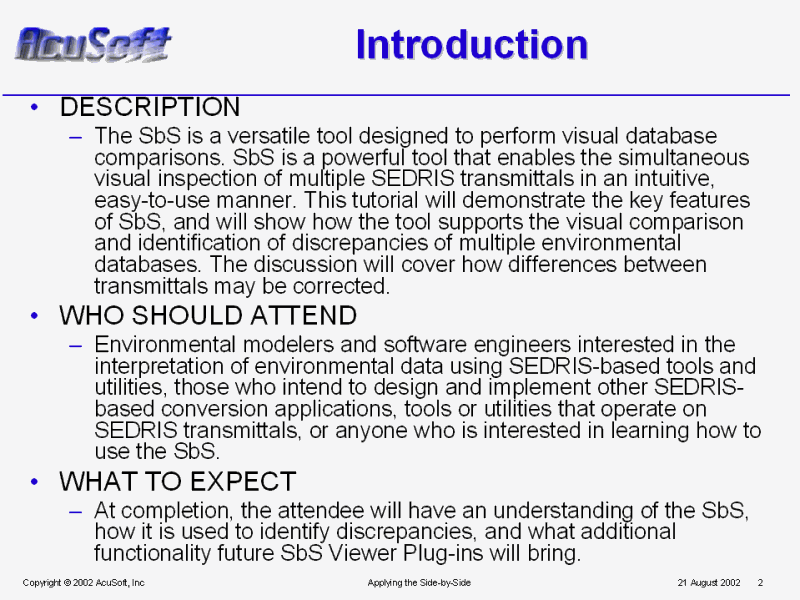

Introduction

3

Prerequisite

4

Tutorial Outline

5

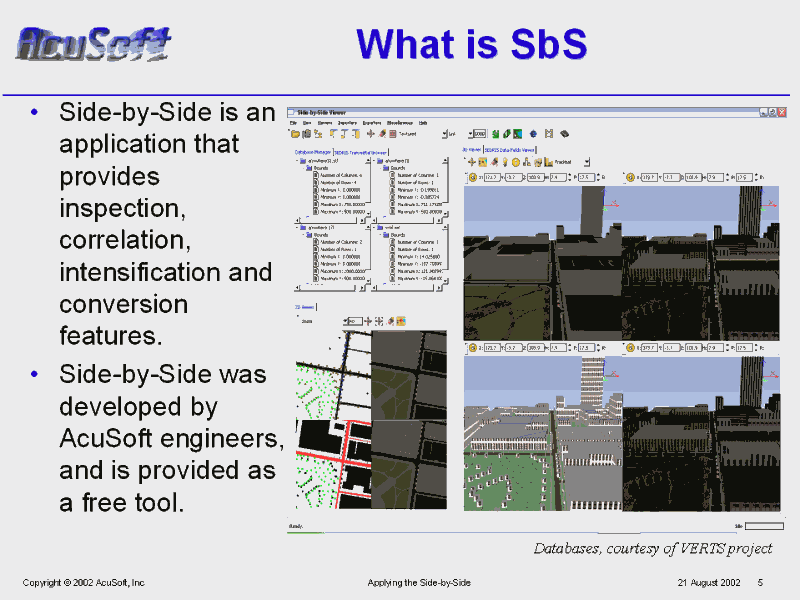

What is SbS

6

What is SbS: Overview

7

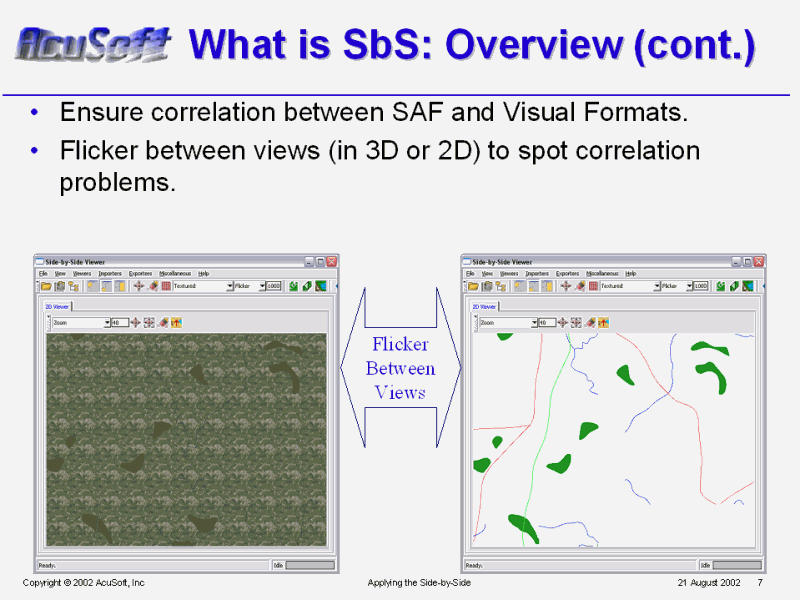

What is SbS: Overview (cont.)

8

What is SbS: Overview (cont.)

9

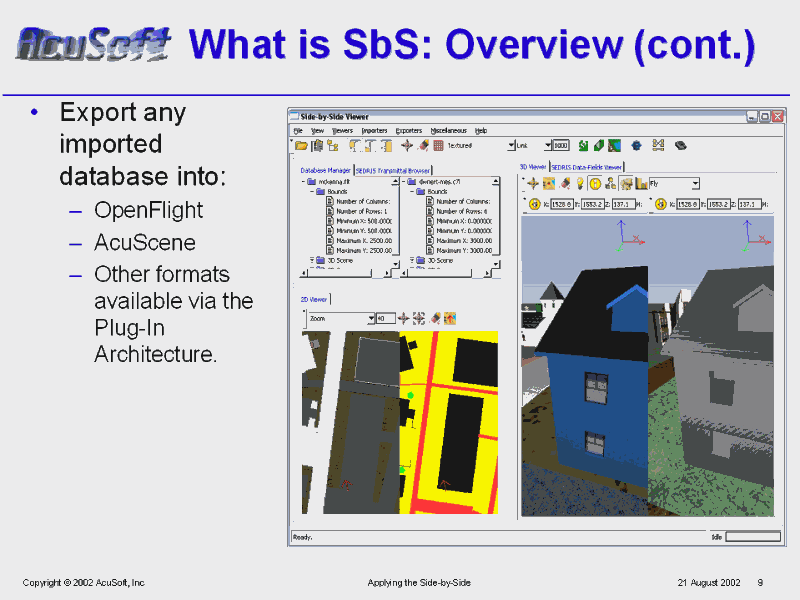

What is SbS: Overview (cont.)

10

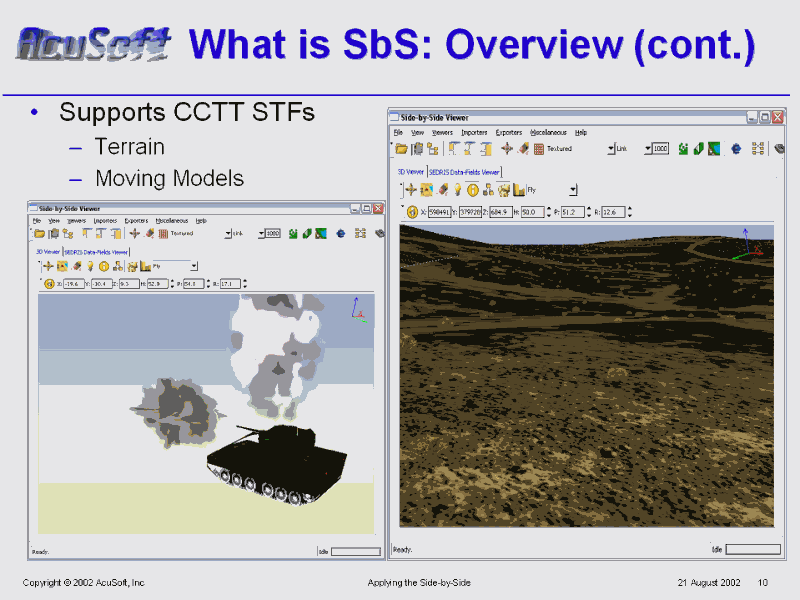

What is SbS: Overview (cont.)

11

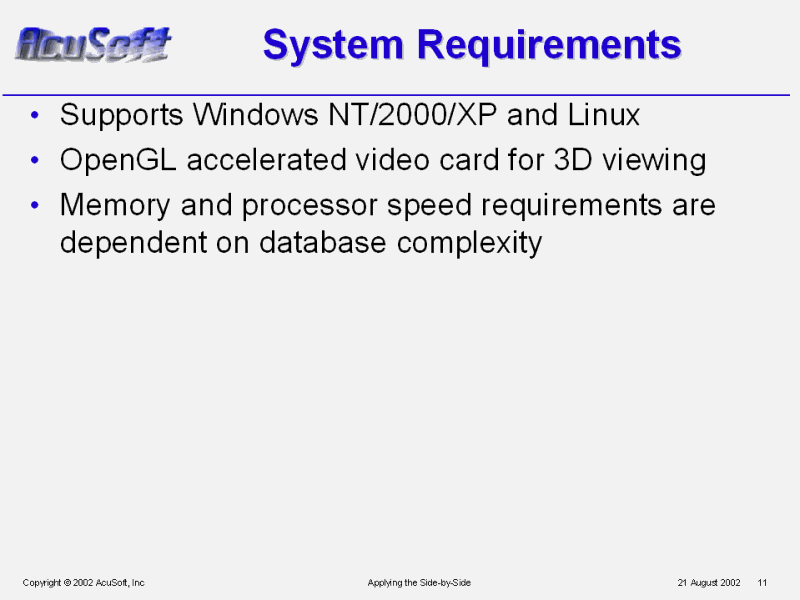

System Requirements

12

Plug-In Architecture

13

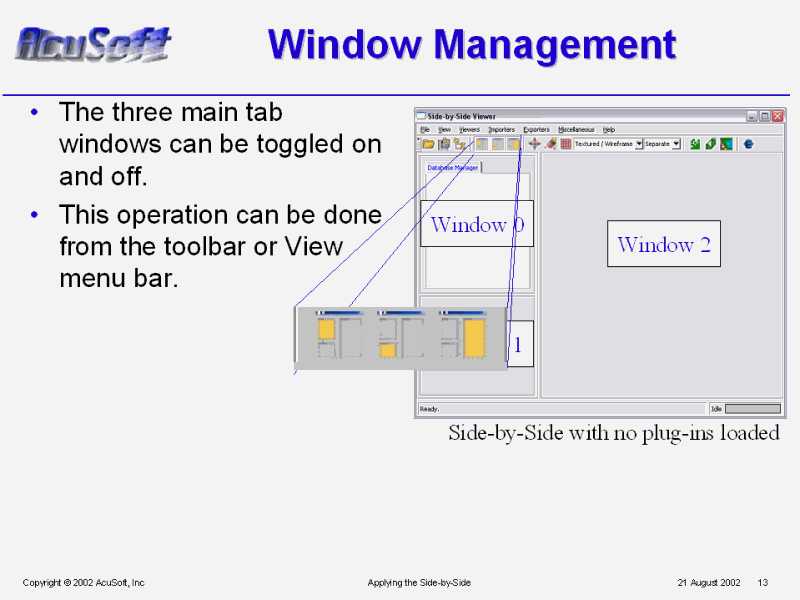

Window Management

14

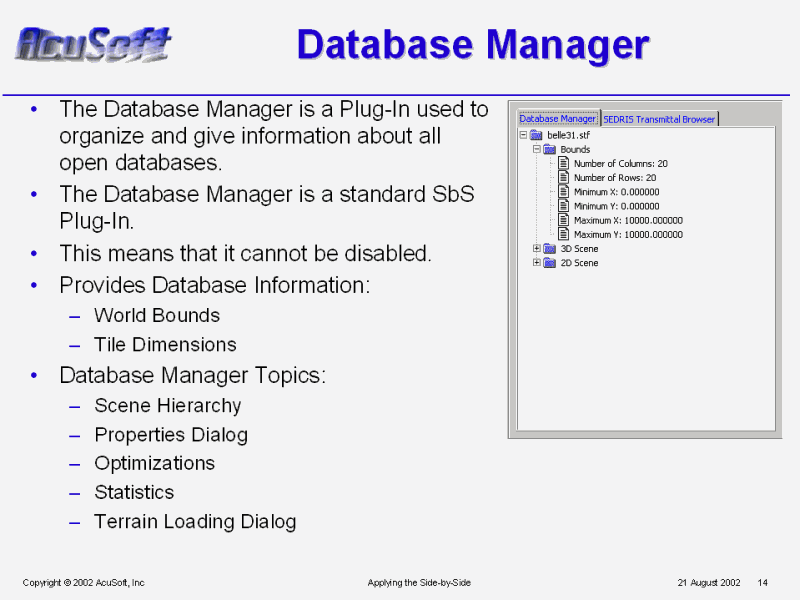

Database Manager

15

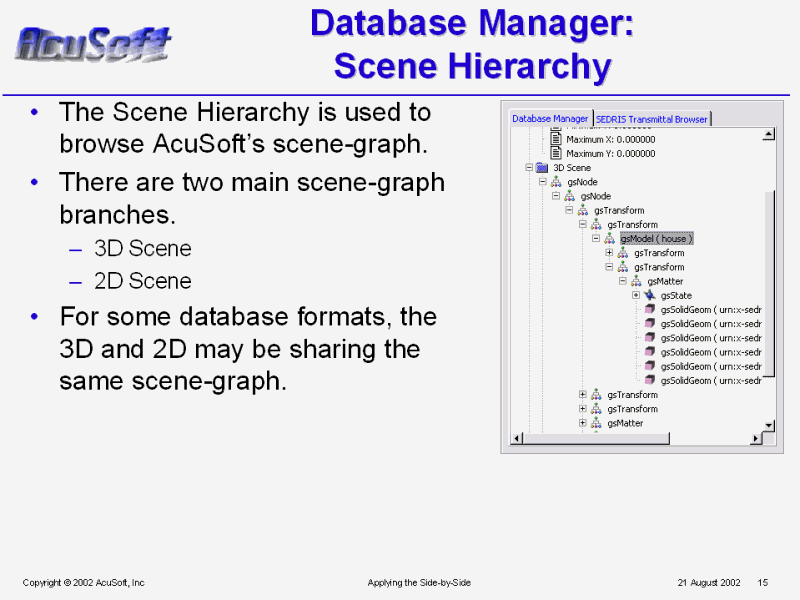

Database Manager: Scene Hierarchy

16

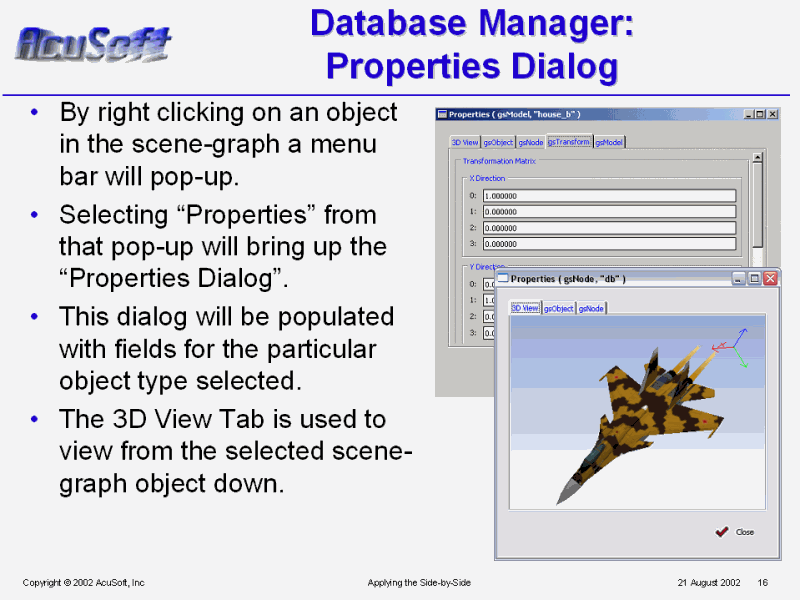

Database Manager: Properties Dialog

17

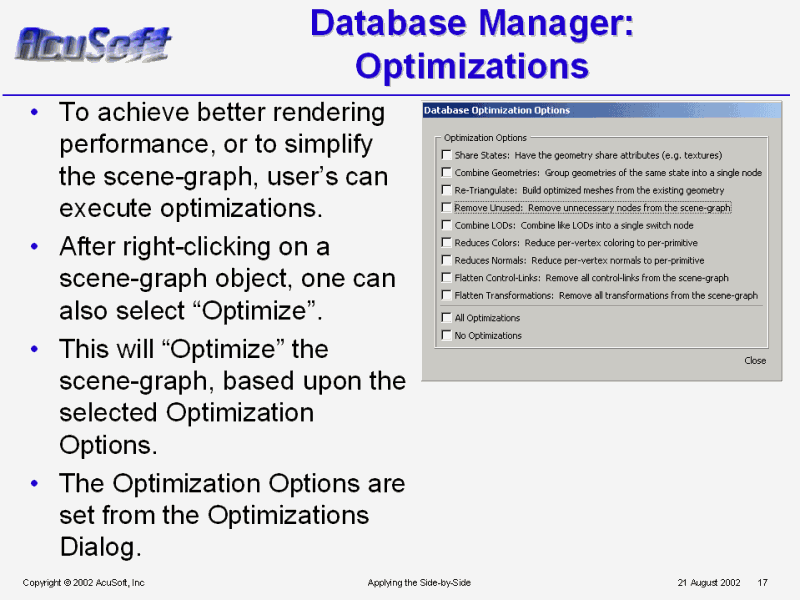

Database Manager: Optimizations

18

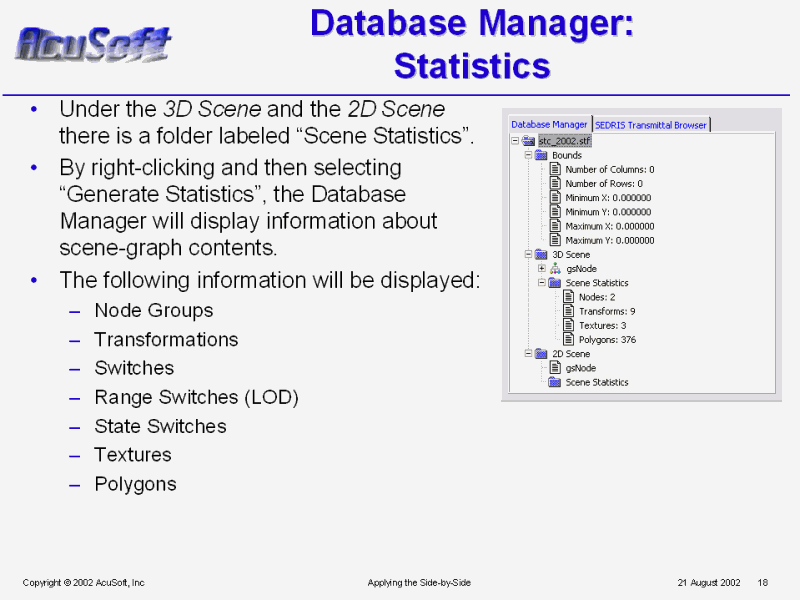

Database Manager: Statistics

19

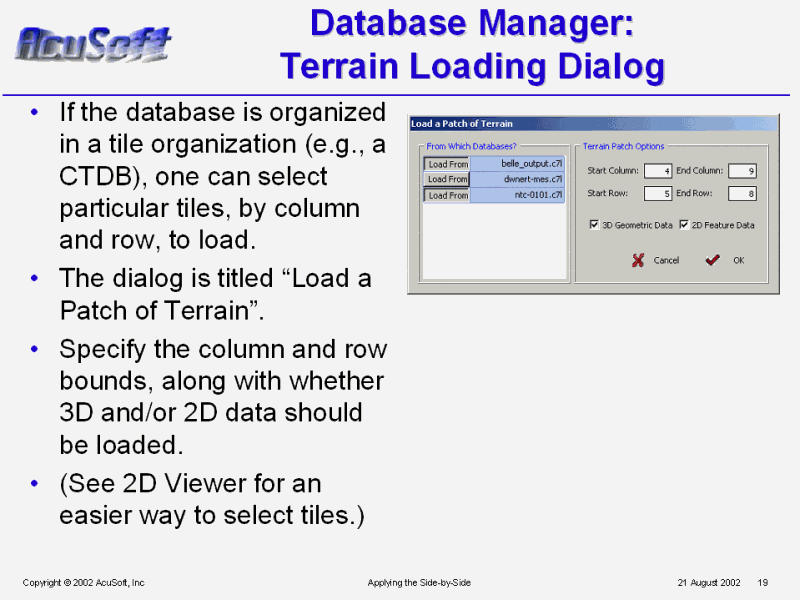

Database Manager: Terrain Loading Dialog

20

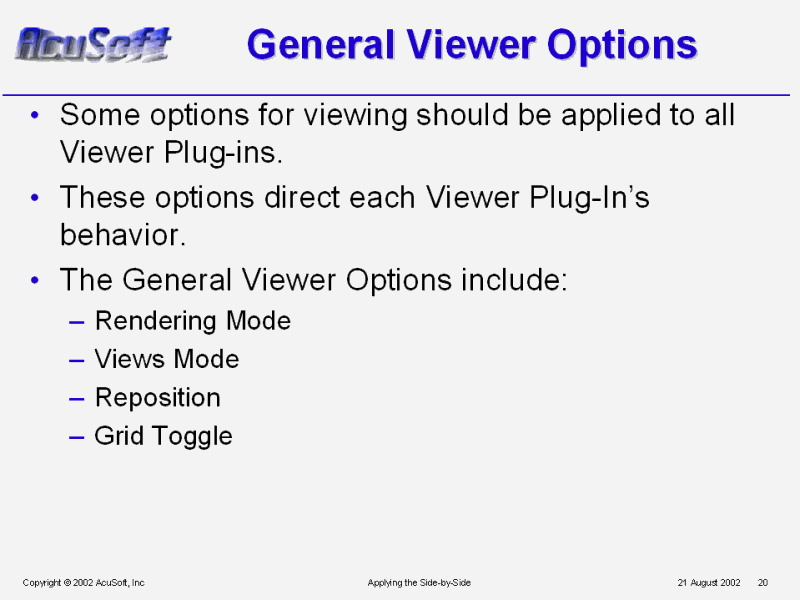

General Viewer Options

21

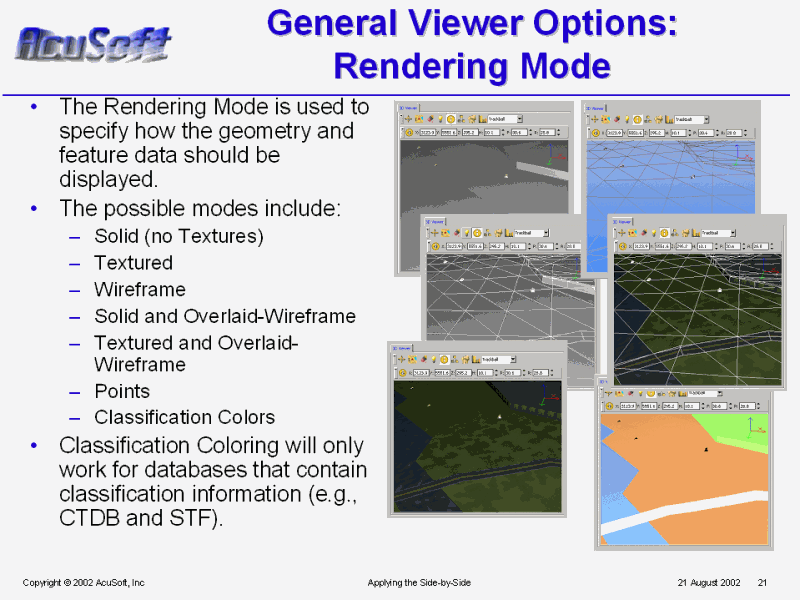

General Viewer Options: Rendering Mode

22

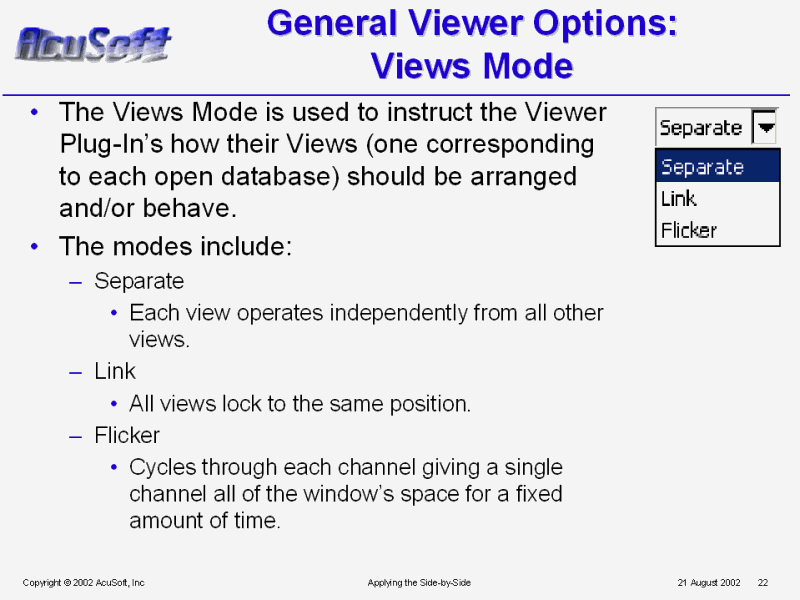

General Viewer Options: Views Mode

23

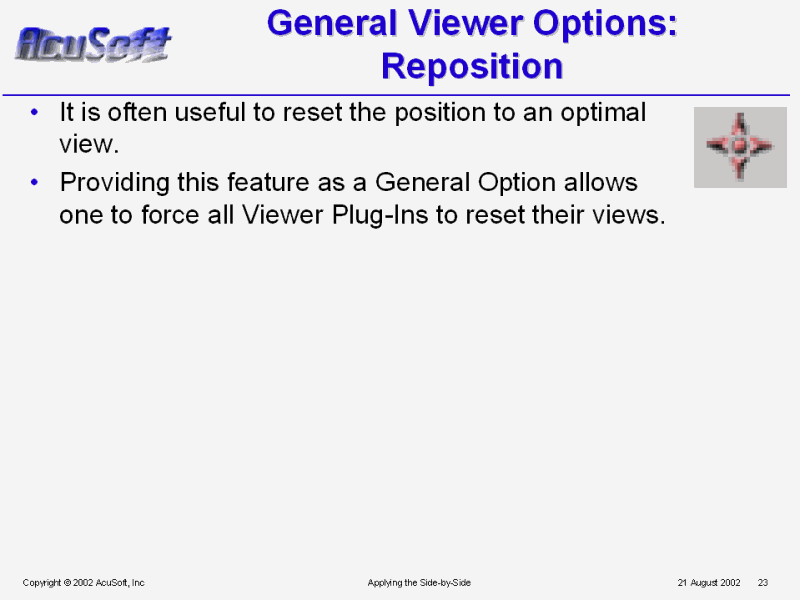

General Viewer Options: Reposition

24

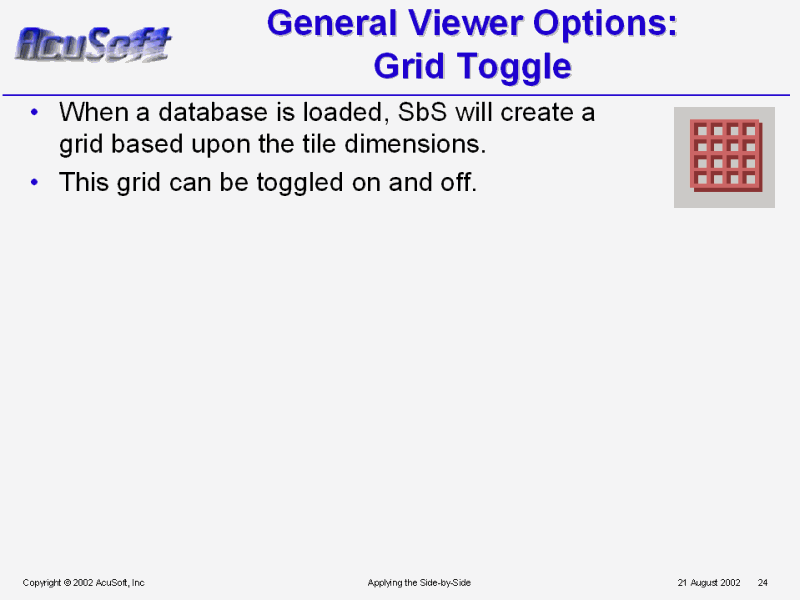

General Viewer Options: Grid Toggle

25

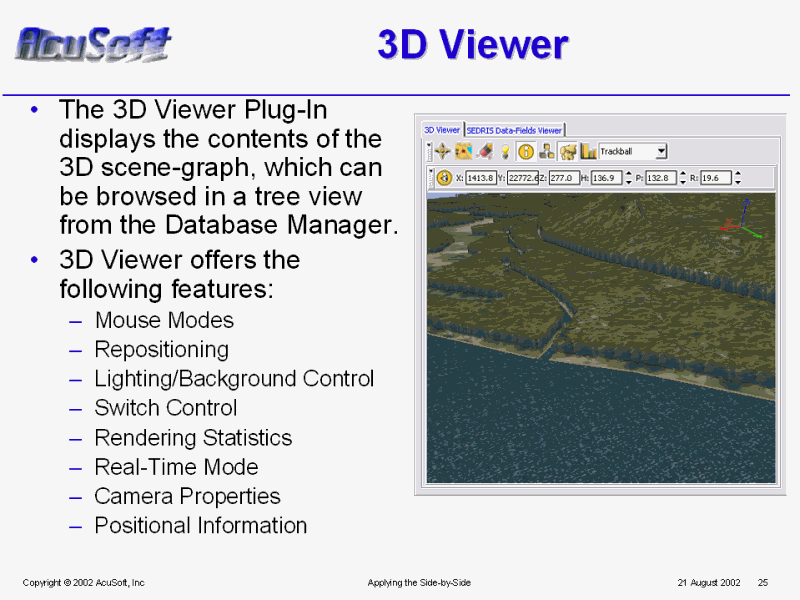

3D Viewer

26

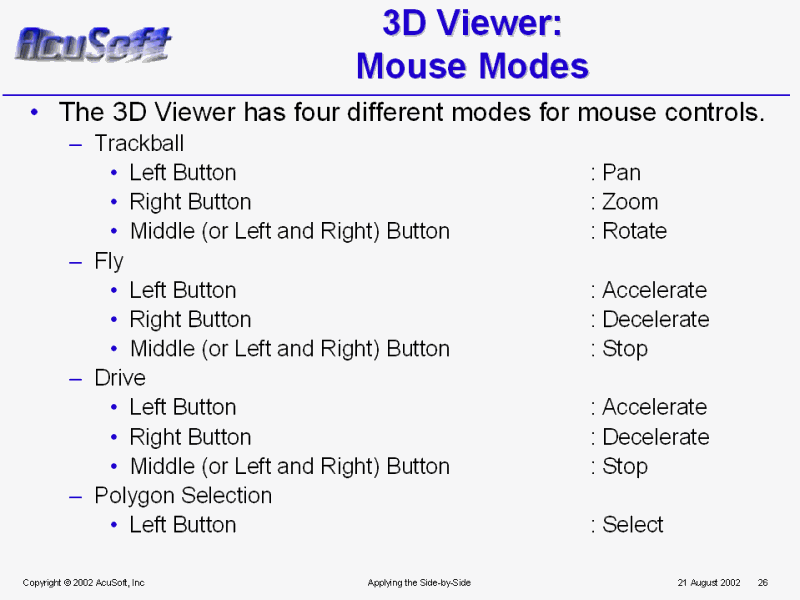

3D Viewer: Mouse Modes

27

3D Viewer: Mouse Modes (cont.)

28

3D Viewer: Repositioning

29

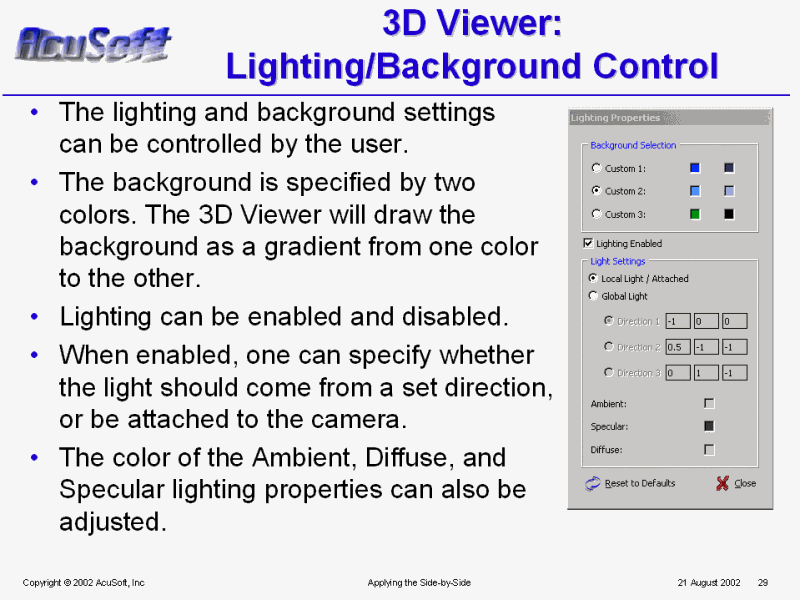

3D Viewer: Lighting/Background Control

30

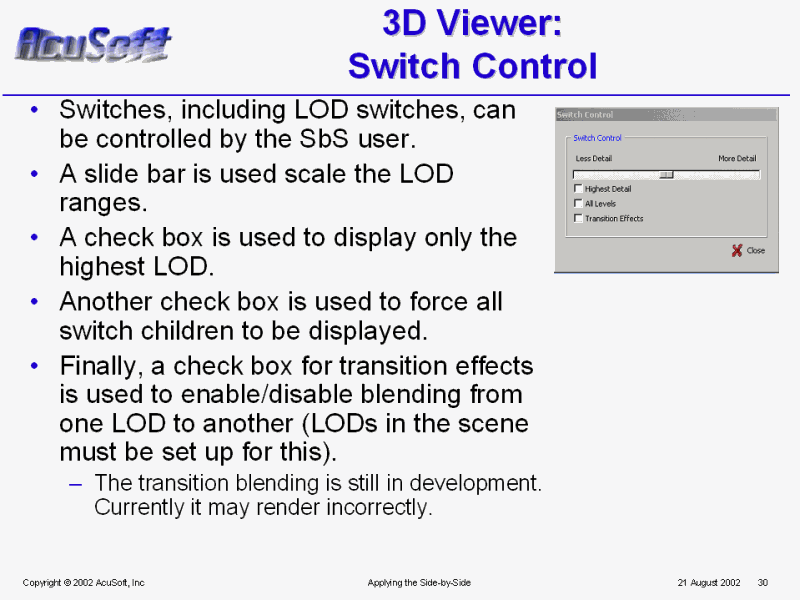

3D Viewer: Switch Control

31

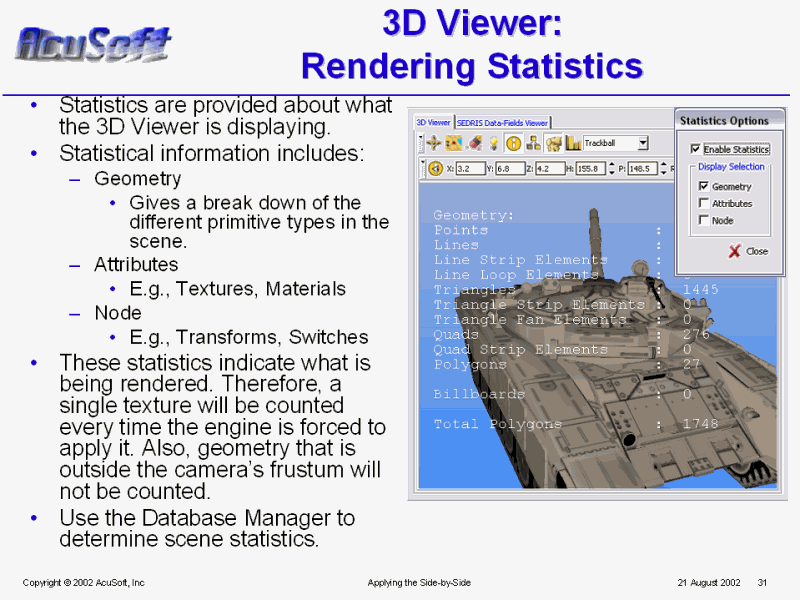

3D Viewer: Rendering Statistics

32

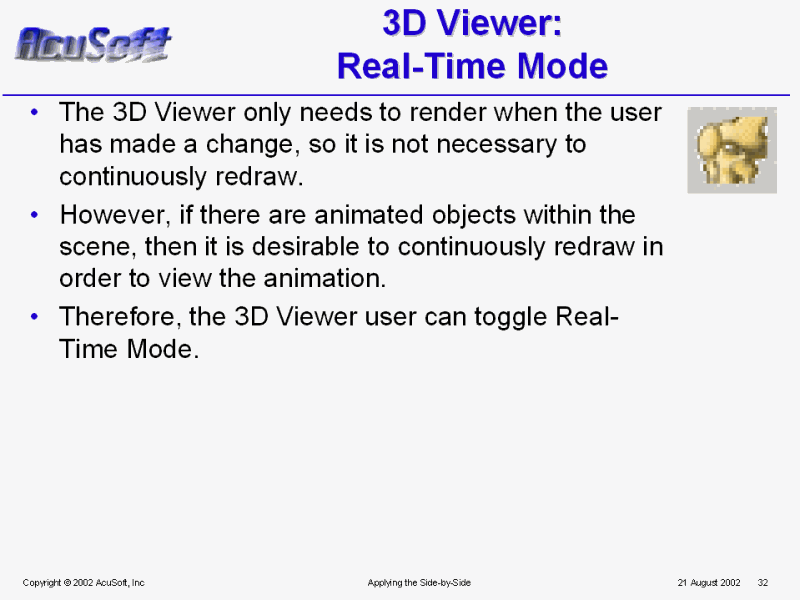

3D Viewer: Real-Time Mode

33

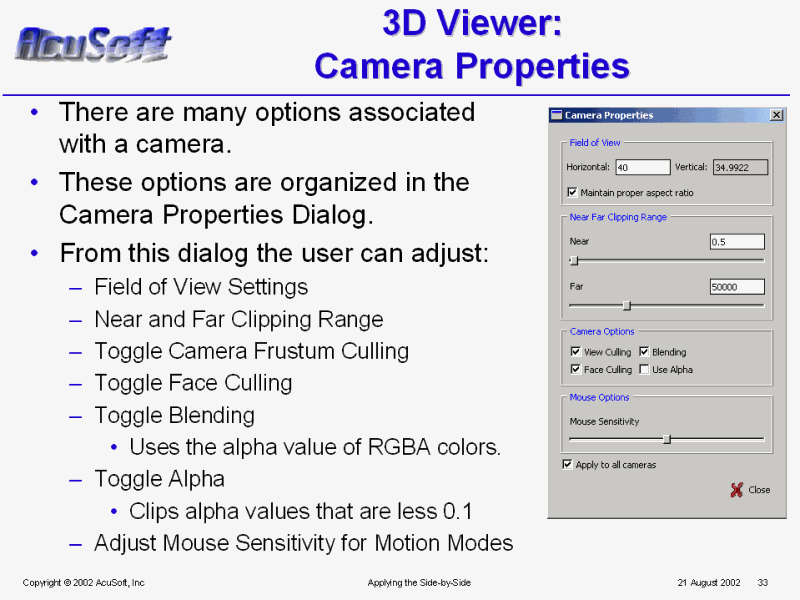

3D Viewer: Camera Properties

34

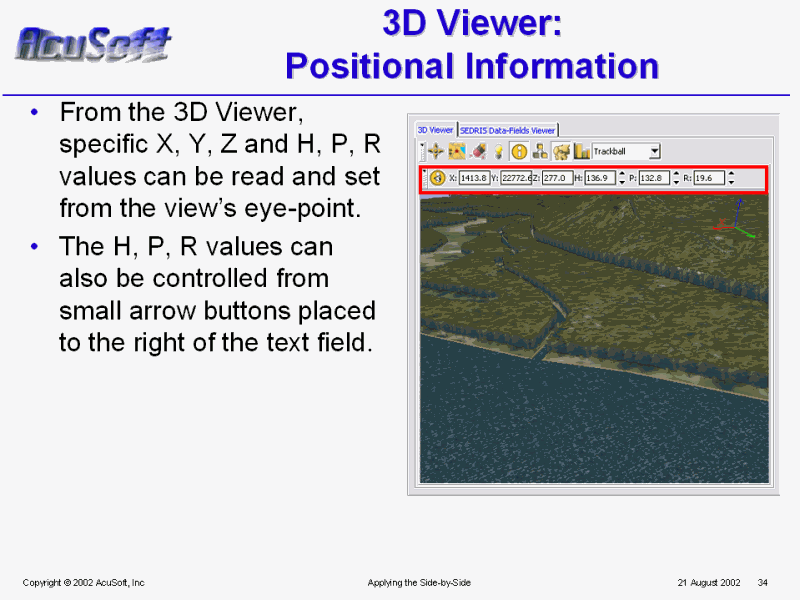

3D Viewer: Positional Information

35

2D Viewer

36

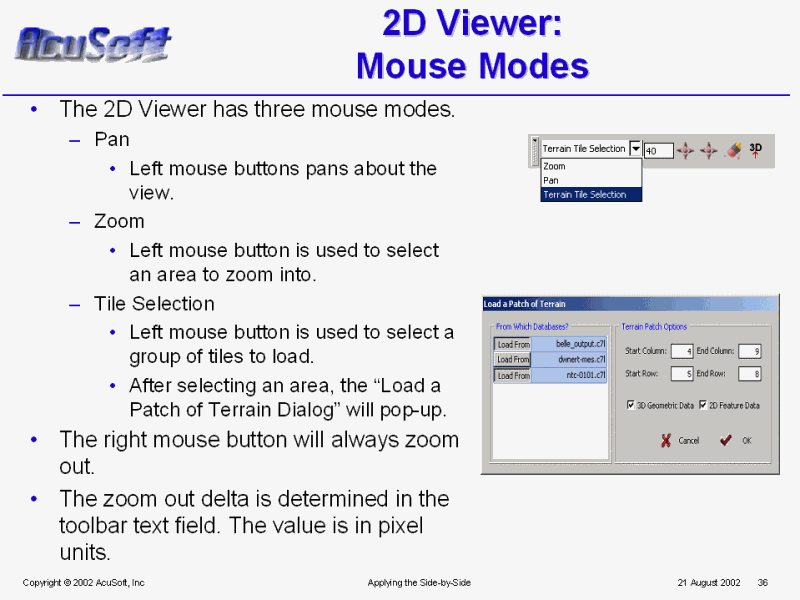

2D Viewer: Mouse Modes

37

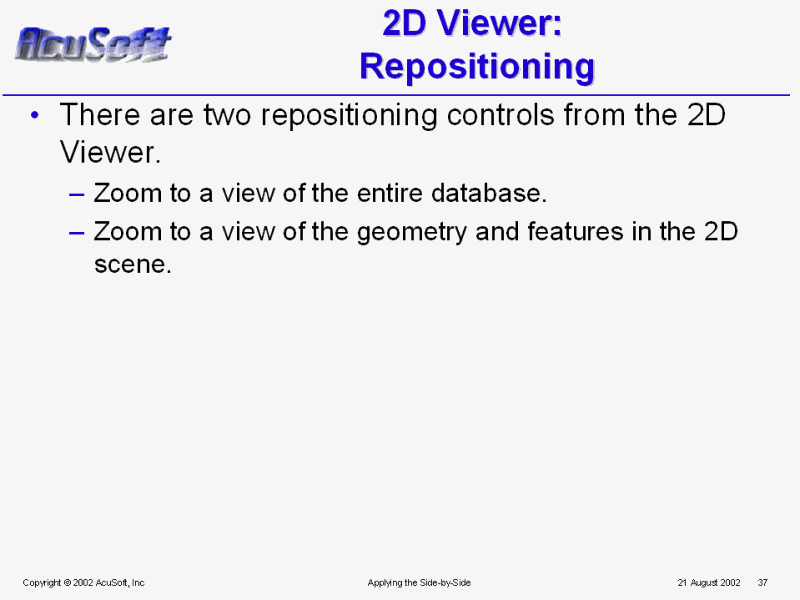

2D Viewer: Repositioning

38

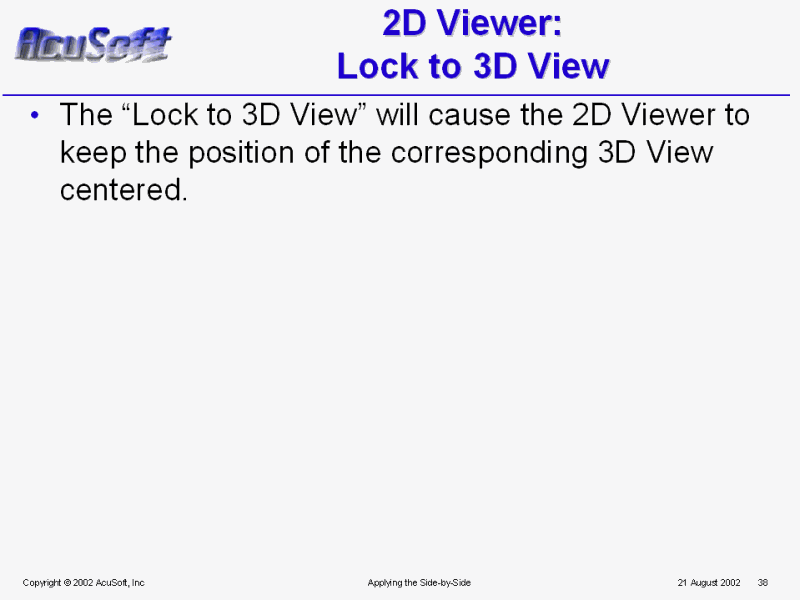

2D Viewer: Lock to 3D View

39

Importers

40

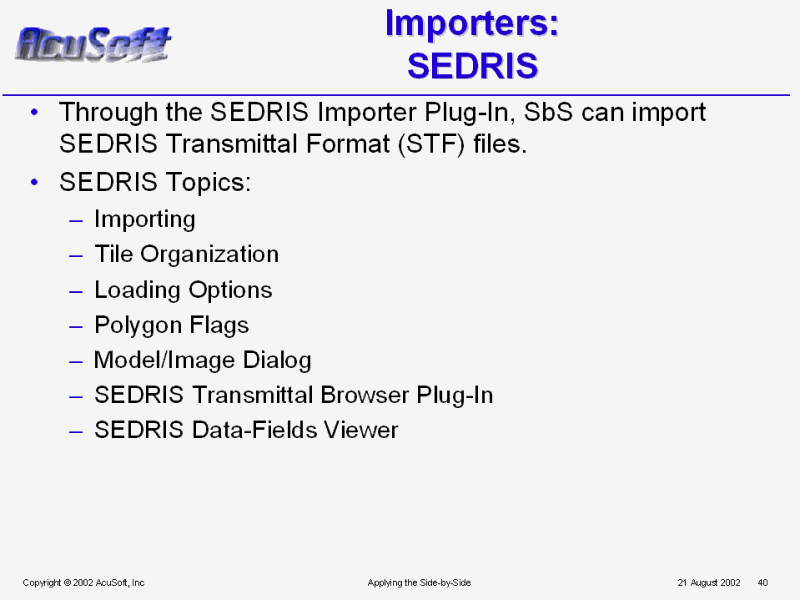

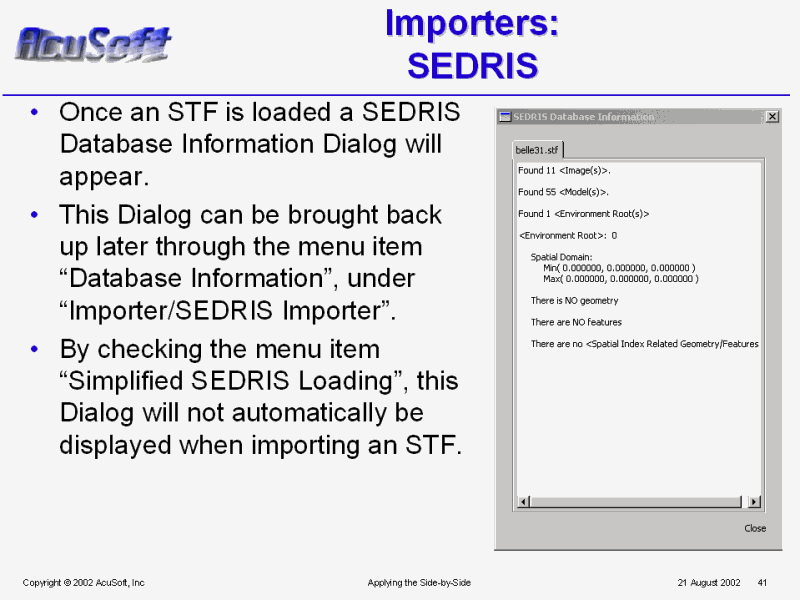

Importers: SEDRIS

41

Importers: SEDRIS

42

Importers: SEDRIS: Tile Organization

43

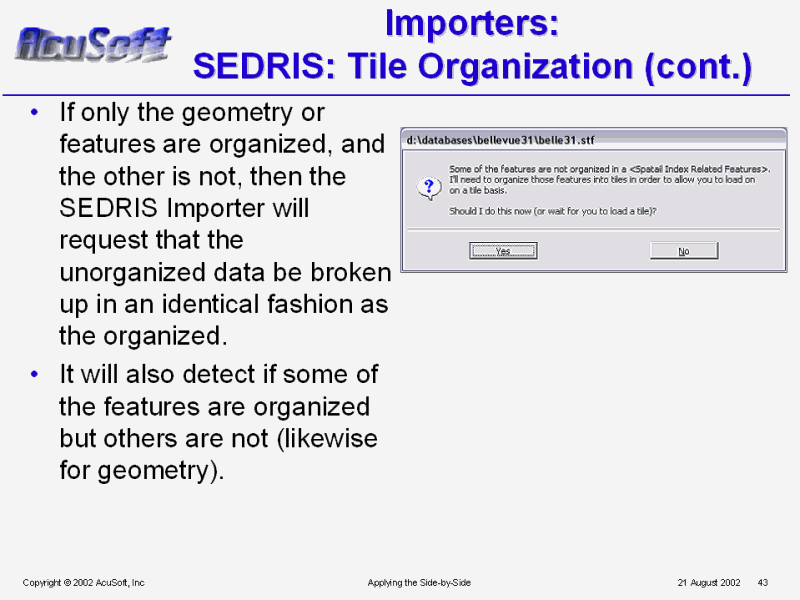

Importers: SEDRIS: Tile Organization (cont.)

44

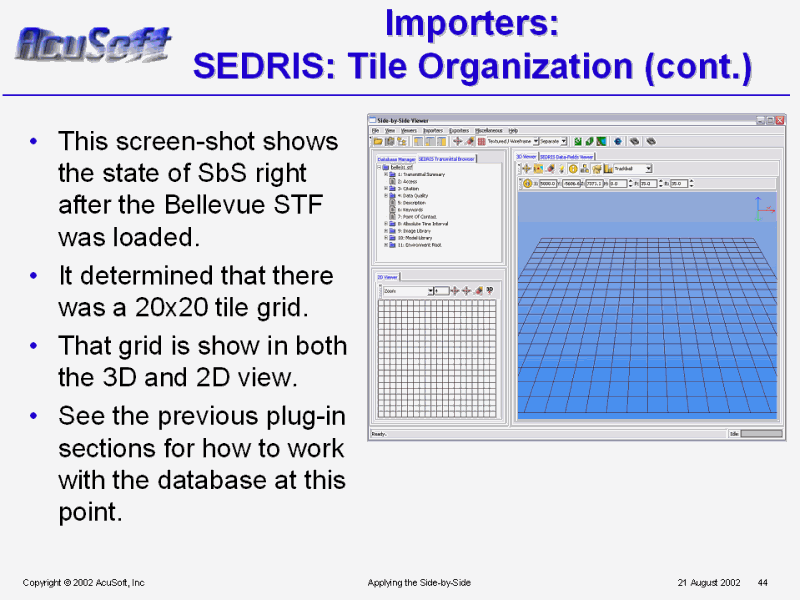

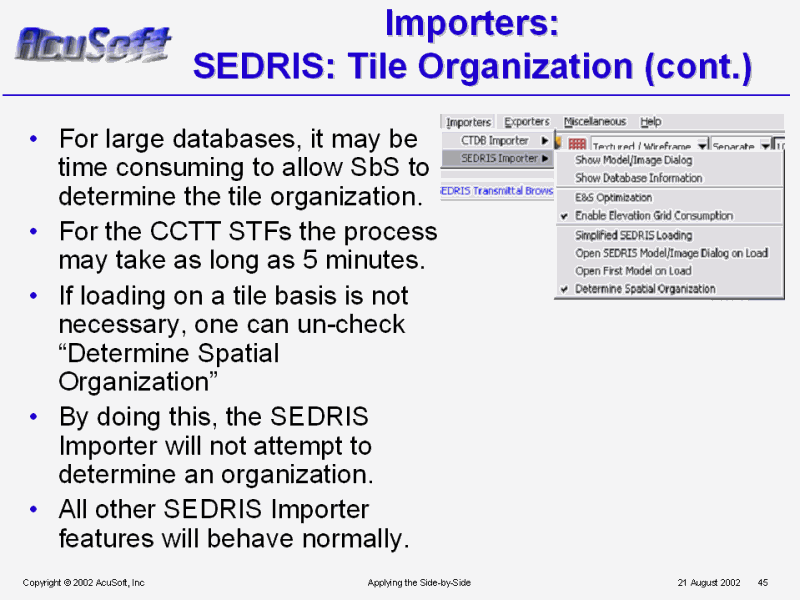

Importers: SEDRIS: Tile Organization (cont.)

45

Importers: SEDRIS: Tile Organization (cont.)

46

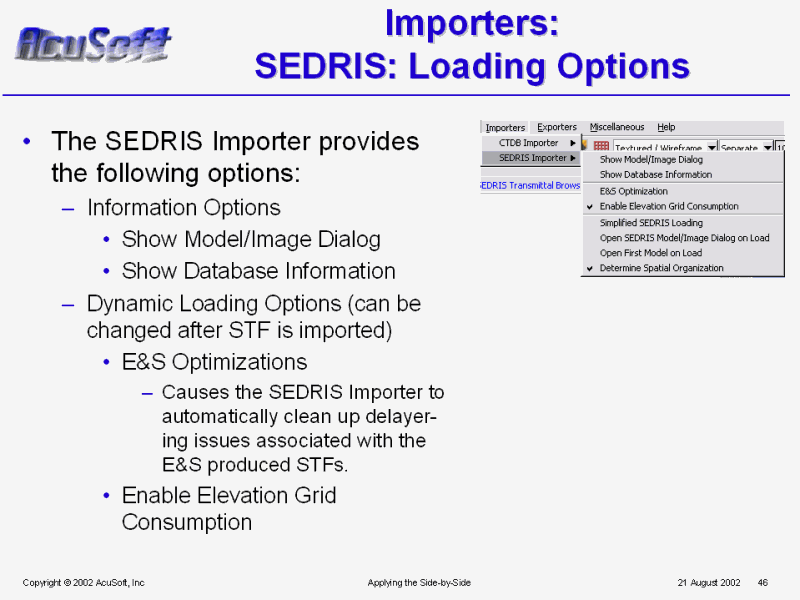

Importers: SEDRIS: Loading Options

47

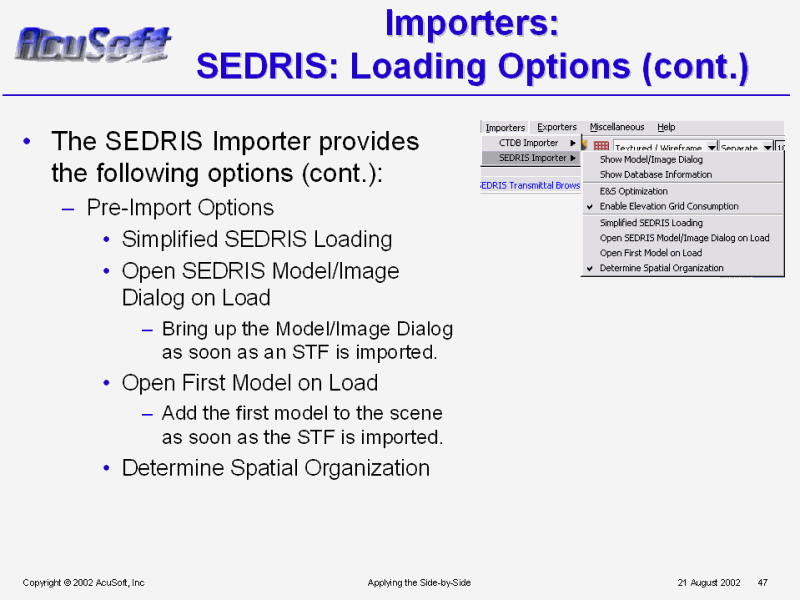

Importers: SEDRIS: Loading Options (cont.)

48

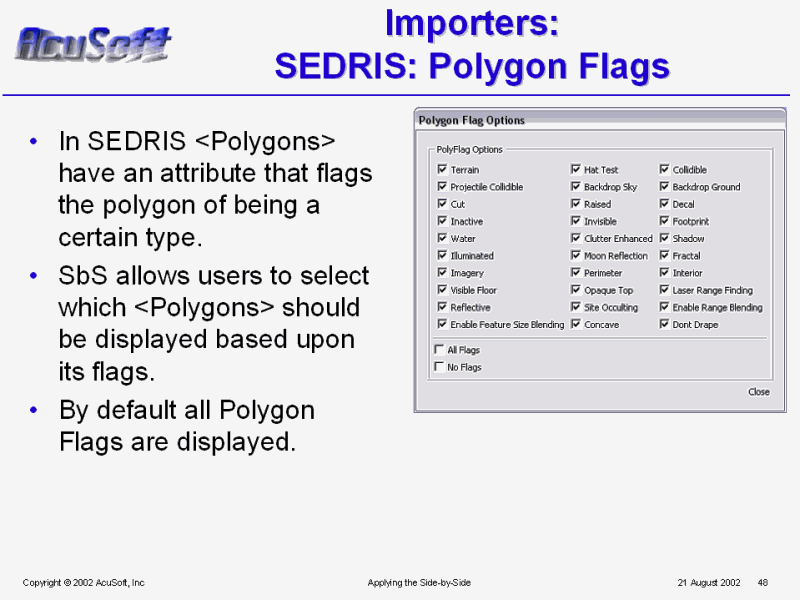

Importers: SEDRIS: Polygon Flags

49

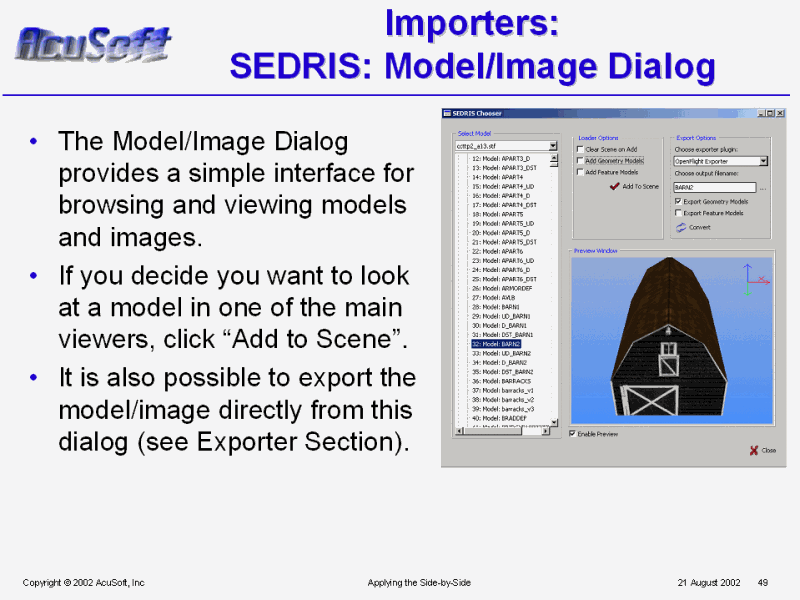

Importers: SEDRIS: Model/Image Dialog

50

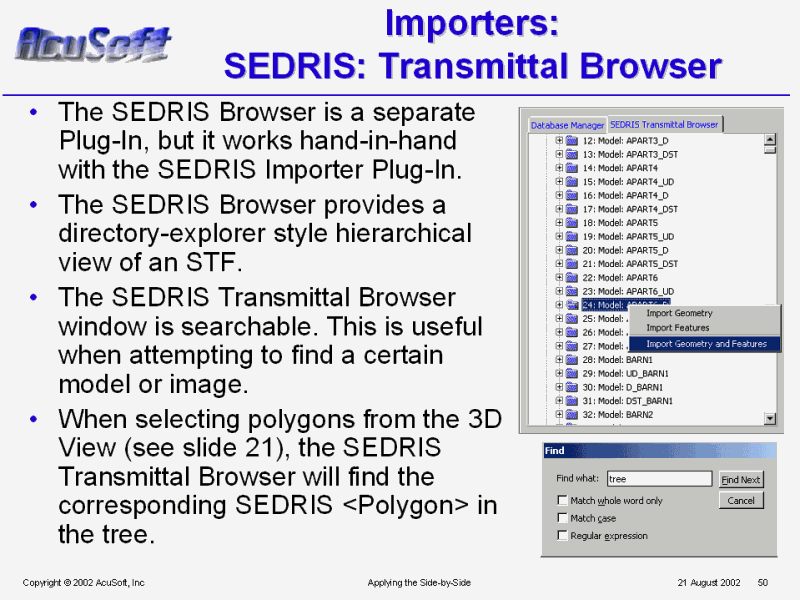

Importers: SEDRIS: Transmittal Browser

51

Importers: SEDRIS: Transmittal Browser

52

Importers: SEDRIS: Data-Fields Viewer

53

Importers: SEDRIS: Feature Mappings

54

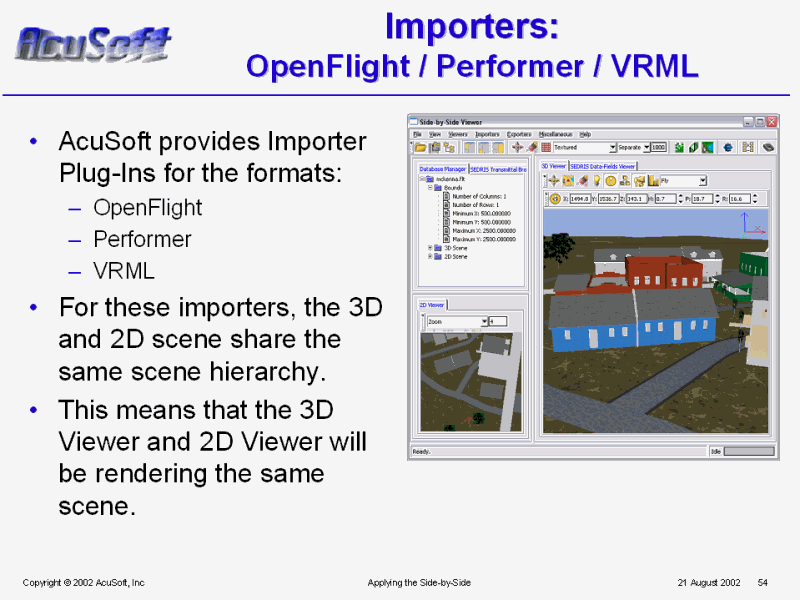

Importers: OpenFlight / Performer / VRML

55

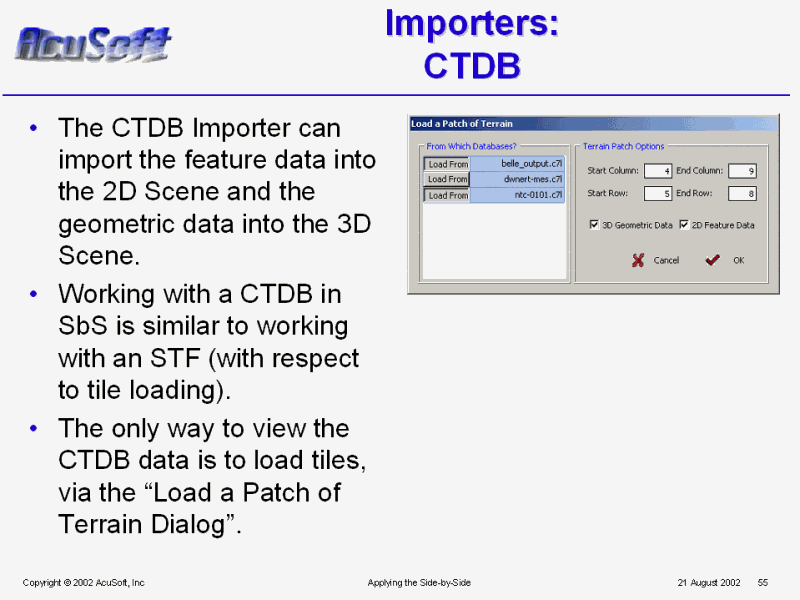

Importers: CTDB

56

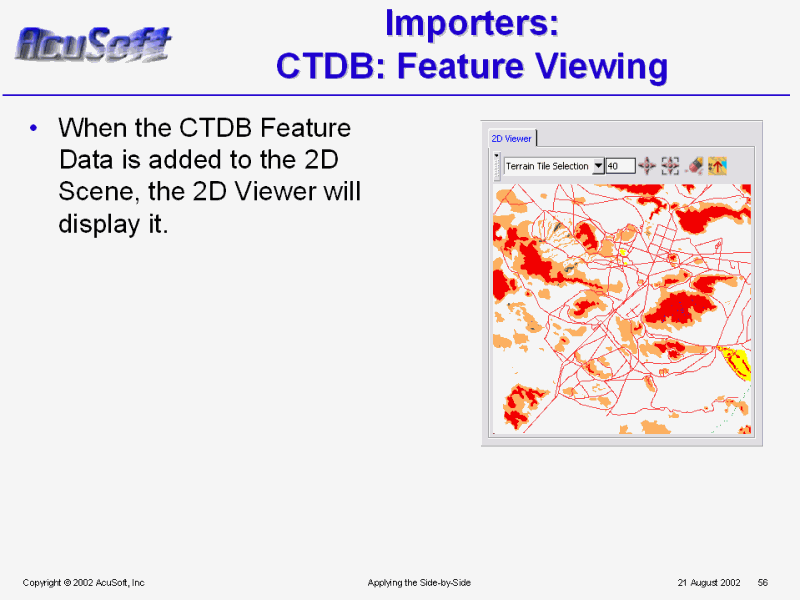

Importers: CTDB: Feature Viewing

57

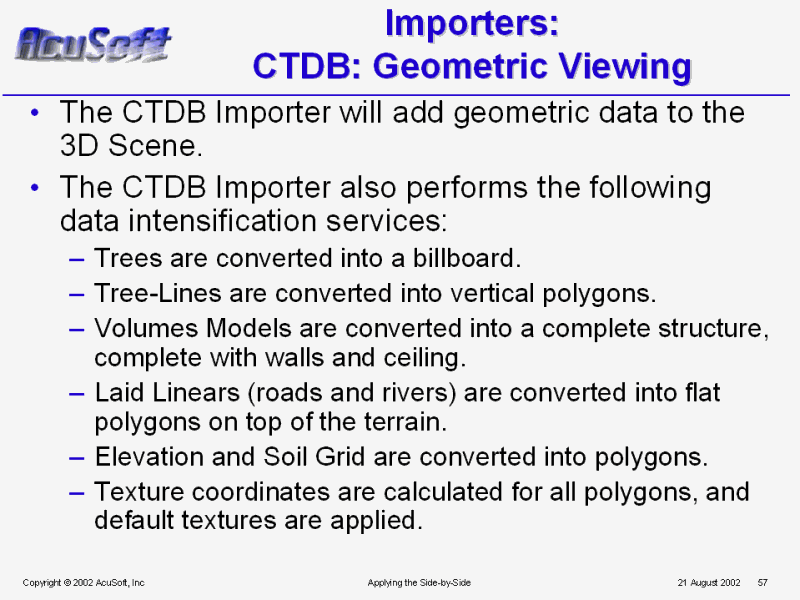

Importers: CTDB: Geometric Viewing

58

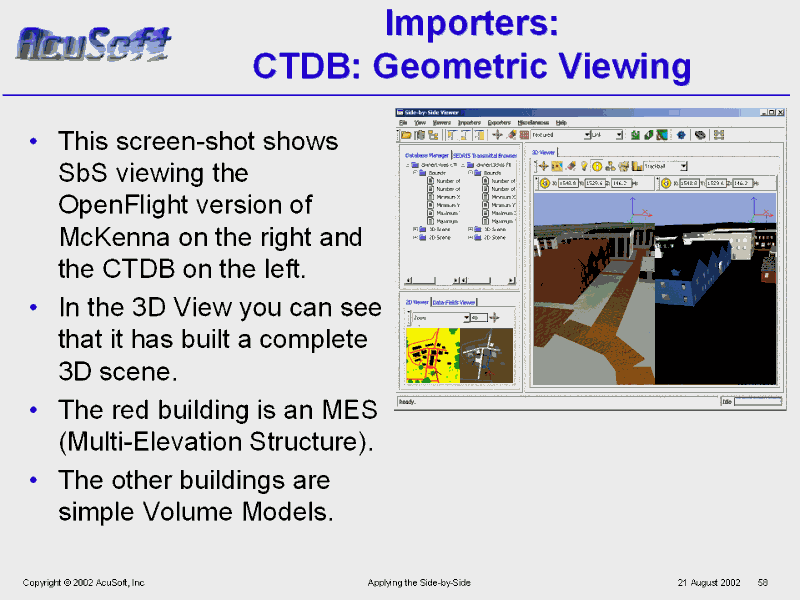

Importers: CTDB: Geometric Viewing

59

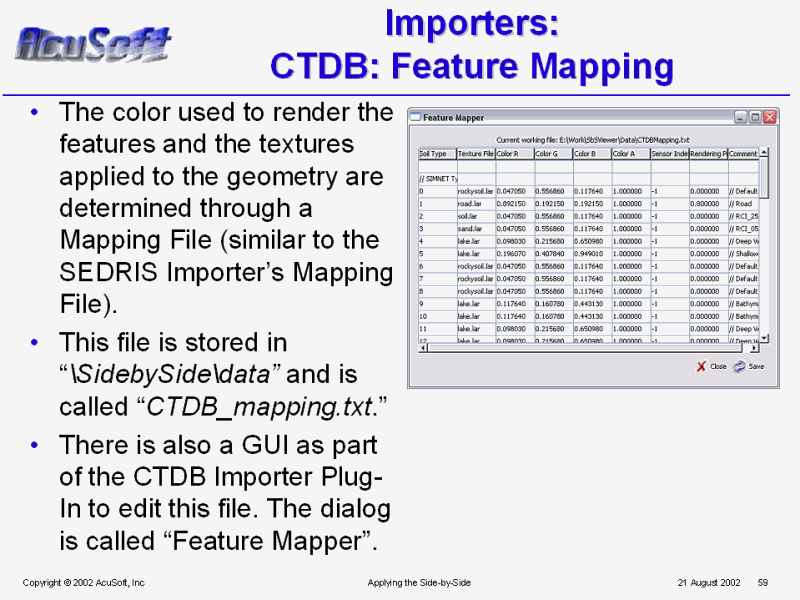

Importers: CTDB: Feature Mapping

60

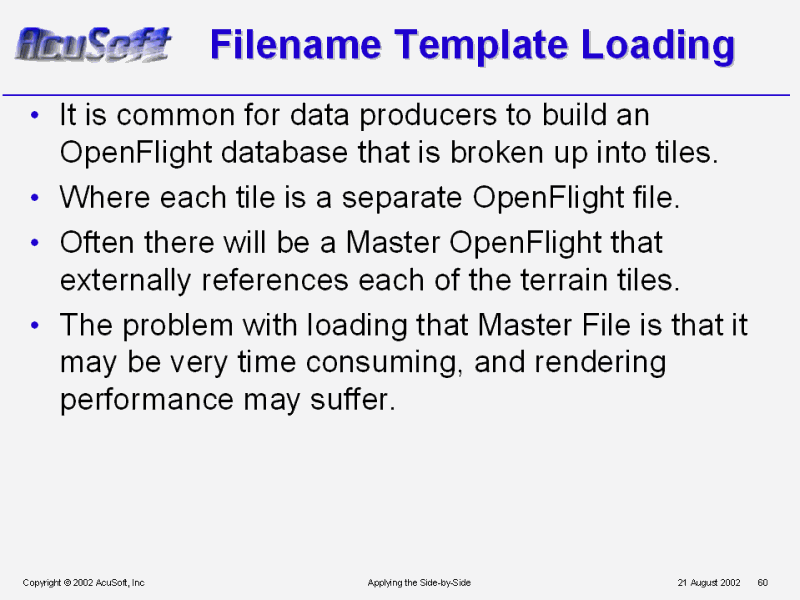

Filename Template Loading

61

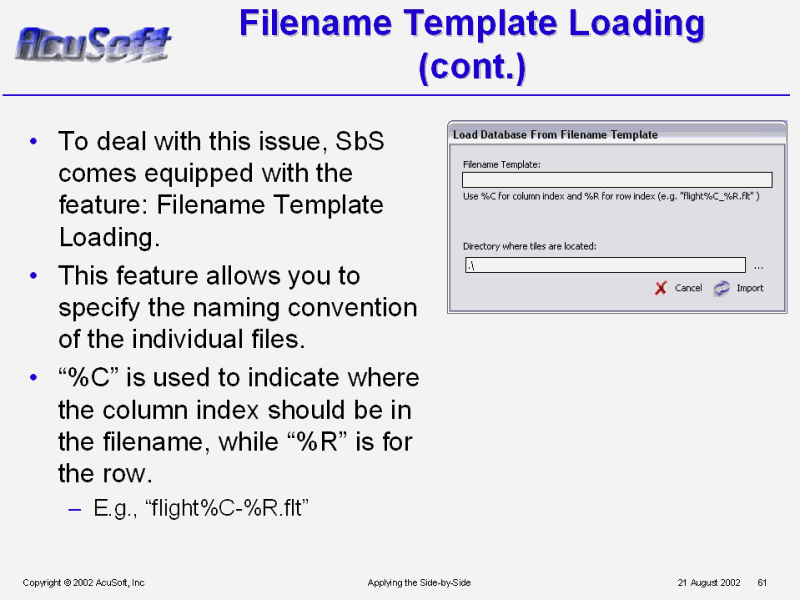

Filename Template Loading (cont.)

62

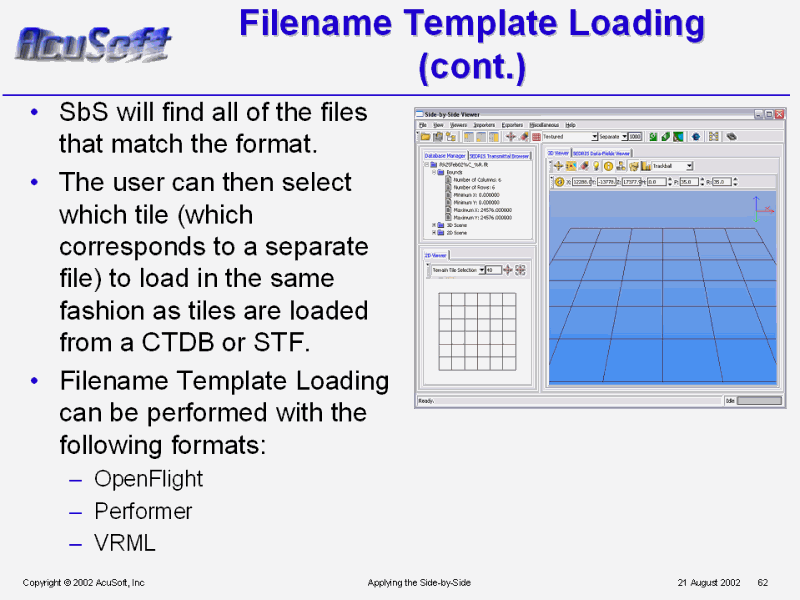

Filename Template Loading (cont.)

63

Adding/Removing File Paths

64

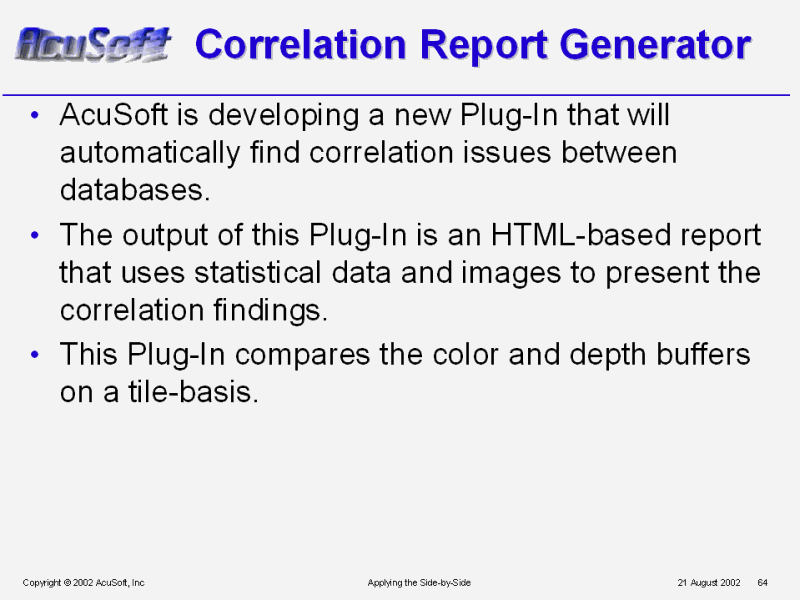

Correlation Report Generator

65

Evolver

66

Exporters

67

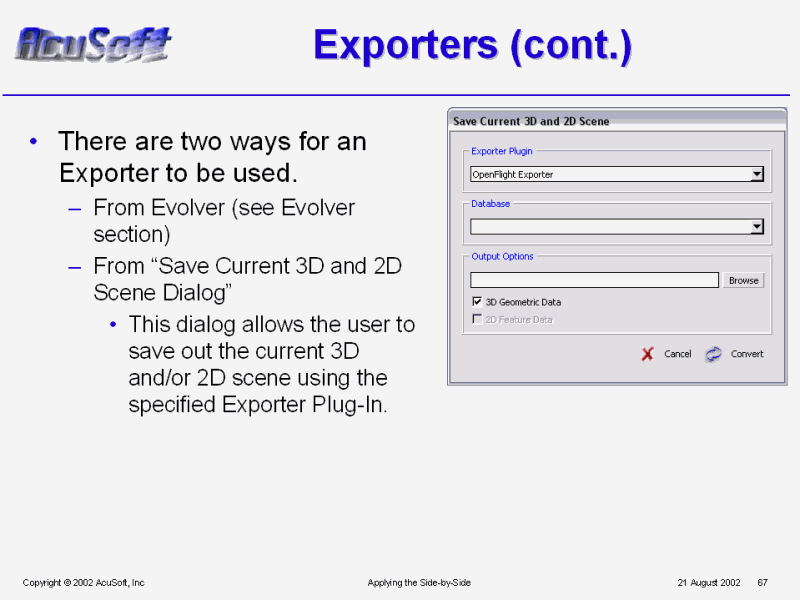

Exporters (cont.)

68

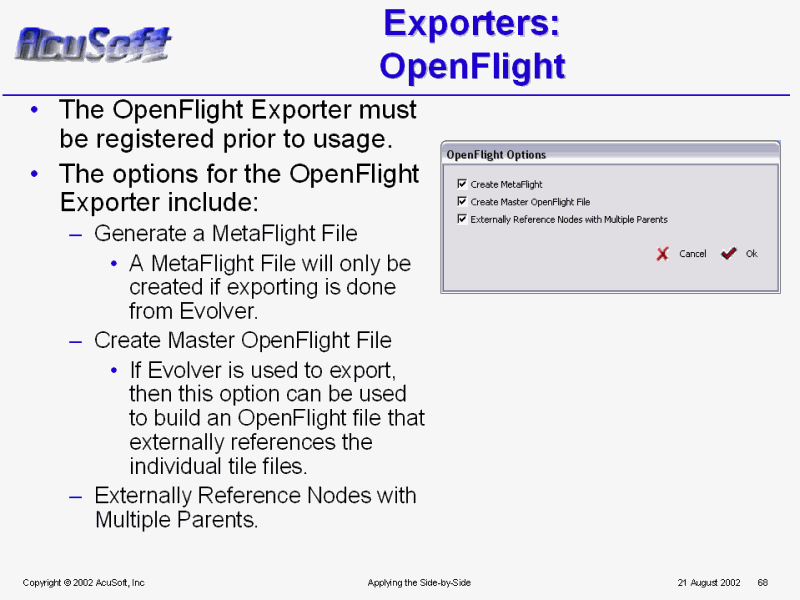

Exporters: OpenFlight

69

Plug-In SDK

70

Where To Go From Here

. .
