Use of SEDRIS on CCTT and UK CATT

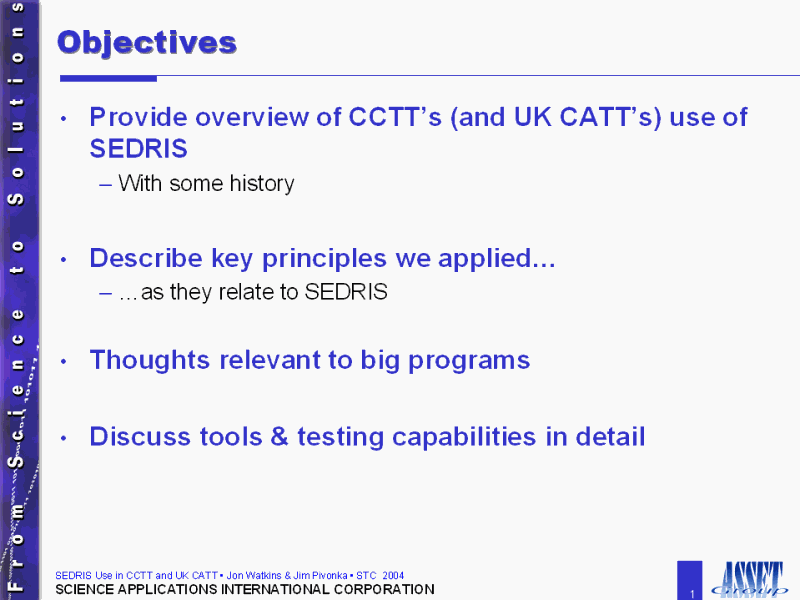

Objectives

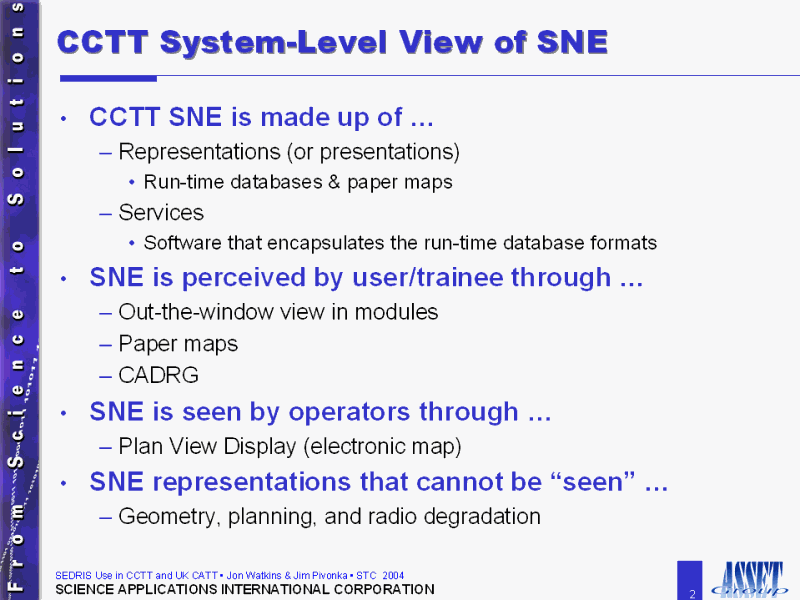

CCTT System-Level View of SNE

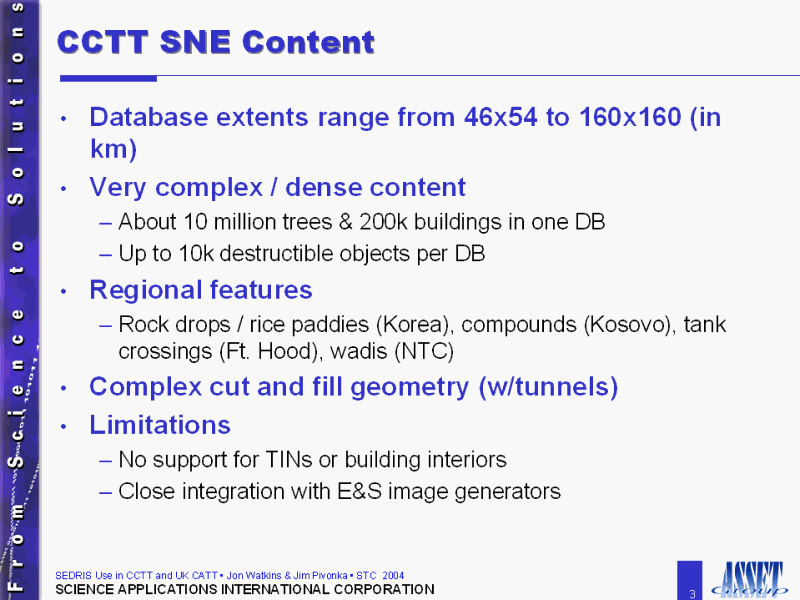

CCTT SNE Content

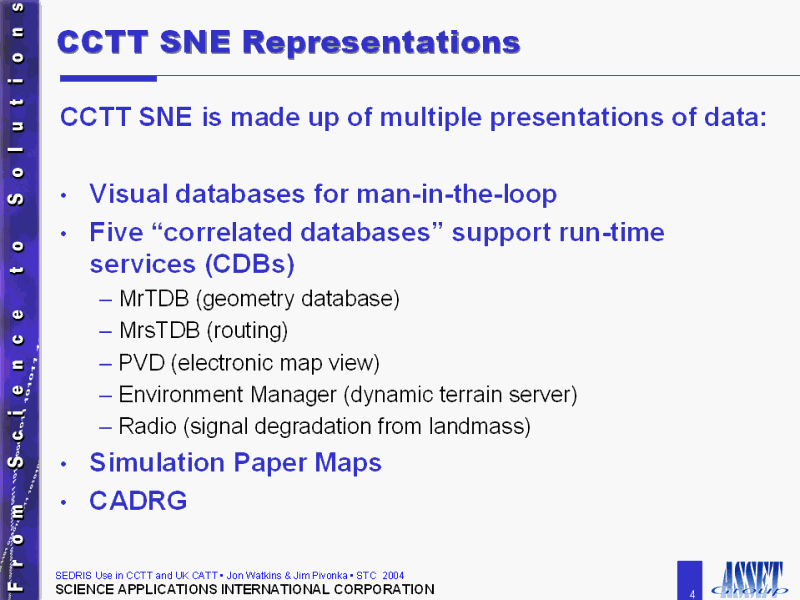

CCTT SNE Representations

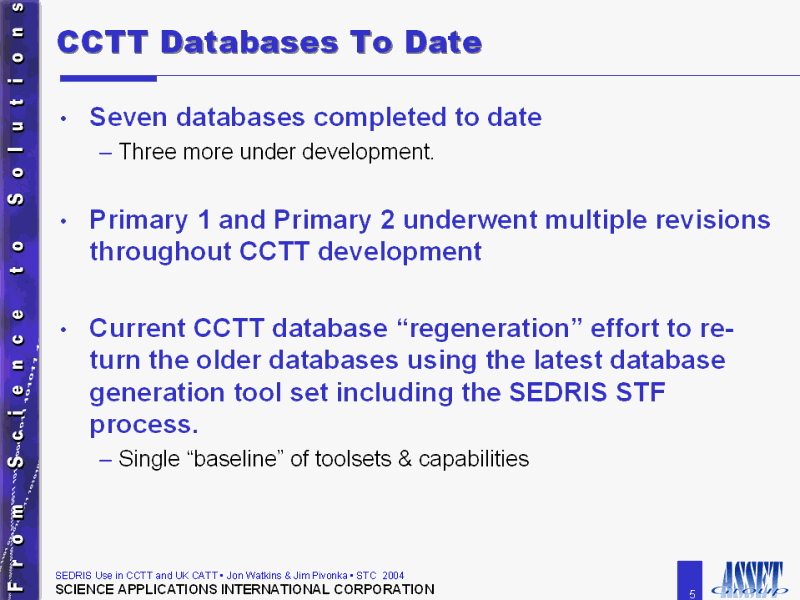

CCTT Databases To Date

CCTT Databases

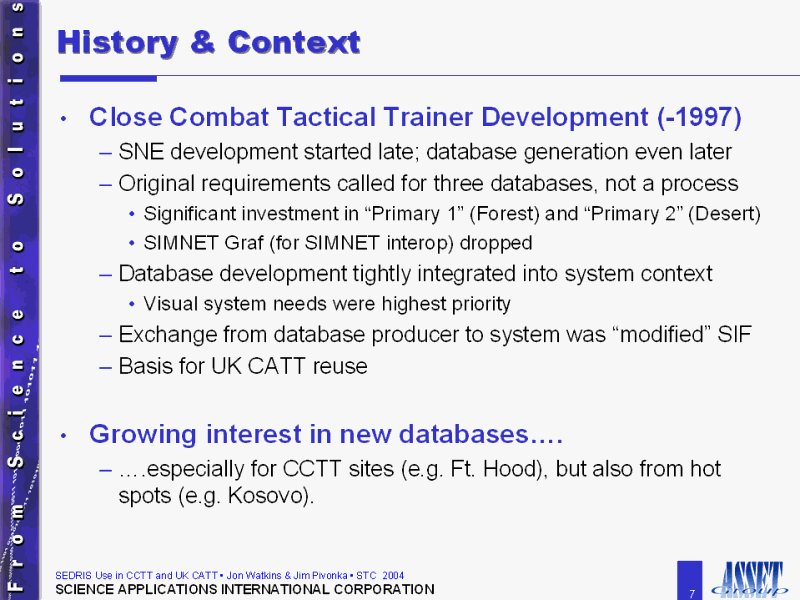

History & Context

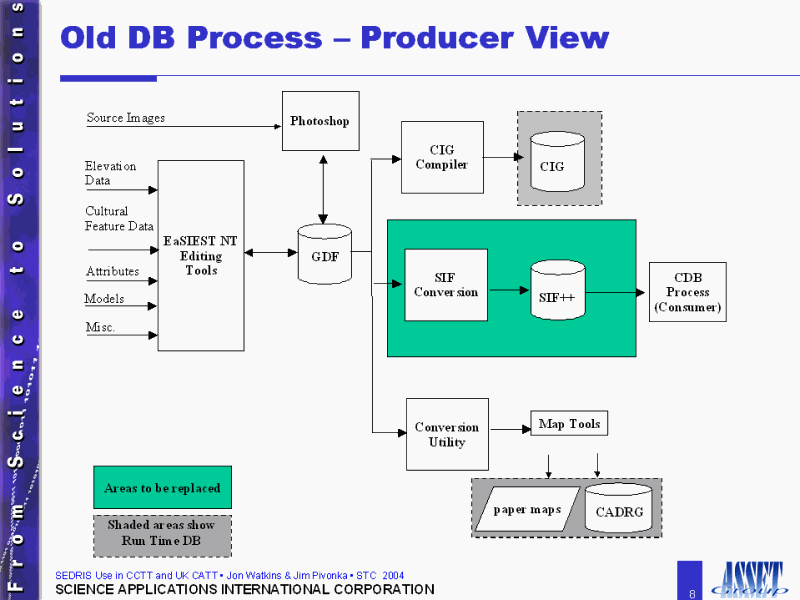

Old DB Process � Producer View

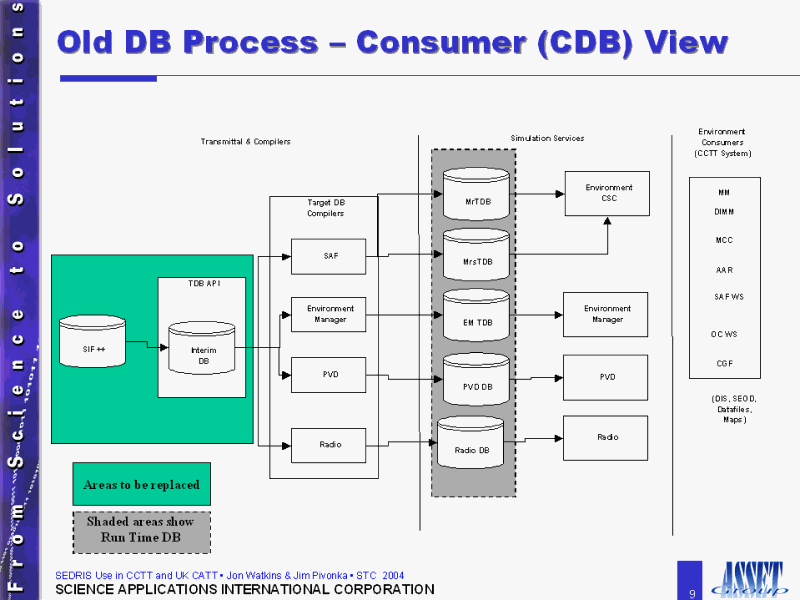

Old DB Process � Consumer (CDB) View

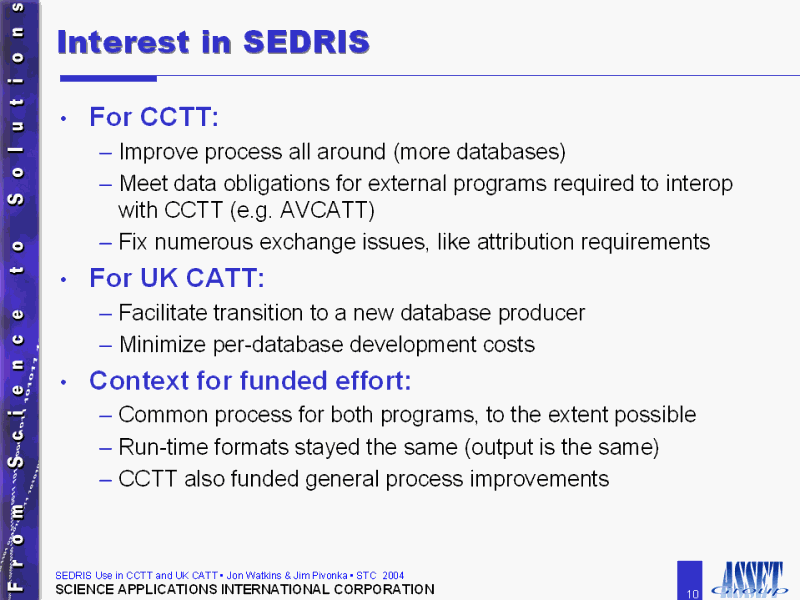

Interest in SEDRIS

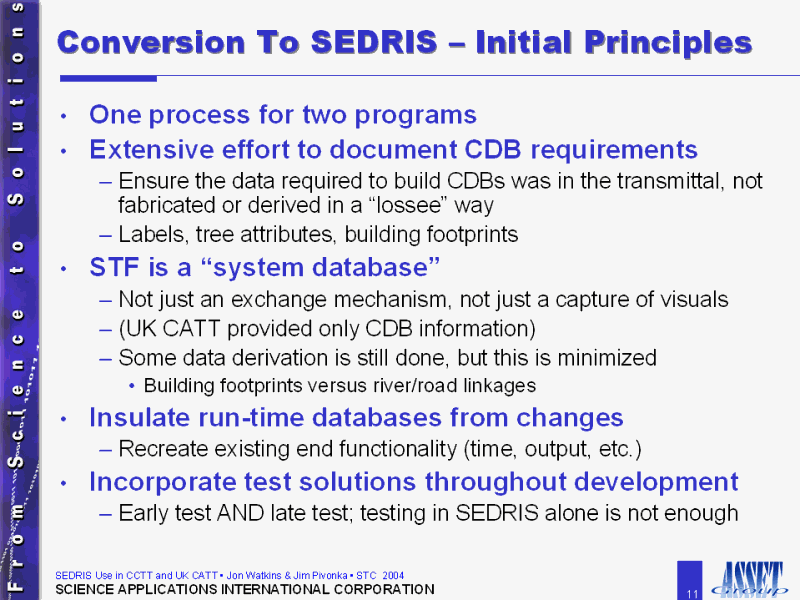

Conversion To SEDRIS � Initial Principles

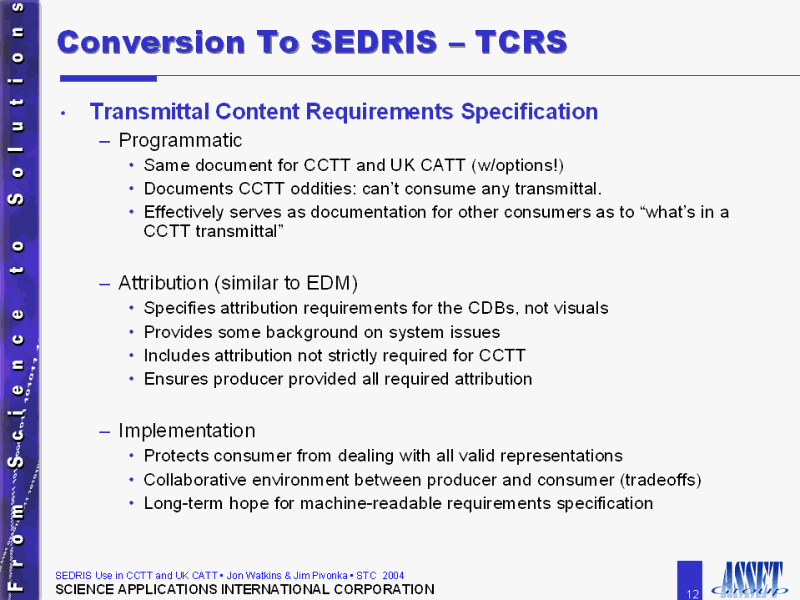

Conversion To SEDRIS � TCRS

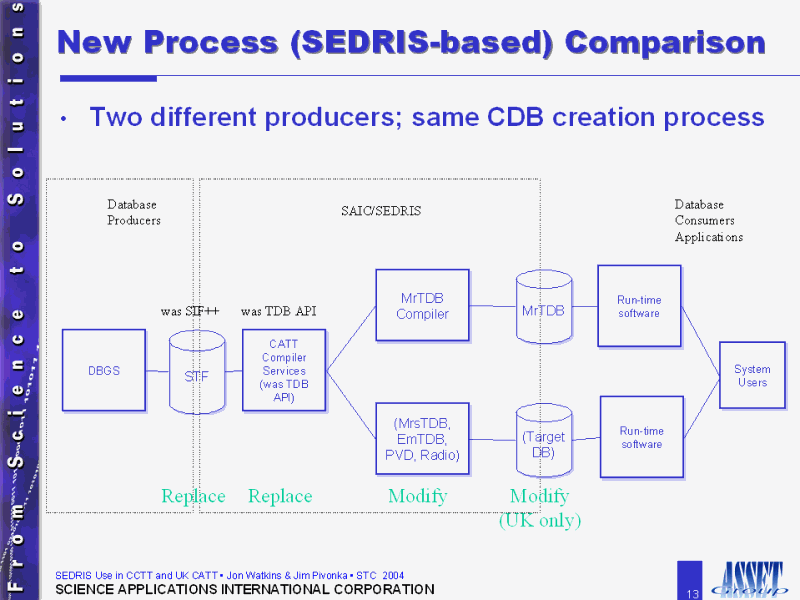

New Process (SEDRIS-based) Comparison

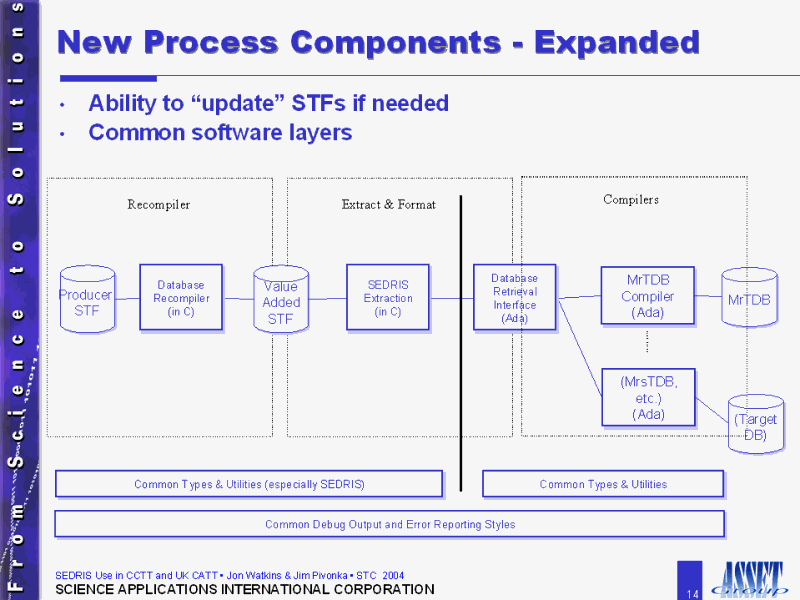

New Process Components - Expanded

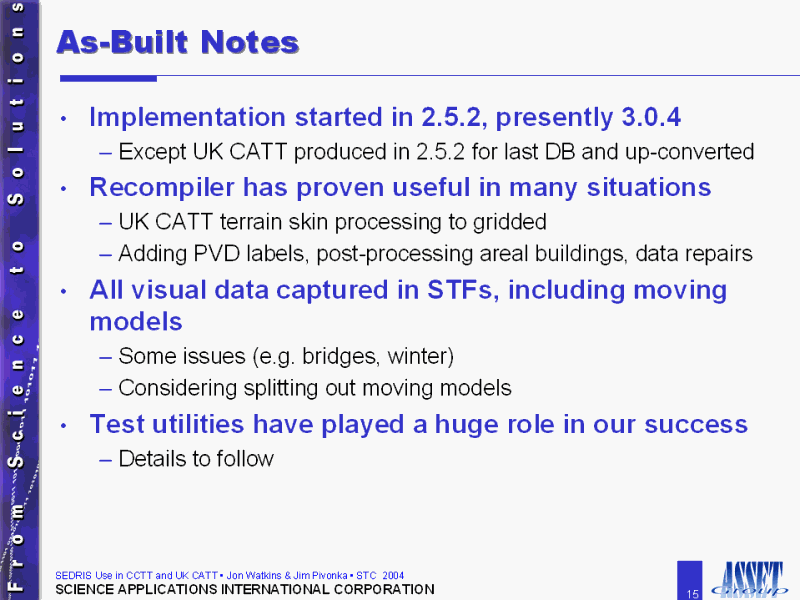

As-Built Notes

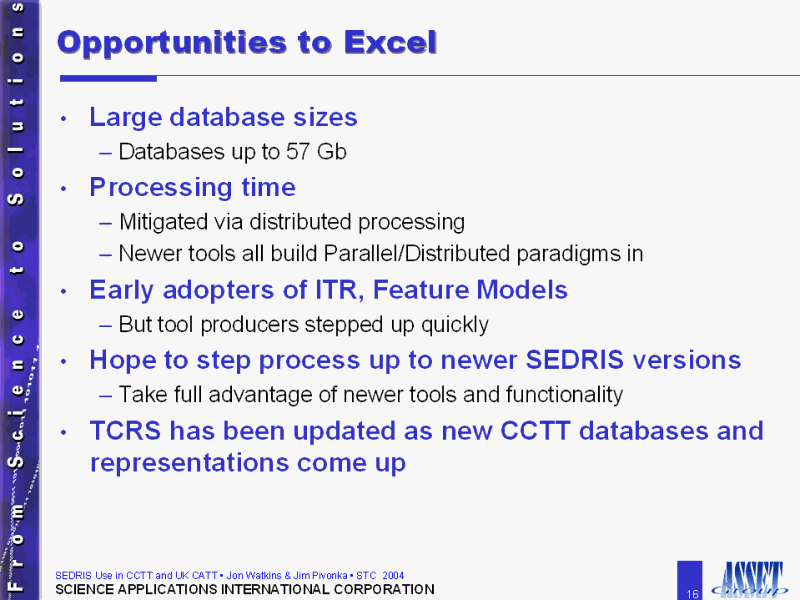

Opportunities to Excel

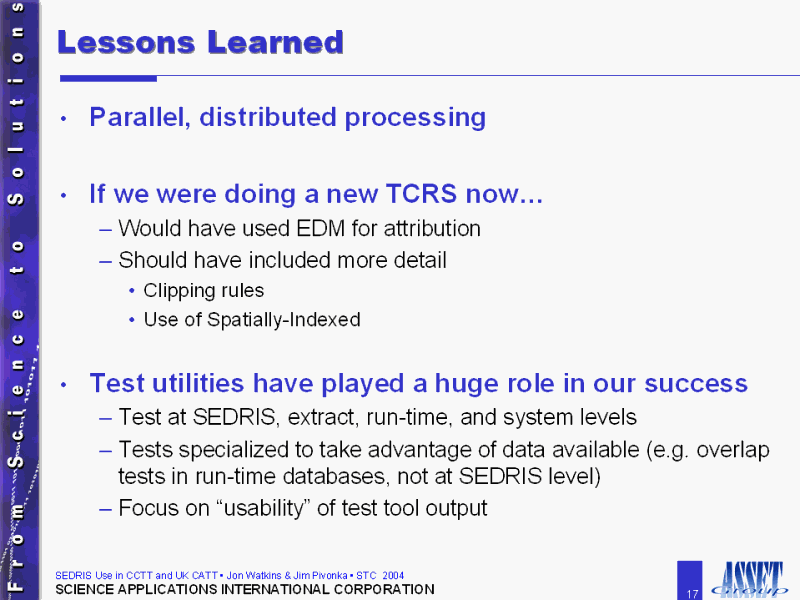

Lessons Learned

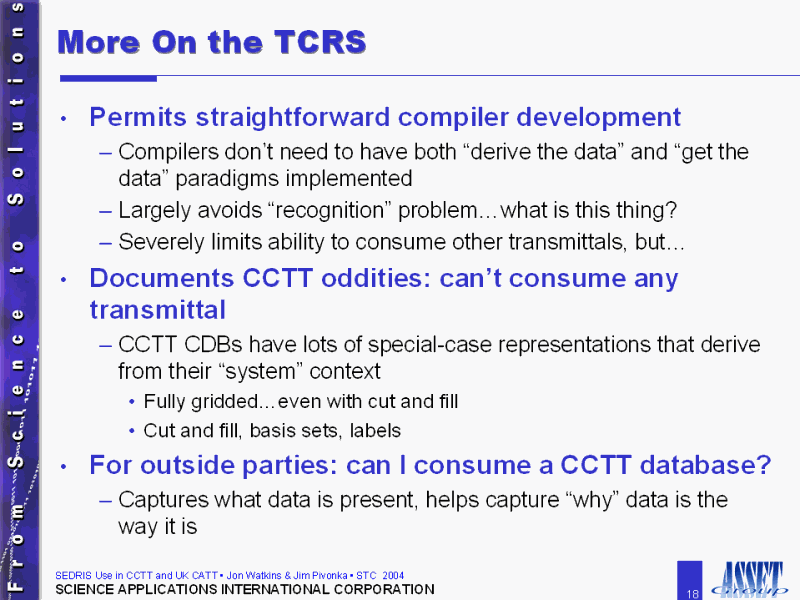

More On the TCRS

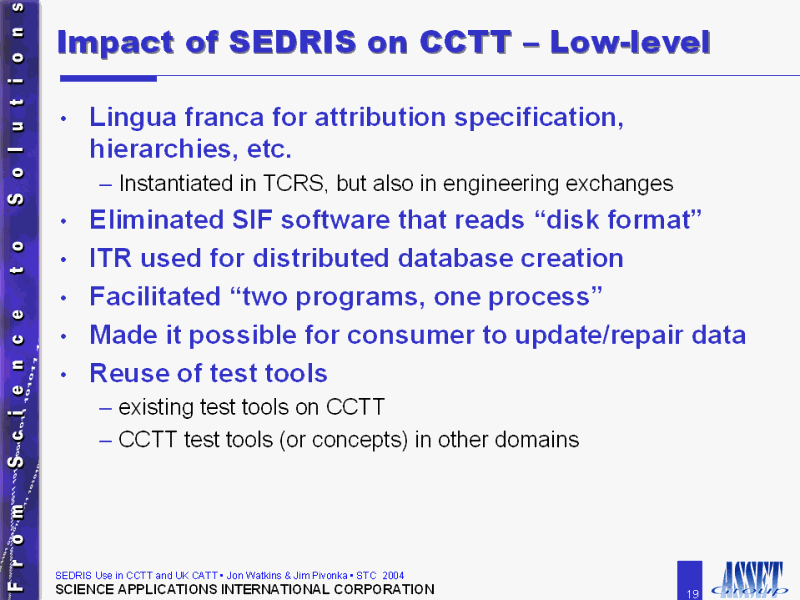

Impact of SEDRIS on CCTT � Low-level

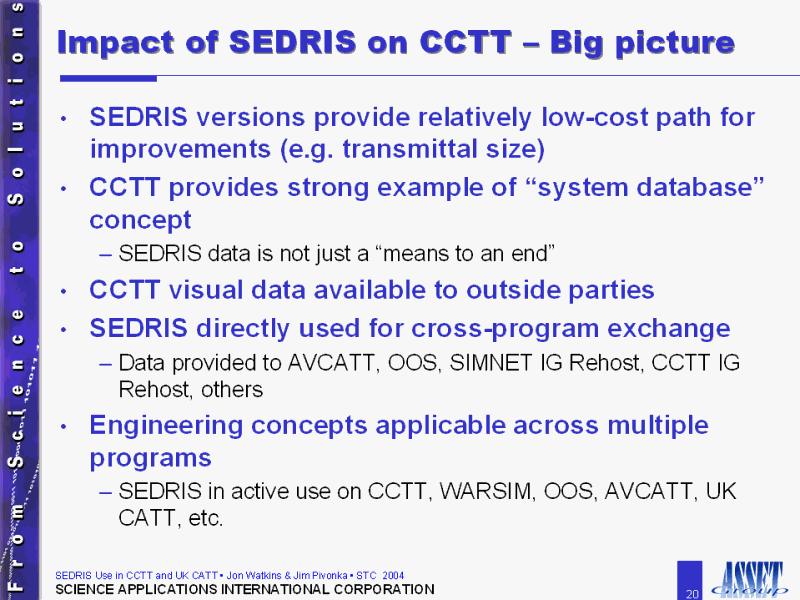

Impact of SEDRIS on CCTT � Big picture

Use of SEDRIS on CCTT and UK CATT

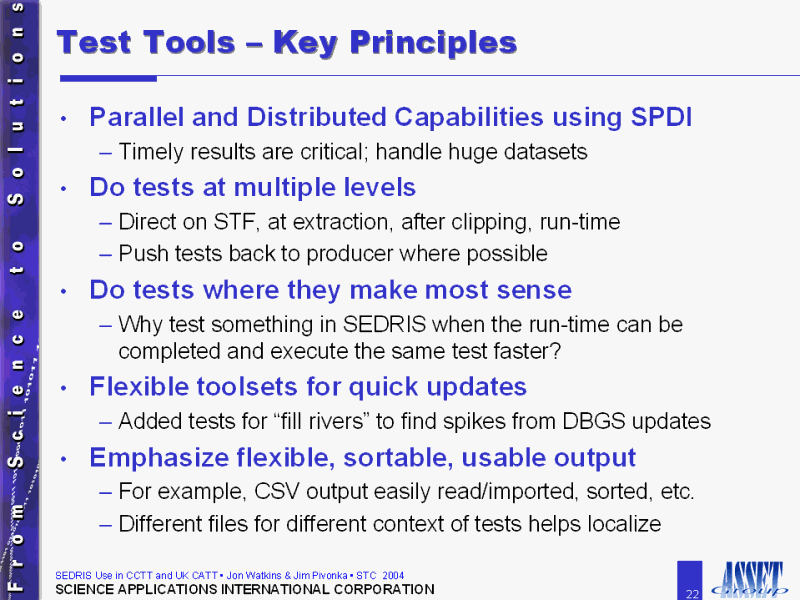

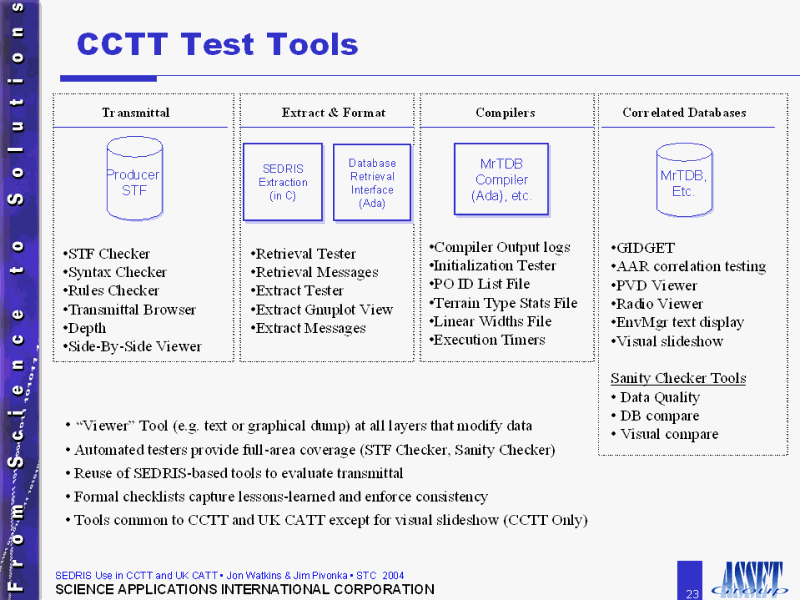

Test Tools � Key Principles

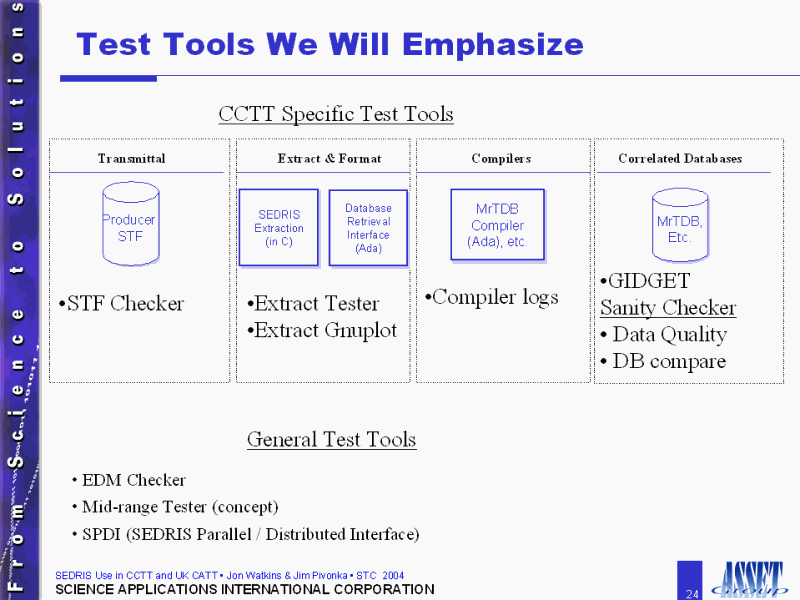

PPT Slide

PPT Slide

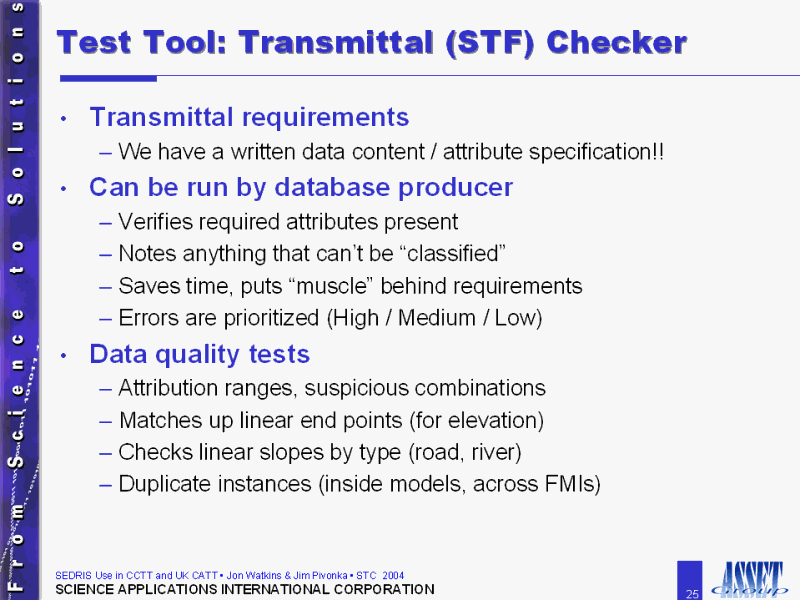

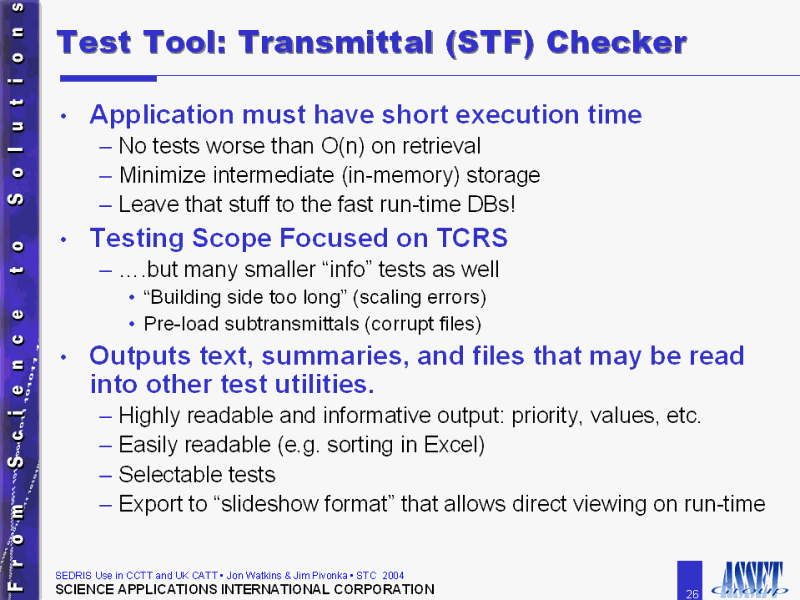

Test Tool: Transmittal (STF) Checker

Test Tool: Transmittal (STF) Checker

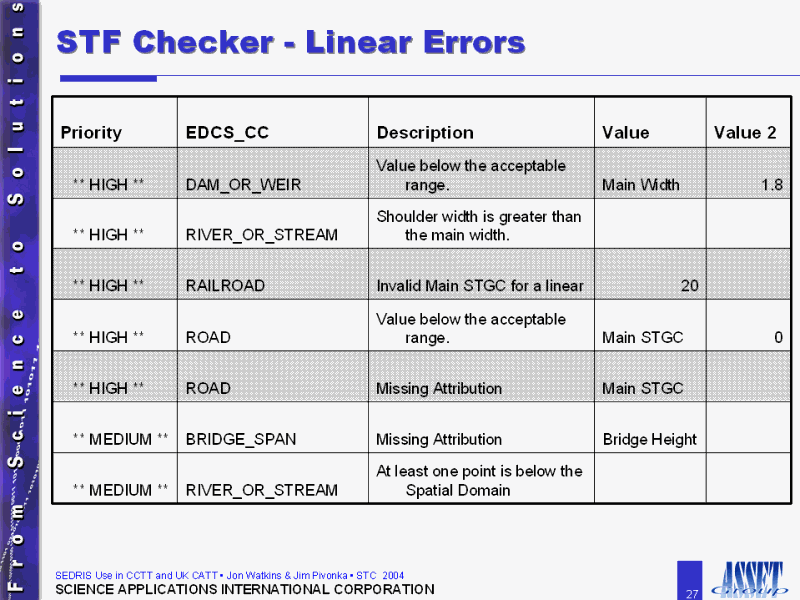

STF Checker - Linear Errors

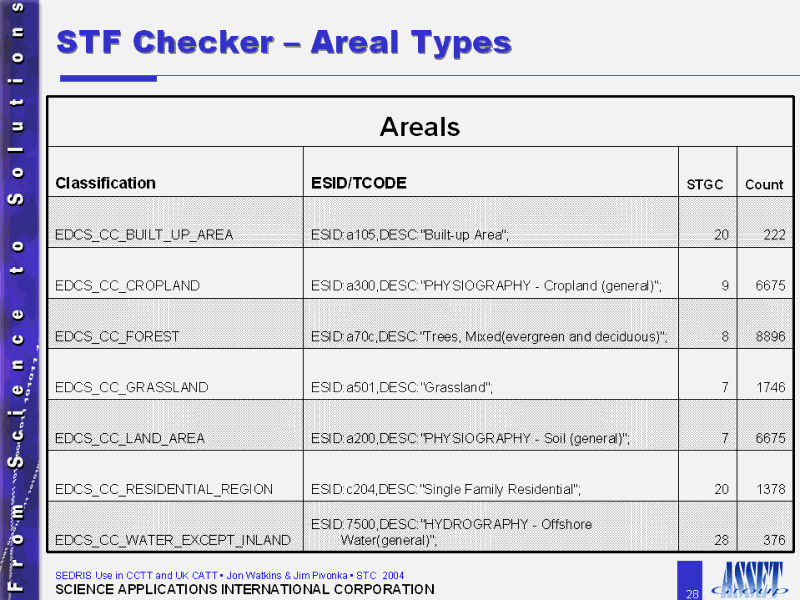

STF Checker � Areal Types

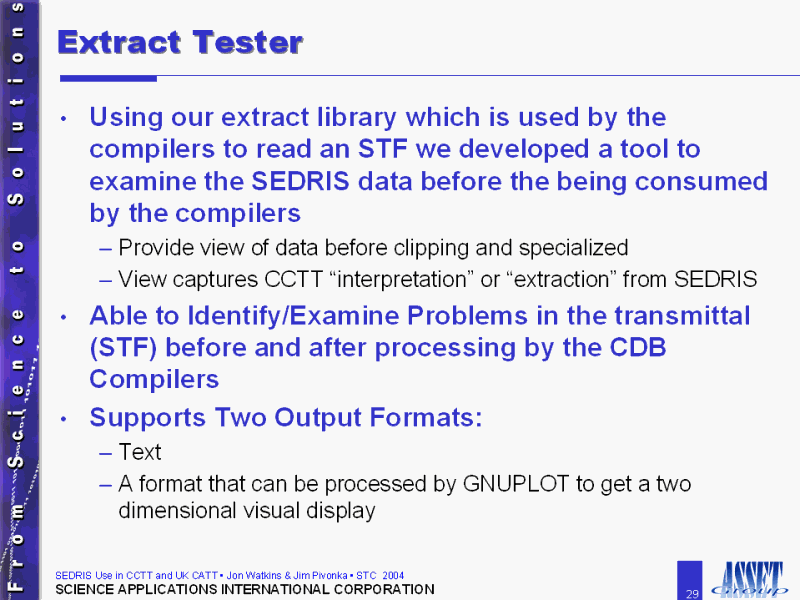

Extract Tester

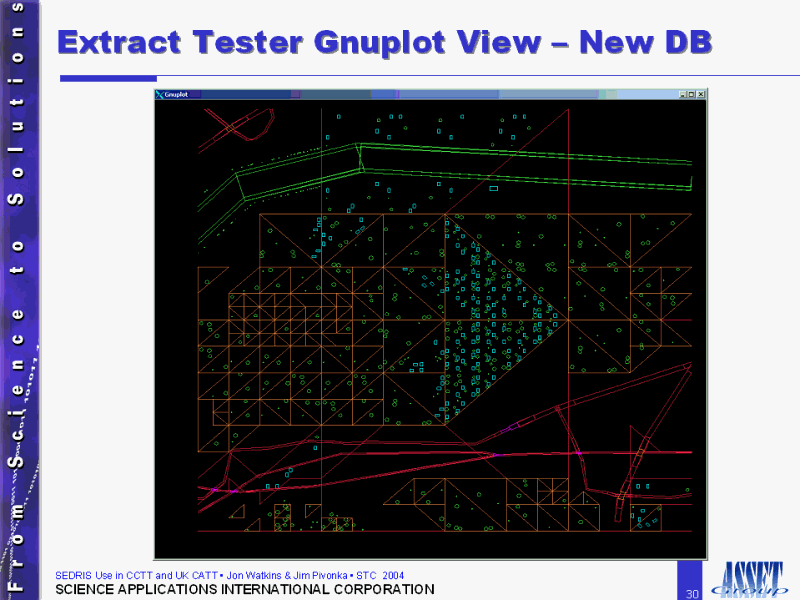

Extract Tester Gnuplot View � New DB

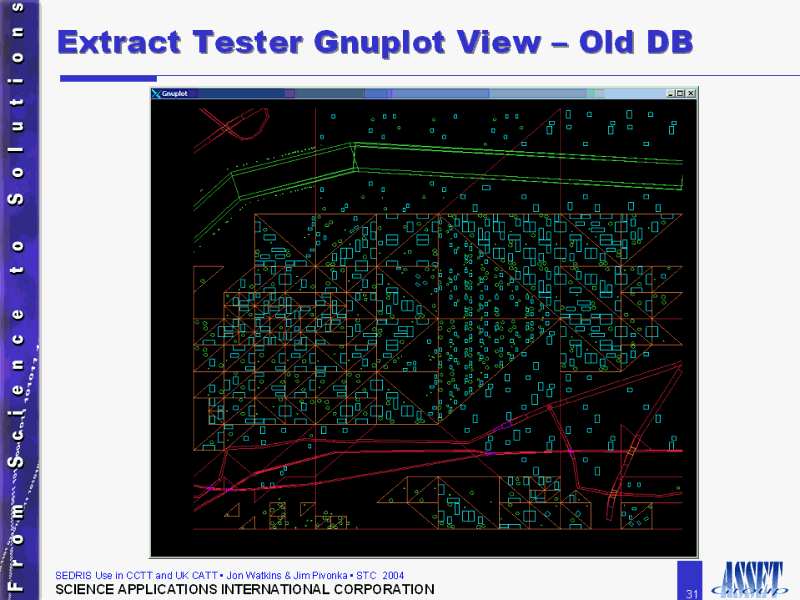

Extract Tester Gnuplot View � Old DB

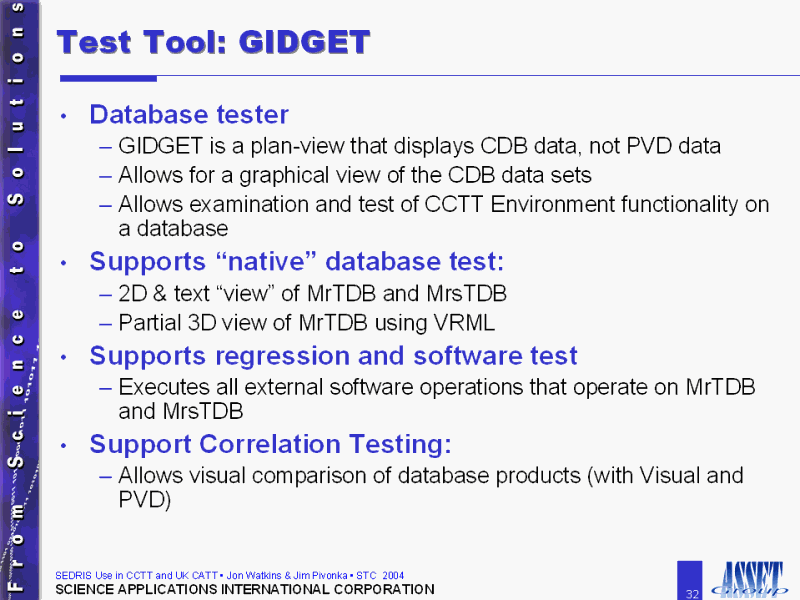

Test Tool: GIDGET

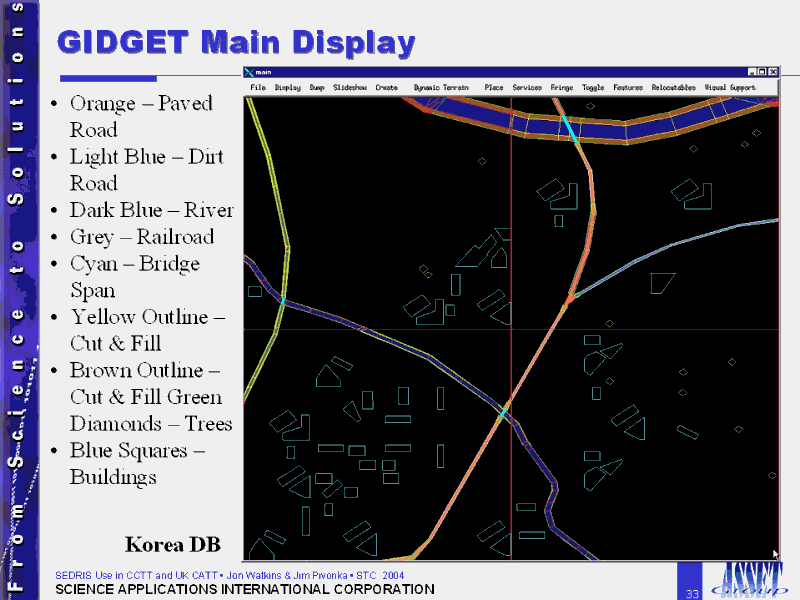

GIDGET Main Display

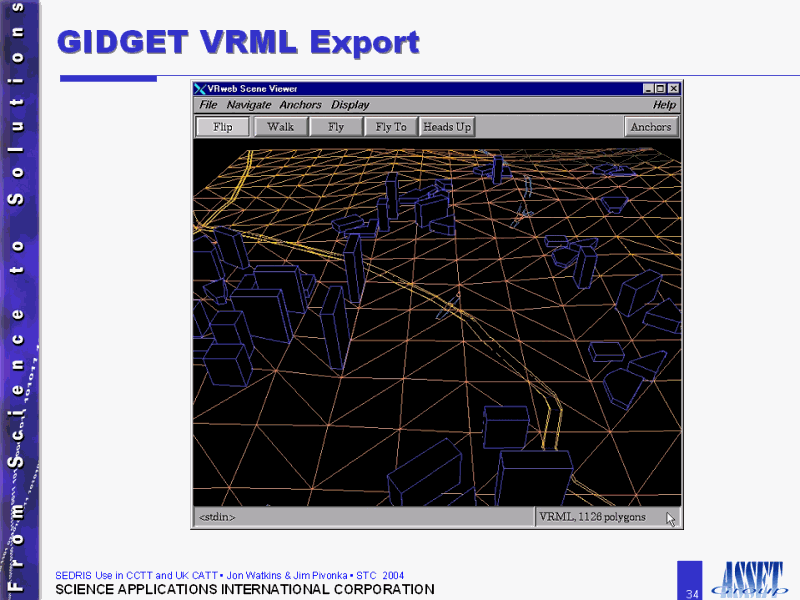

GIDGET VRML Export

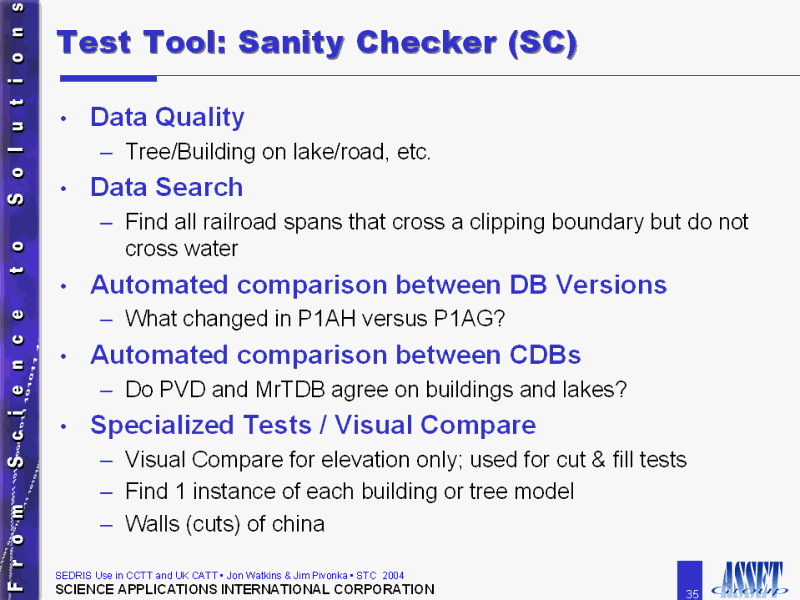

Test Tool: Sanity Checker (SC)

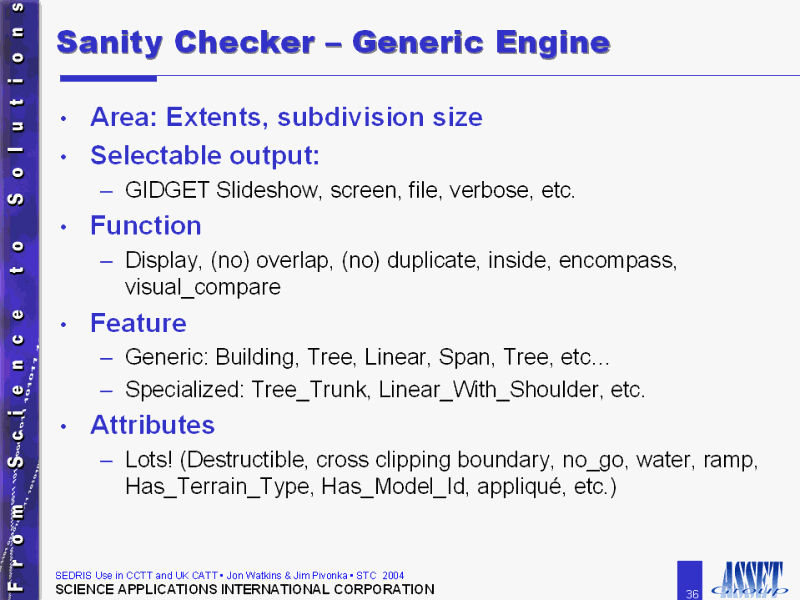

Sanity Checker � Generic Engine

Miscellaneous SC Test Examples

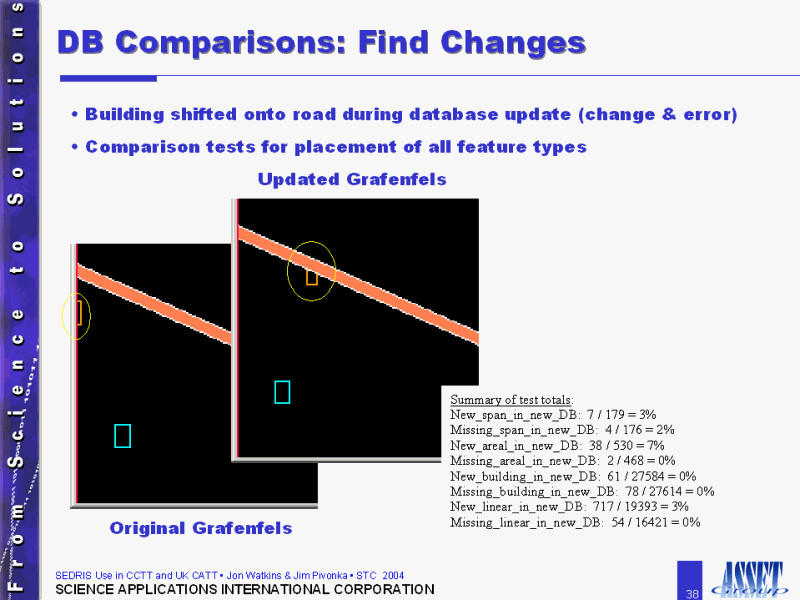

DB Comparisons: Find Changes

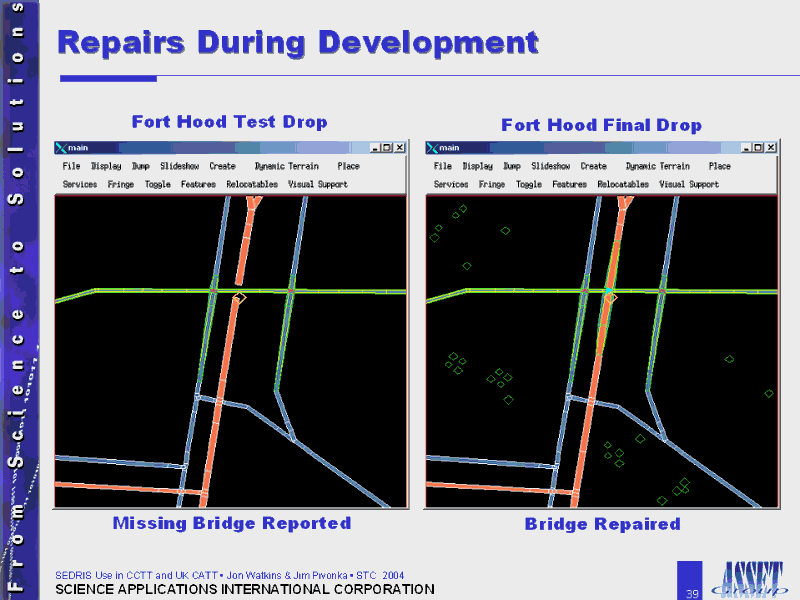

Repairs During Development

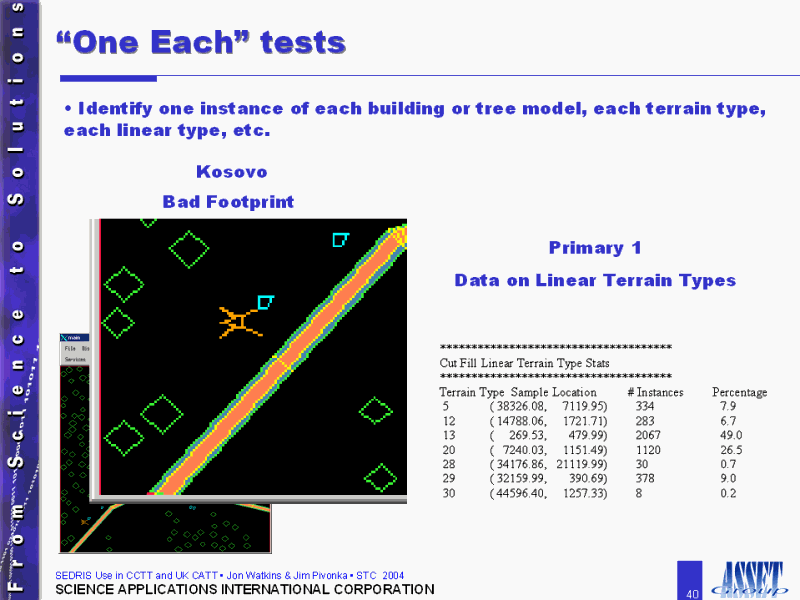

�One Each� tests

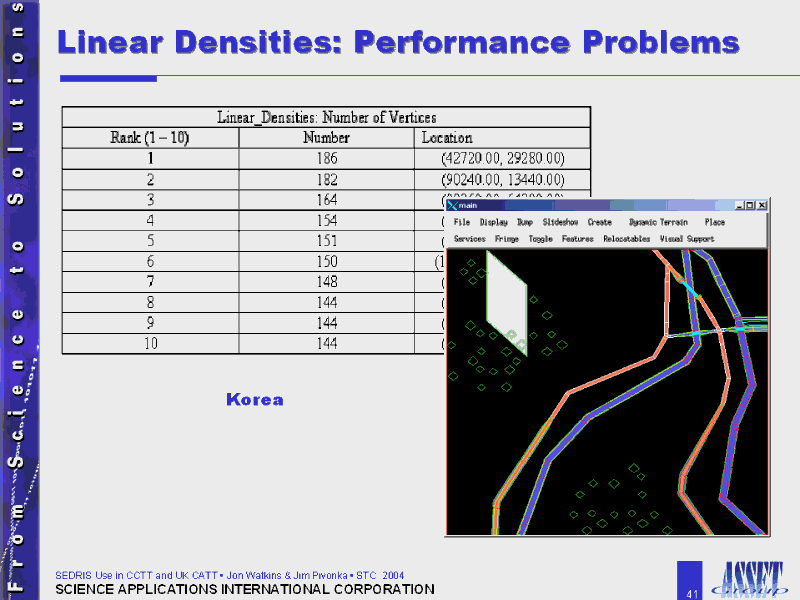

Linear Densities: Performance Problems

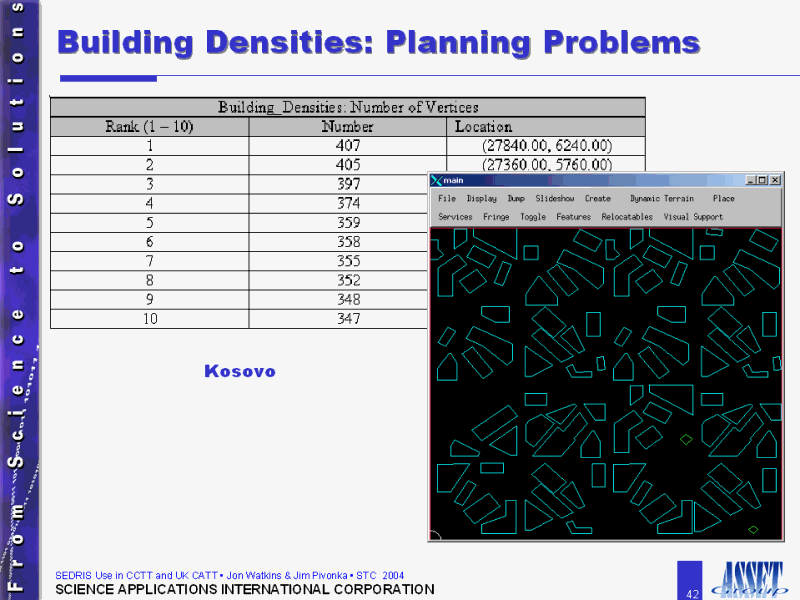

Building Densities: Planning Problems

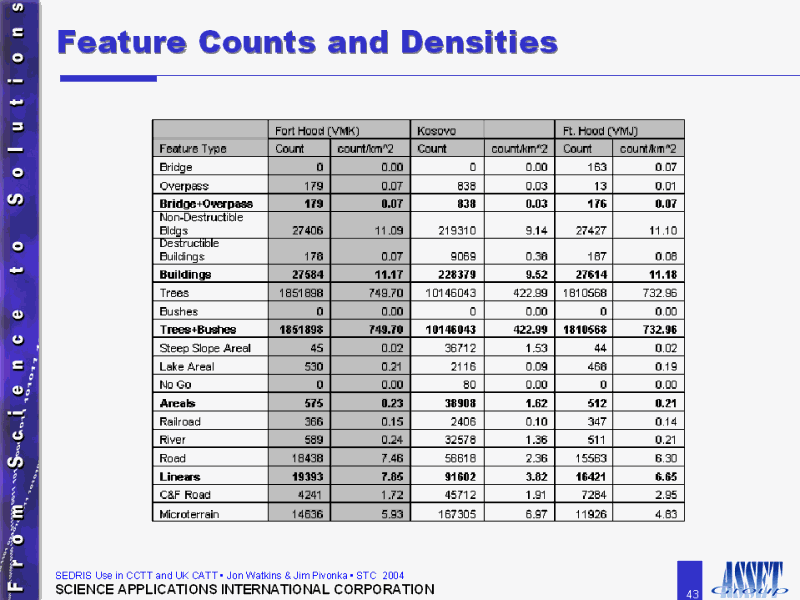

Feature Counts and Densities

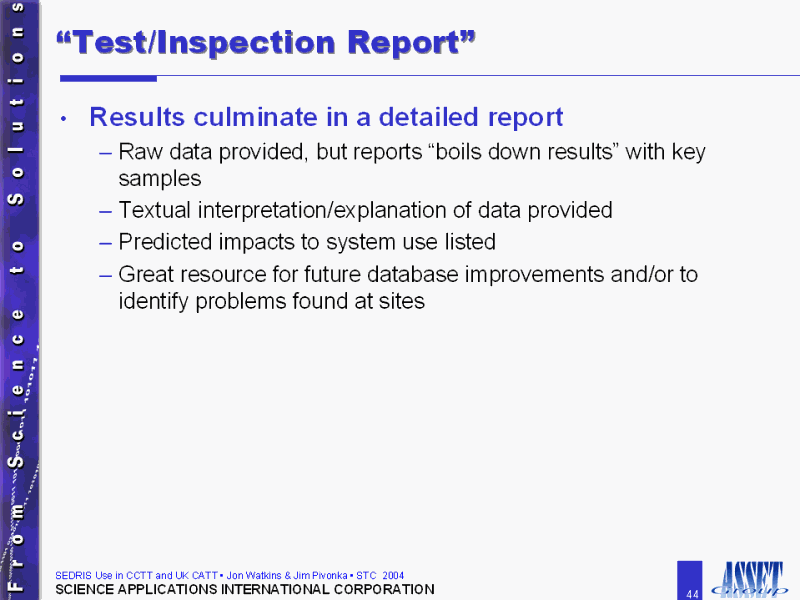

�Test/Inspection Report�

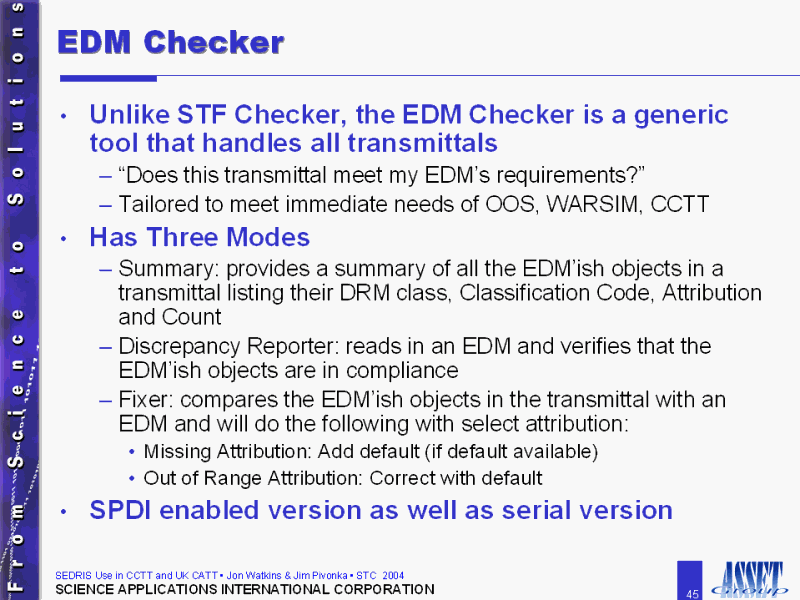

EDM Checker

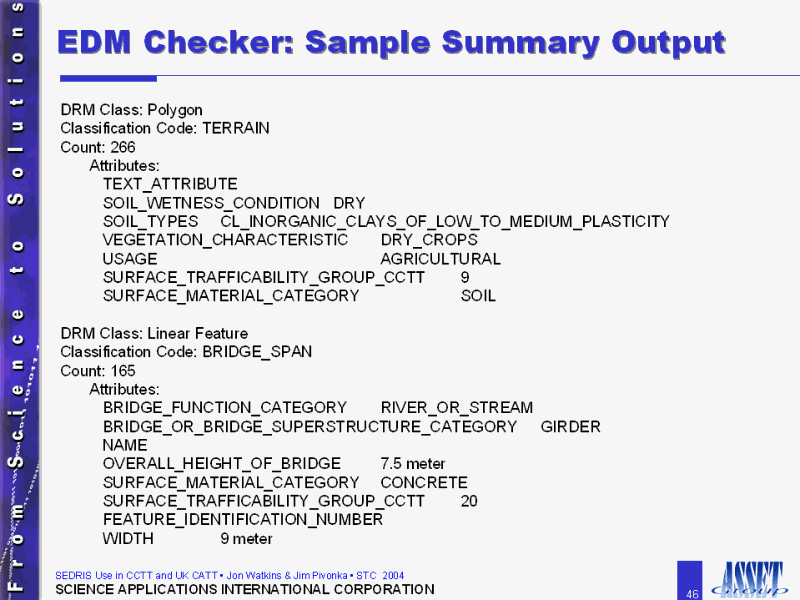

EDM Checker: Sample Summary Output

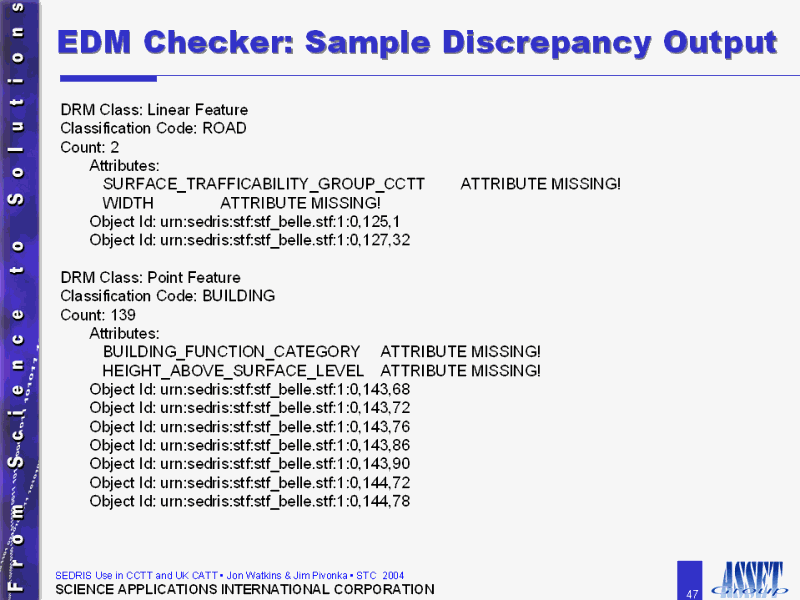

EDM Checker: Sample Discrepancy Output

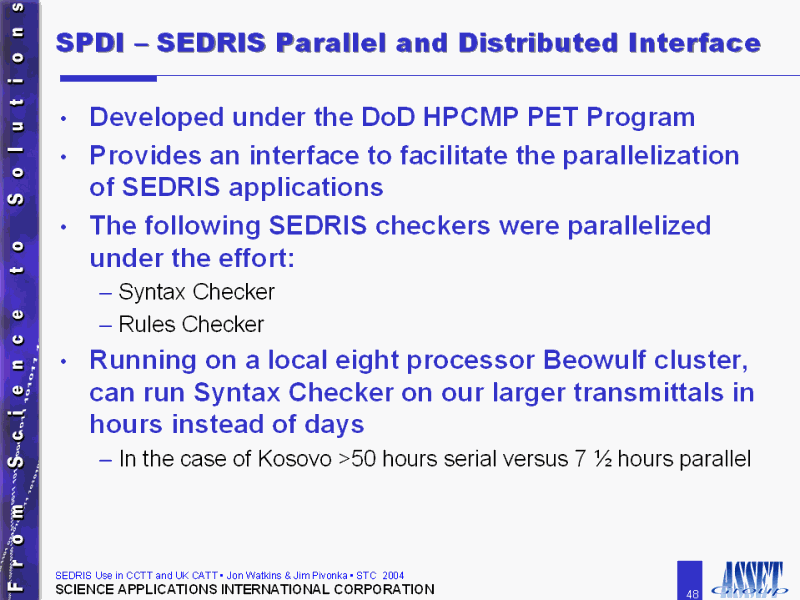

SPDI � SEDRIS Parallel and Distributed Interface

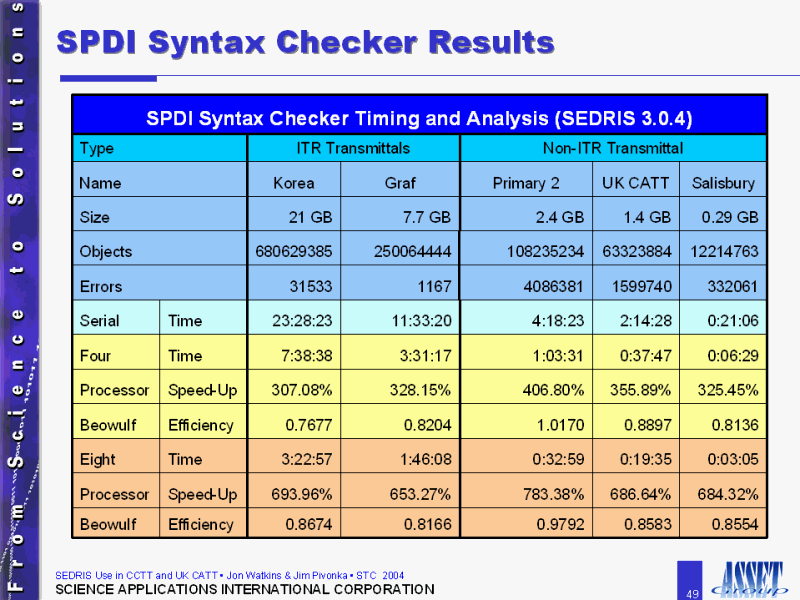

SPDI Syntax Checker Results

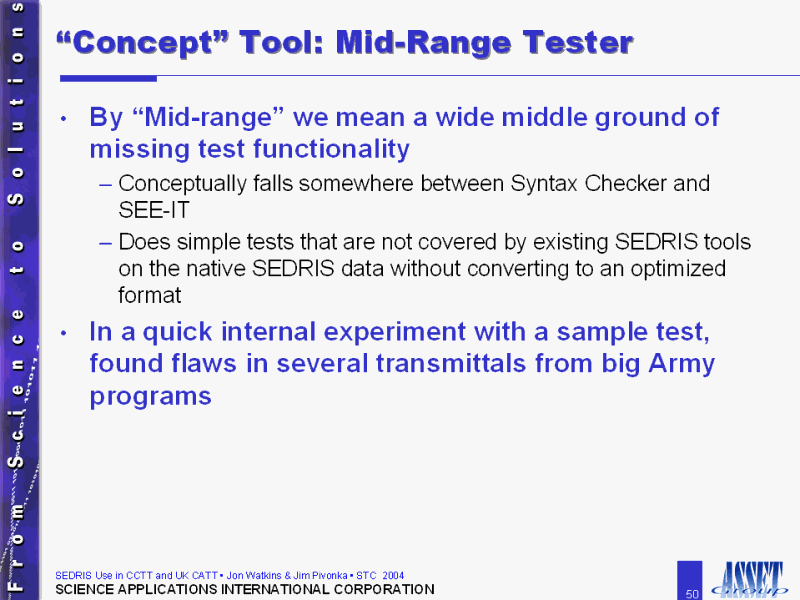

�Concept� Tool: Mid-Range Tester

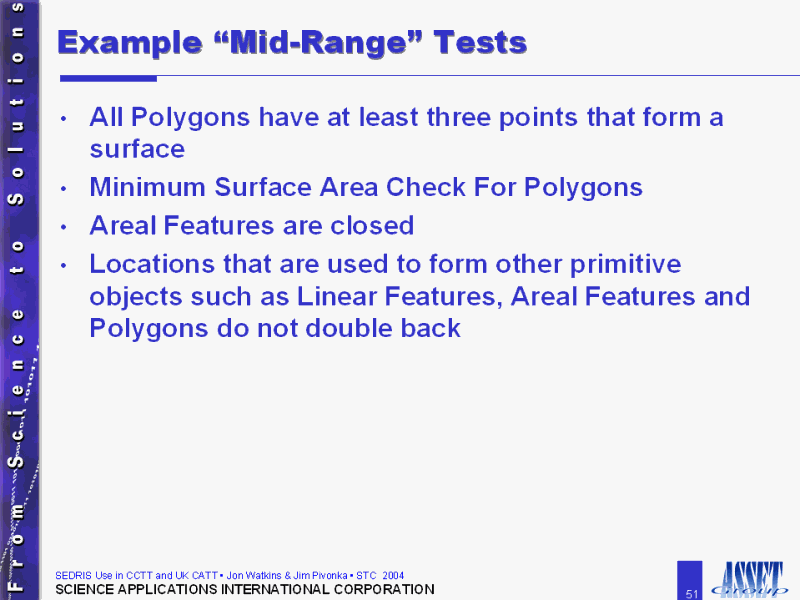

Example �Mid-Range� Tests

Questions or Comments?
