Acoustic Sensor Modeling In JWARS

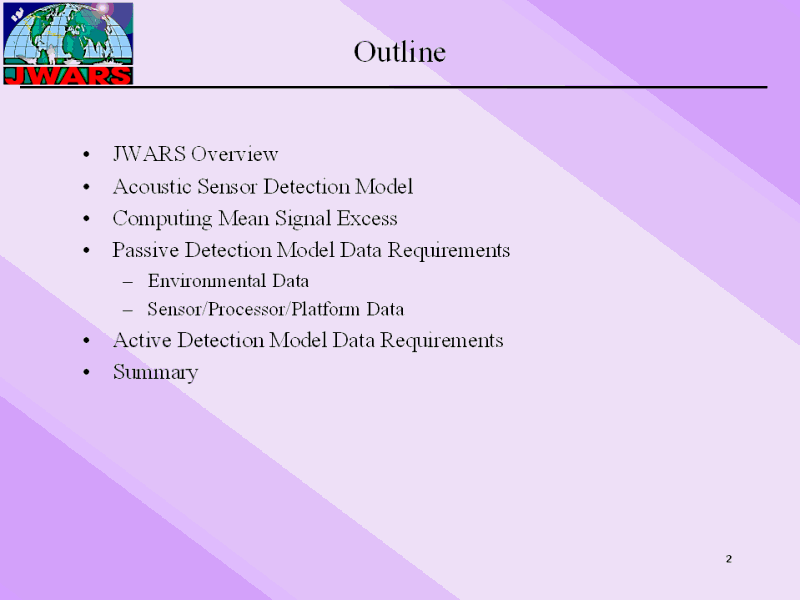

Outline

PPT Slide

PPT Slide

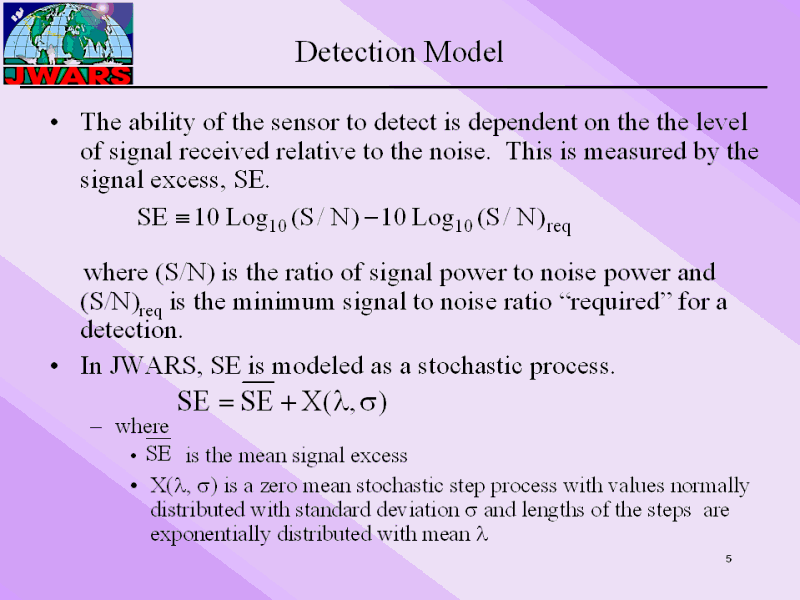

Detection Model

Passive Acoustic Detection Model

Mean Signal Excess Calculation

Transmission Loss Data

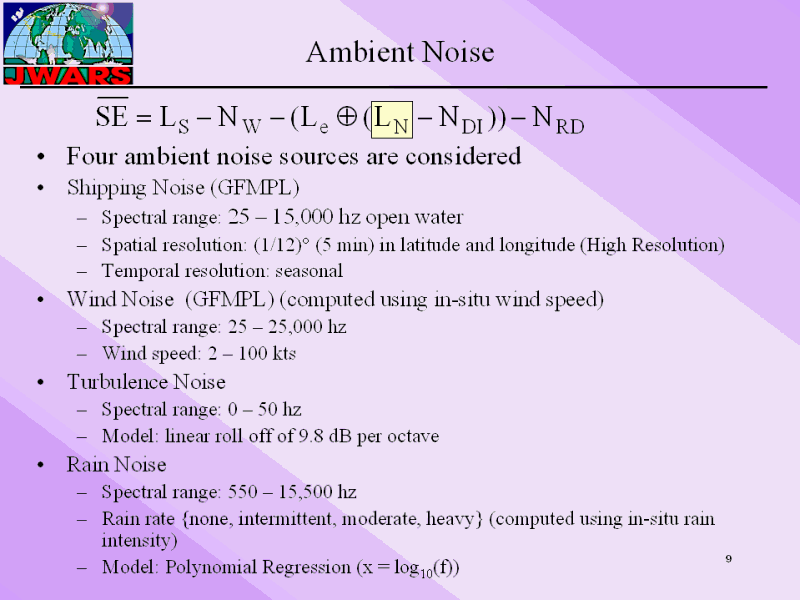

Ambient Noise

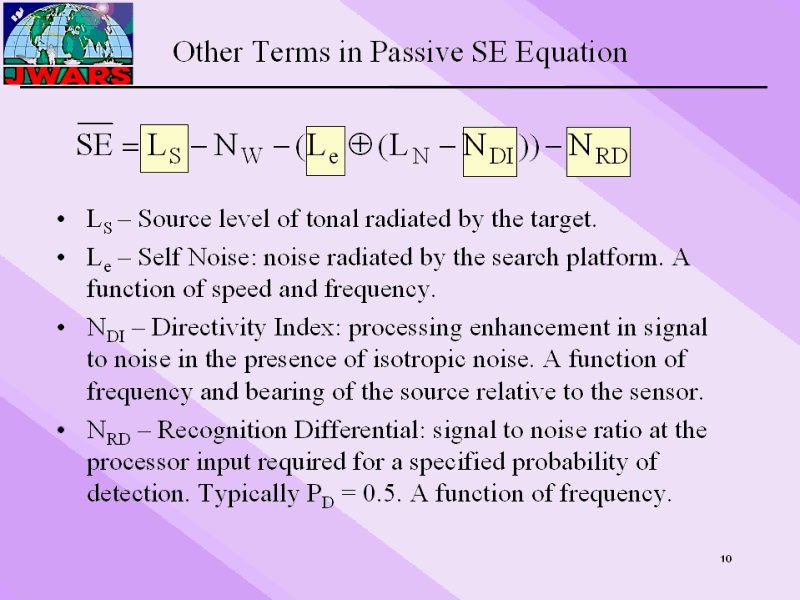

Other Terms in Passive SE Equation

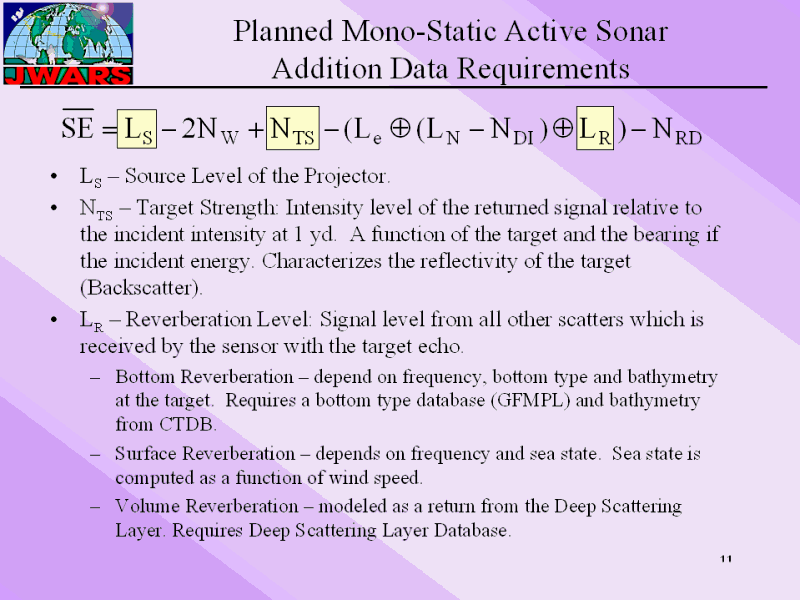

Planned Mono-Static Active Sonar Addition Data Requirements

Summary
