Presentation Index


_

1

PPT Slide

2

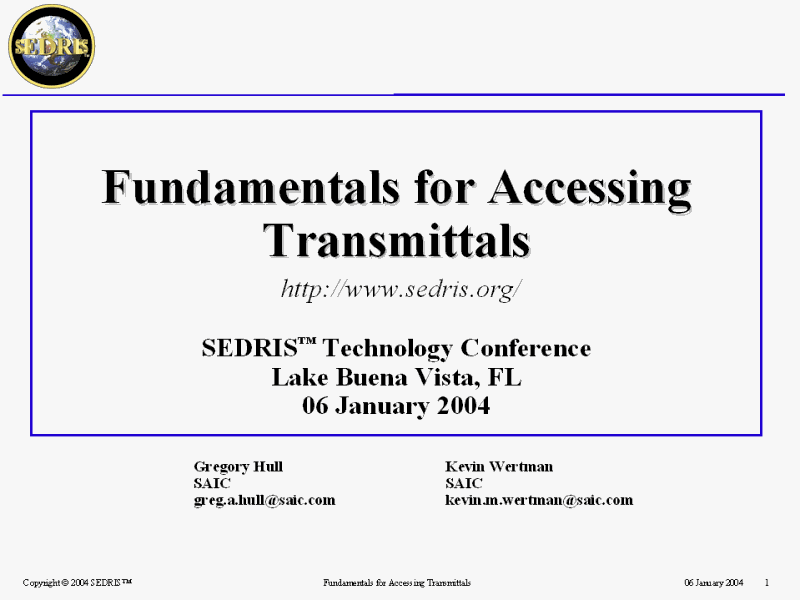

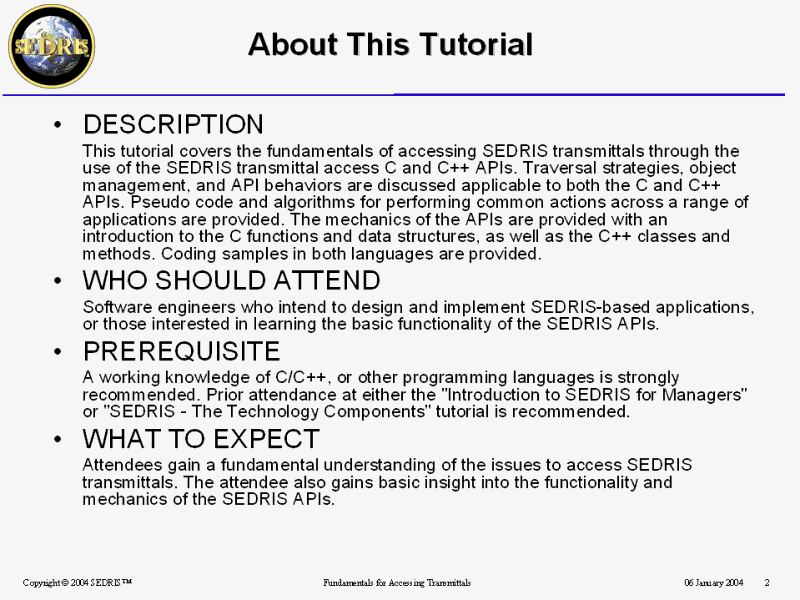

About This Tutorial

3

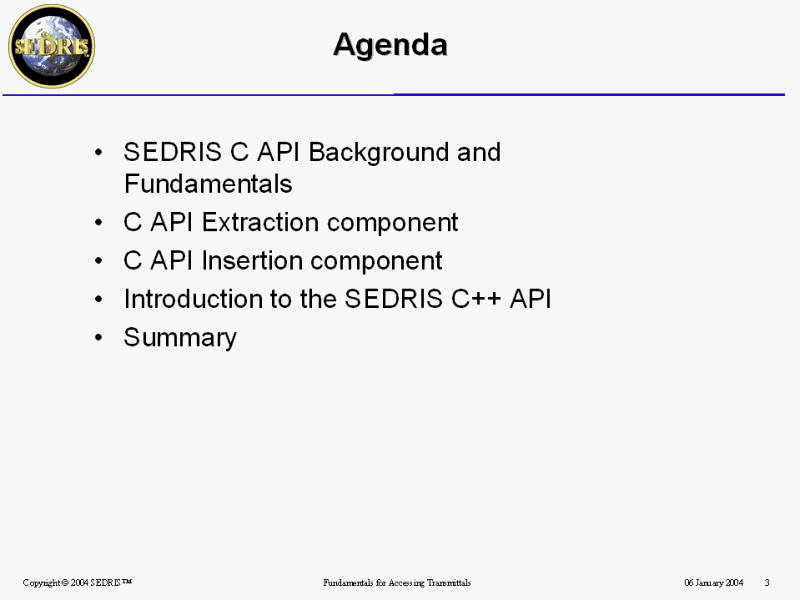

Agenda

4

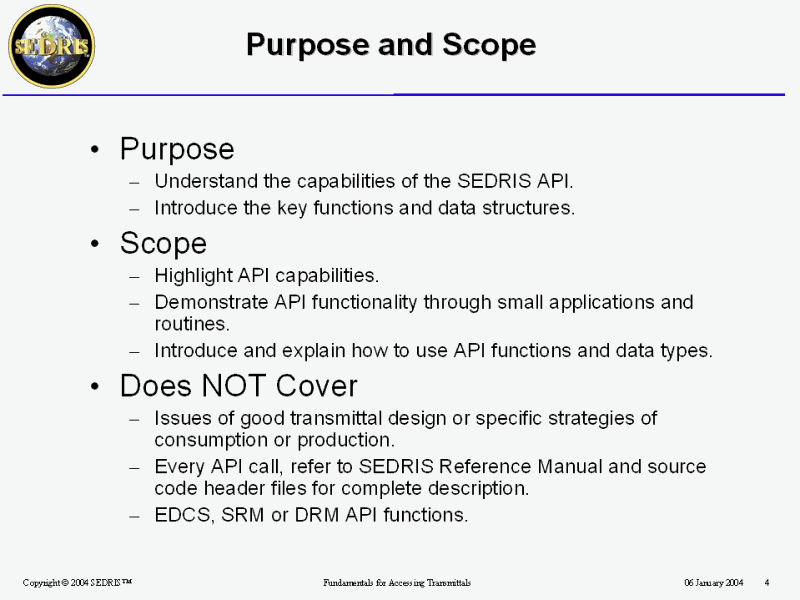

Purpose and Scope

5

PPT Slide

6

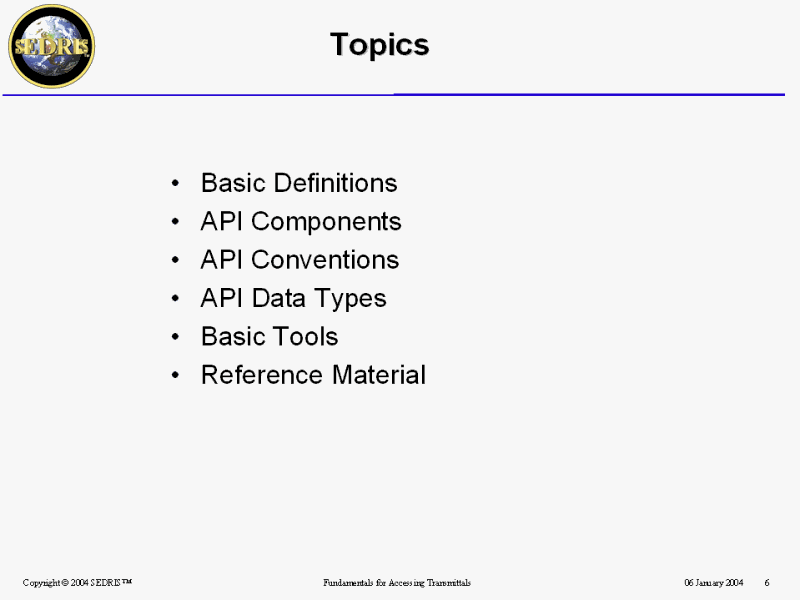

Topics

7

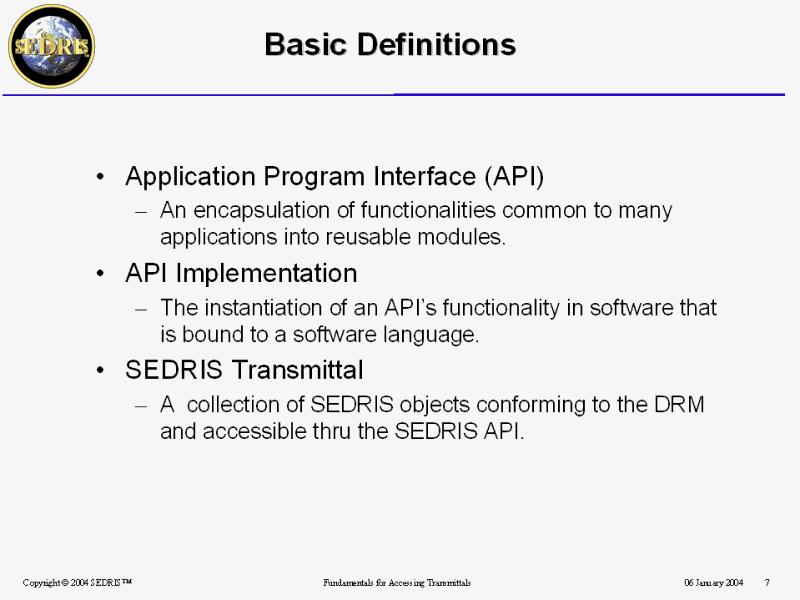

Basic Definitions

8

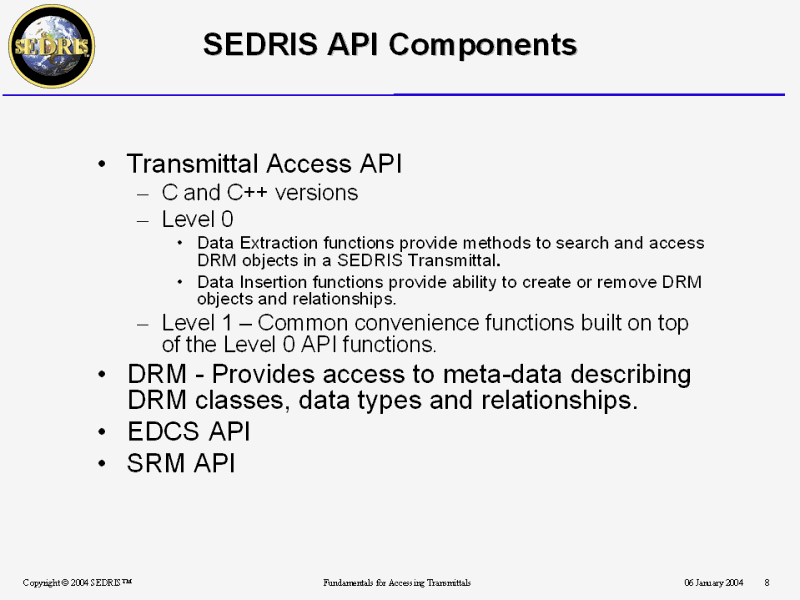

SEDRIS API Components

9

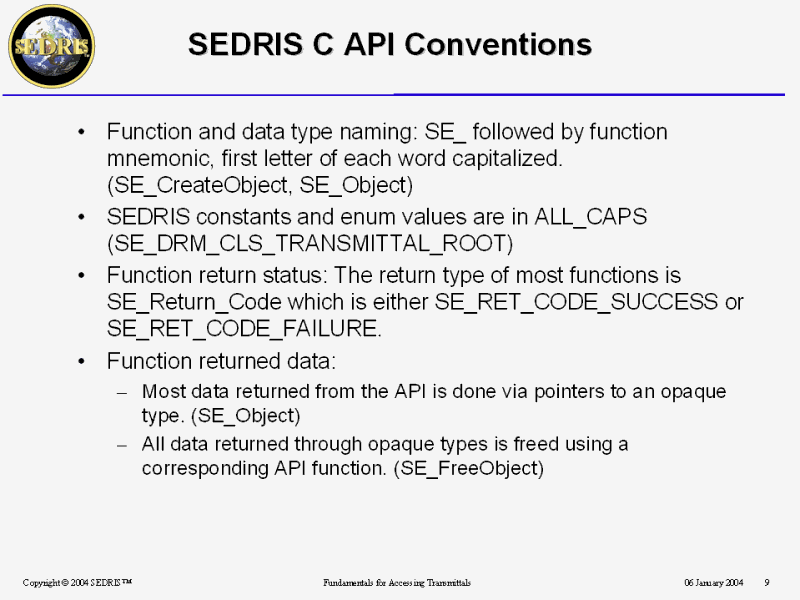

SEDRIS C API Conventions

10

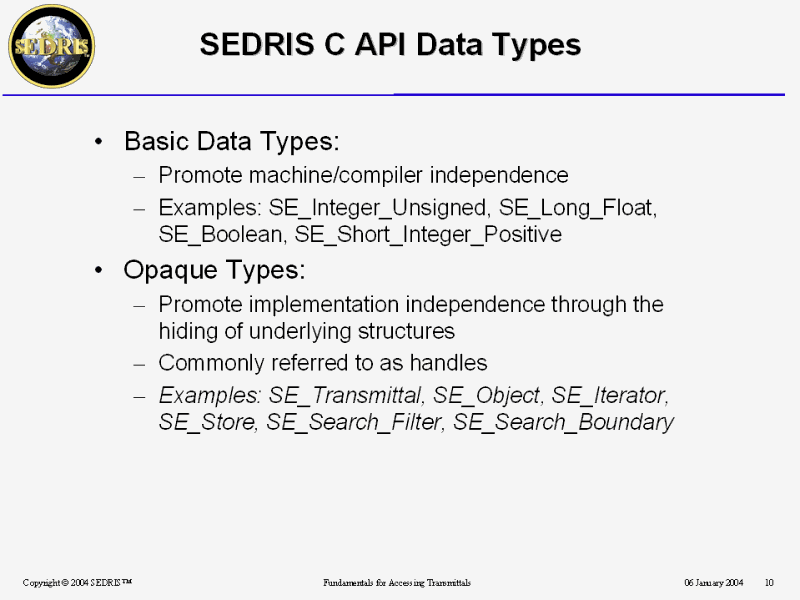

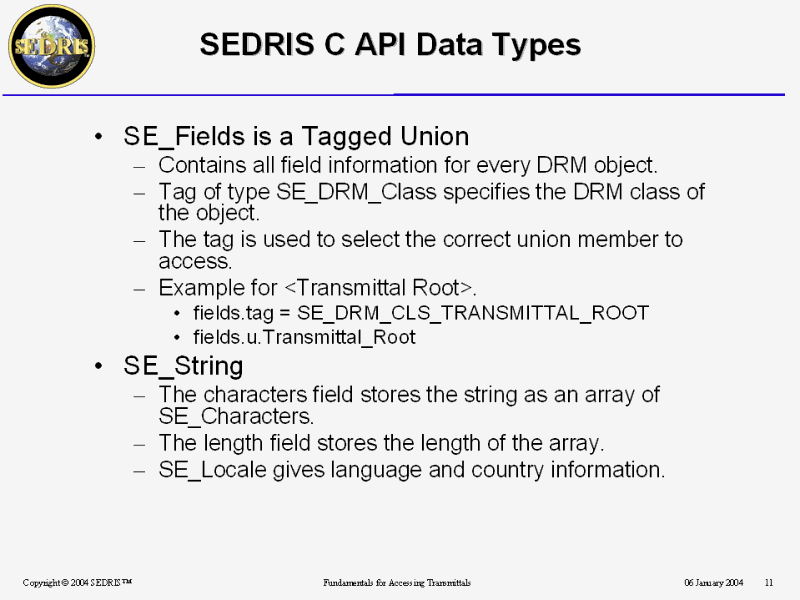

SEDRIS C API Data Types

11

SEDRIS C API Data Types

12

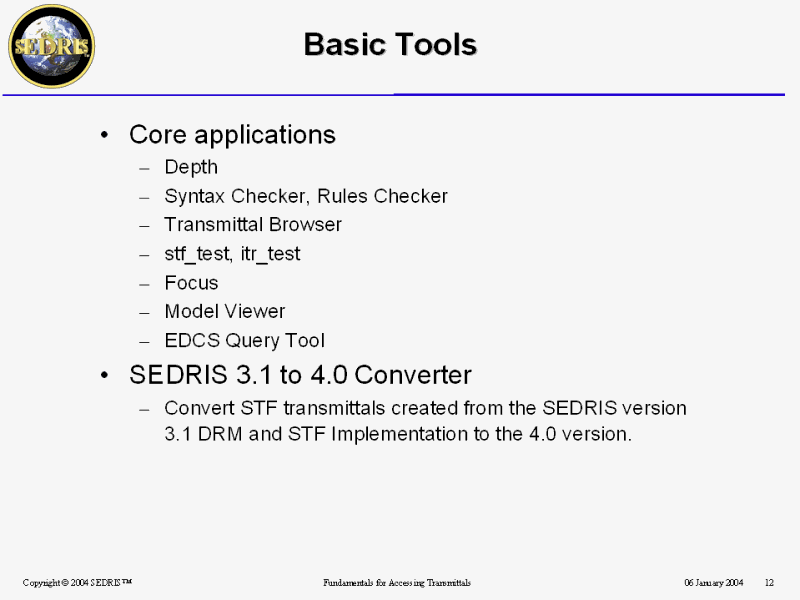

Basic Tools

13

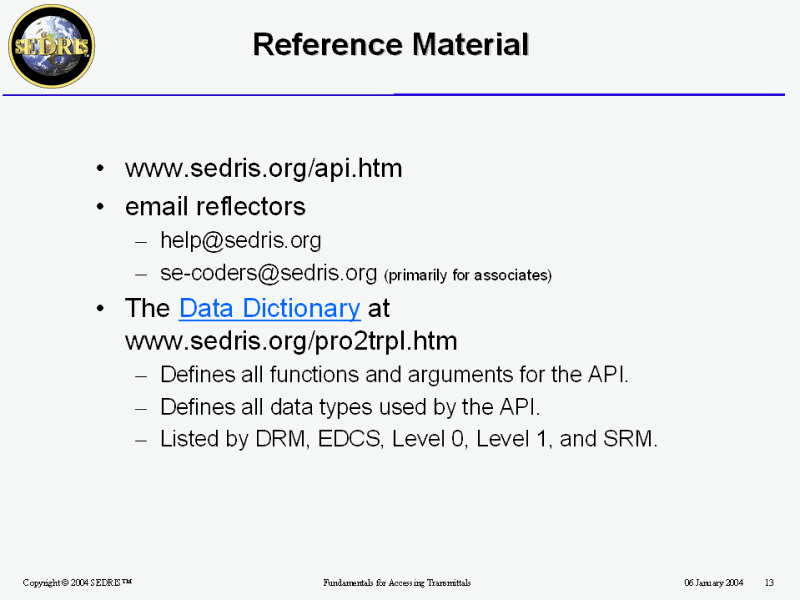

Reference Material

14

PPT Slide

15

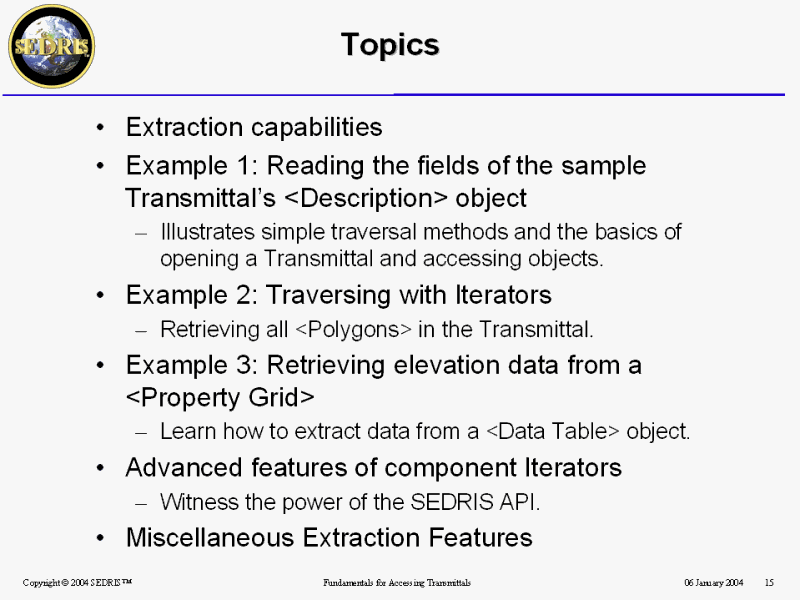

Topics

16

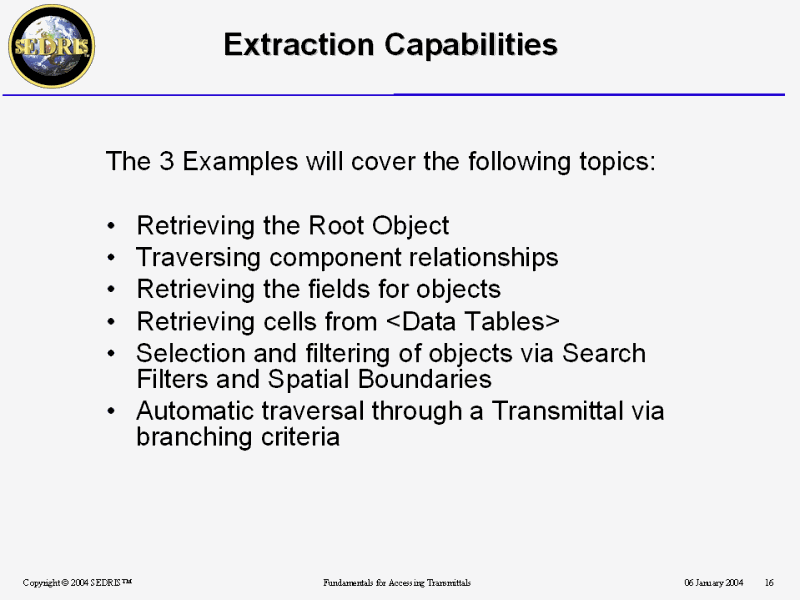

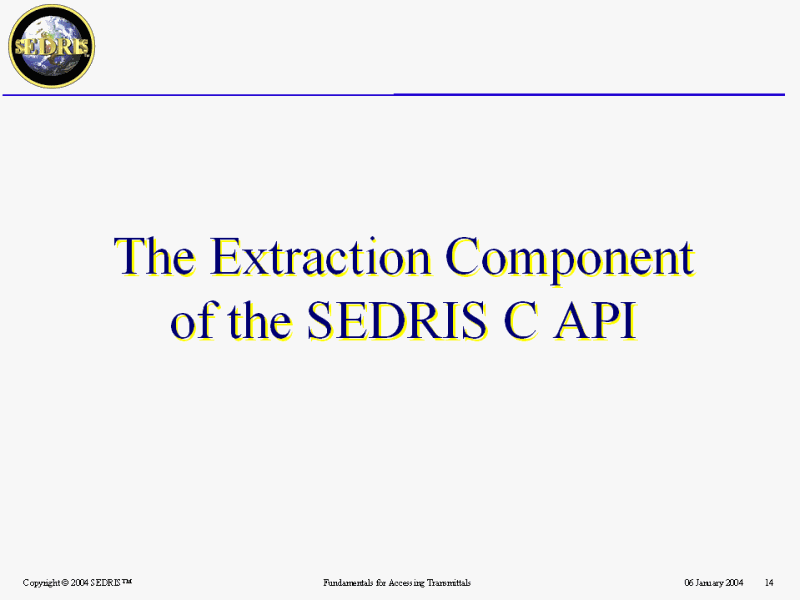

Extraction Capabilities

17

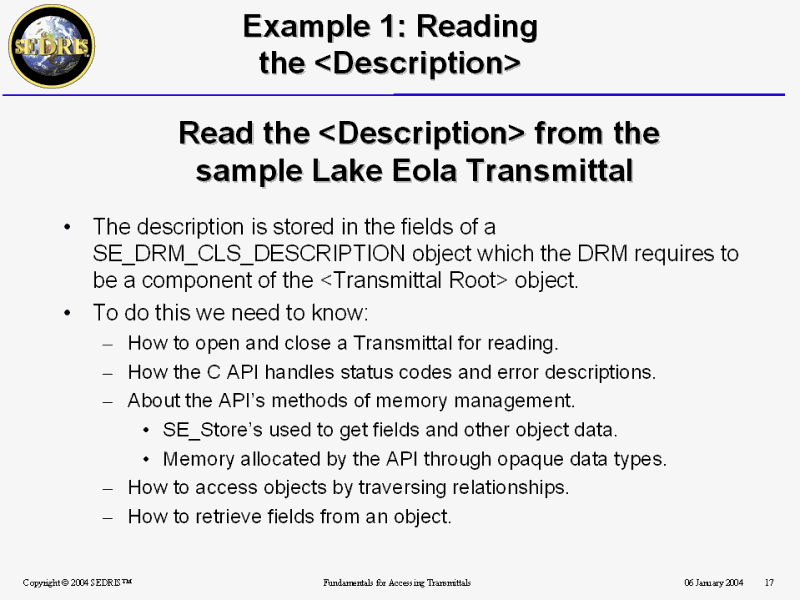

Example 1: Reading the <Description>

18

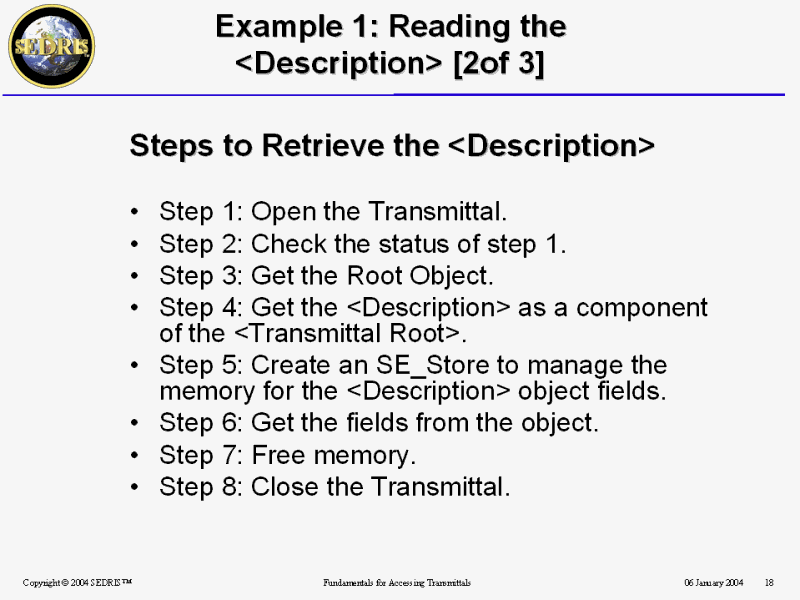

Example 1: Reading the <Description> [2of 3]

19

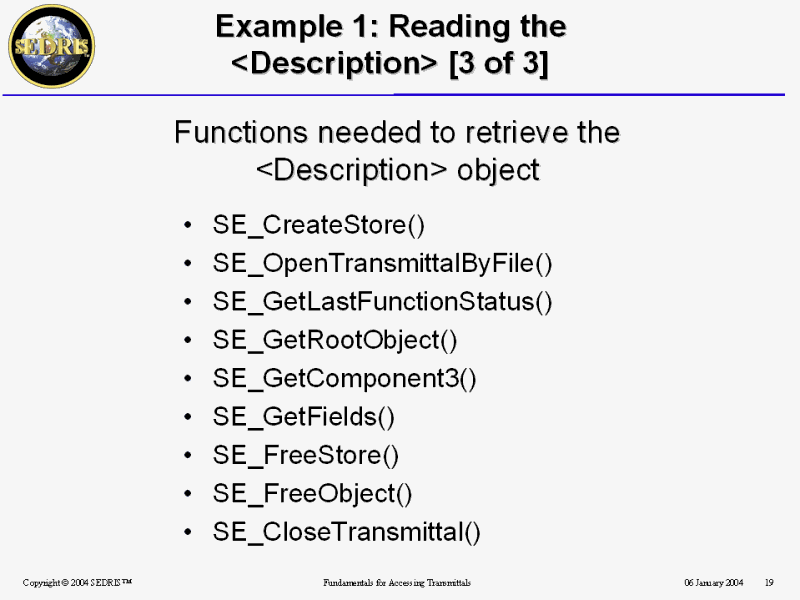

Example 1: Reading the <Description> [3 of 3]

20

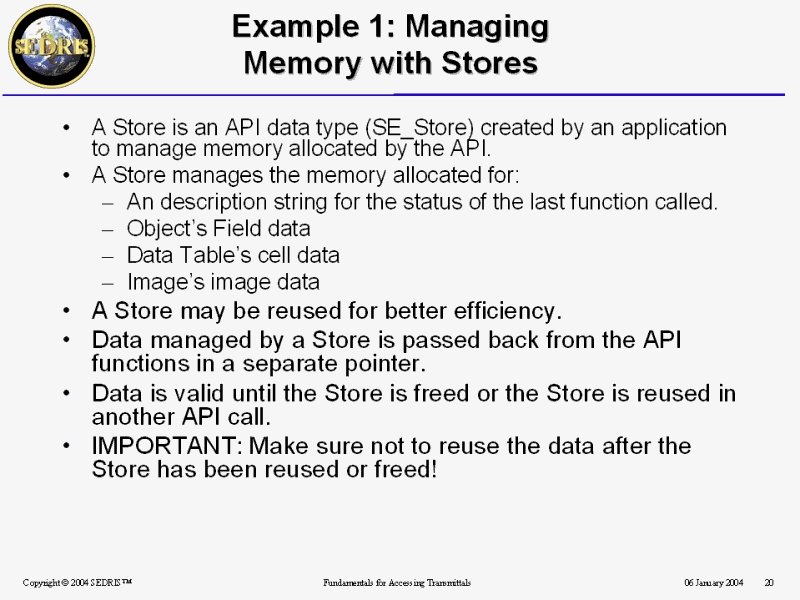

Example 1: Managing Memory with Stores

21

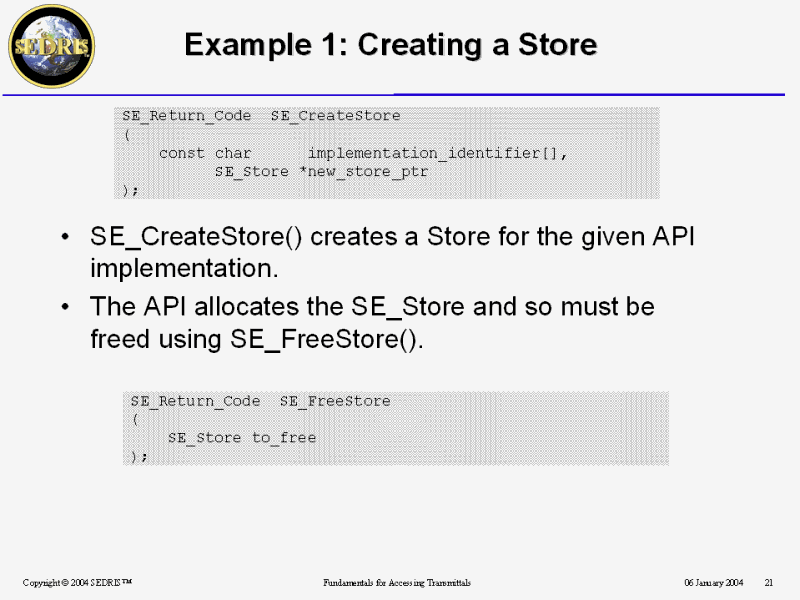

Example 1: Creating a Store

22

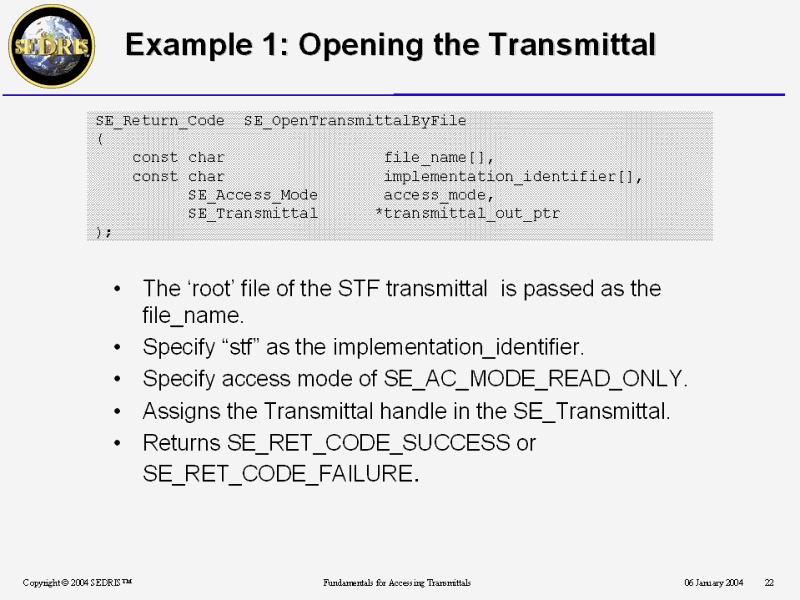

Example 1: Opening the Transmittal

23

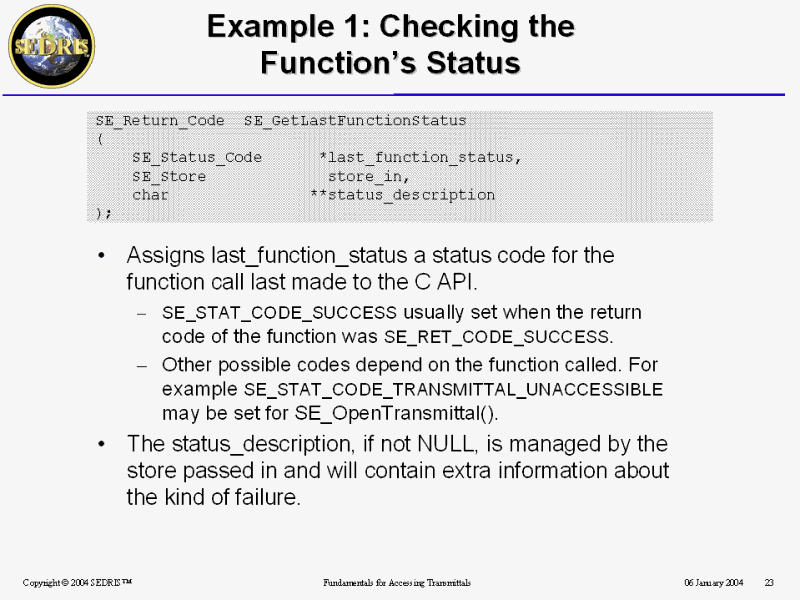

Example 1: Checking the Function’s Status

24

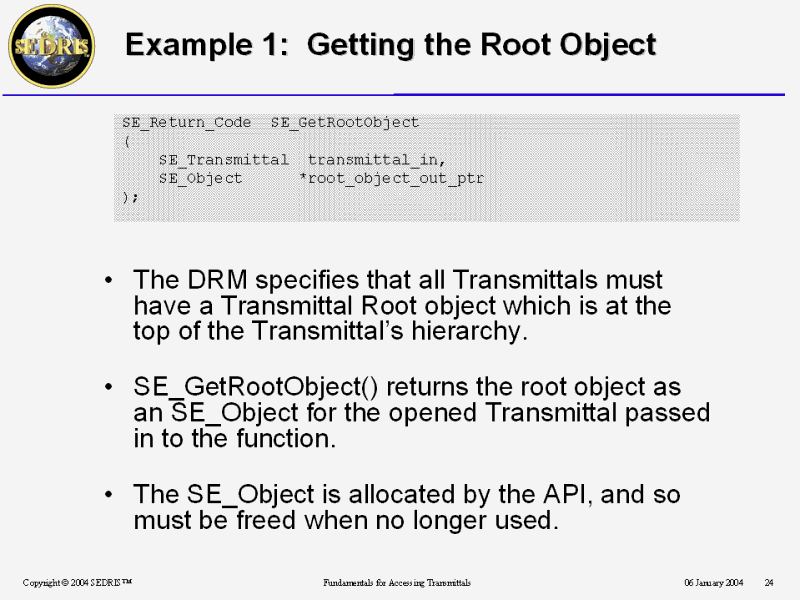

Example 1: Getting the Root Object

25

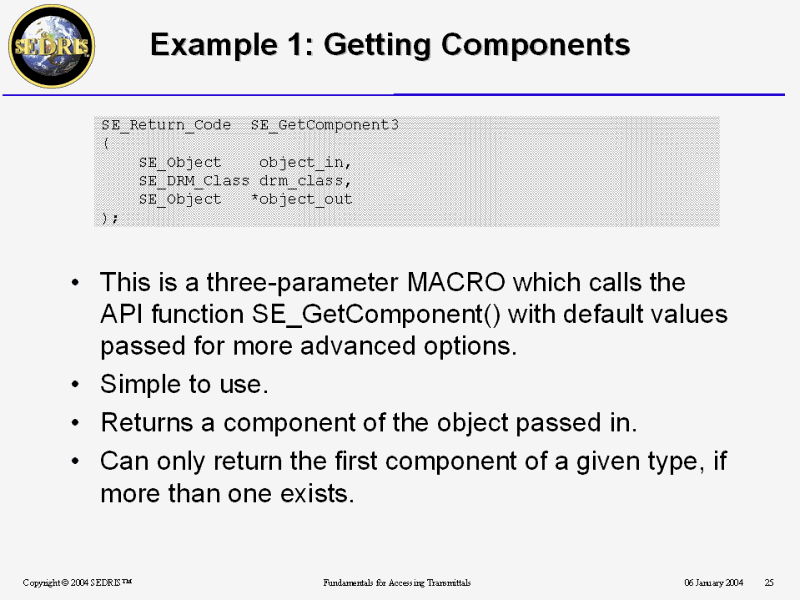

Example 1: Getting Components

26

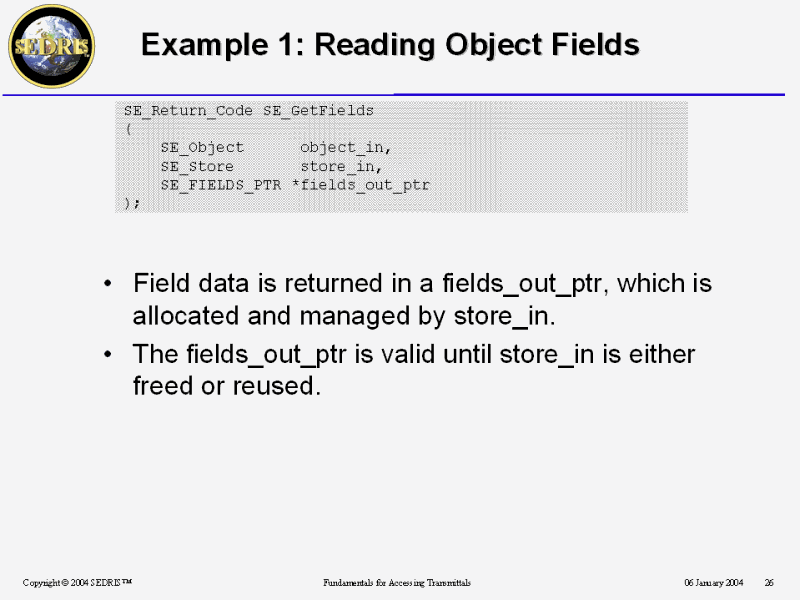

Example 1: Reading Object Fields

27

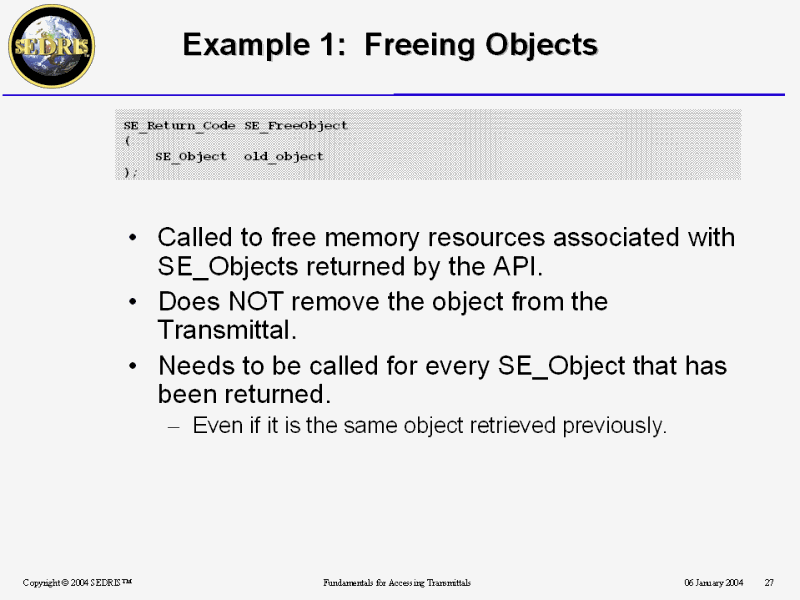

Example 1: Freeing Objects

28

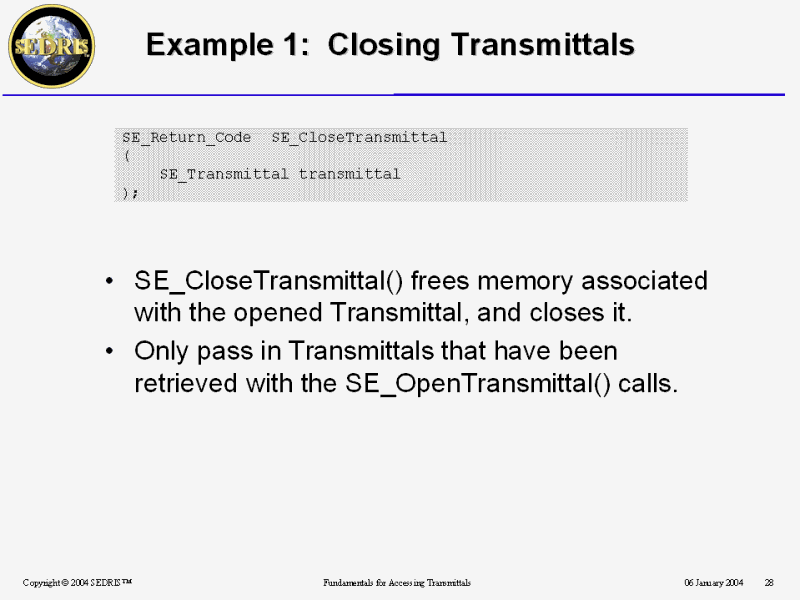

Example 1: Closing Transmittals

29

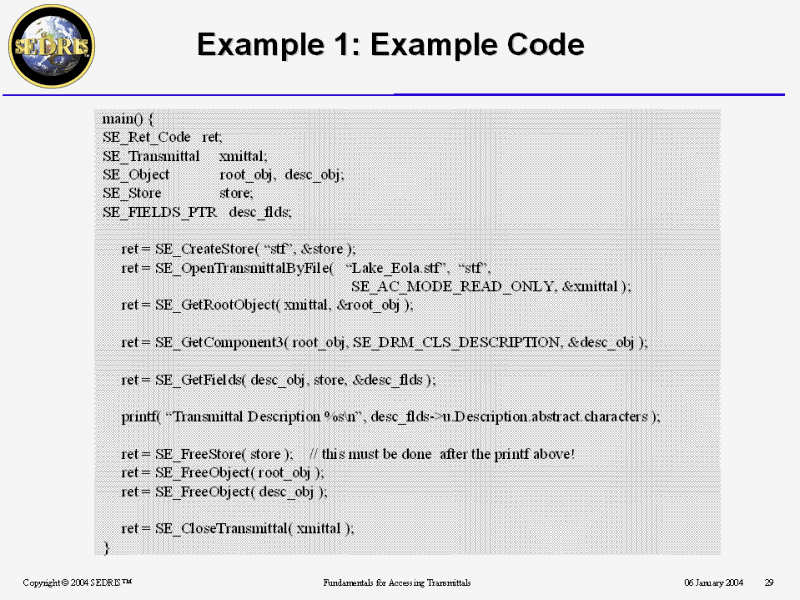

Example 1: Example Code

30

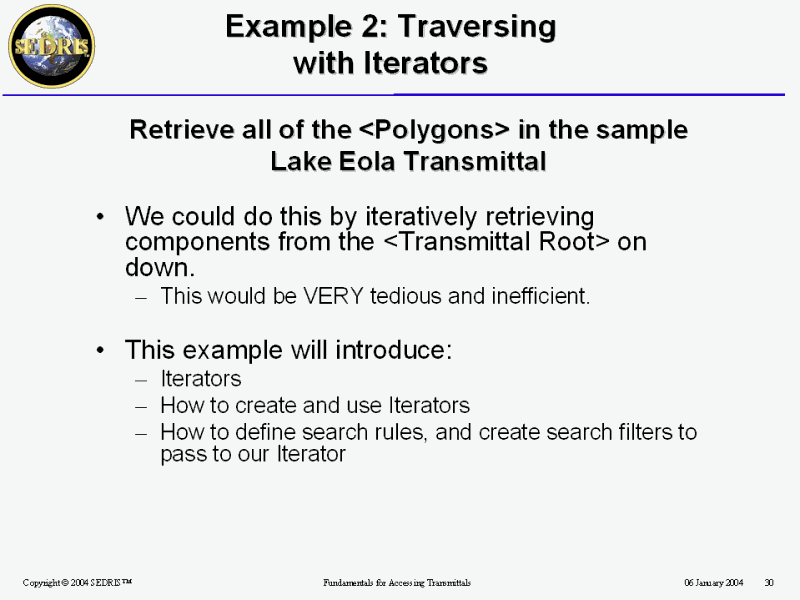

Example 2: Traversing with Iterators

31

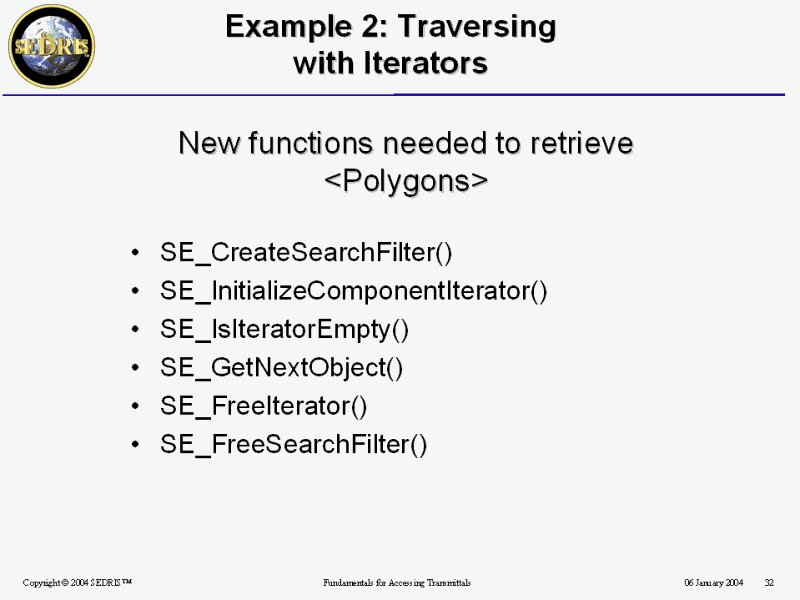

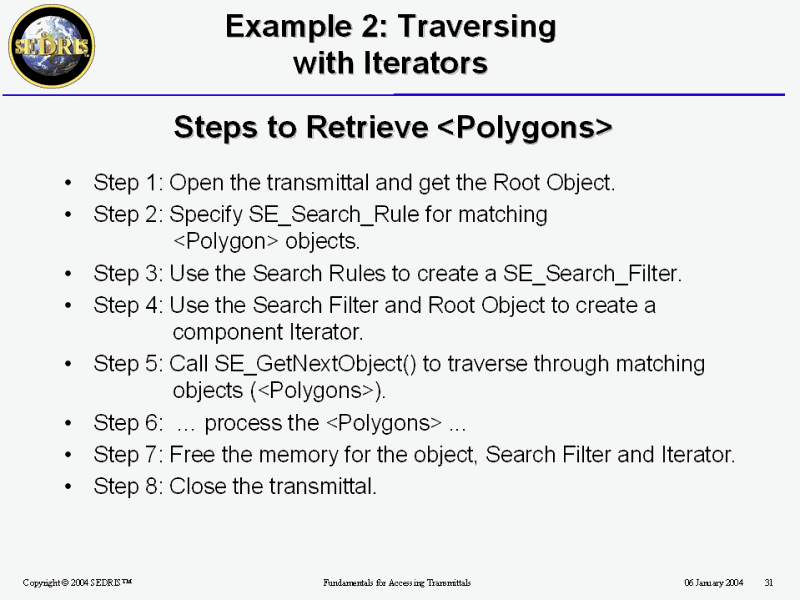

Example 2: Traversing with Iterators

32

Example 2: Traversing with Iterators

33

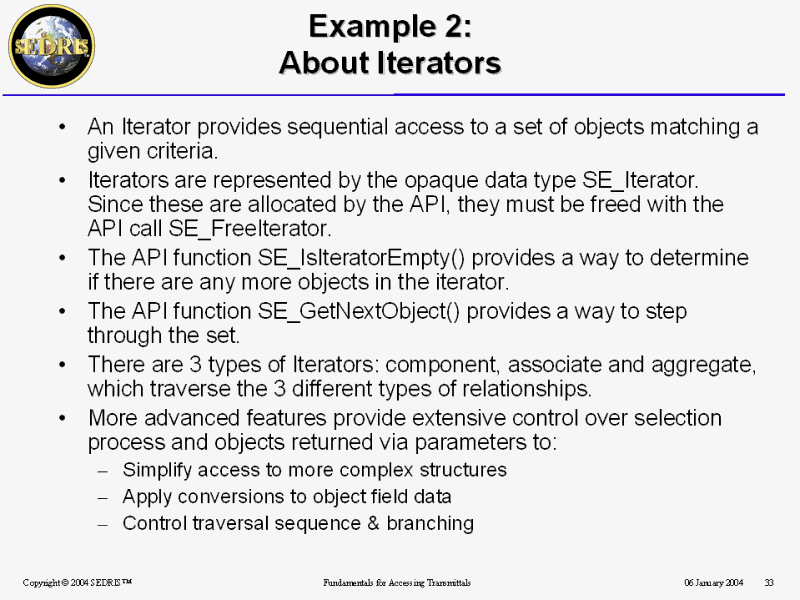

Example 2: About Iterators

34

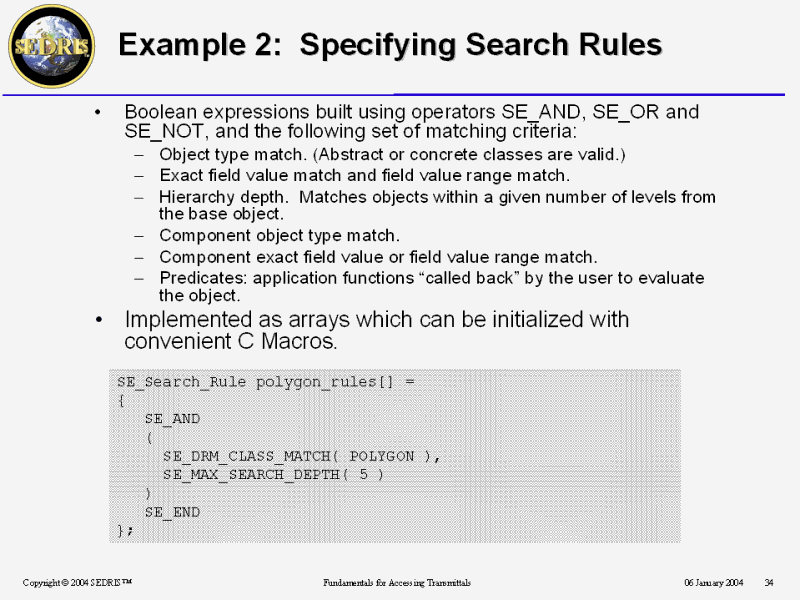

Example 2: Specifying Search Rules

35

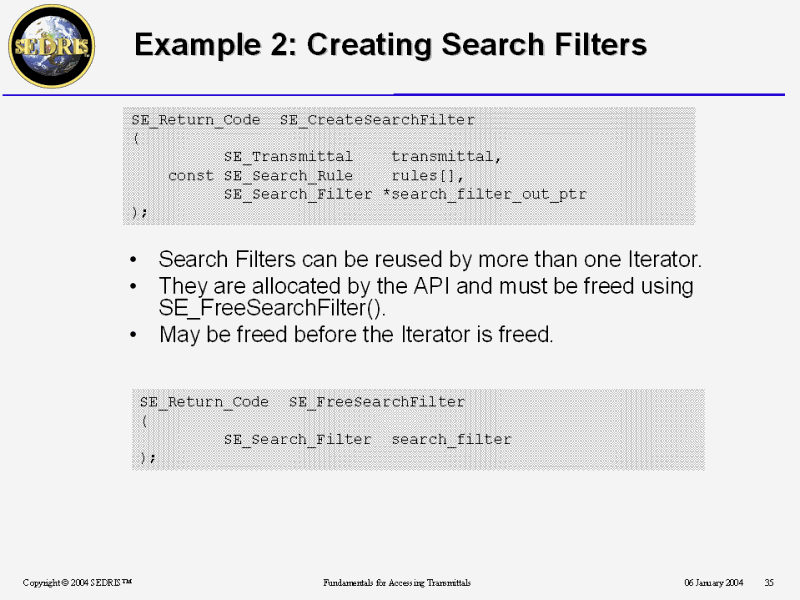

Example 2: Creating Search Filters

36

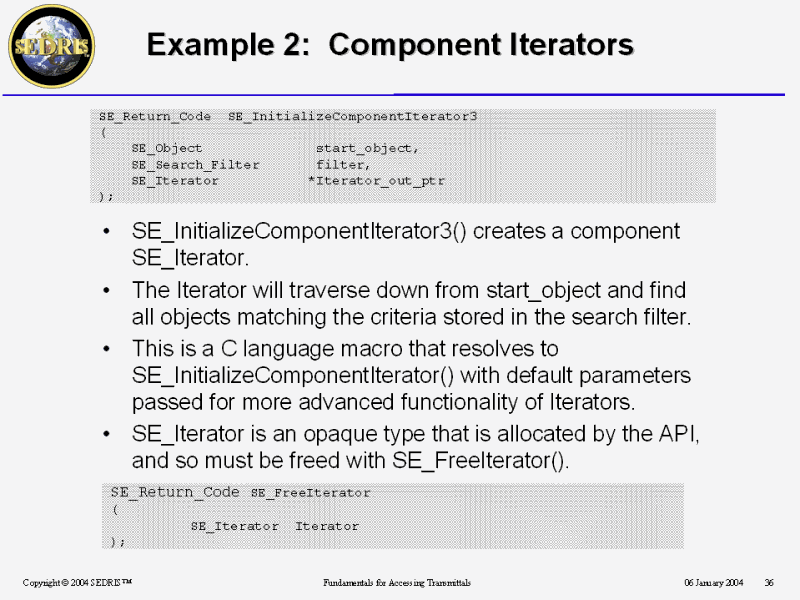

Example 2: Component Iterators

37

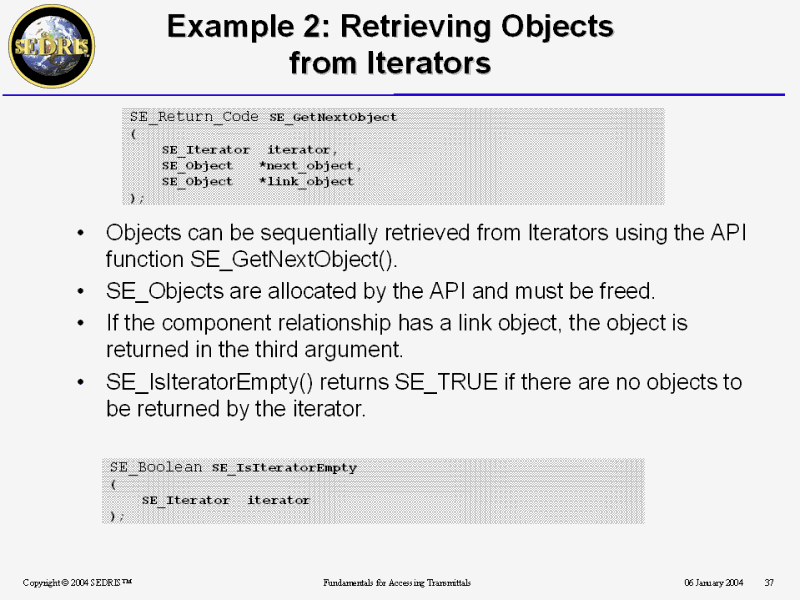

Example 2: Retrieving Objects from Iterators

38

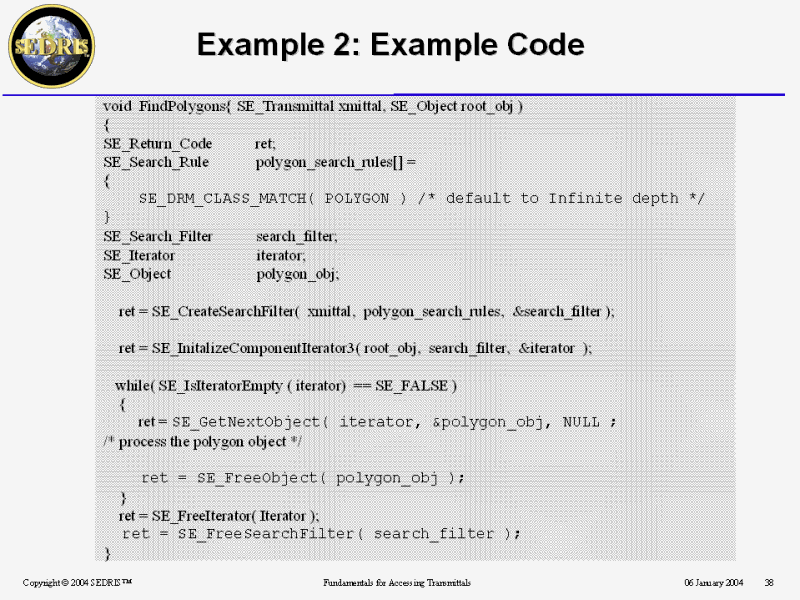

Example 2: Example Code

39

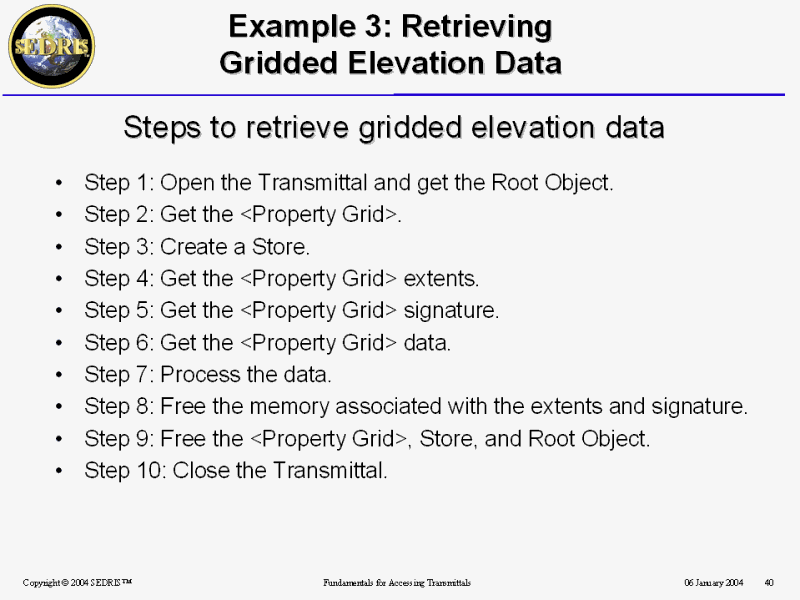

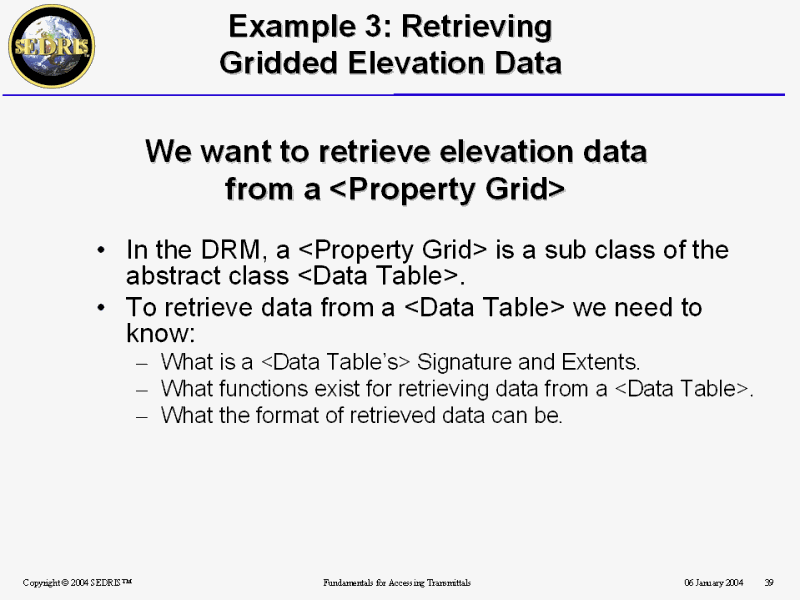

Example 3: Retrieving Gridded Elevation Data

40

Example 3: Retrieving Gridded Elevation Data

41

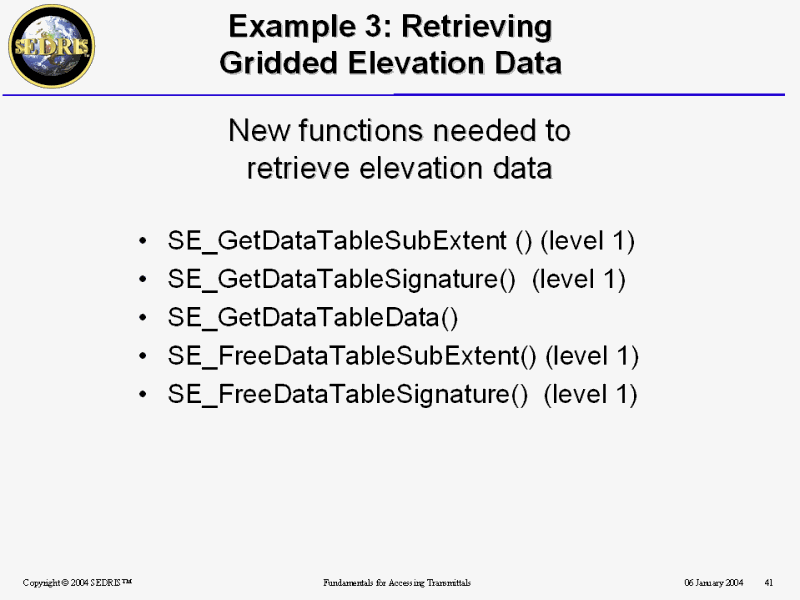

Example 3: Retrieving Gridded Elevation Data

42

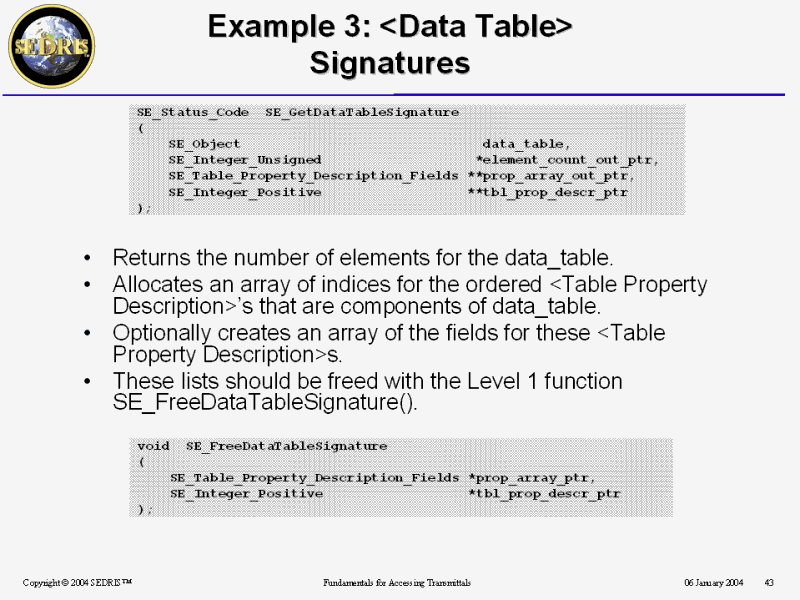

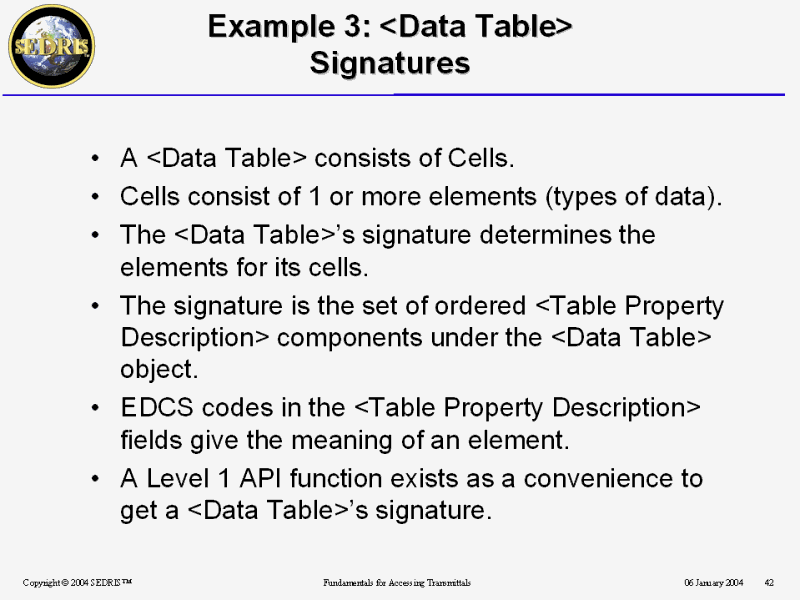

Example 3: <Data Table> Signatures

43

Example 3: <Data Table> Signatures

44

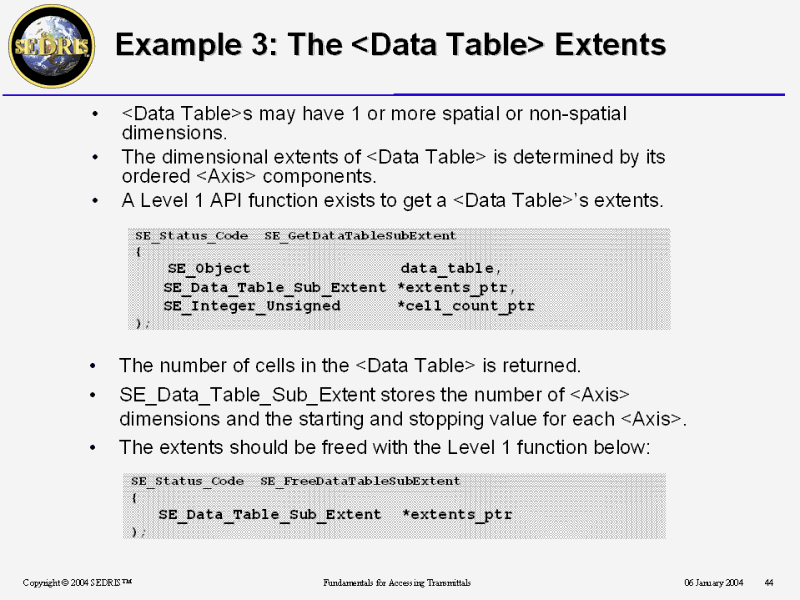

Example 3: The <Data Table> Extents

45

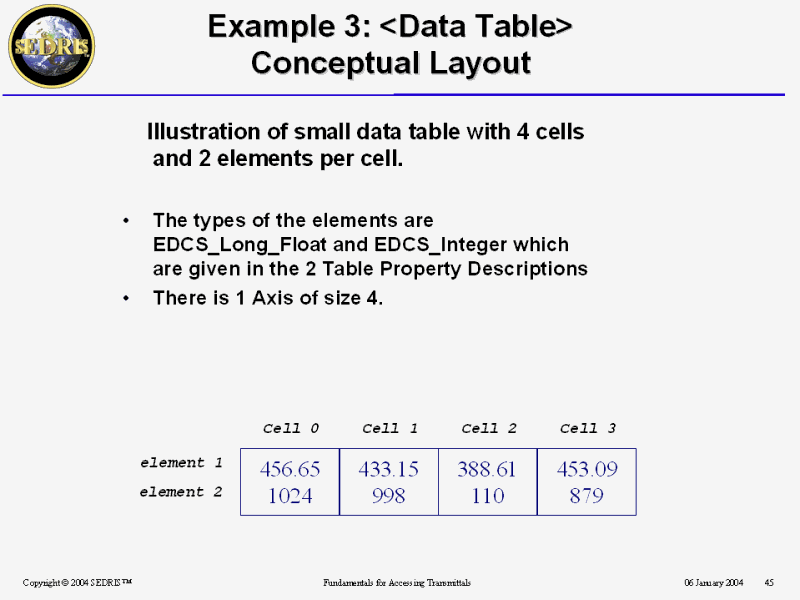

Example 3: <Data Table> Conceptual Layout

46

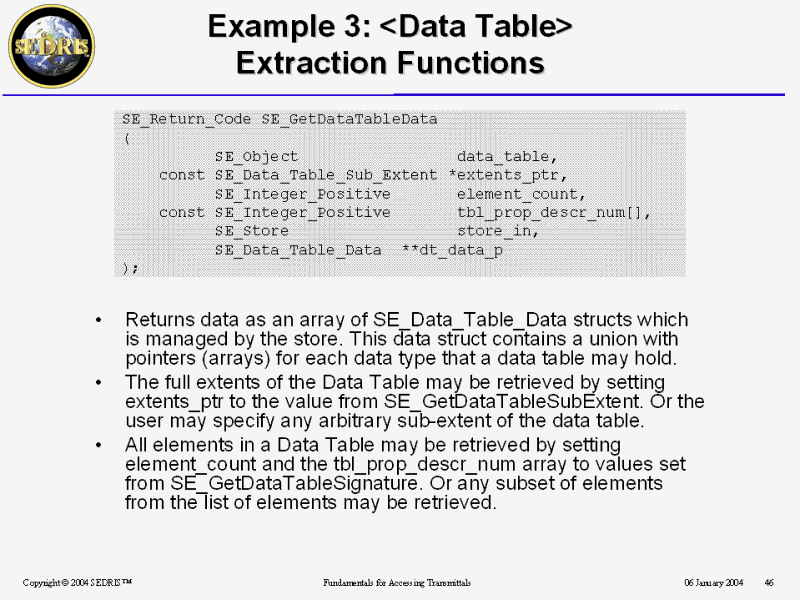

Example 3: <Data Table> Extraction Functions

47

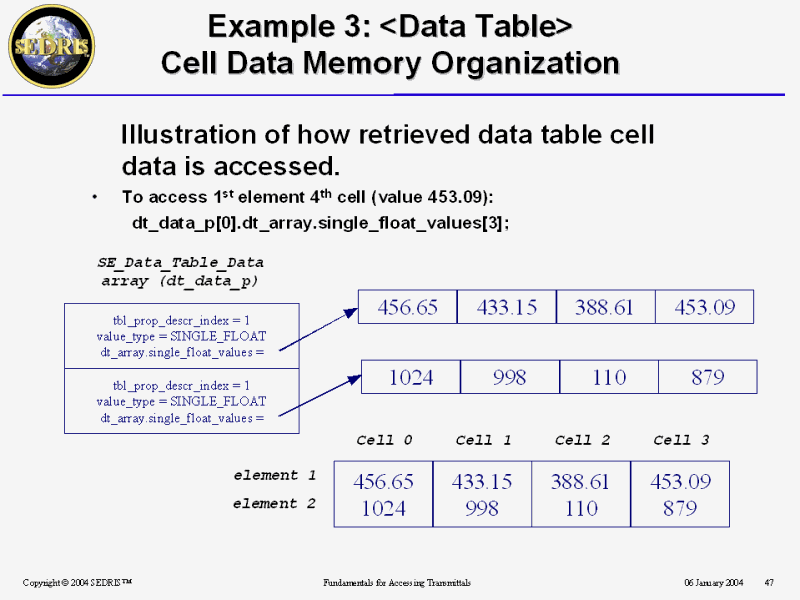

Example 3: <Data Table> Cell Data Memory Organization

48

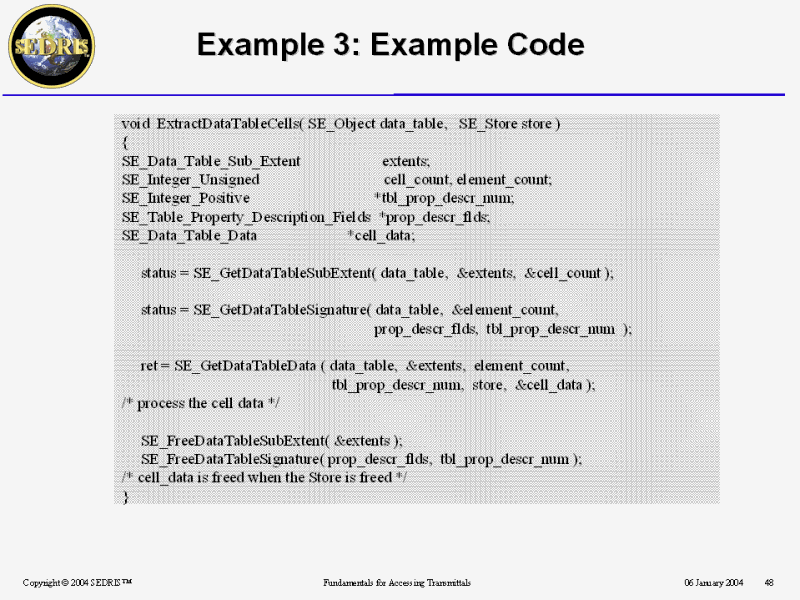

Example 3: Example Code

49

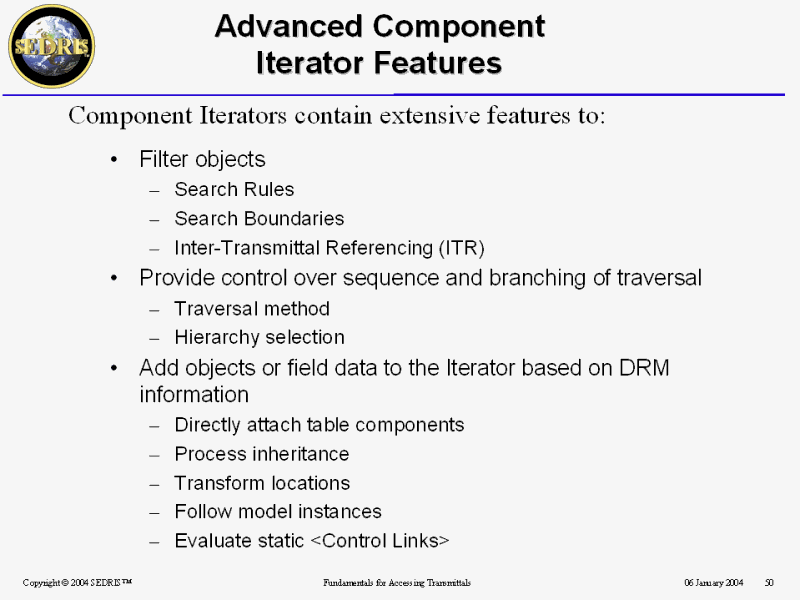

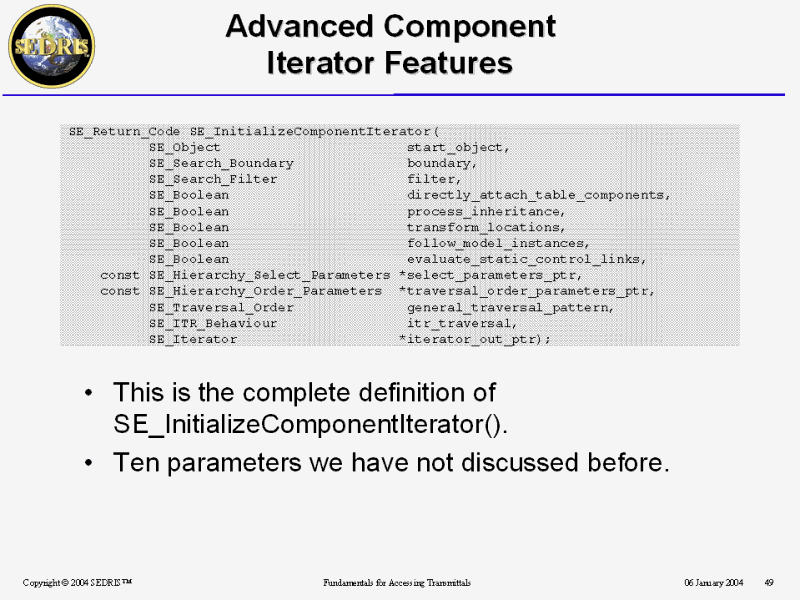

Advanced Component Iterator Features

50

Advanced Component Iterator Features

51

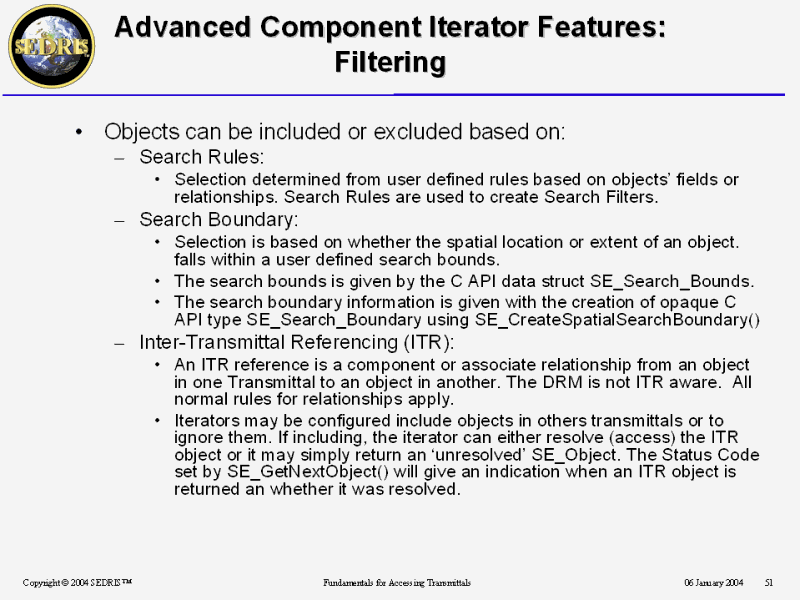

Advanced Component Iterator Features: Filtering

52

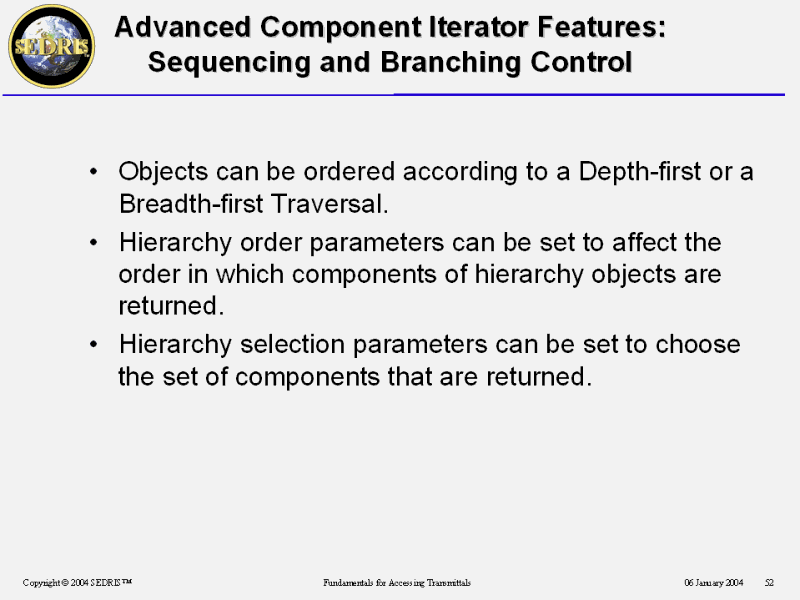

Advanced Component Iterator Features: Sequencing and Branching Control

53

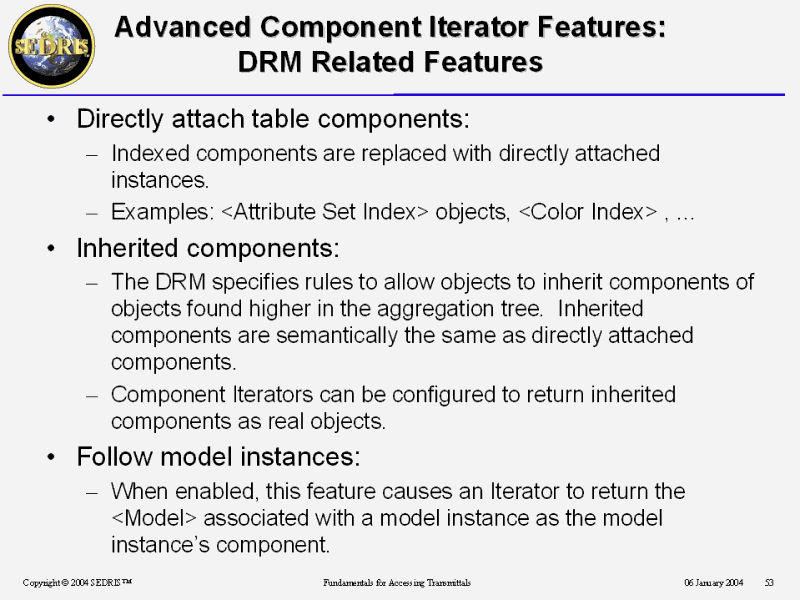

Advanced Component Iterator Features: DRM Related Features

54

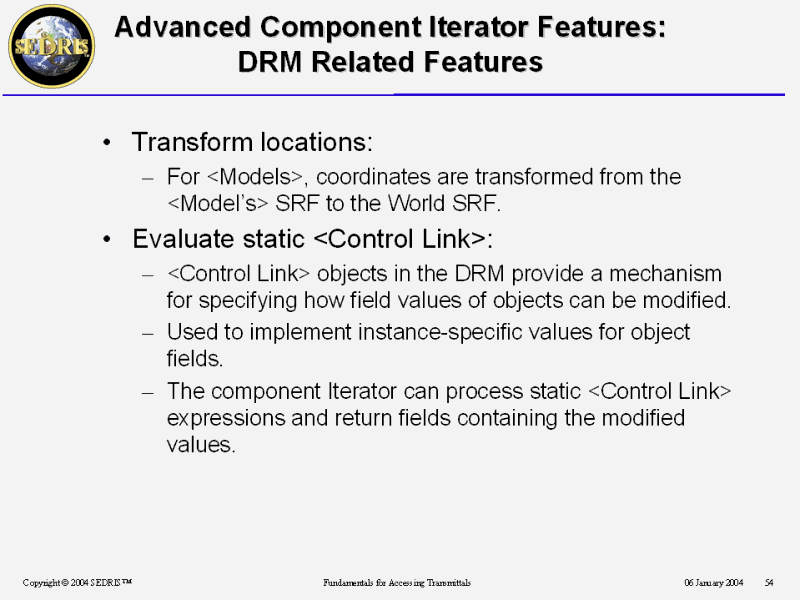

Advanced Component Iterator Features: DRM Related Features

55

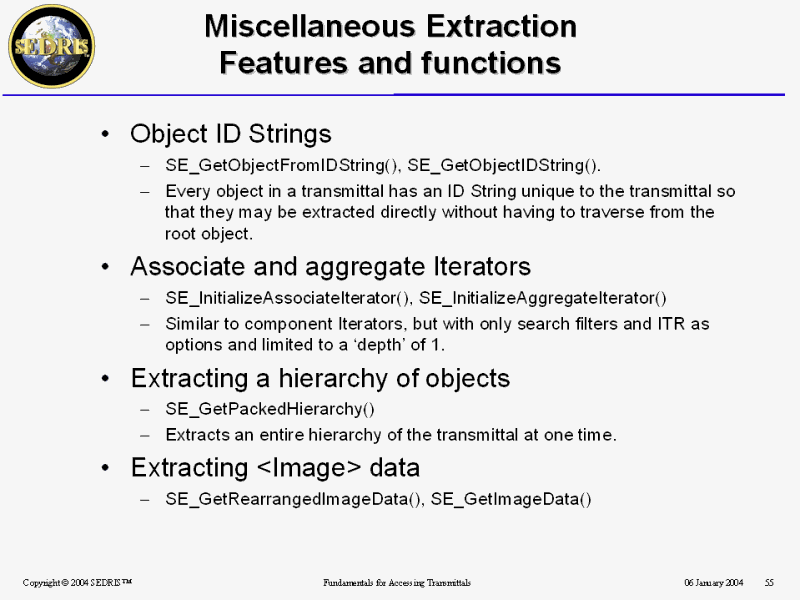

Miscellaneous Extraction Features and functions

56

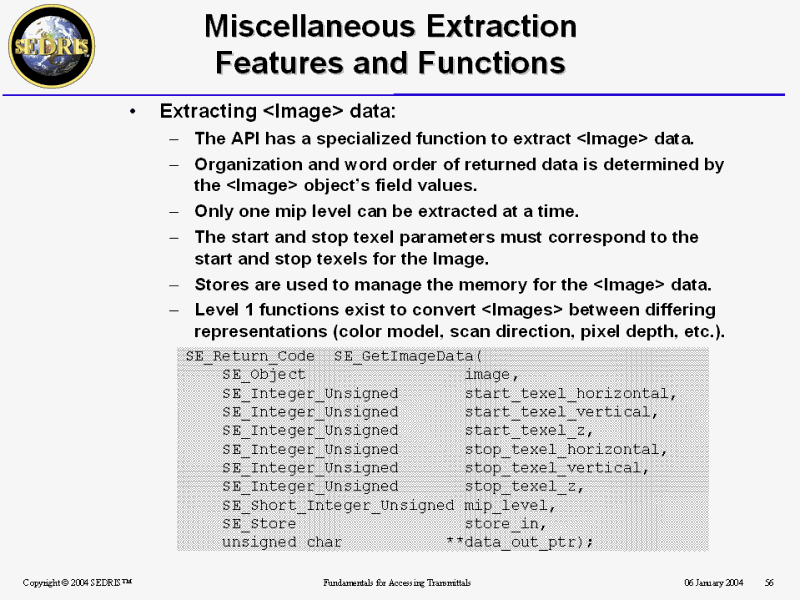

Miscellaneous Extraction Features and Functions

57

PPT Slide

58

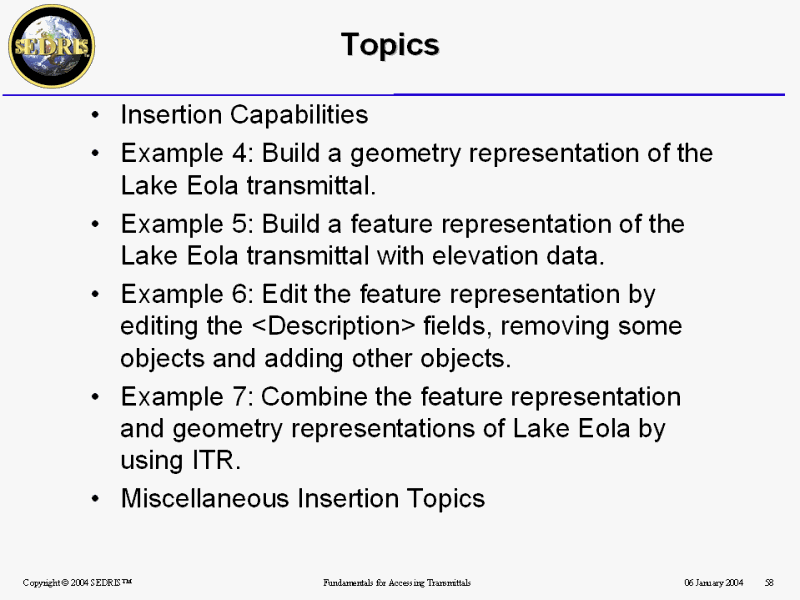

Topics

59

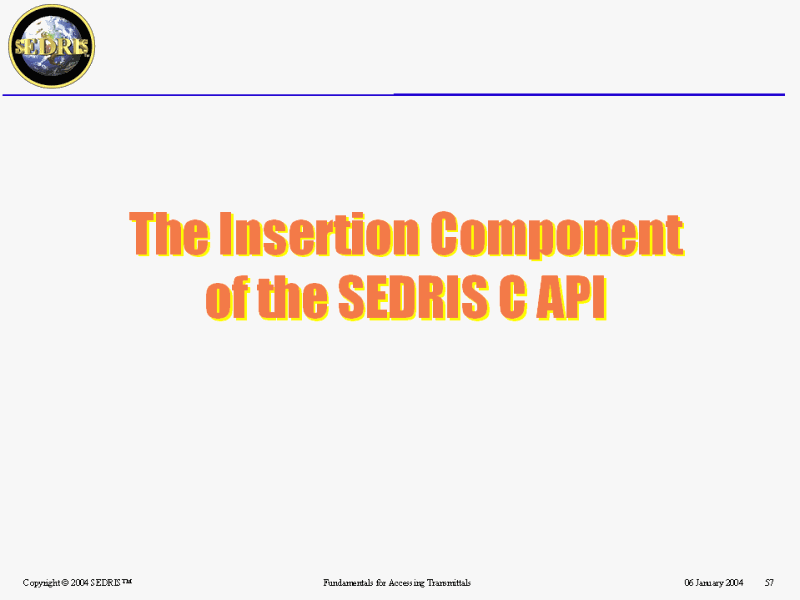

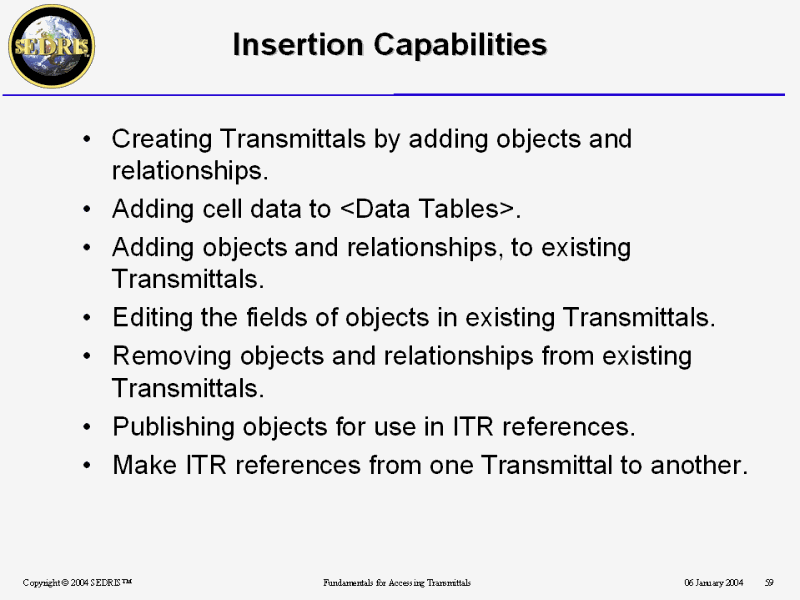

Insertion Capabilities

60

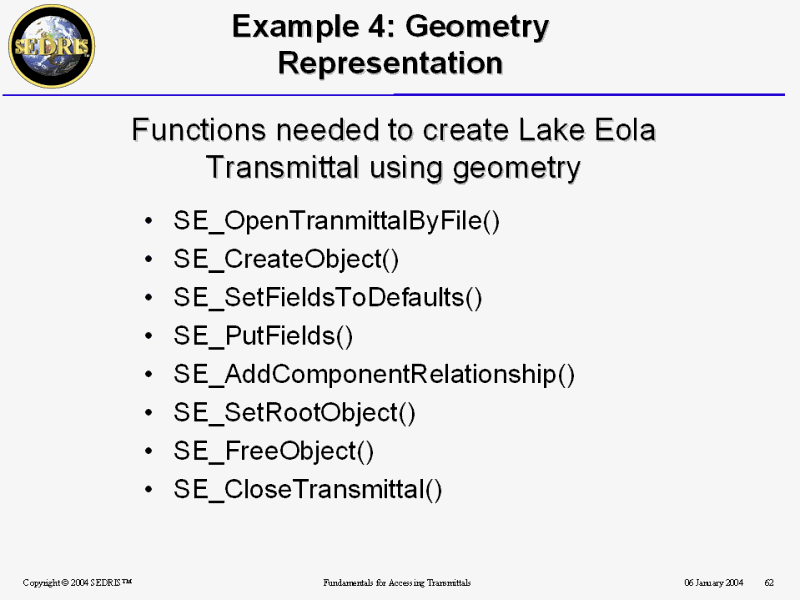

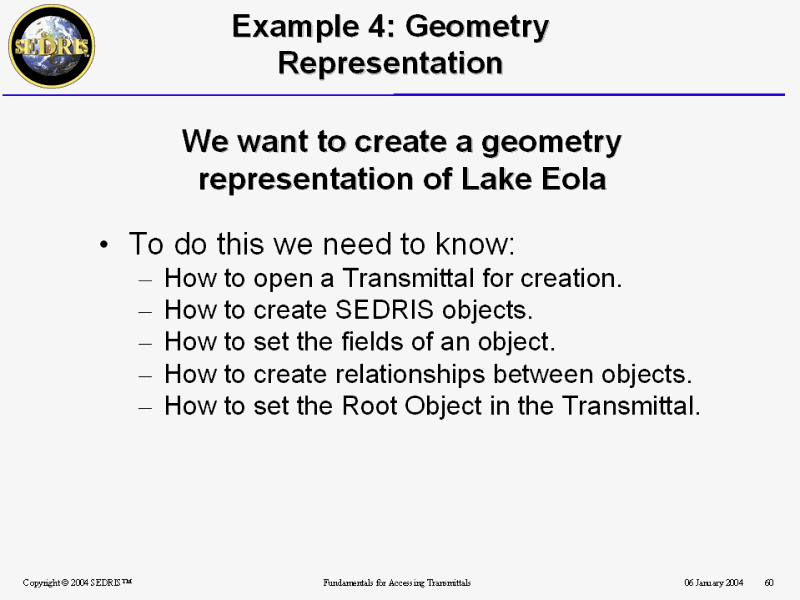

Example 4: Geometry Representation

61

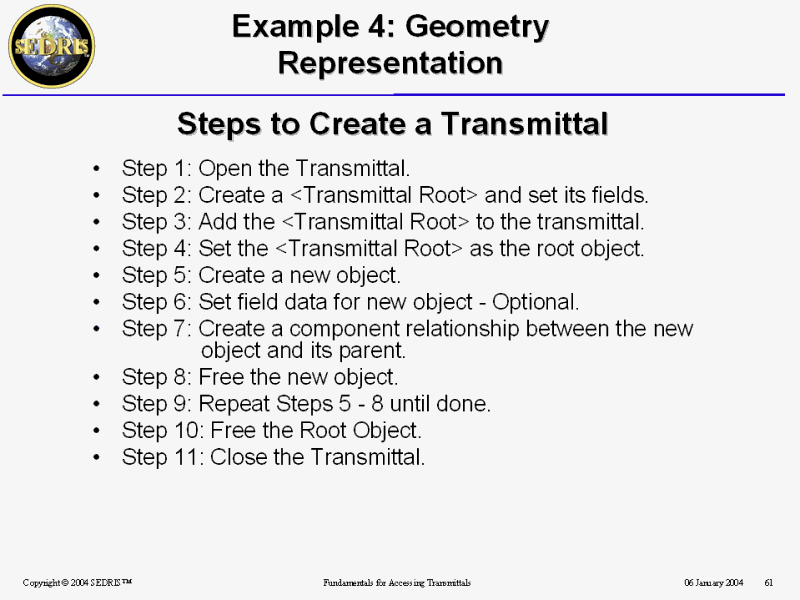

Example 4: Geometry Representation

62

Example 4: Geometry Representation

63

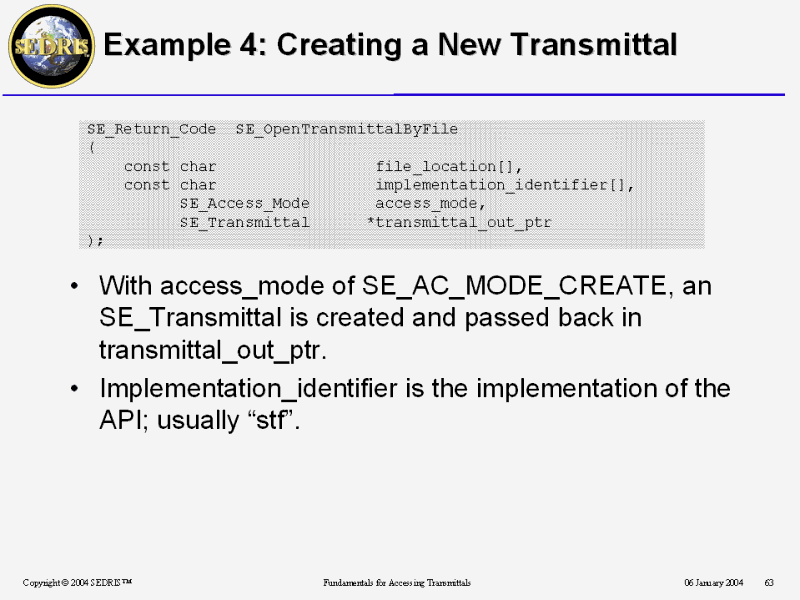

Example 4: Creating a New Transmittal

64

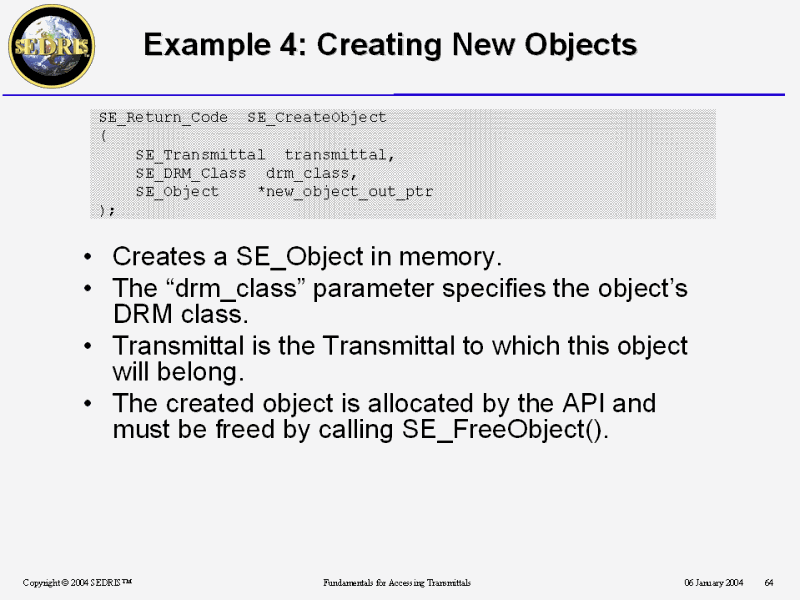

Example 4: Creating New Objects

65

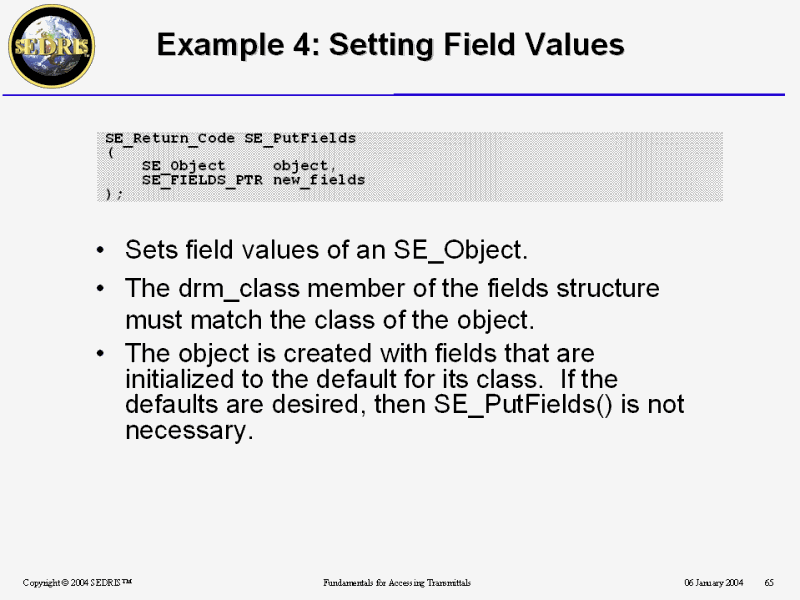

Example 4: Setting Field Values

66

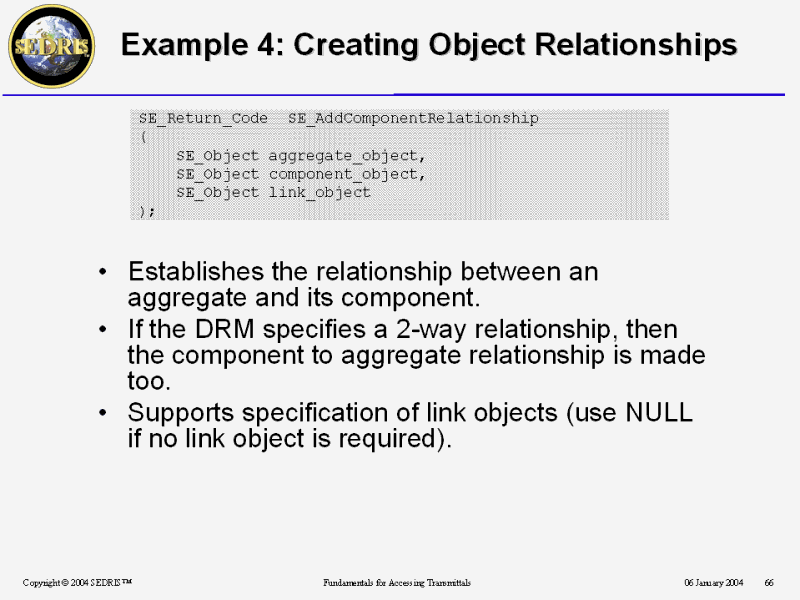

Example 4: Creating Object Relationships

67

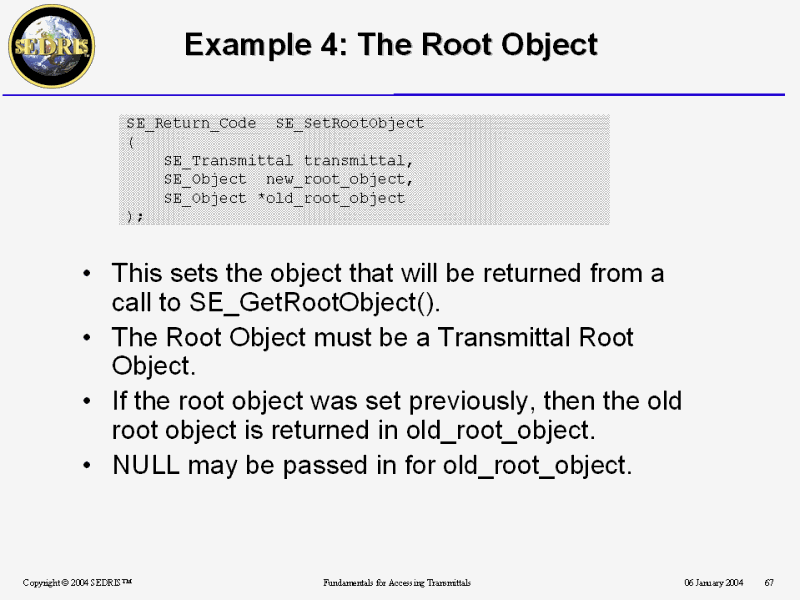

Example 4: The Root Object

68

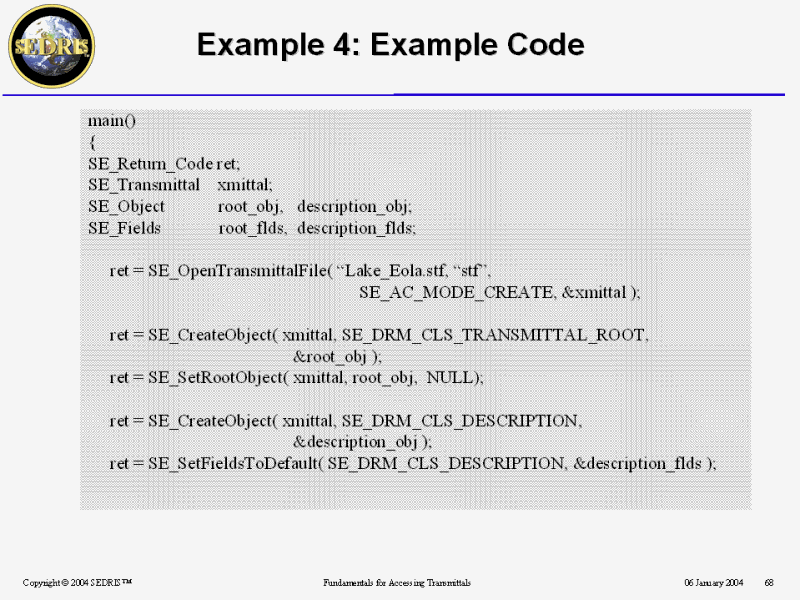

Example 4: Example Code

69

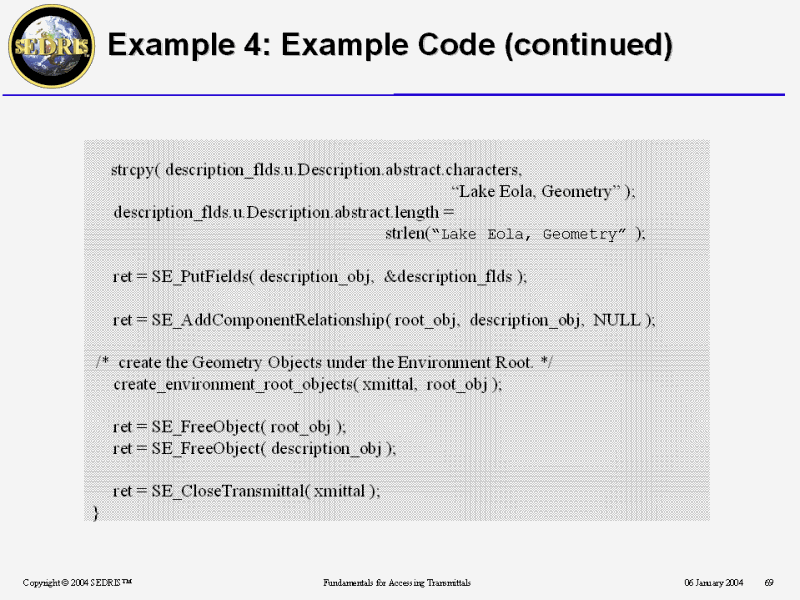

Example 4: Example Code (continued)

70

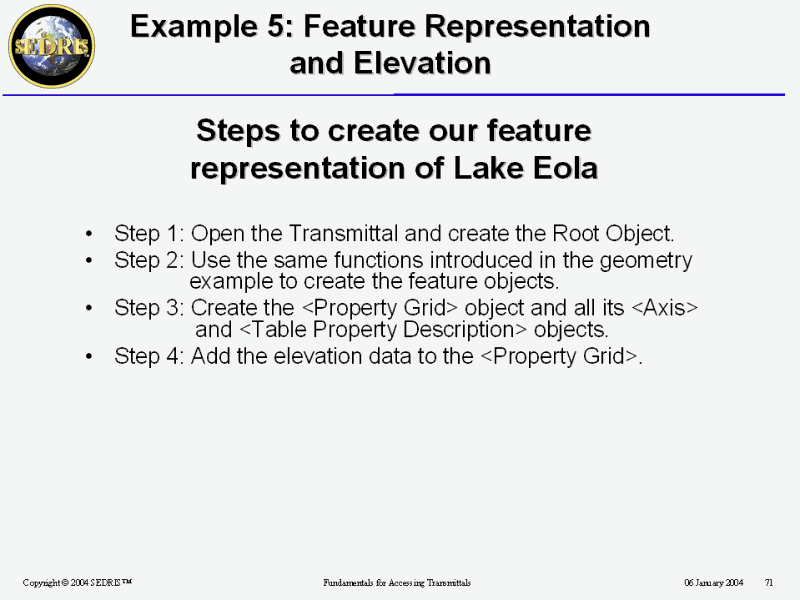

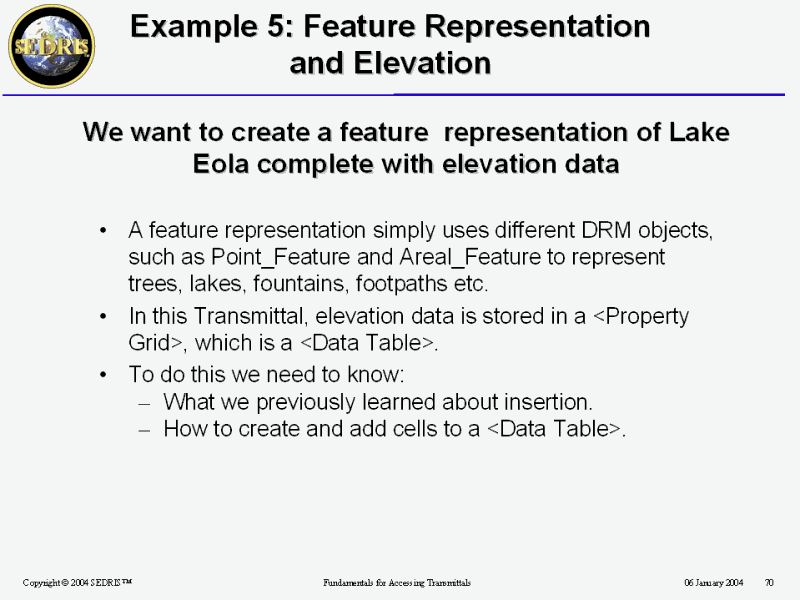

Example 5: Feature Representation and Elevation

71

Example 5: Feature Representation and Elevation

72

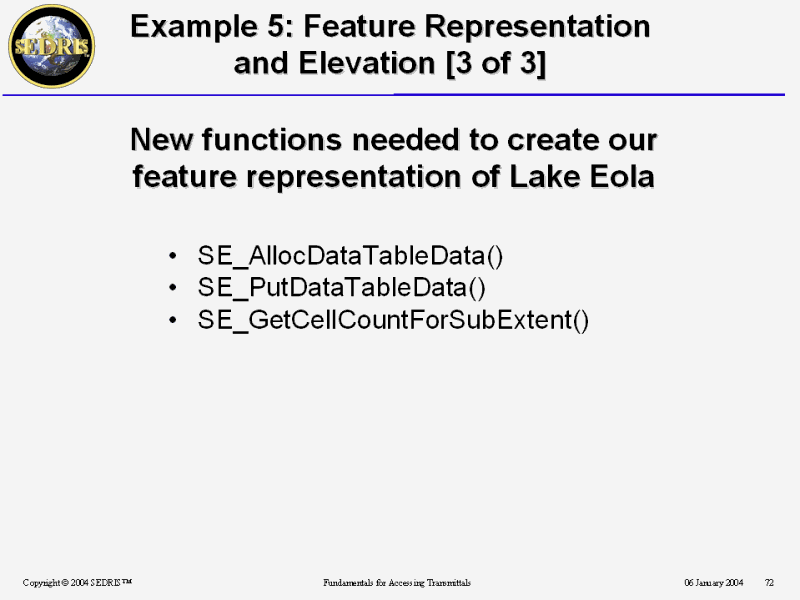

Example 5: Feature Representation and Elevation [3 of 3]

73

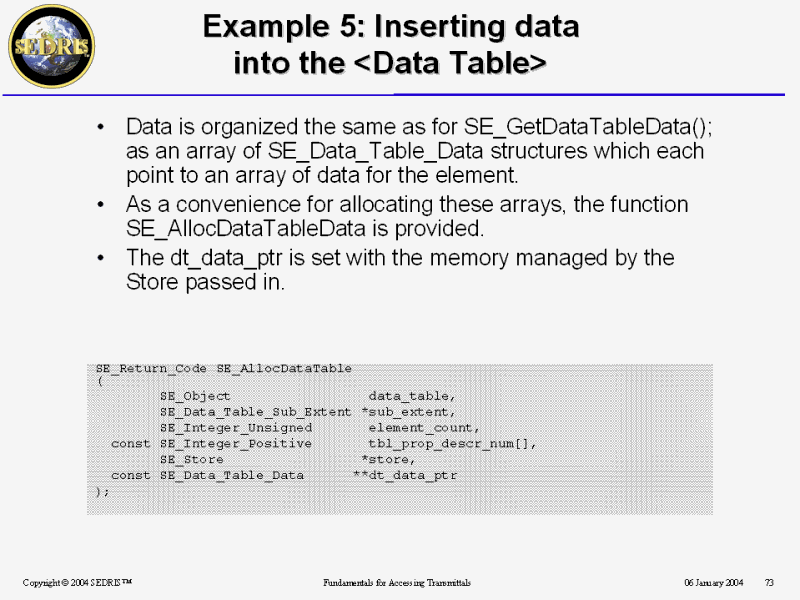

Example 5: Inserting data into the <Data Table>

74

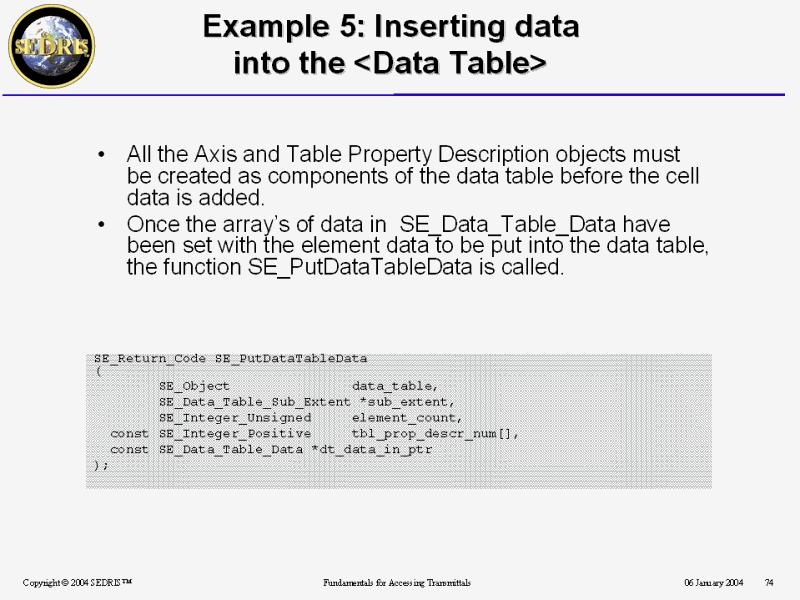

Example 5: Inserting data into the <Data Table>

75

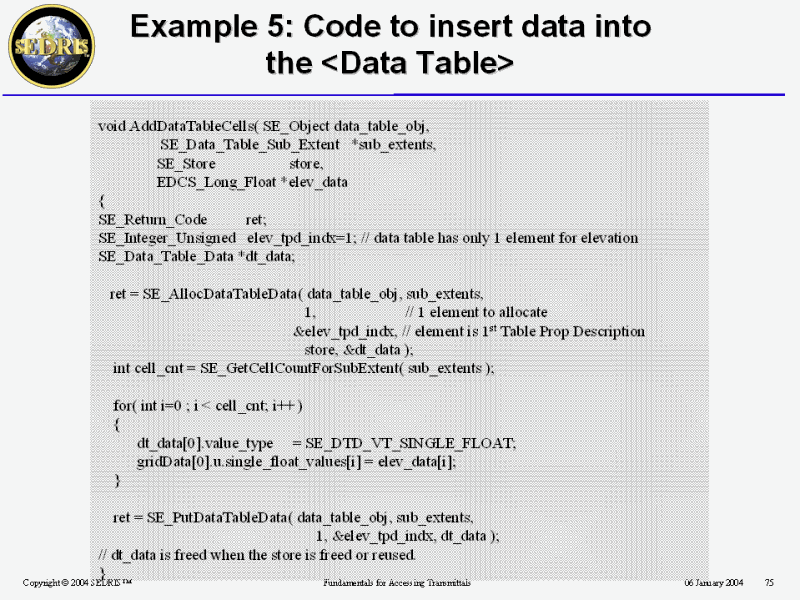

Example 5: Code to insert data into the <Data Table>

76

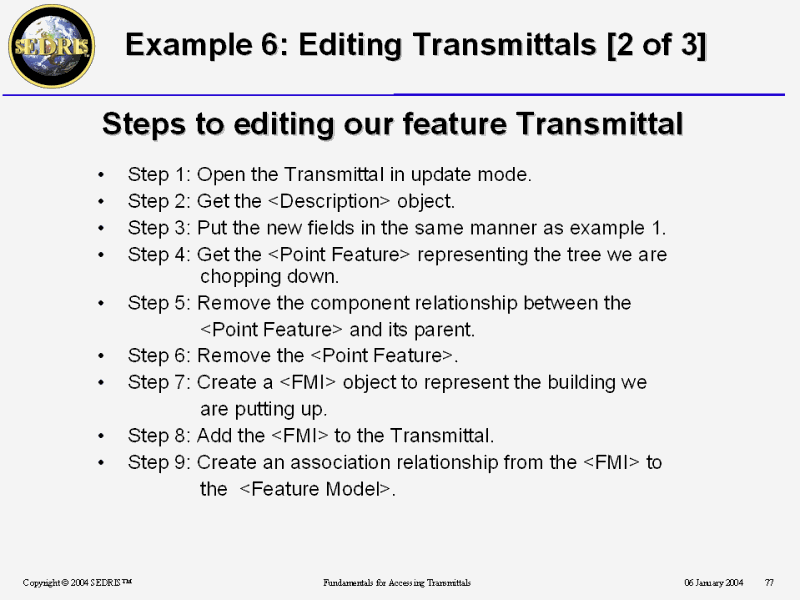

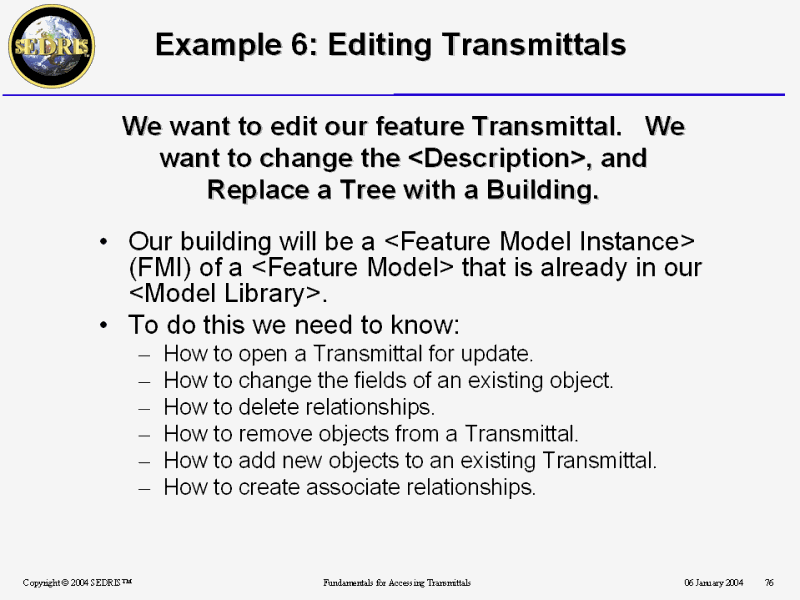

Example 6: Editing Transmittals

77

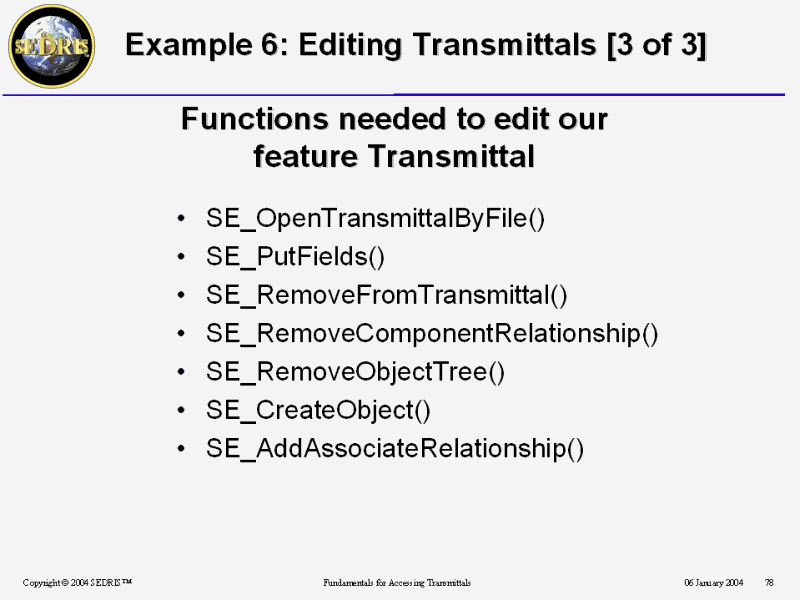

Example 6: Editing Transmittals [2 of 3]

78

Example 6: Editing Transmittals [3 of 3]

79

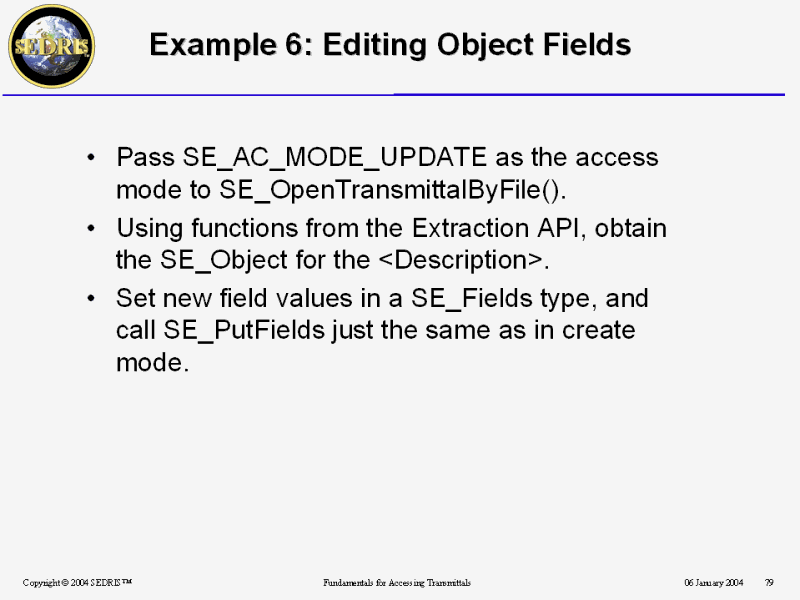

Example 6: Editing Object Fields

80

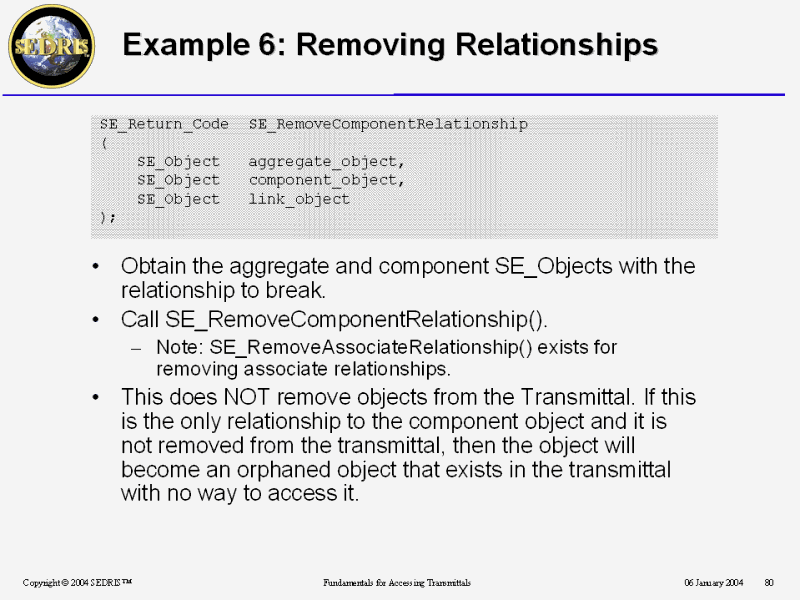

Example 6: Removing Relationships

81

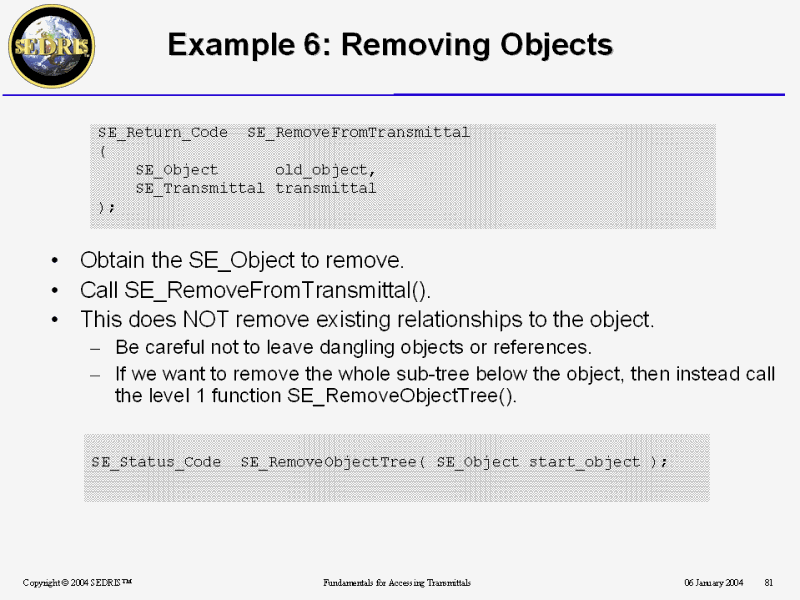

Example 6: Removing Objects

82

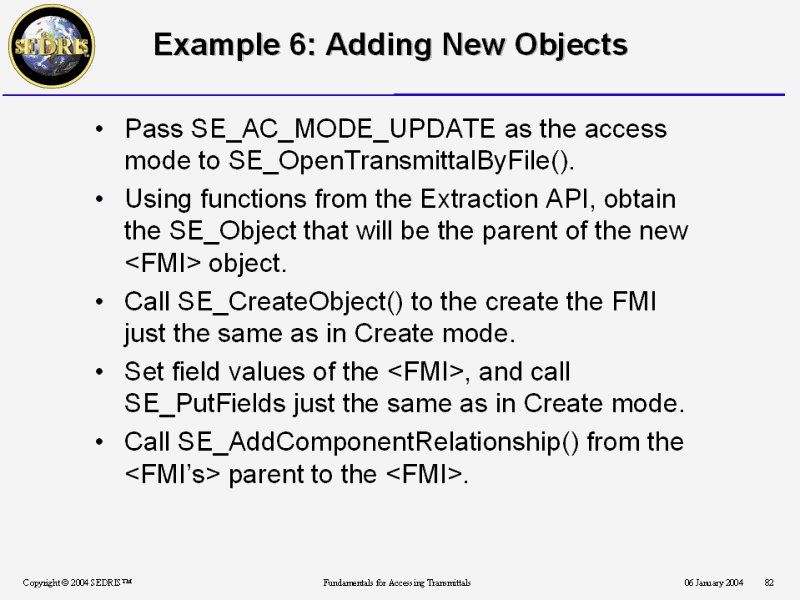

Example 6: Adding New Objects

83

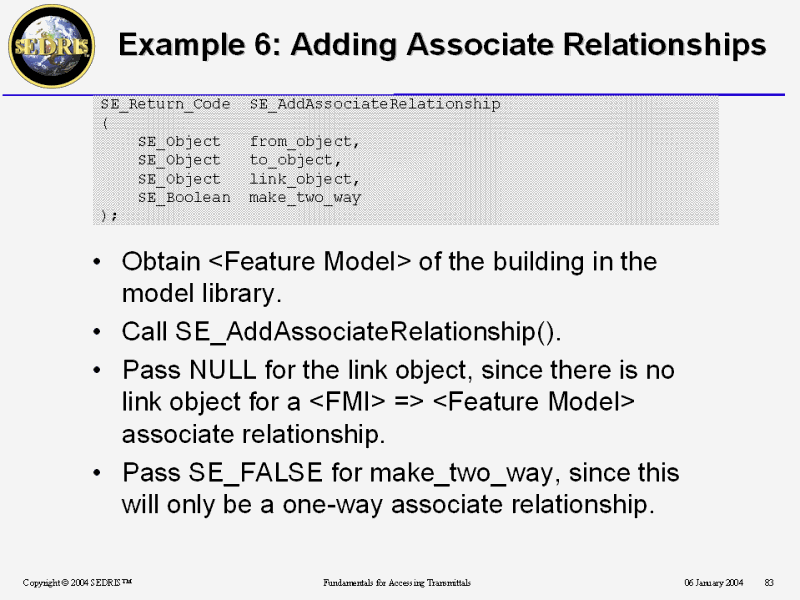

Example 6: Adding Associate Relationships

84

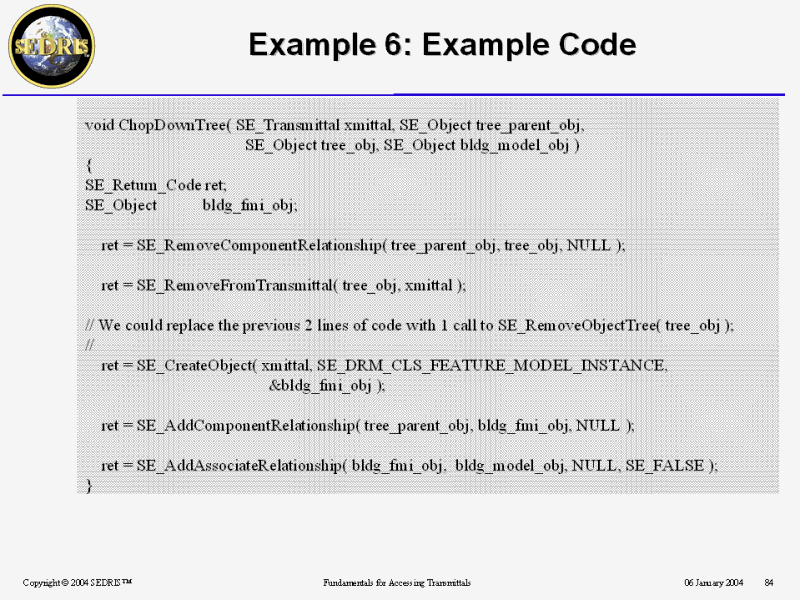

Example 6: Example Code

85

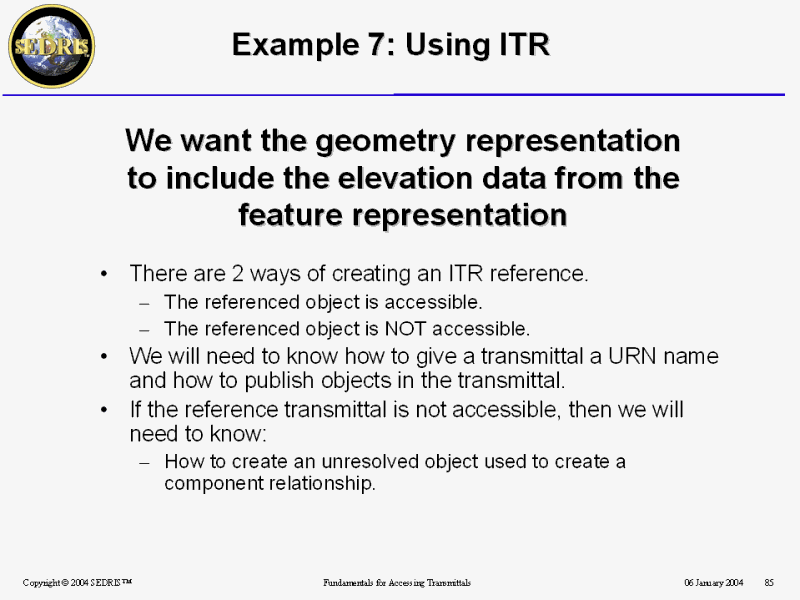

Example 7: Using ITR

86

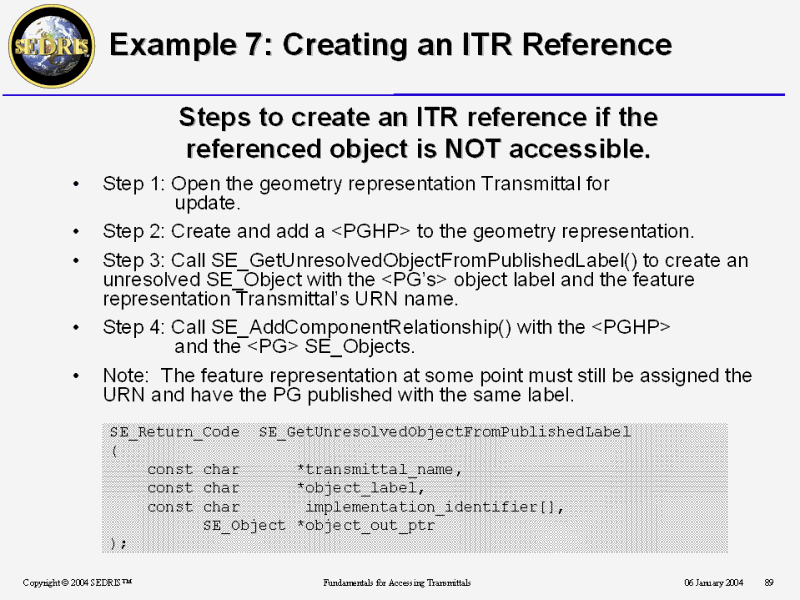

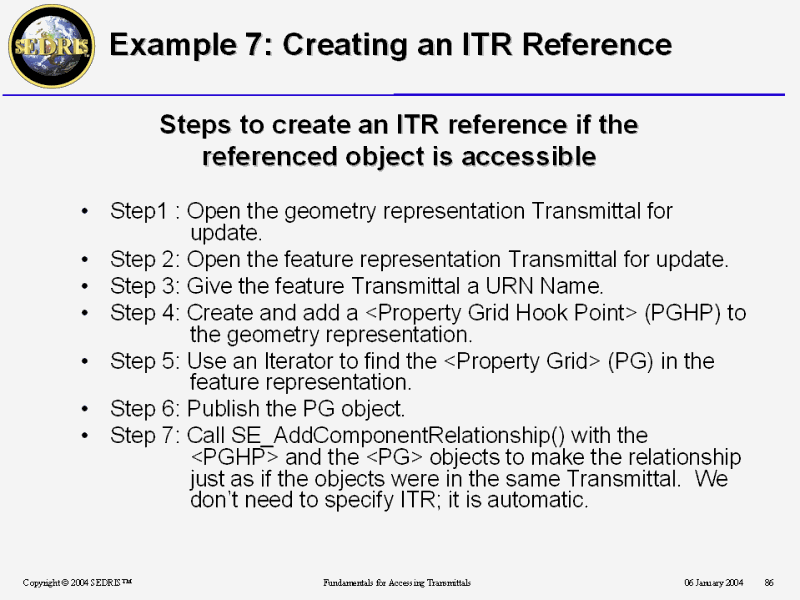

Example 7: Creating an ITR Reference

87

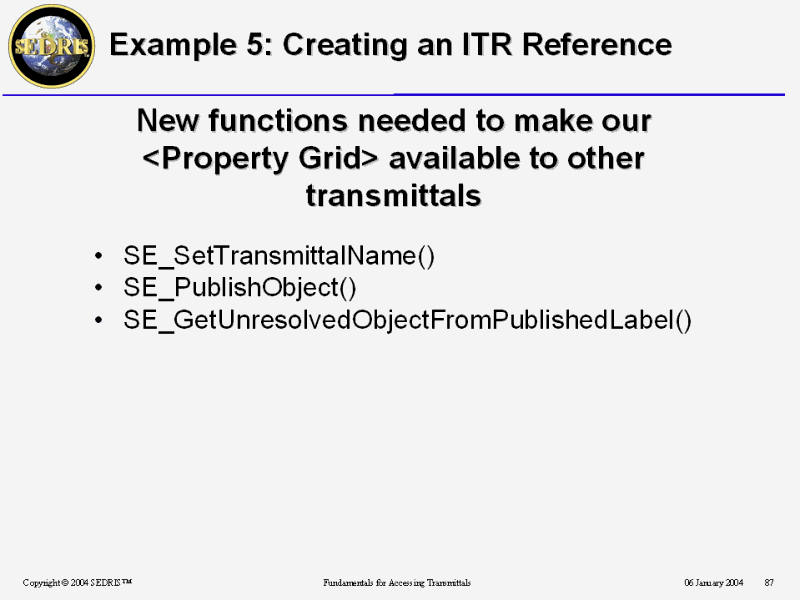

Example 5: Creating an ITR Reference

88

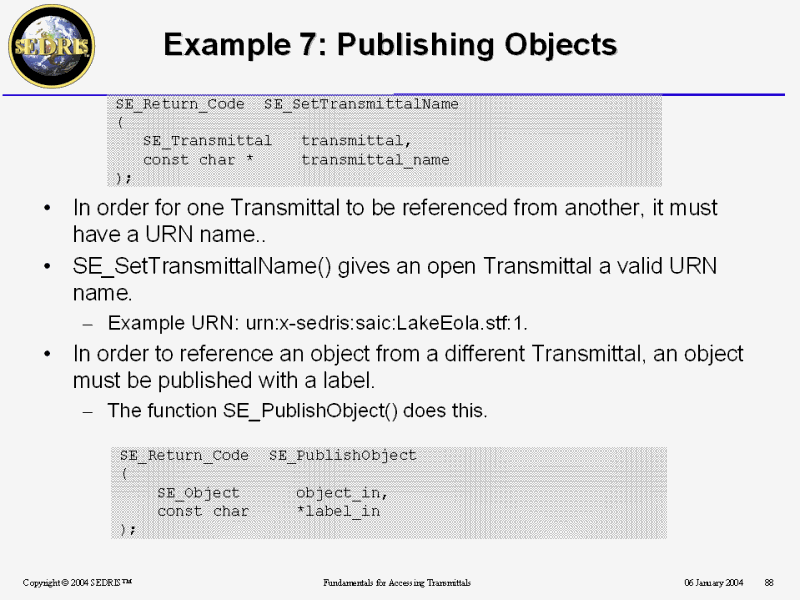

Example 7: Publishing Objects

89

Example 7: Creating an ITR Reference

90

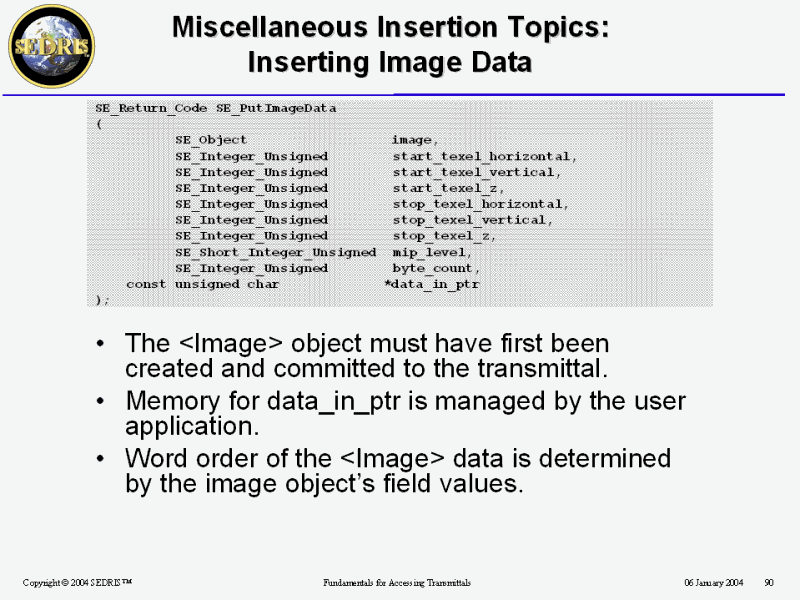

Miscellaneous Insertion Topics: Inserting Image Data

91

PPT Slide

92

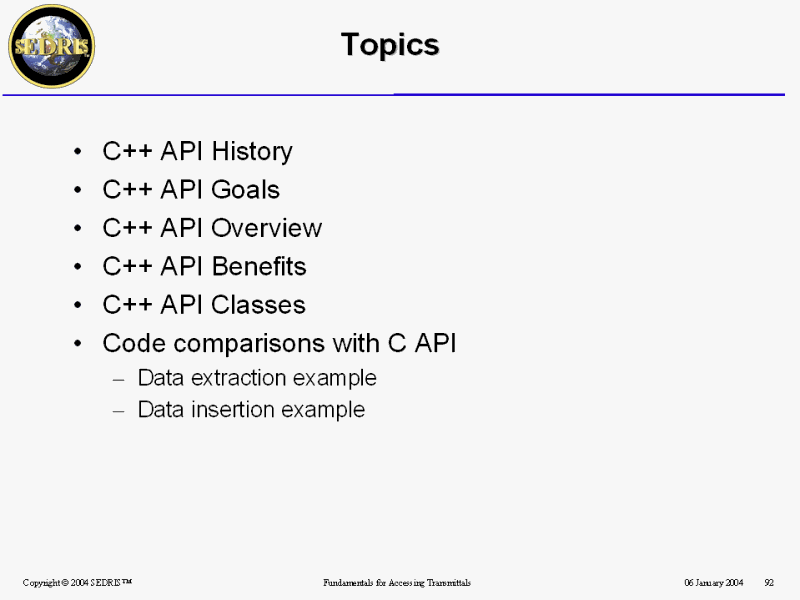

Topics

93

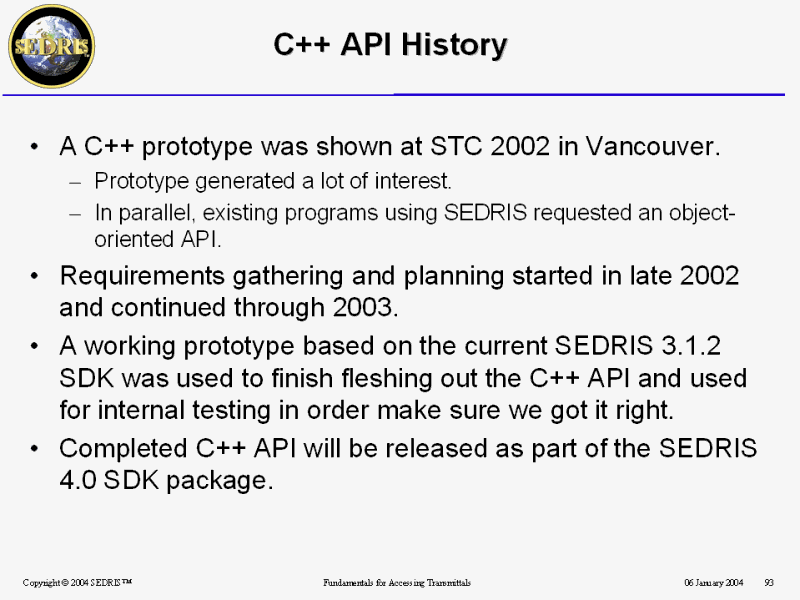

C++ API History

94

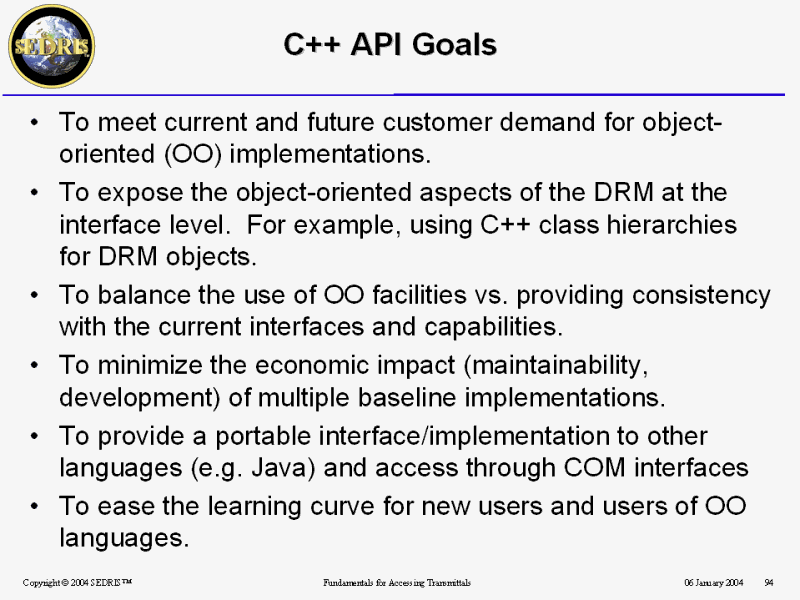

C++ API Goals

95

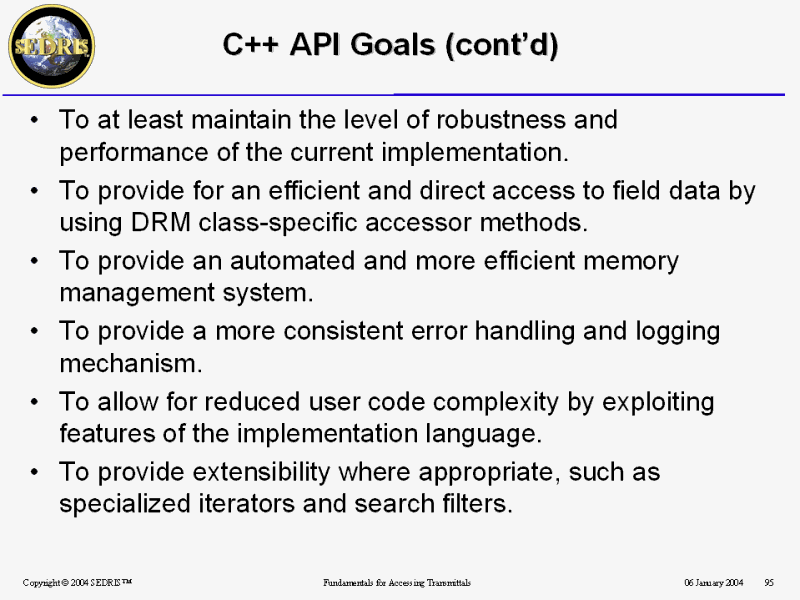

C++ API Goals (cont’d)

96

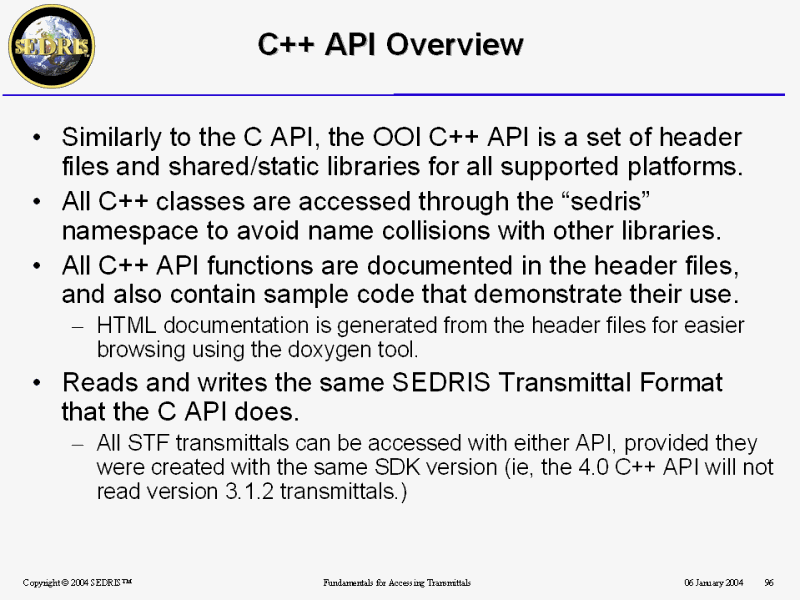

C++ API Overview

97

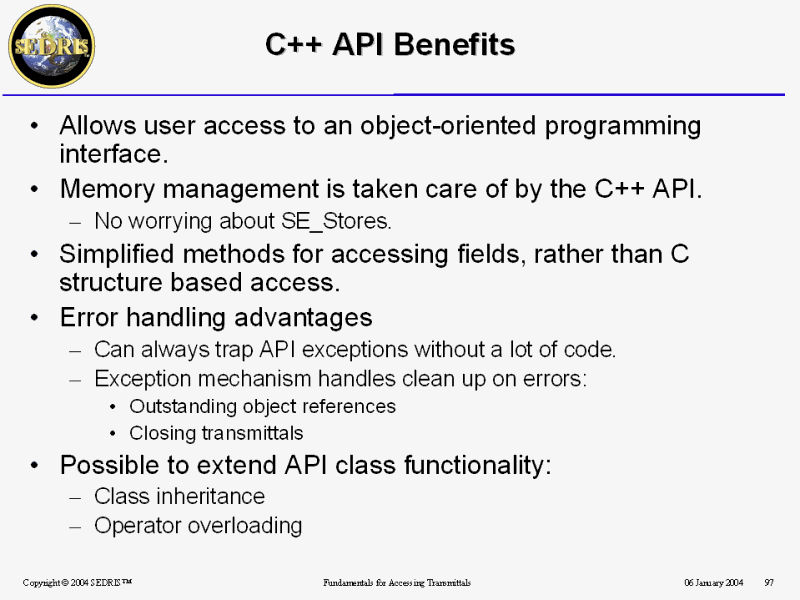

C++ API Benefits

98

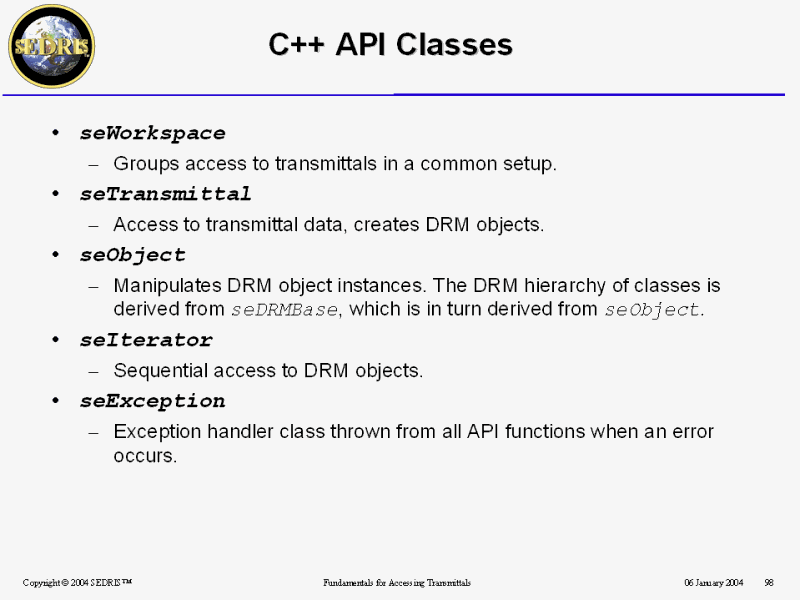

C++ API Classes

99

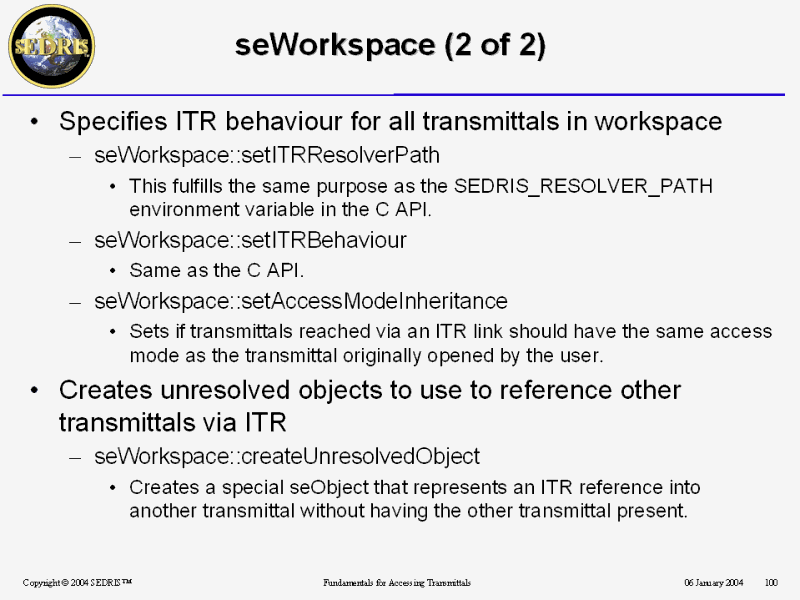

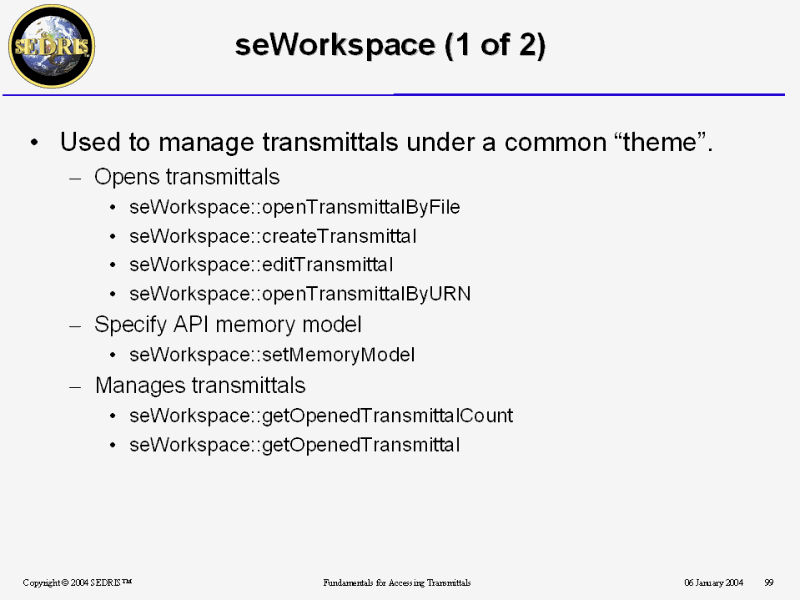

seWorkspace (1 of 2)

100

seWorkspace (2 of 2)

101

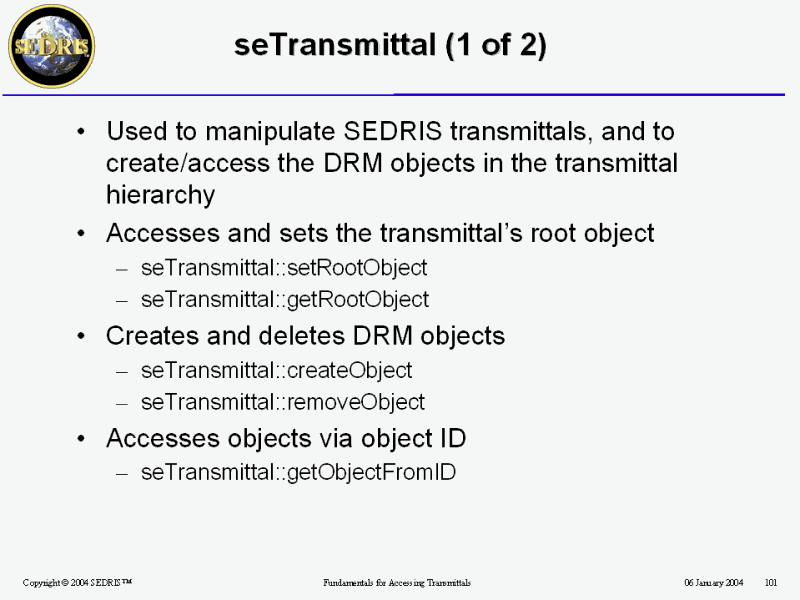

seTransmittal (1 of 2)

102

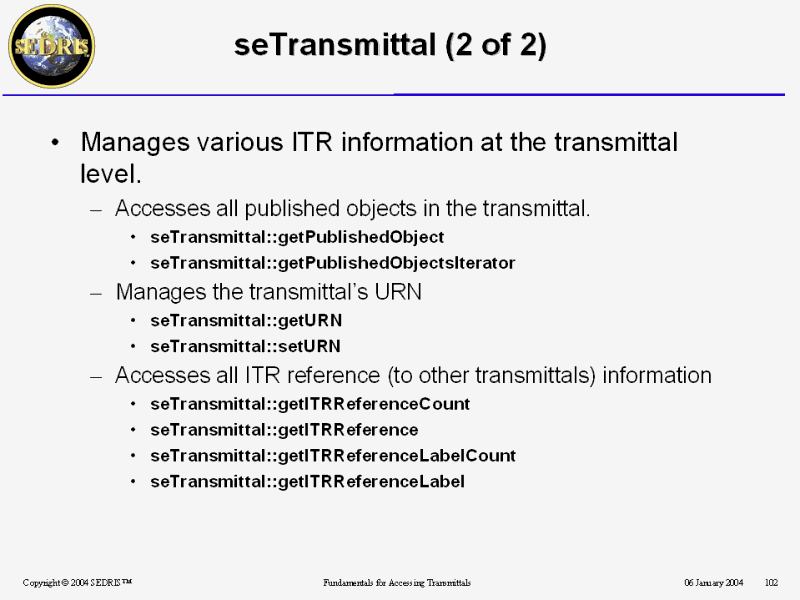

seTransmittal (2 of 2)

103

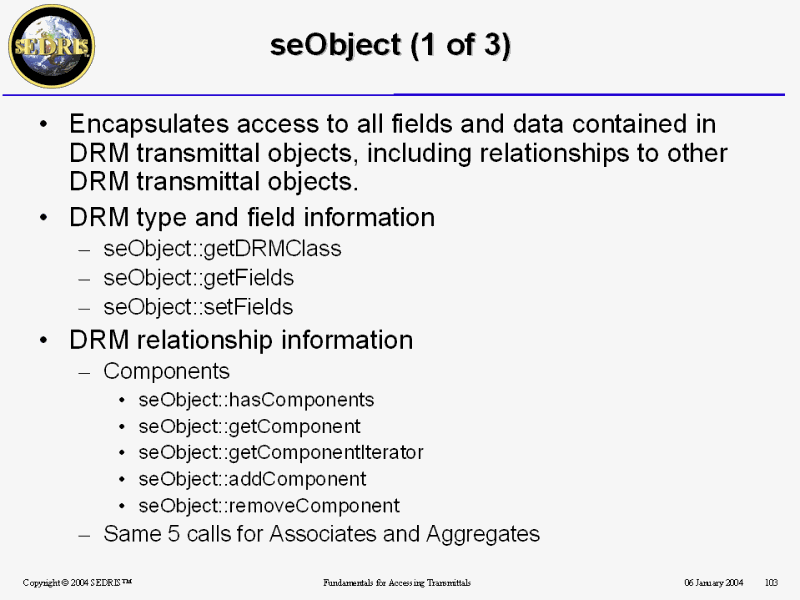

seObject (1 of 3)

104

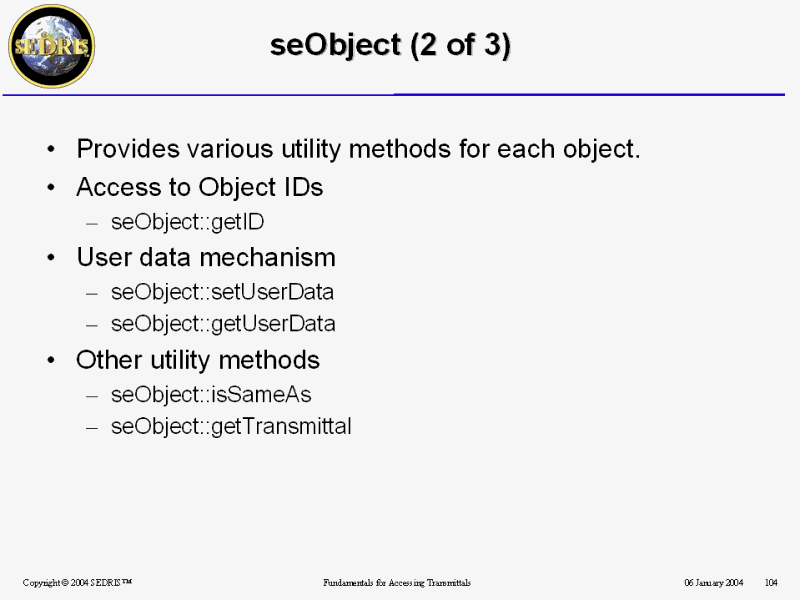

seObject (2 of 3)

105

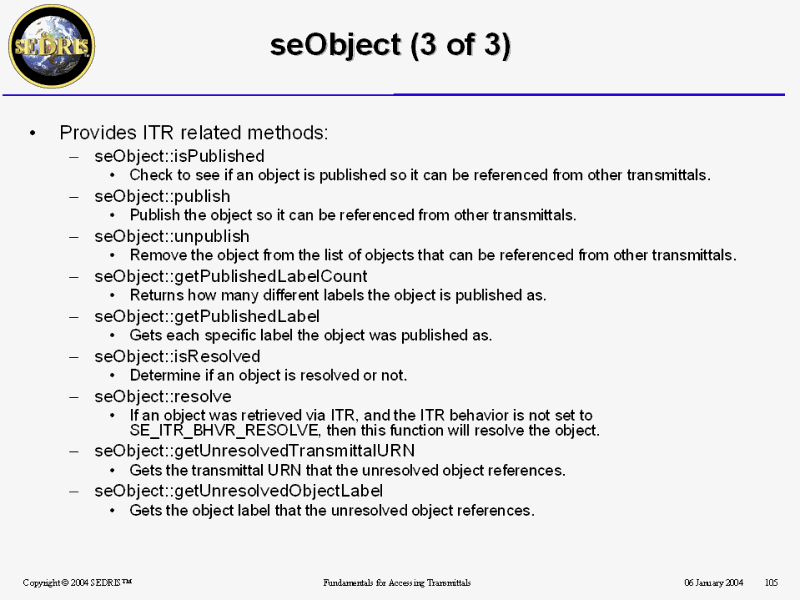

seObject (3 of 3)

106

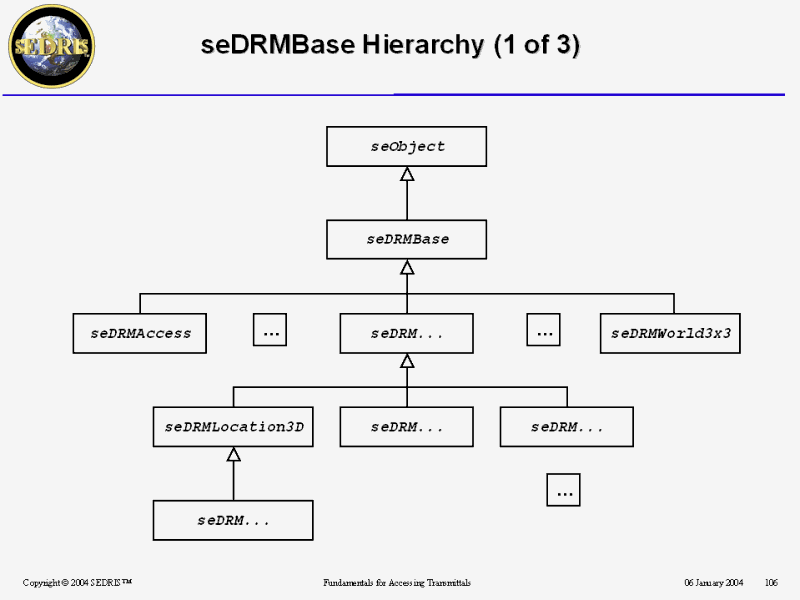

seDRMBase Hierarchy (1 of 3)

107

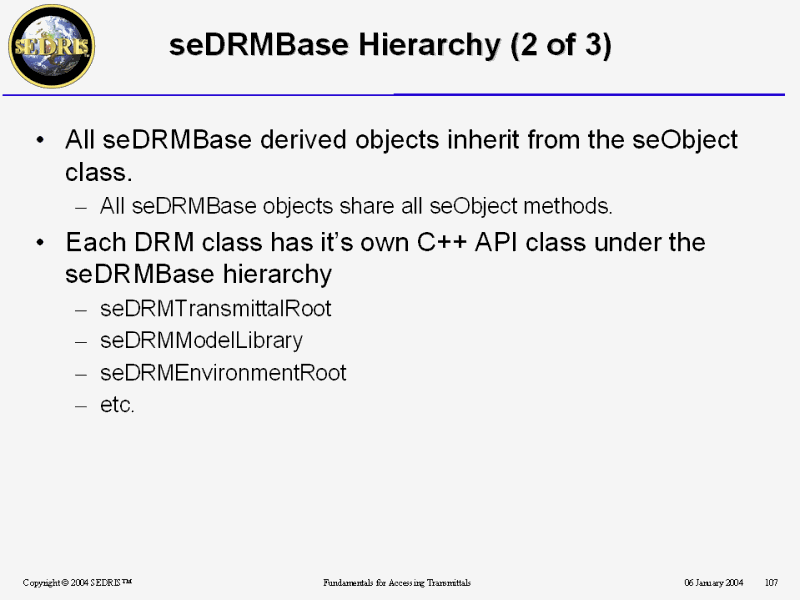

seDRMBase Hierarchy (2 of 3)

108

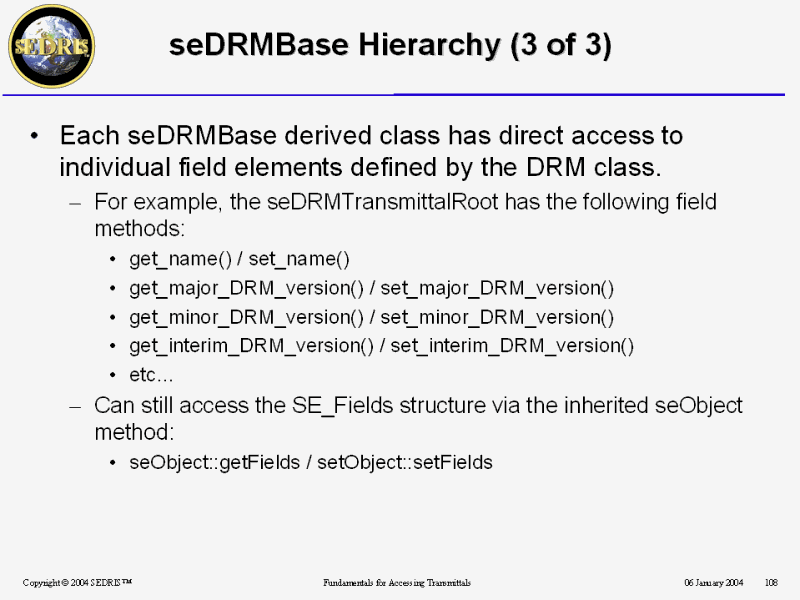

seDRMBase Hierarchy (3 of 3)

109

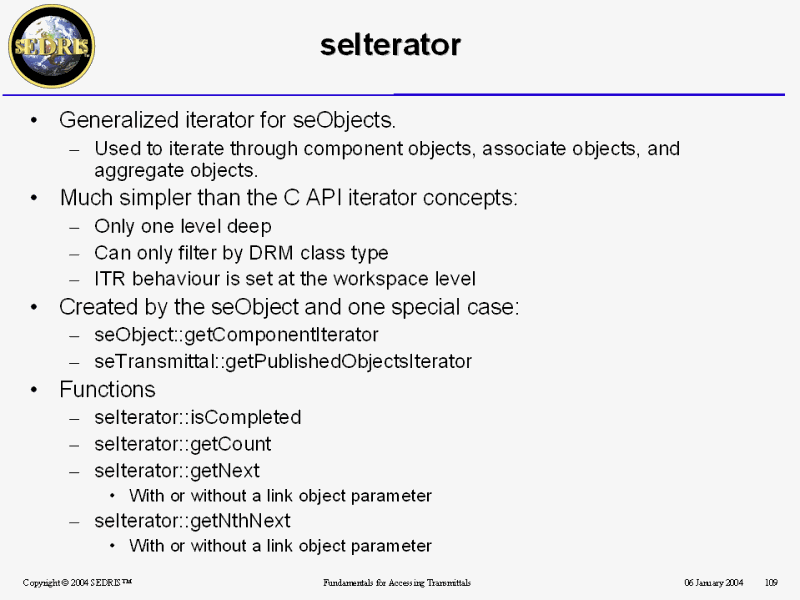

seIterator

110

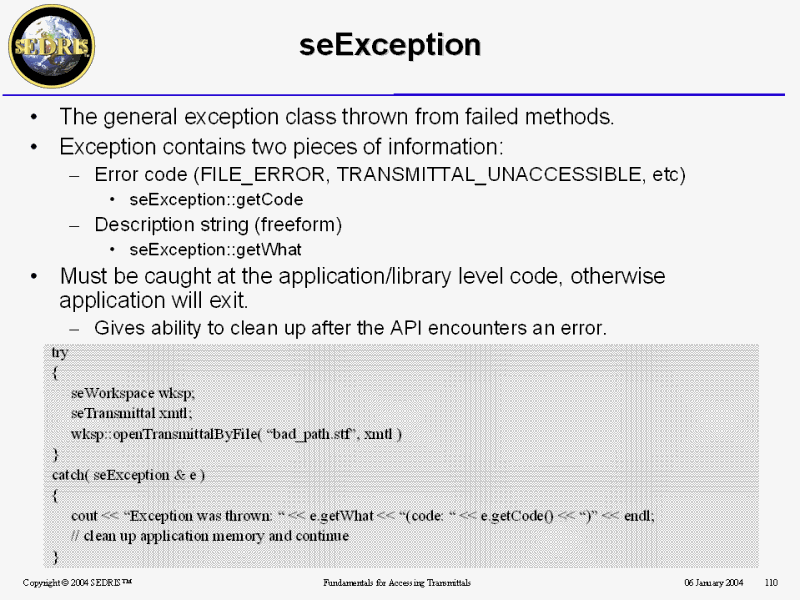

seException

111

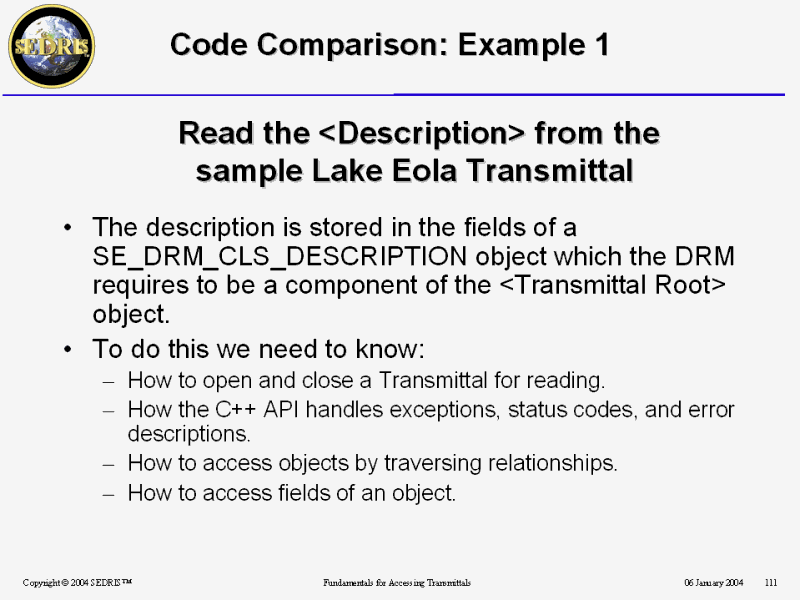

Code Comparison: Example 1

112

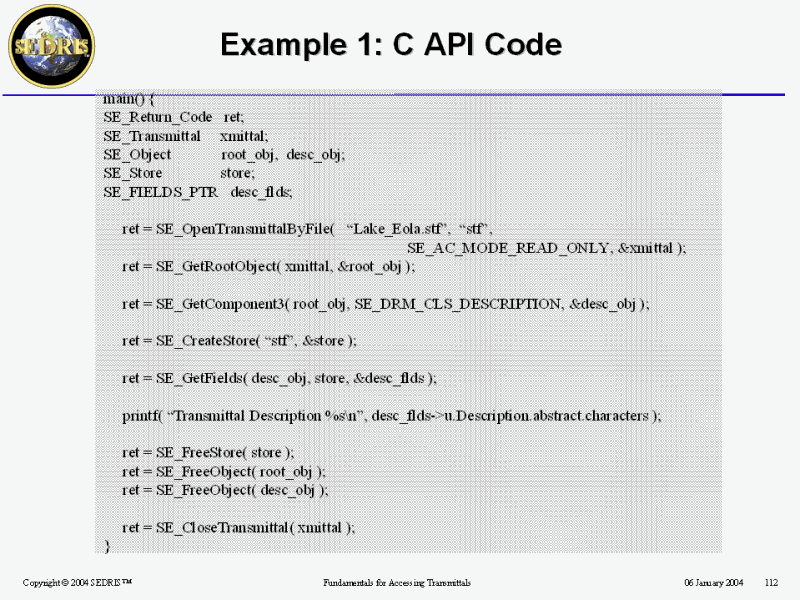

Example 1: C API Code

113

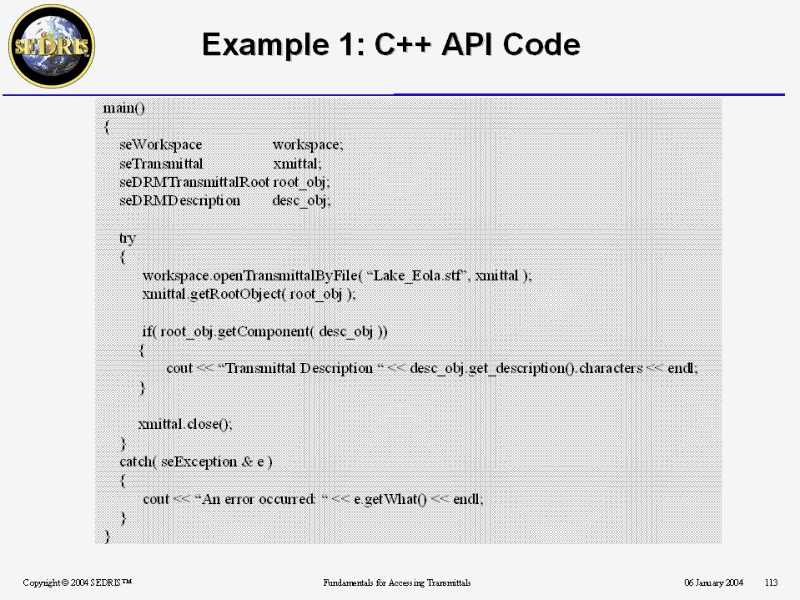

Example 1: C++ API Code

114

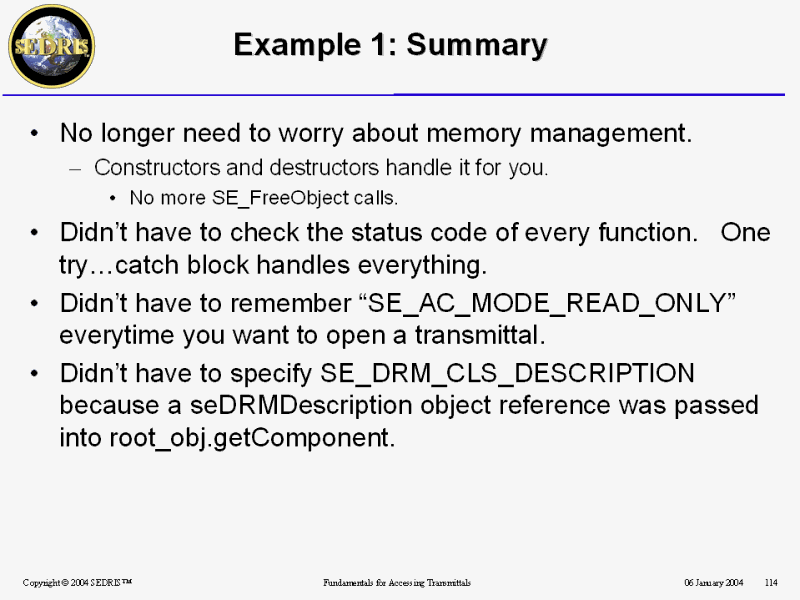

Example 1: Summary

115

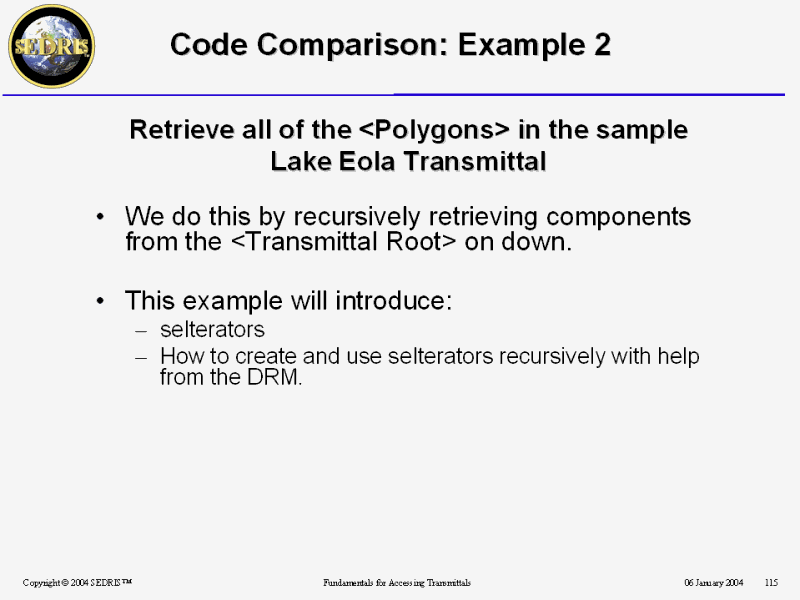

Code Comparison: Example 2

116

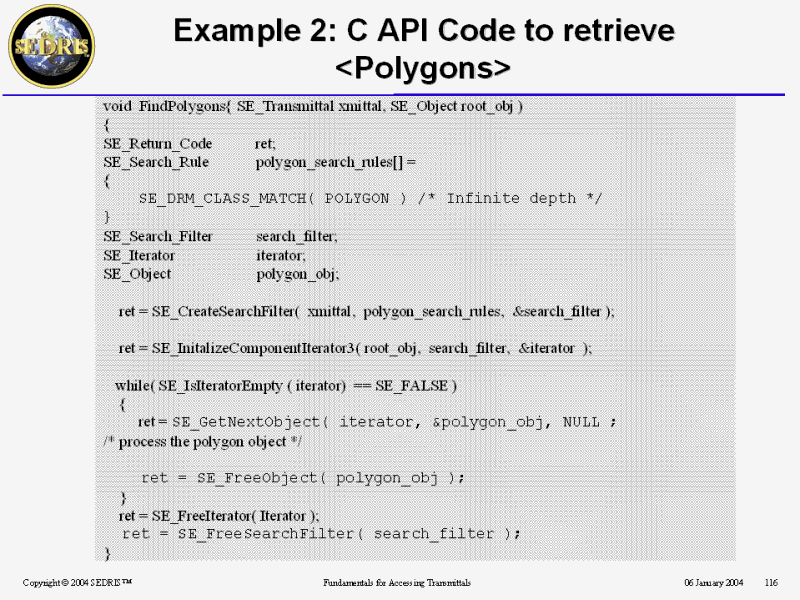

Example 2: C API Code to retrieve <Polygons>

117

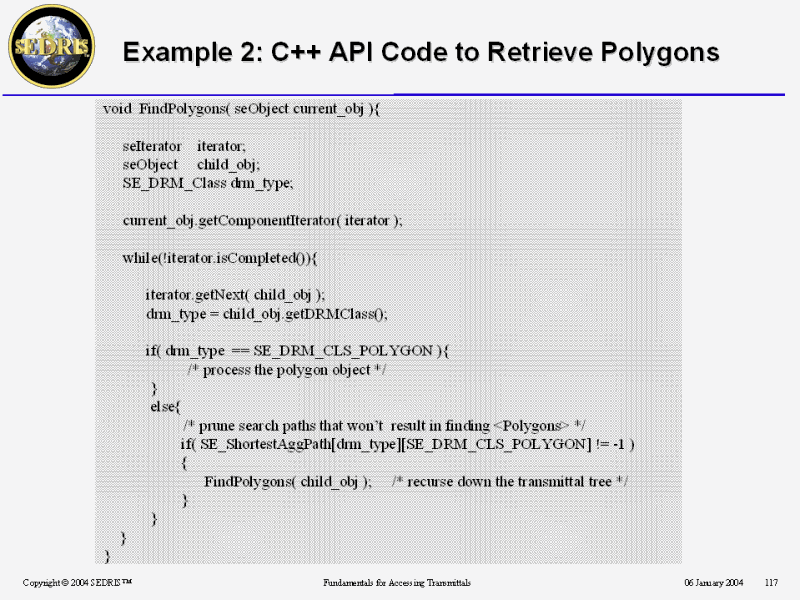

Example 2: C++ API Code to Retrieve Polygons

118

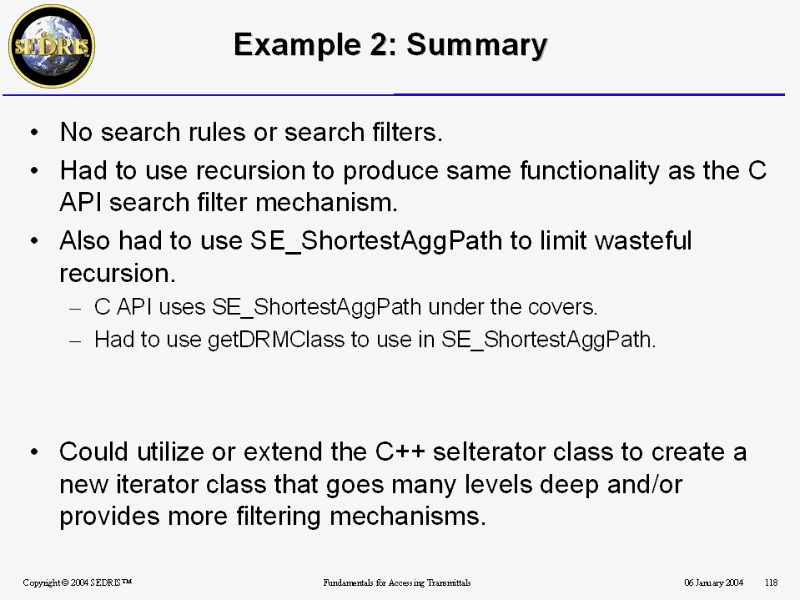

Example 2: Summary

119

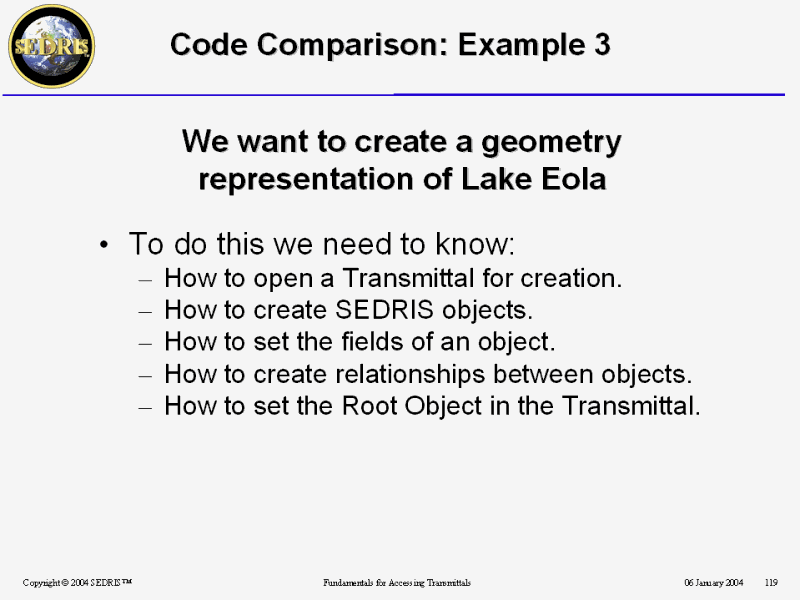

Code Comparison: Example 3

120

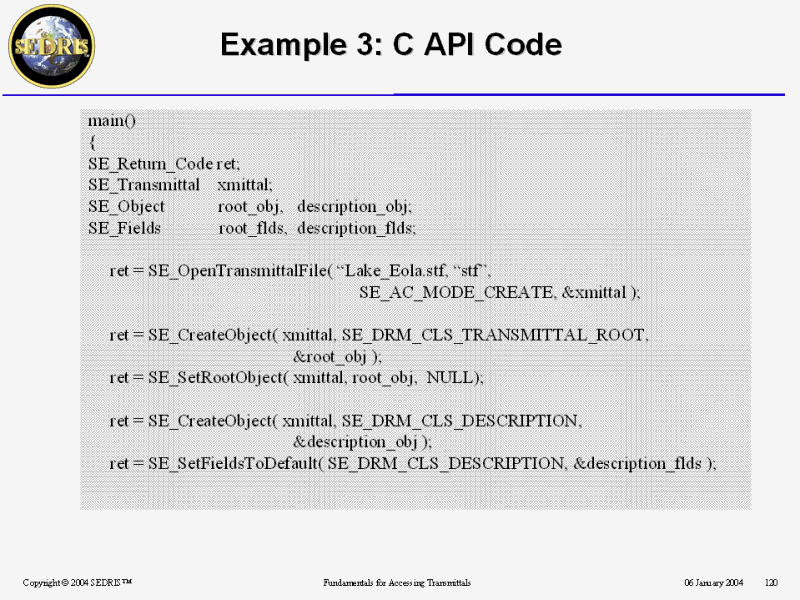

Example 3: C API Code

121

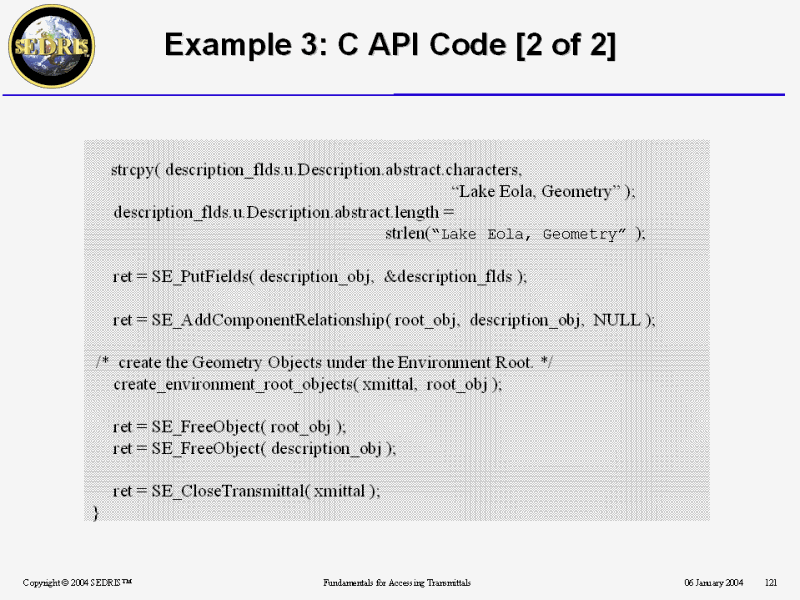

Example 3: C API Code [2 of 2]

122

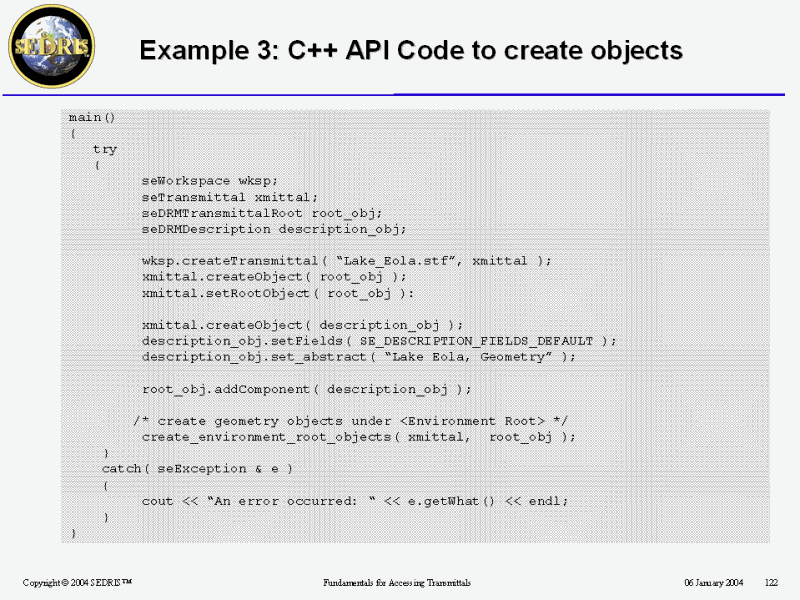

Example 3: C++ API Code to create objects

123

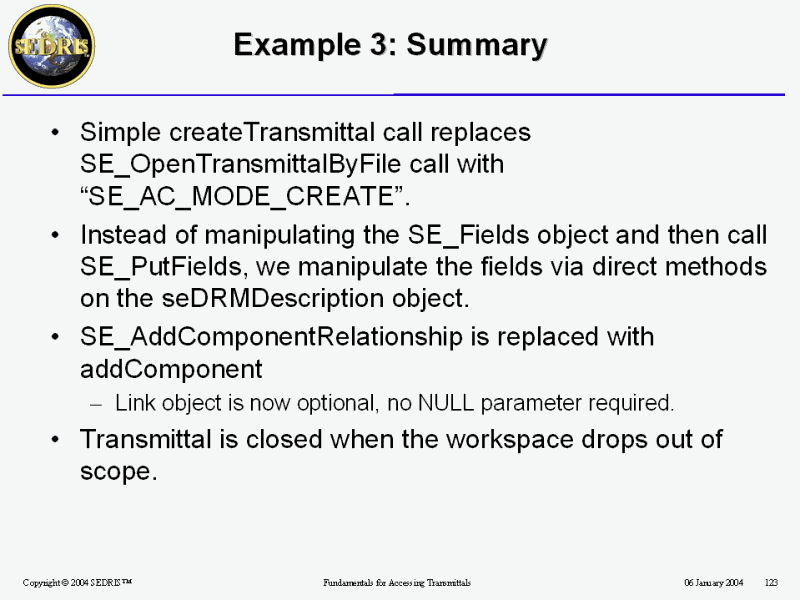

Example 3: Summary

124

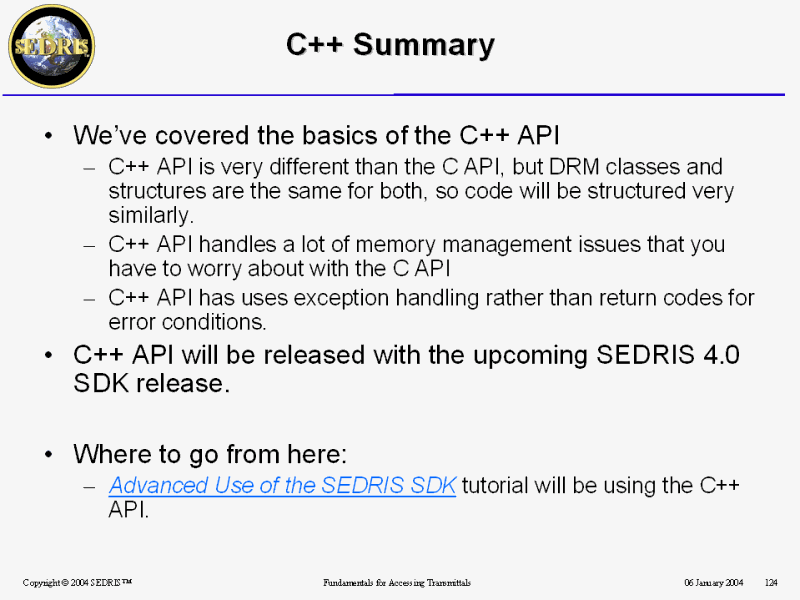

C++ Summary

125

Summary

. . .
