1

PPT Slide
2

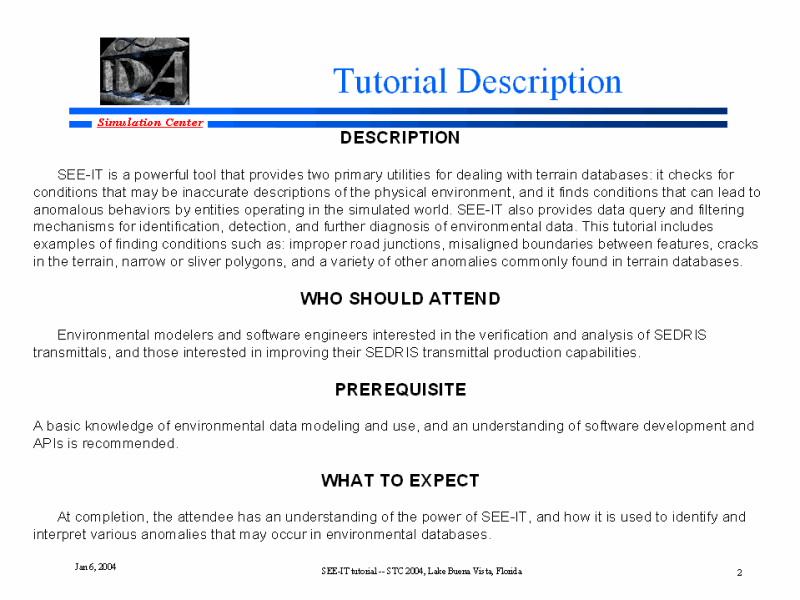

Tutorial Description
3

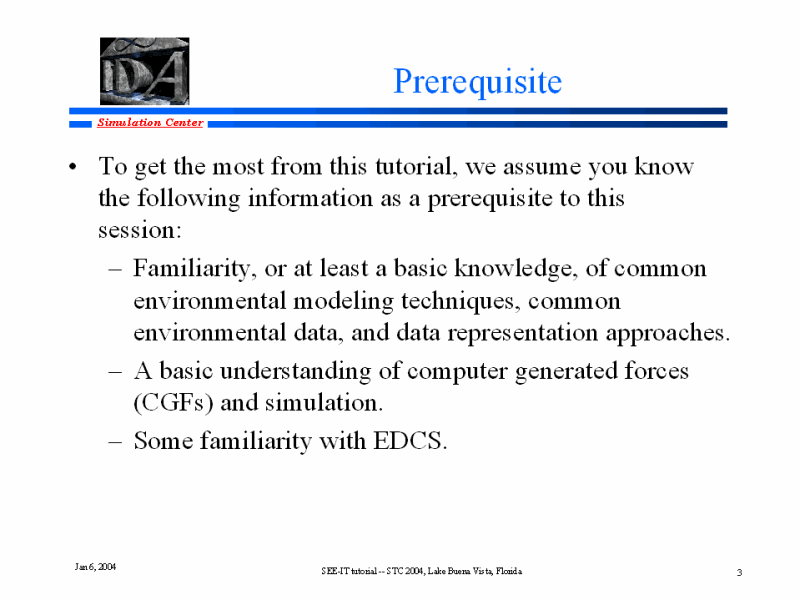

Prerequisite
4

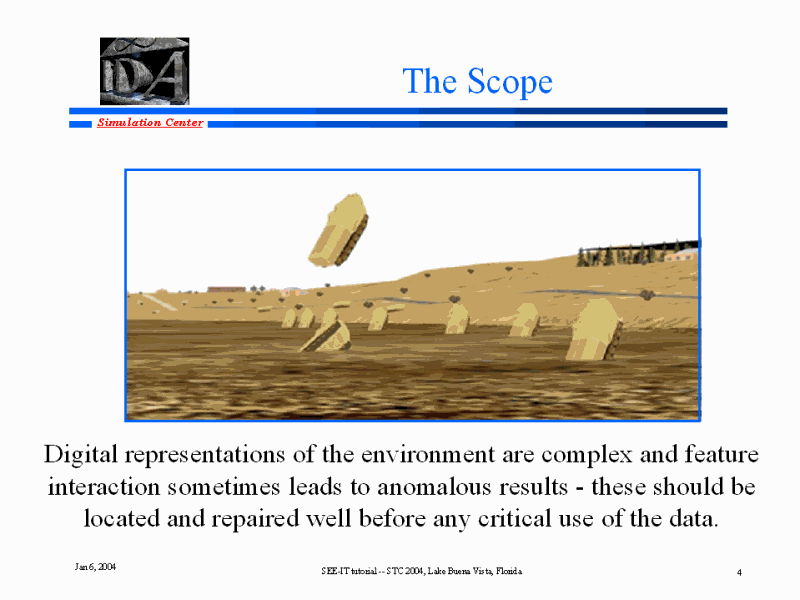

The Scope
5

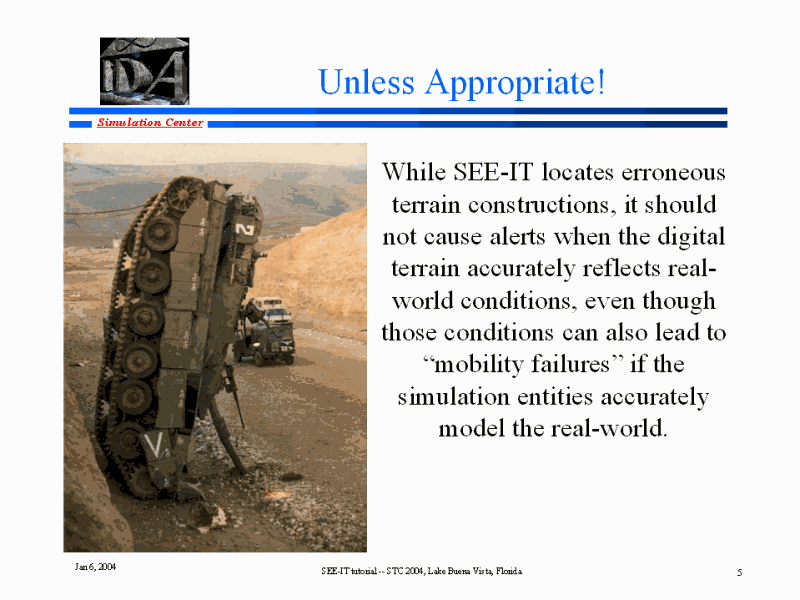

Unless Appropriate!

6

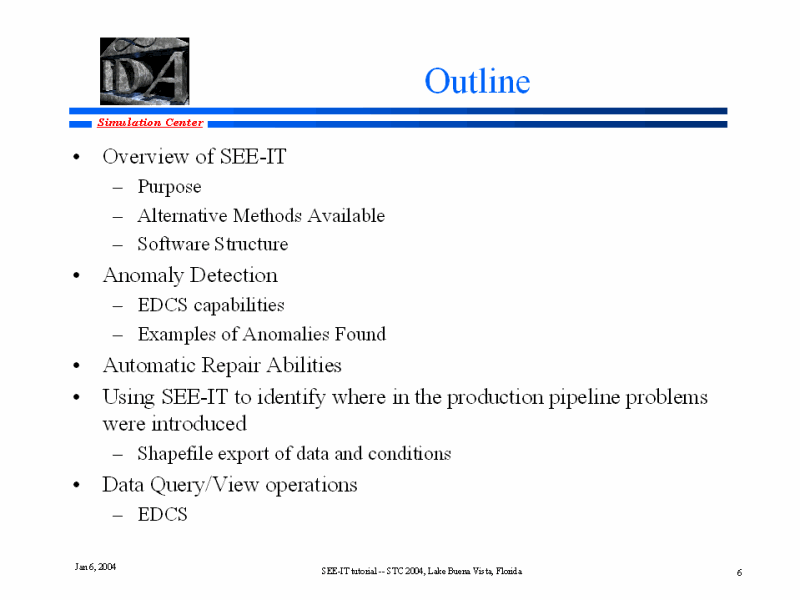

Outline
7

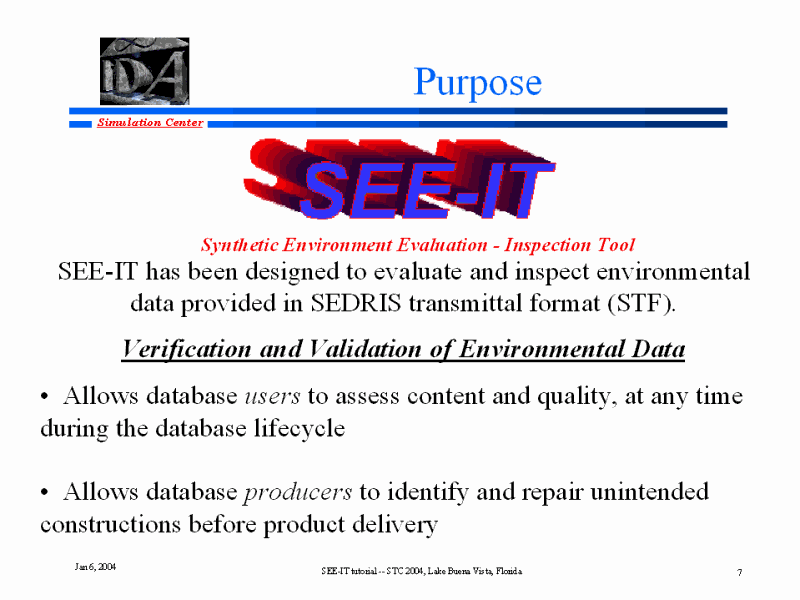

Purpose
8

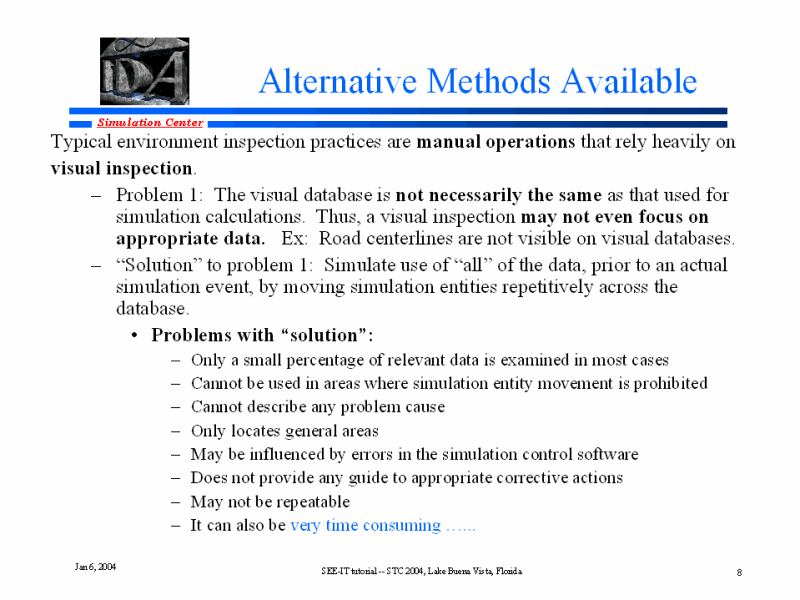

Alternative Methods Available
9

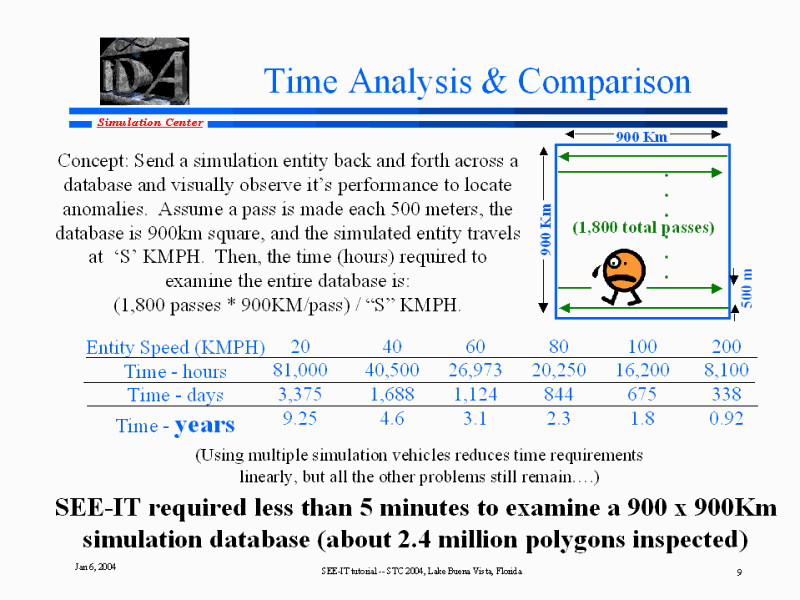

Time Analysis & Comparison
10

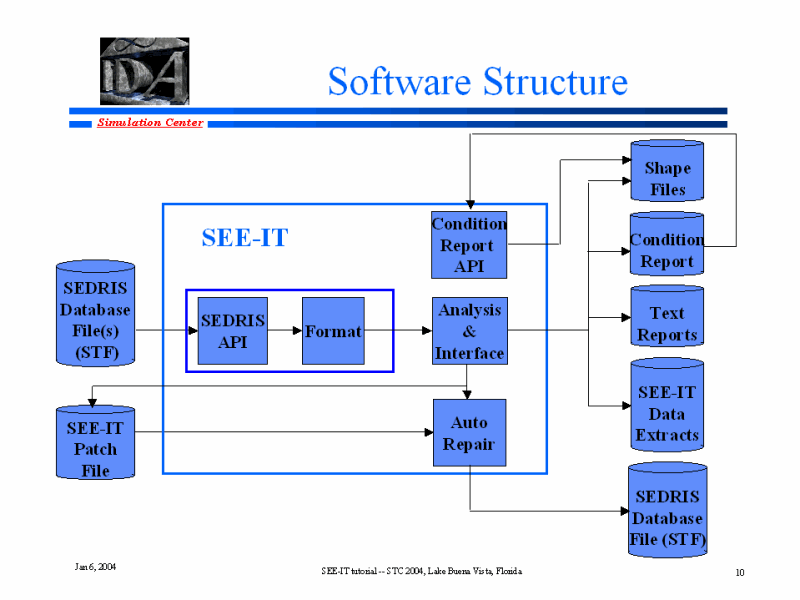

Software Structure
11

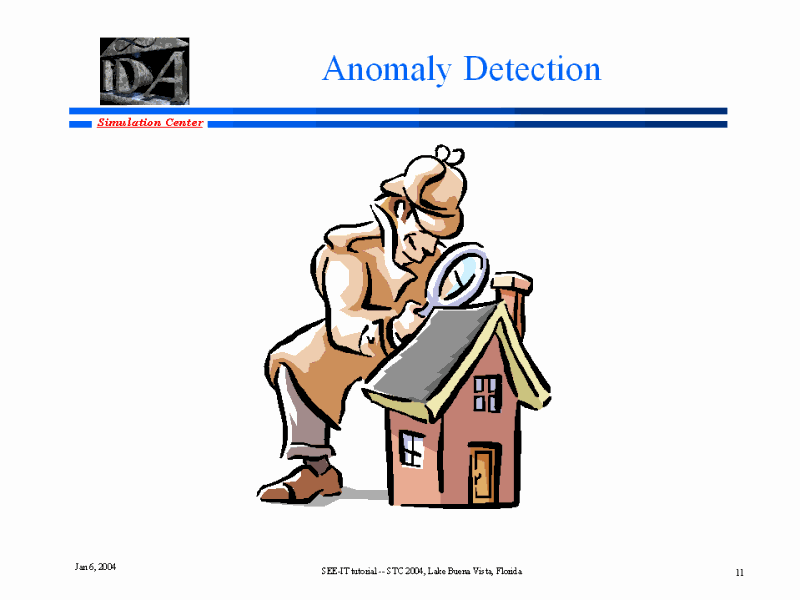

Anomaly Detection
12

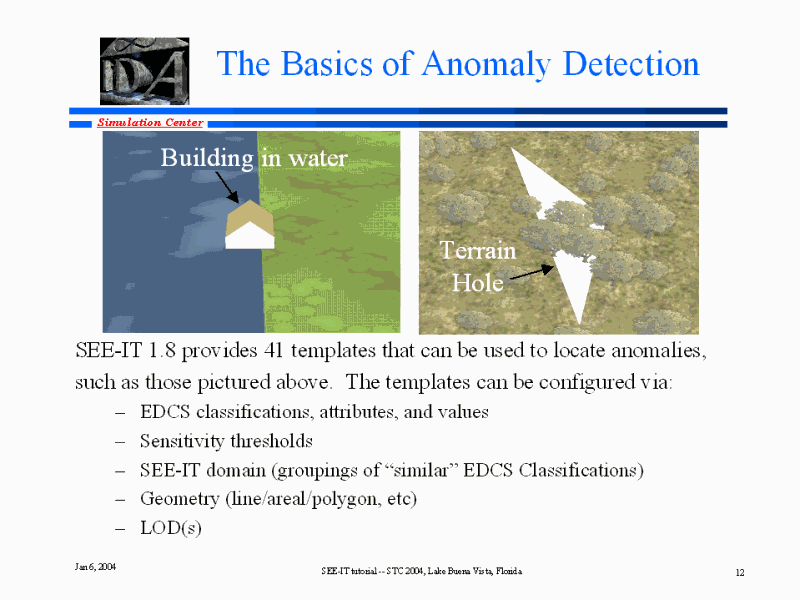

The Basics of Anomaly Detection
13

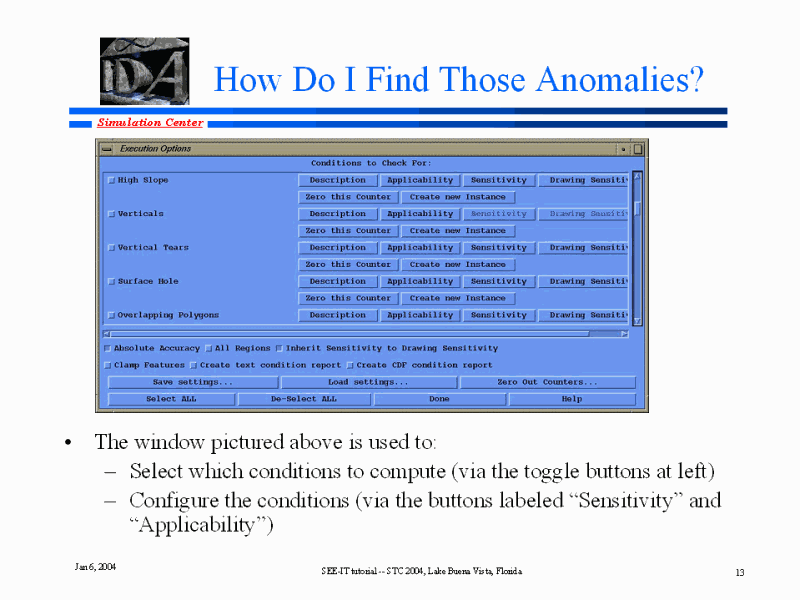

How Do I Find Those Anomalies?
14

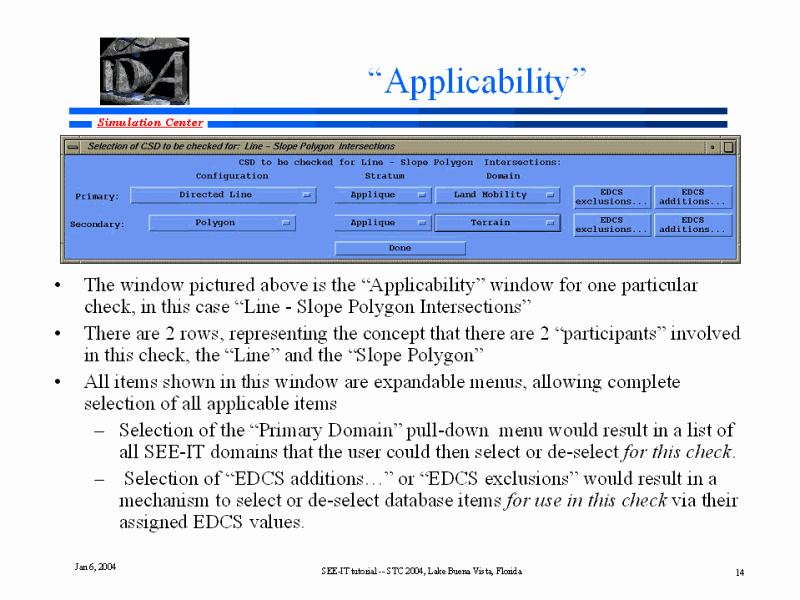

“Applicability”
15

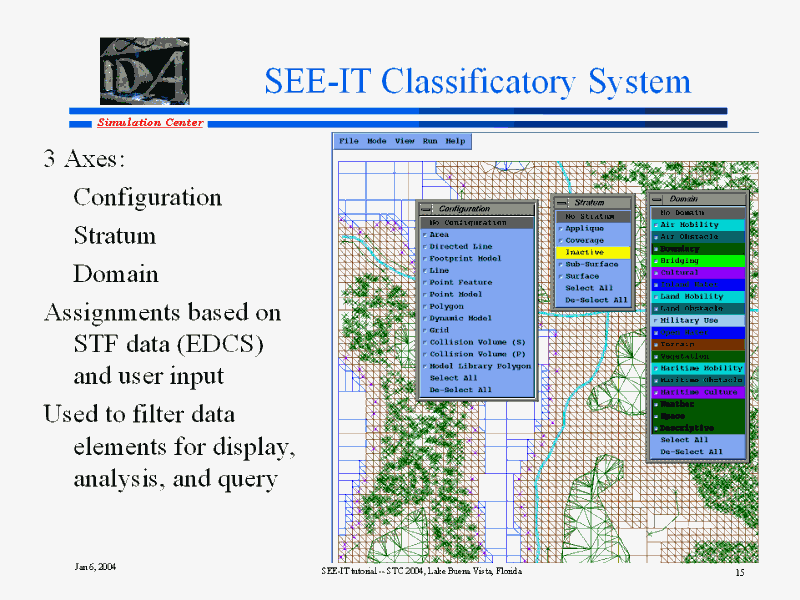

SEE-IT Classificatory System
16

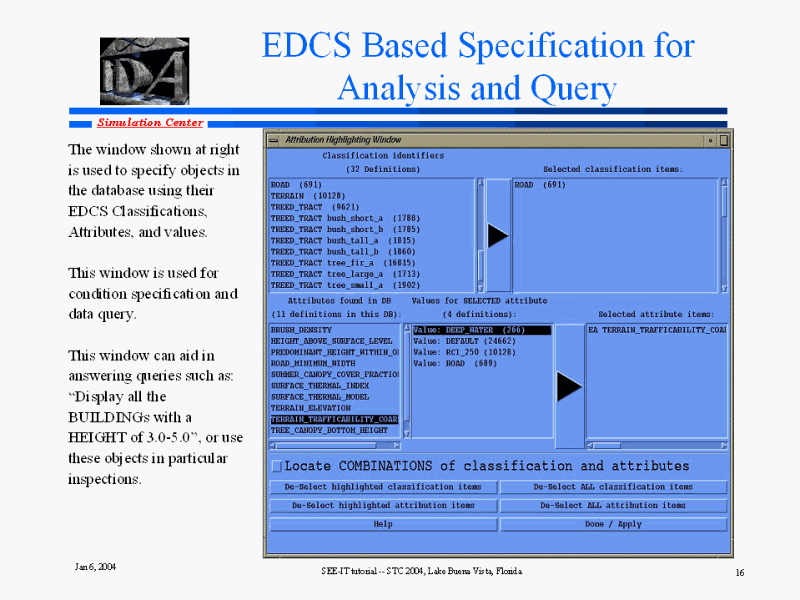

EDCS Based Specification for Analysis and Query
17

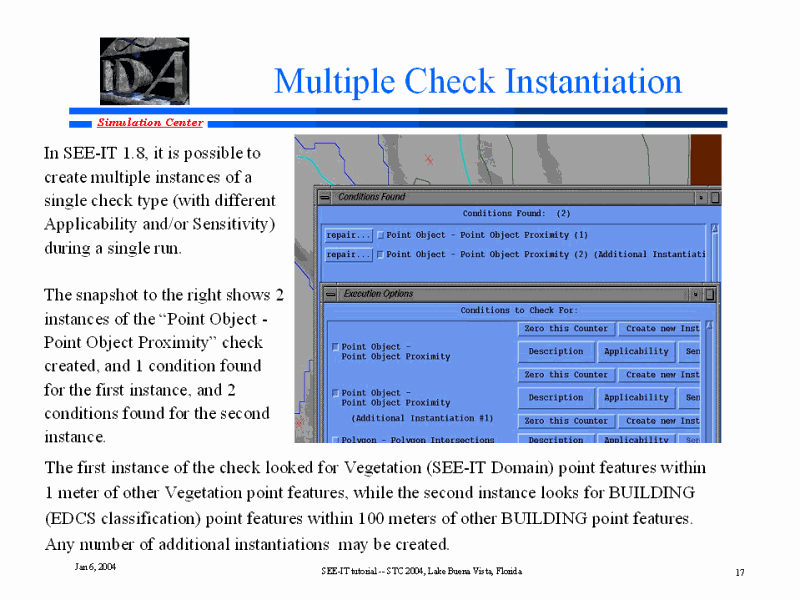

Multiple Check Instantiation
18

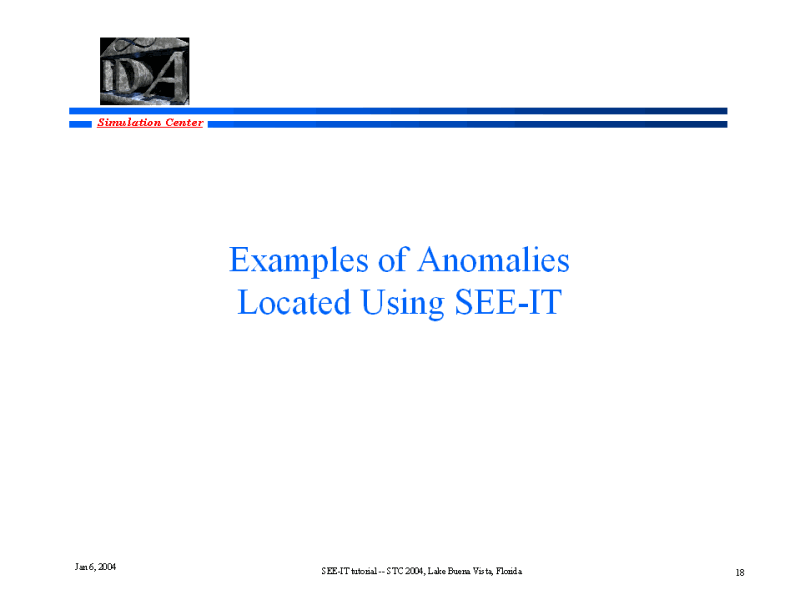

Examples of Anomalies Located Using SEE-IT
19

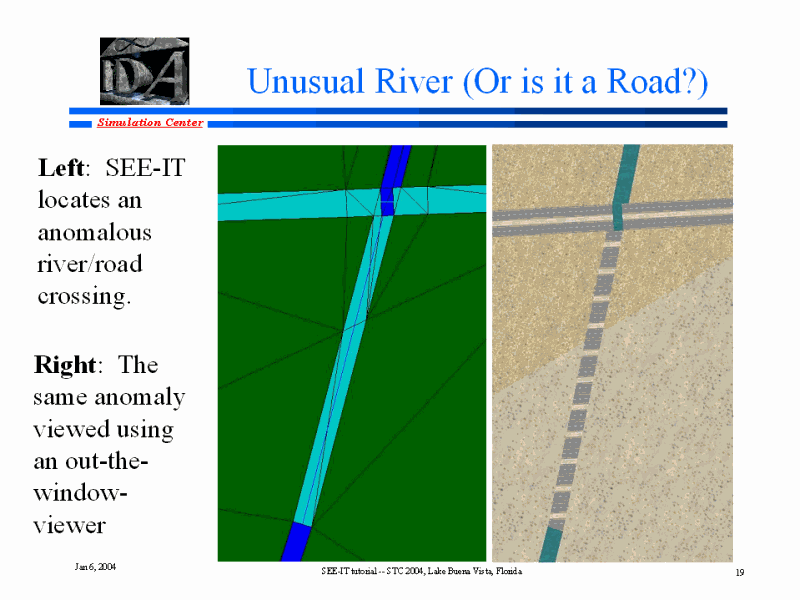

Unusual River (Or is it a Road?)
20

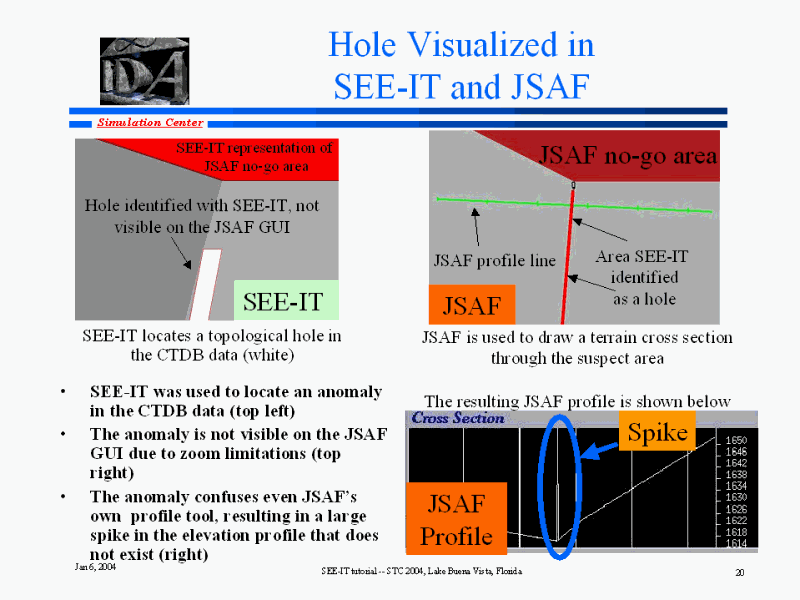

Hole Visualized in SEE-IT and JSAF
21

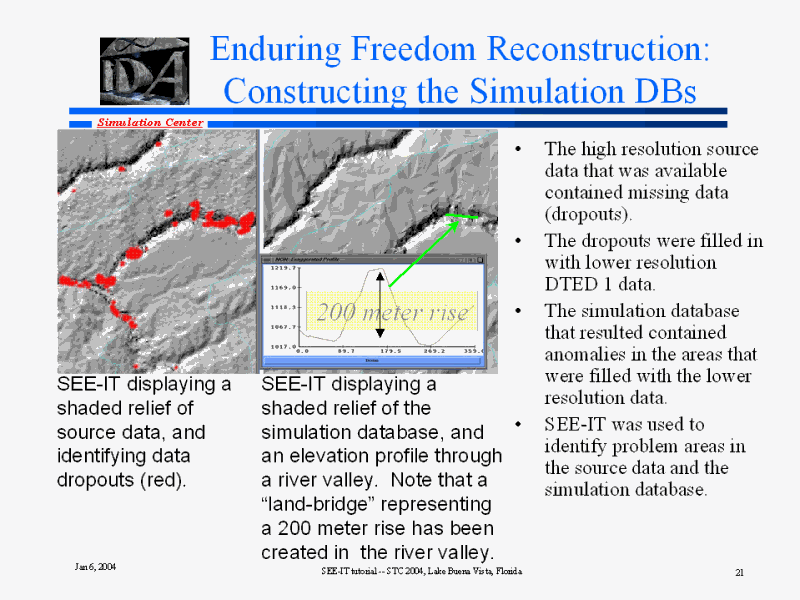

Enduring Freedom Reconstruction: Constructing the Simulation DBs
22

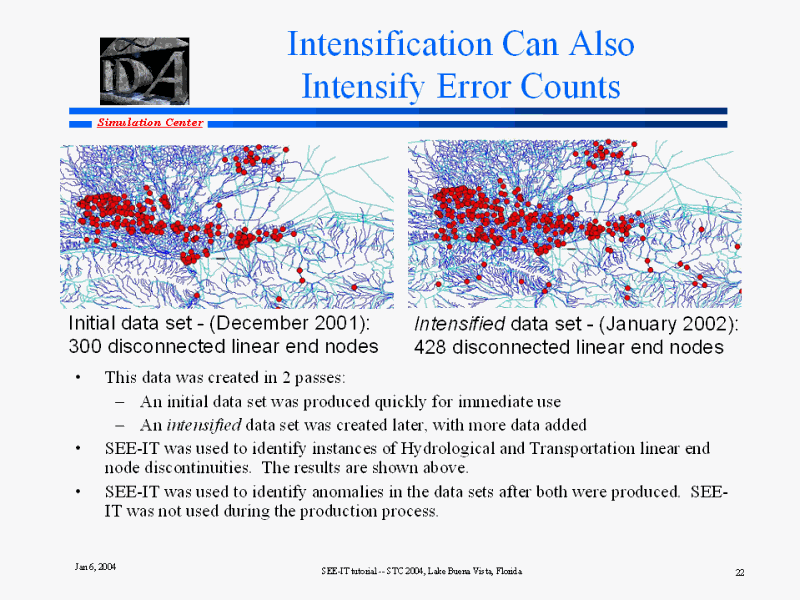

Intensification Can Also Intensify Error Counts
23

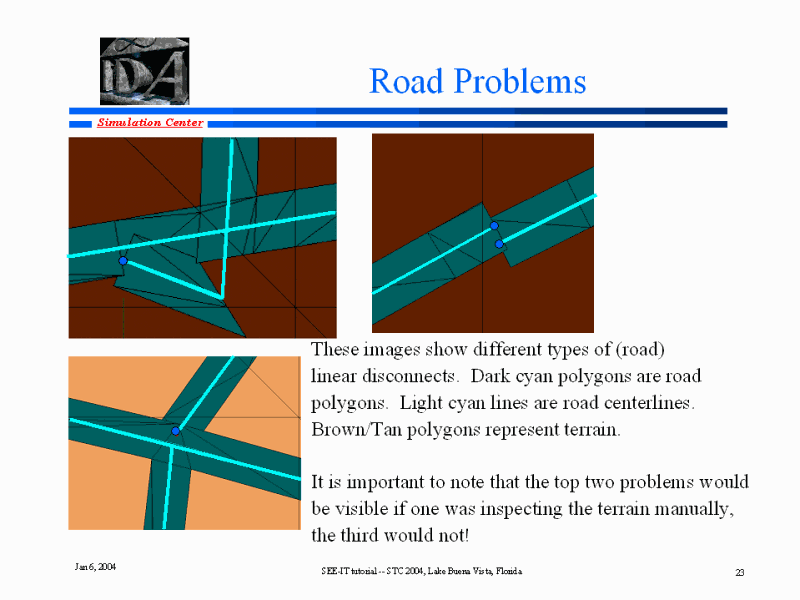

Road Problems
24

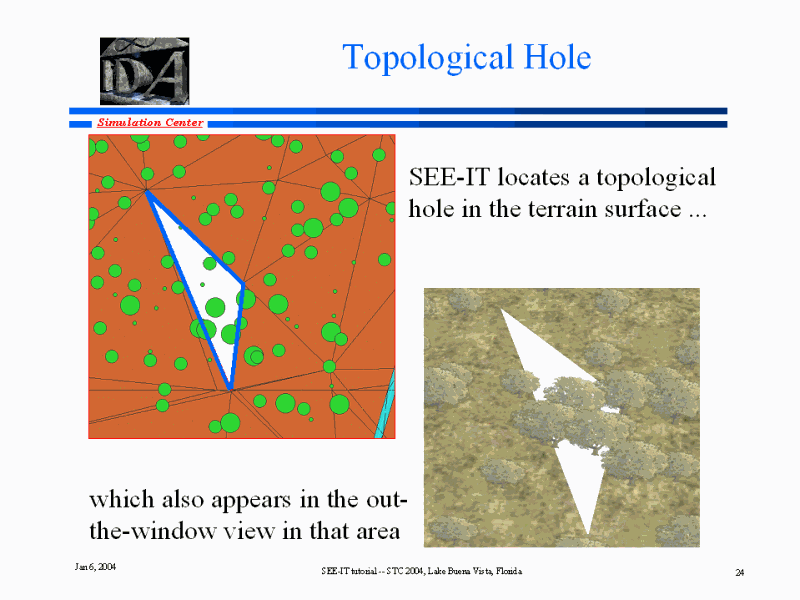

PPT Slide
25

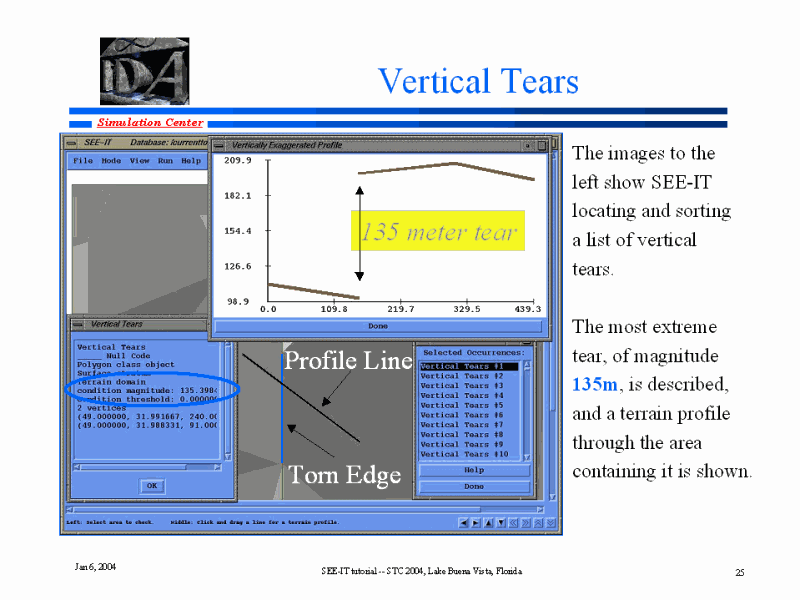

Vertical Tears

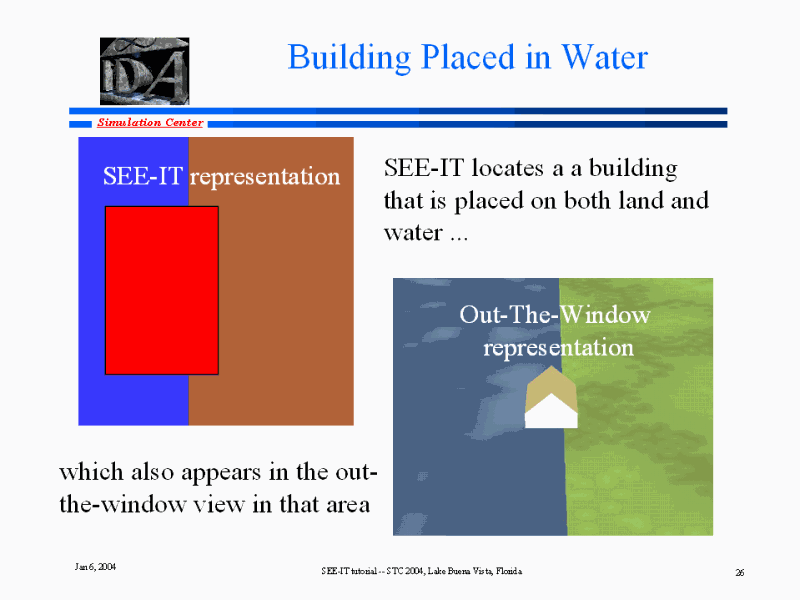

26

PPT Slide
27

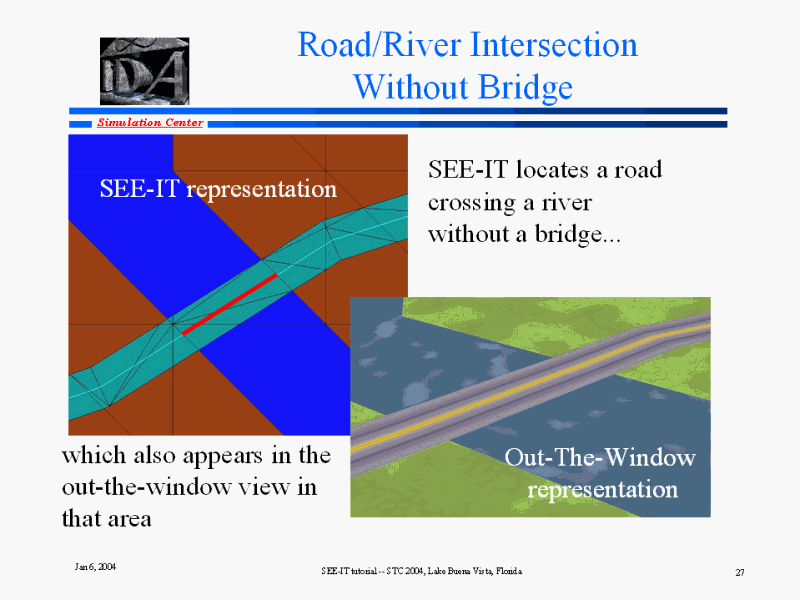

PPT Slide
28

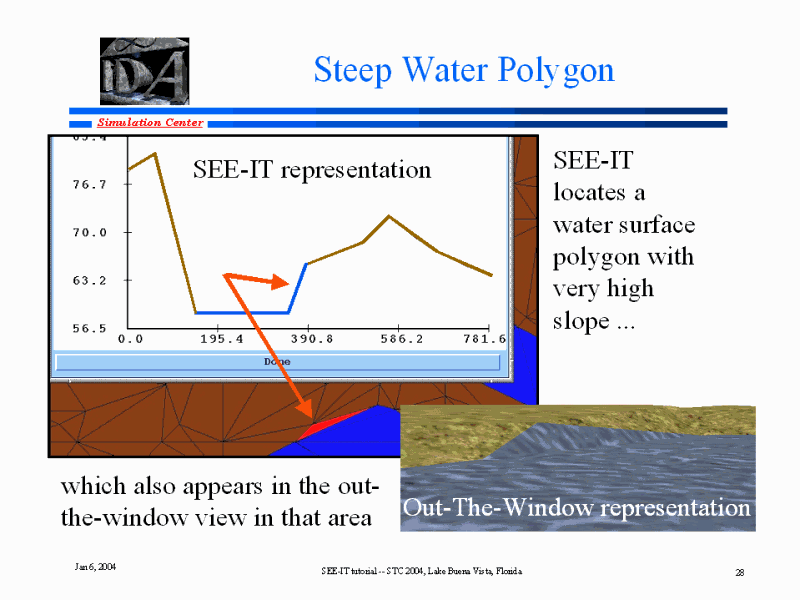

PPT Slide
29

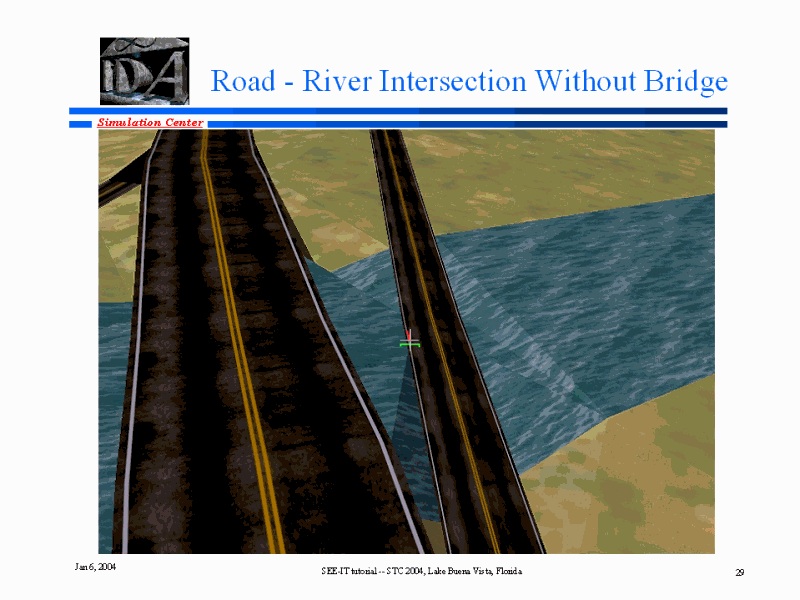

Road - River Intersection Without Bridge
30

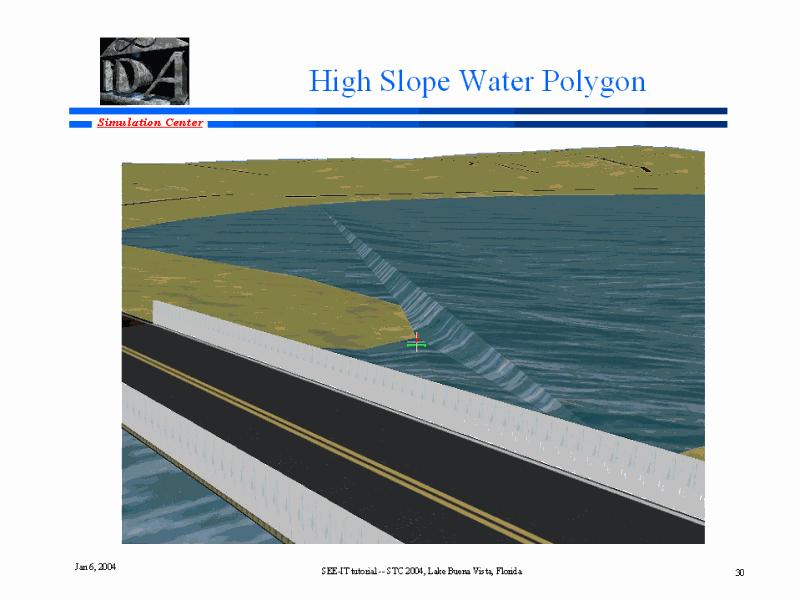

High Slope Water Polygon
31

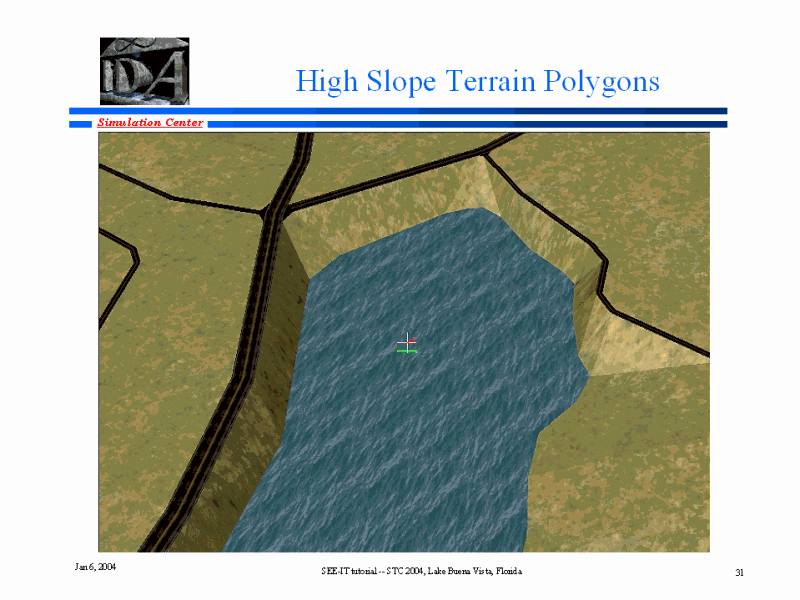

High Slope Terrain Polygons
32

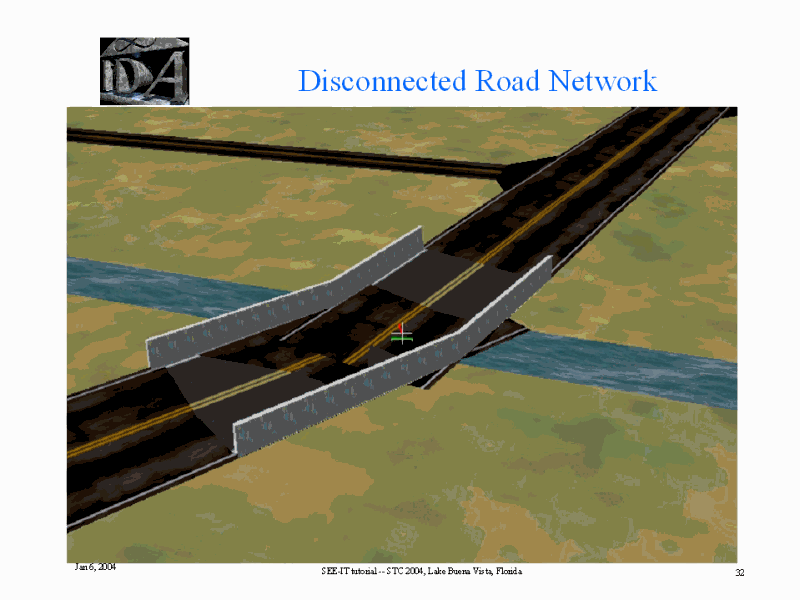

Disconnected Road Network
33

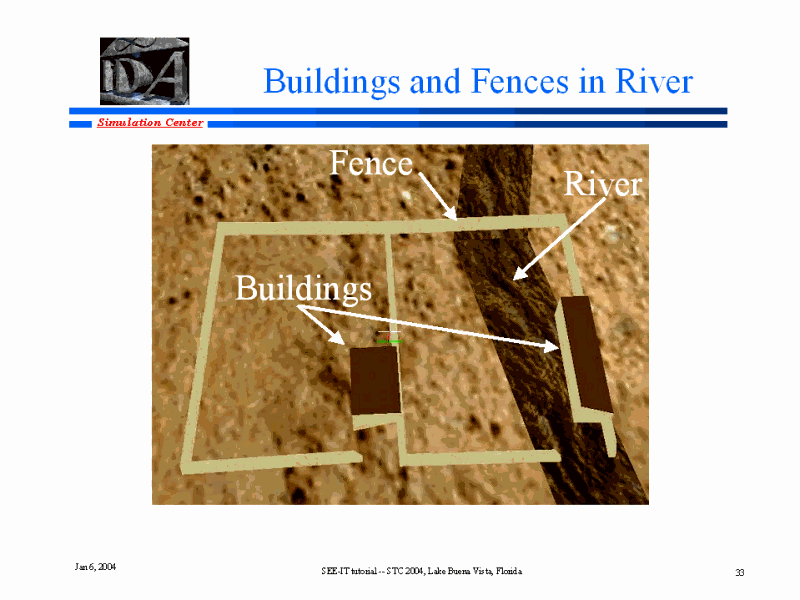

Buildings and Fences in River
34

Road With Very Steep Slope
35

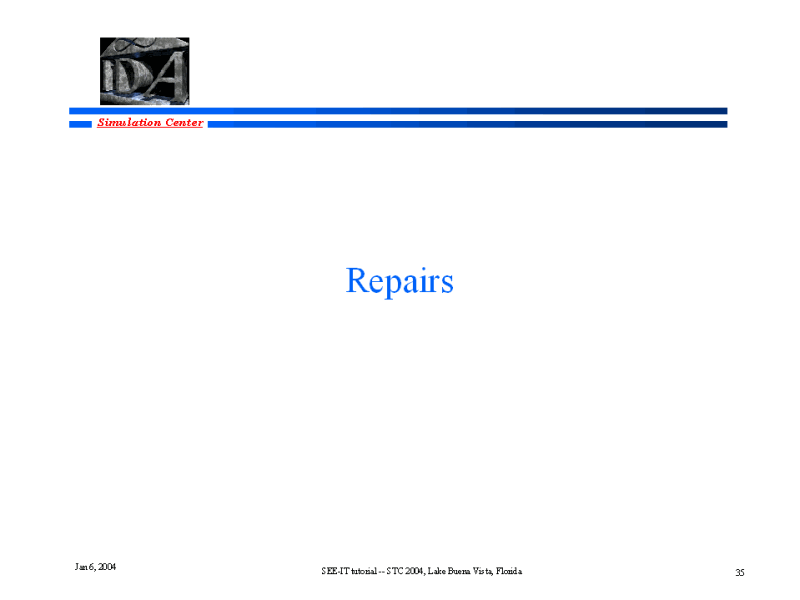

Repairs
36

Data Correction using SEE-IT
37

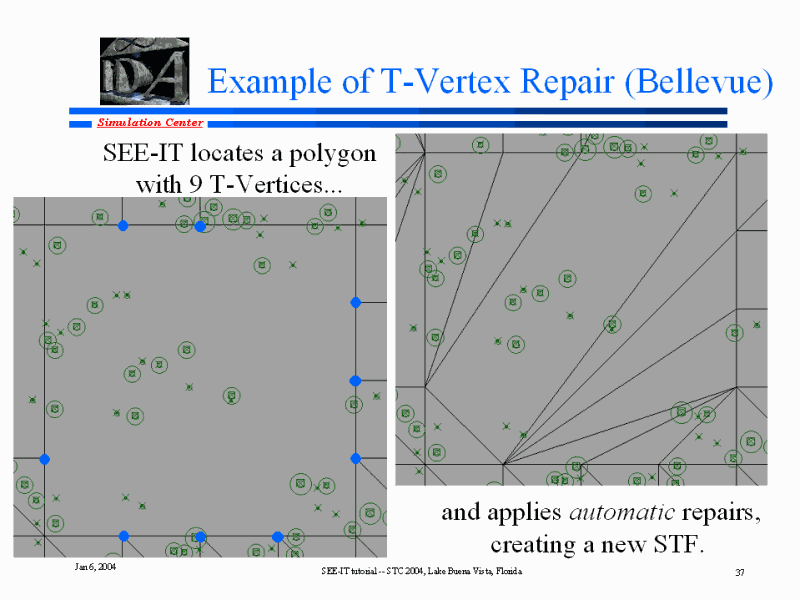

Example of T-Vertex Repair (Bellevue)
38

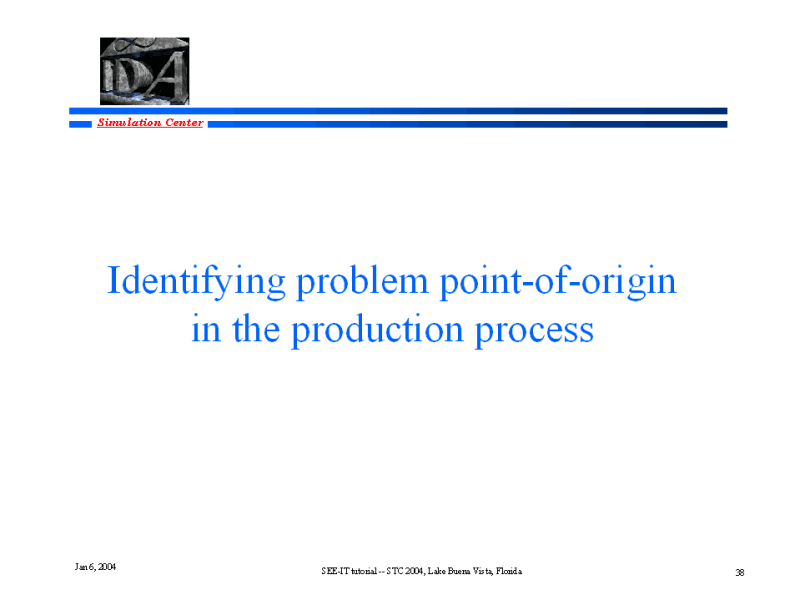

Identifying problem point-of-origin in the production process
39

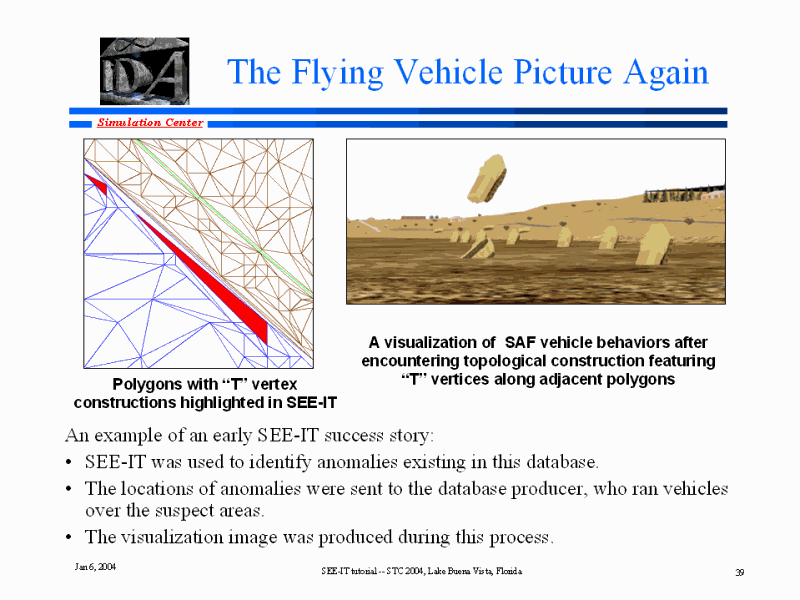

The Flying Vehicle Picture Again
40

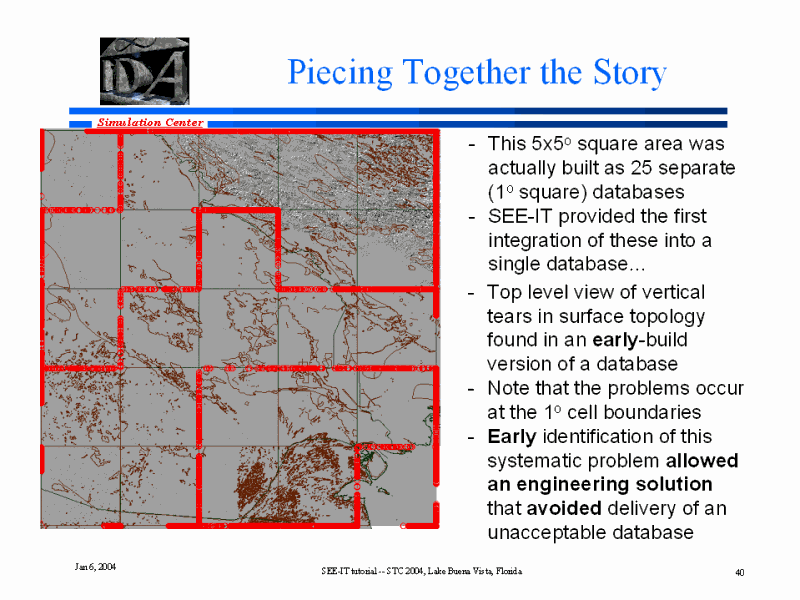

Piecing Together the Story

41

A JSAF Operator Speaks … And SEE-IT is put to work
42

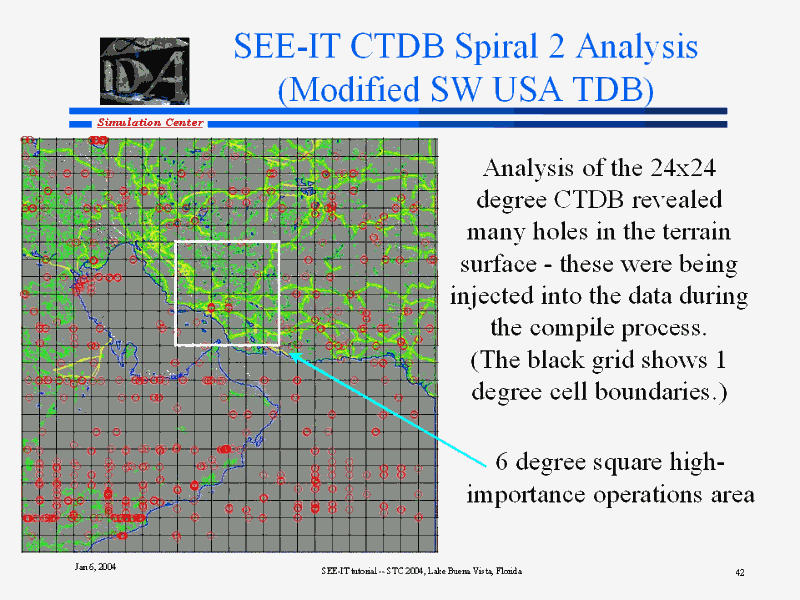

SEE-IT CTDB Spiral 2 Analysis (Modified SW USA TDB)
43

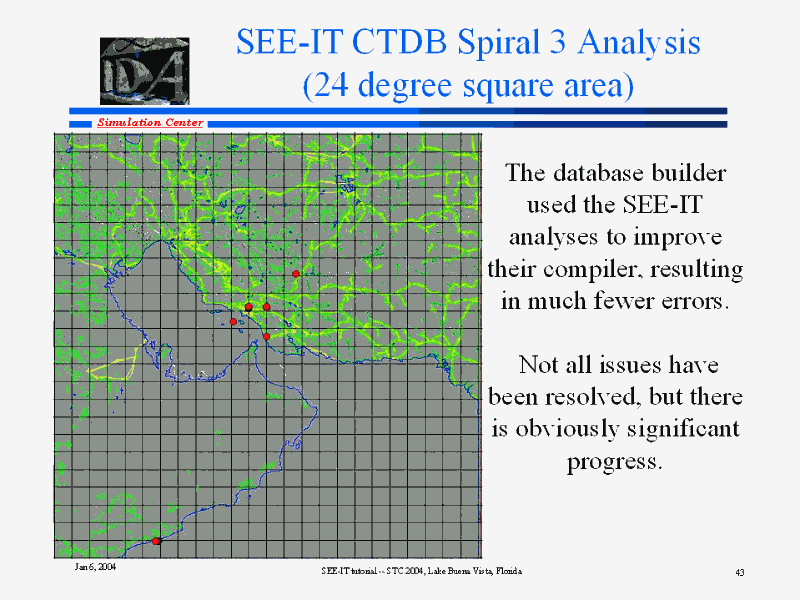

SEE-IT CTDB Spiral 3 Analysis (24 degree square area)
44

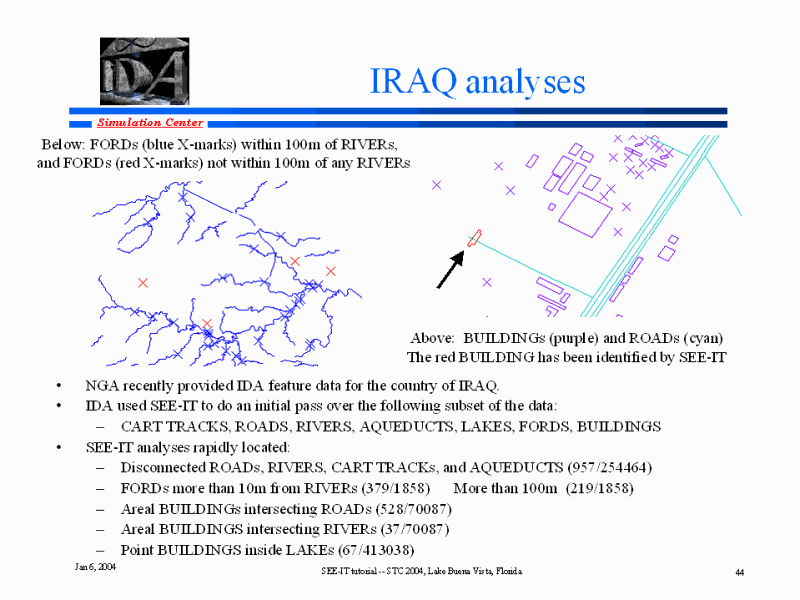

IRAQ analyses
45

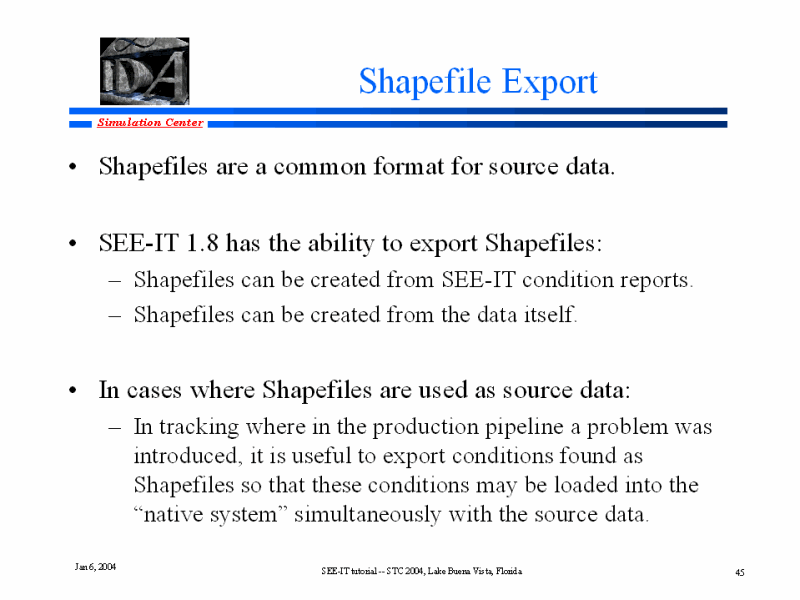

Shapefile Export
46

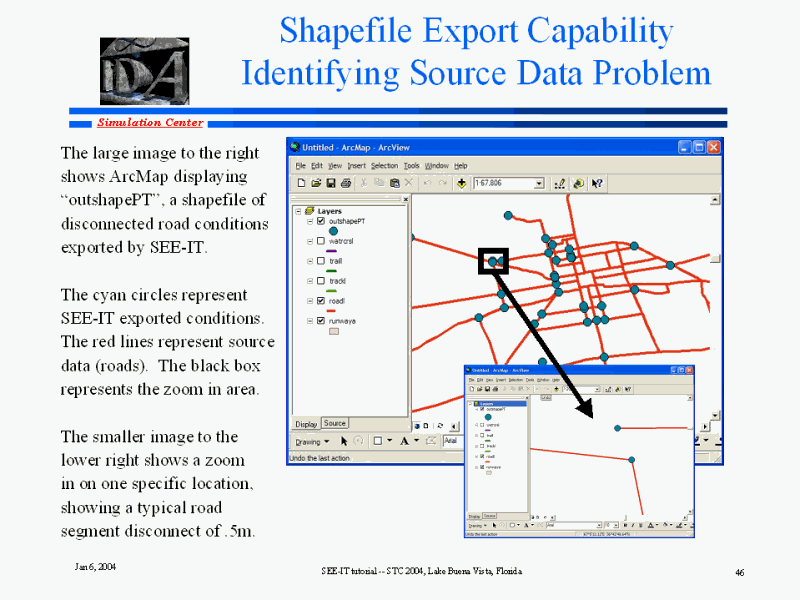

Shapefile Export Capability Identifying Source Data Problem
47

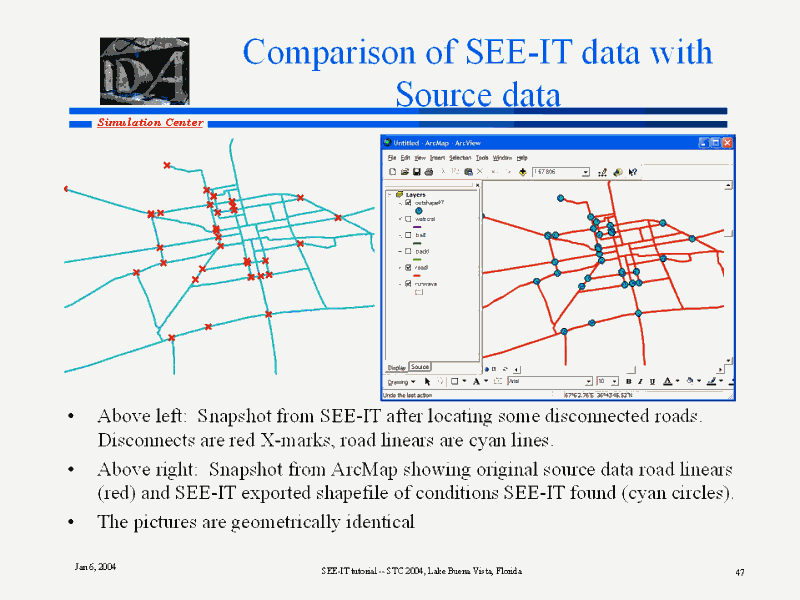

Comparison of SEE-IT data with Source data
48

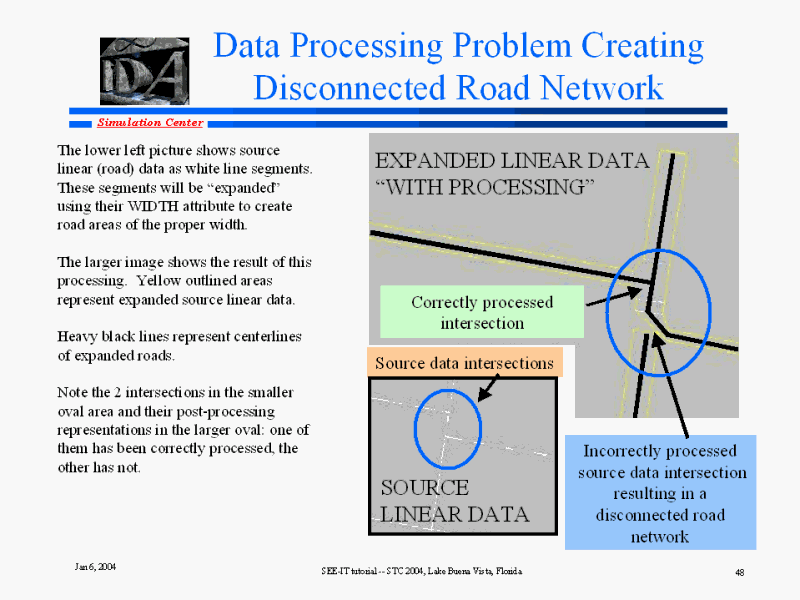

Data Processing Problem Creating Disconnected Road Network
49

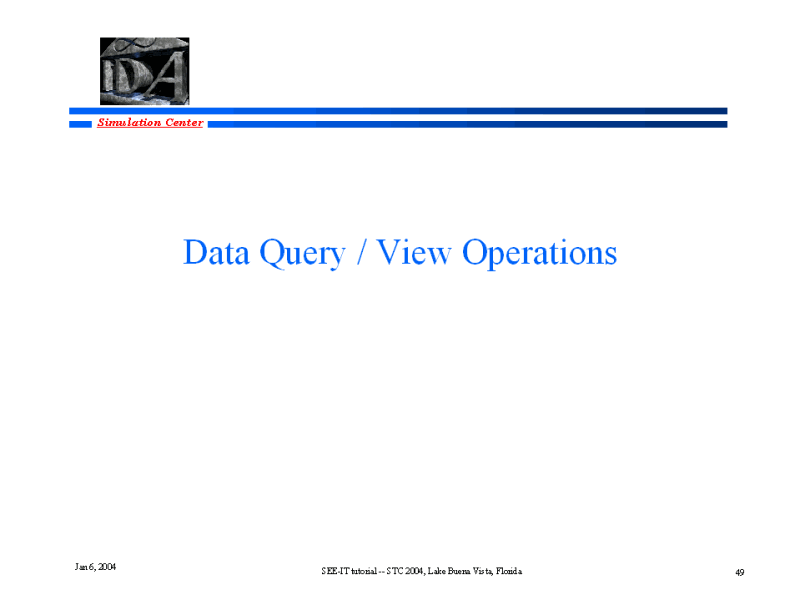

Data Query / View Operations
50

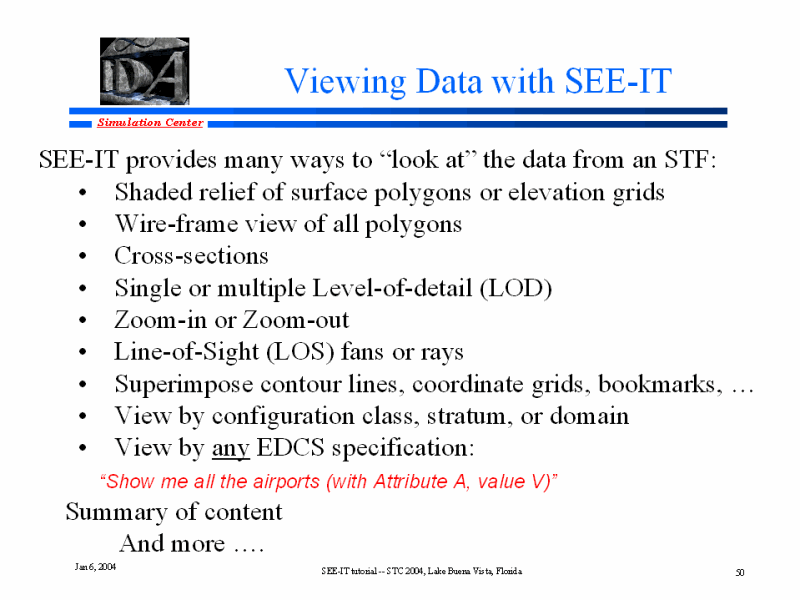

Viewing Data with SEE-IT
51

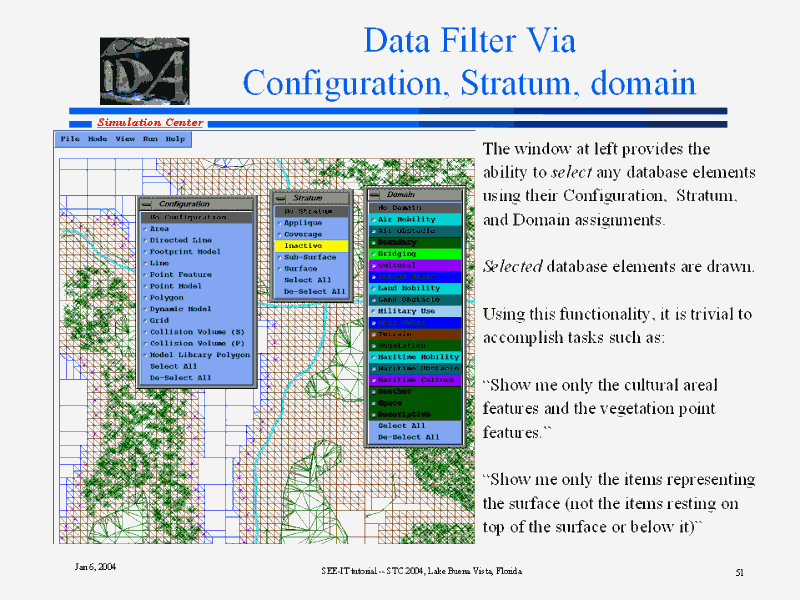

Data Filter Via Configuration, Stratum, domain
52

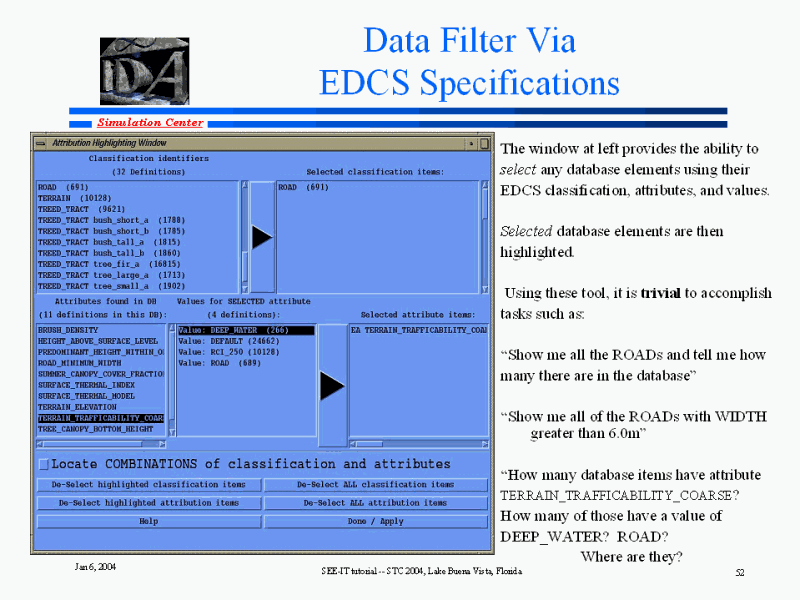

Data Filter Via EDCS Specifications
53

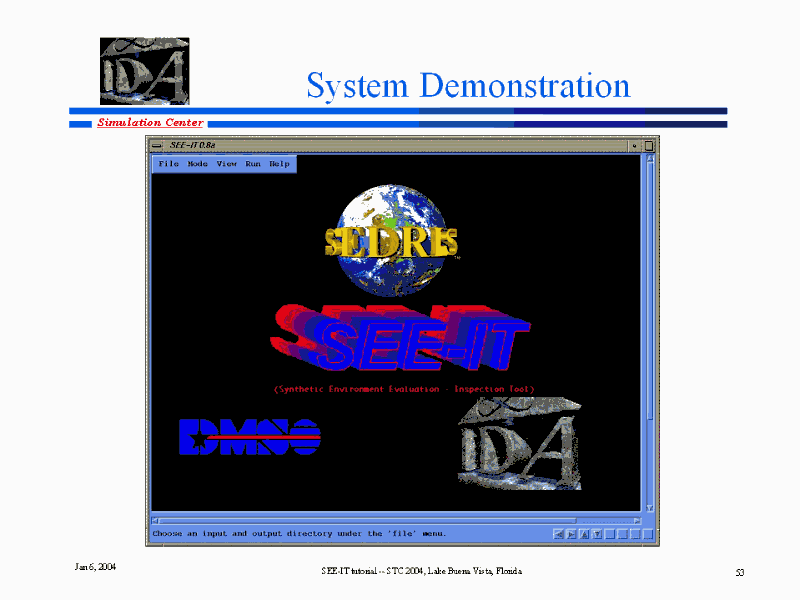

System Demonstration
54

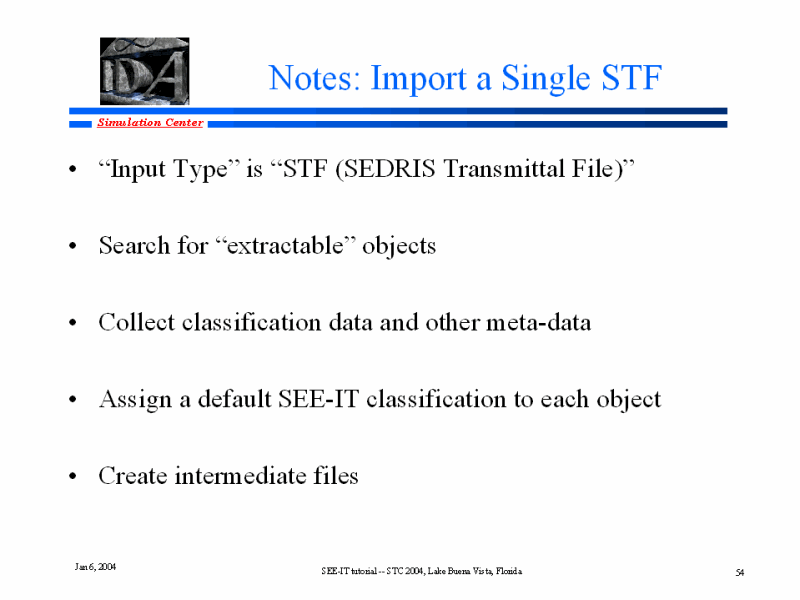

Notes: Import a Single STF
55

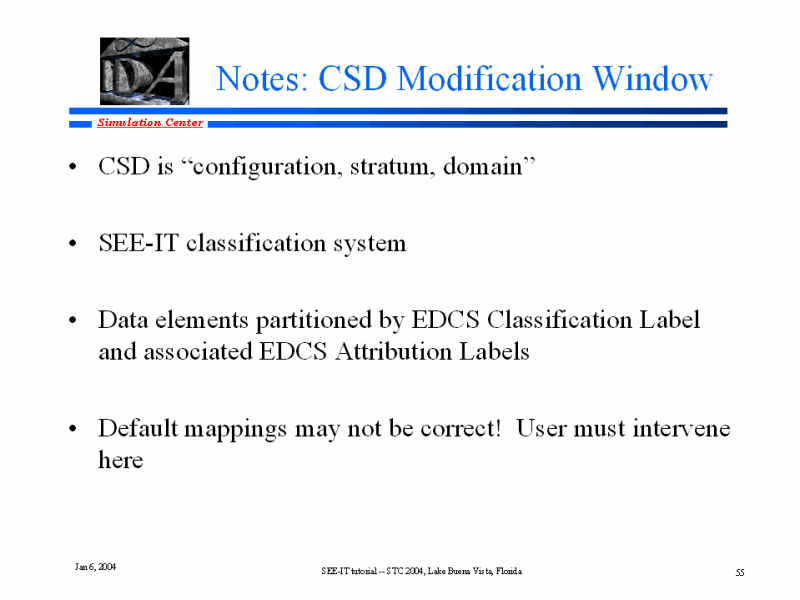

Notes: CSD Modification Window
56

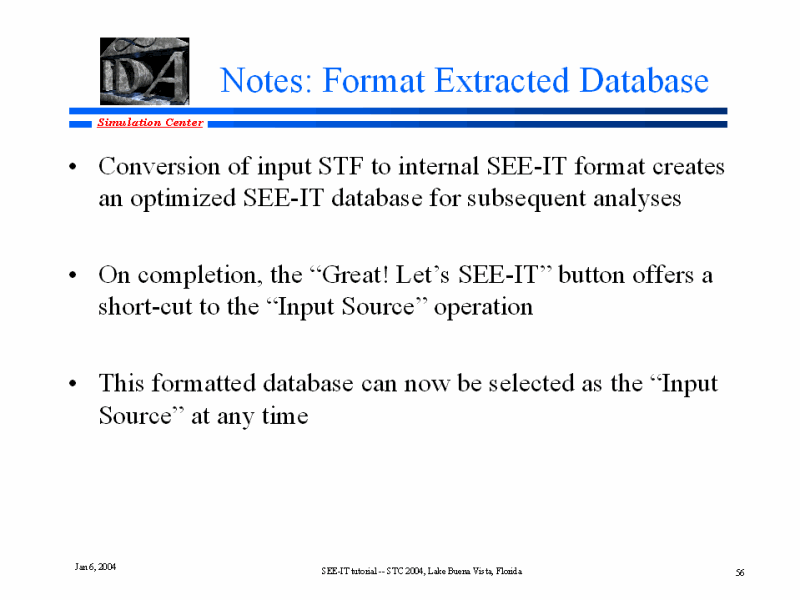

Notes: Format Extracted Database
57

Notes: Output Source
58

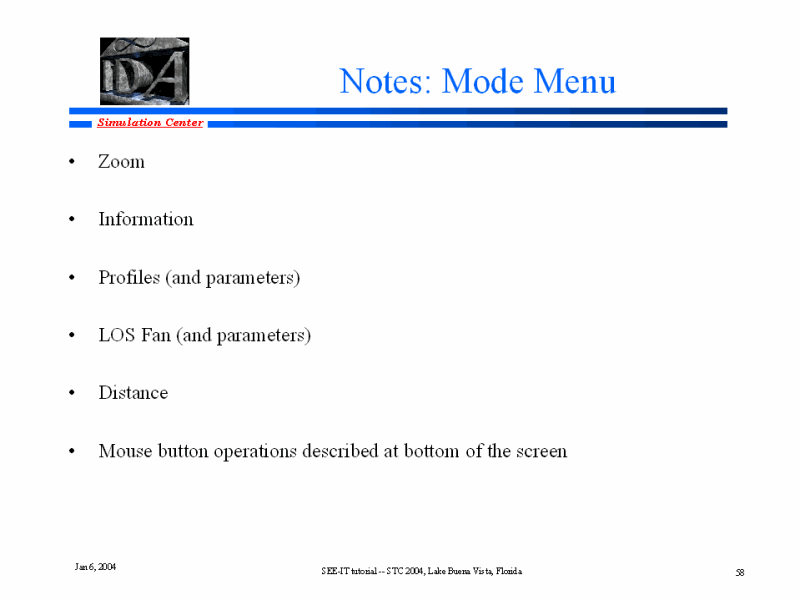

Notes: Mode Menu
59

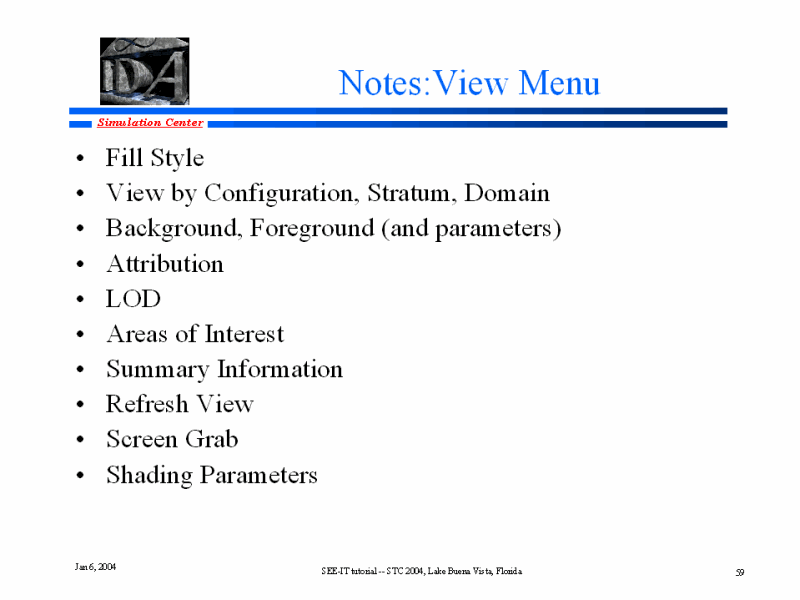

Notes:View Menu
60

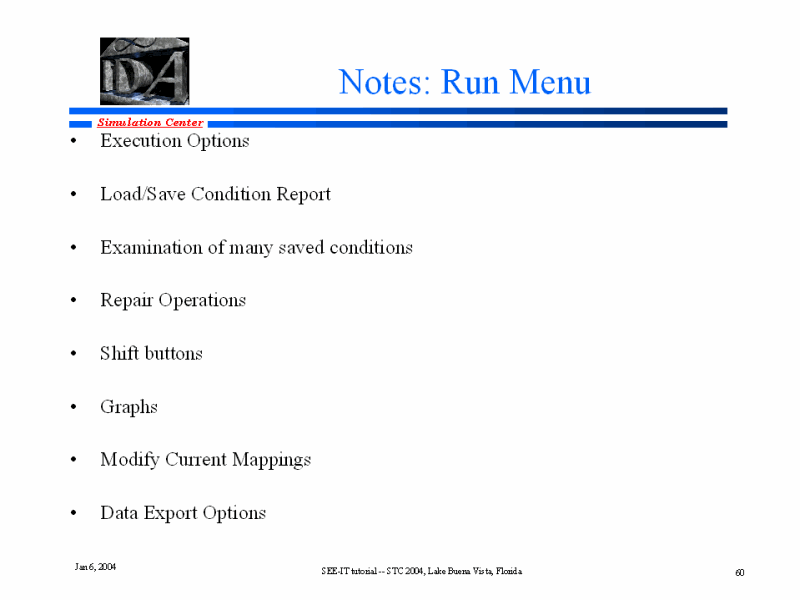

Notes: Run Menu
61

Notes: Help Menu
62

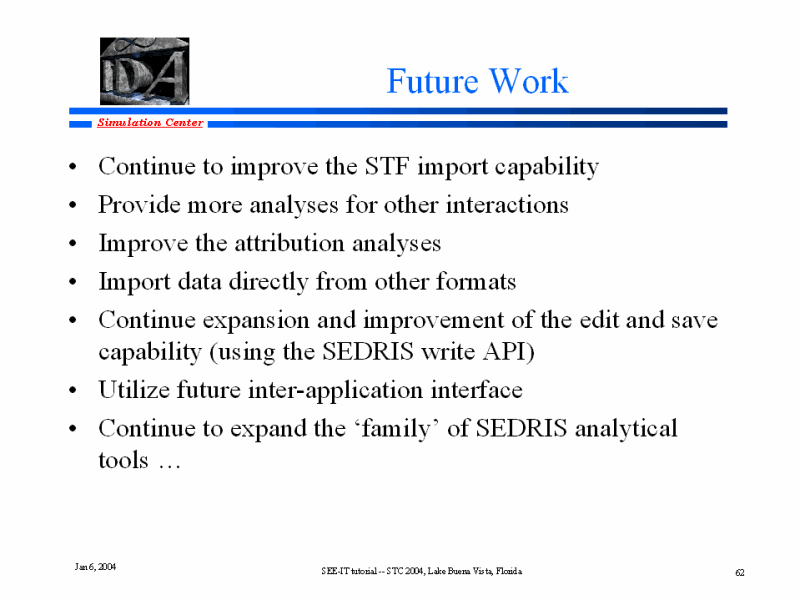

Future Work
63

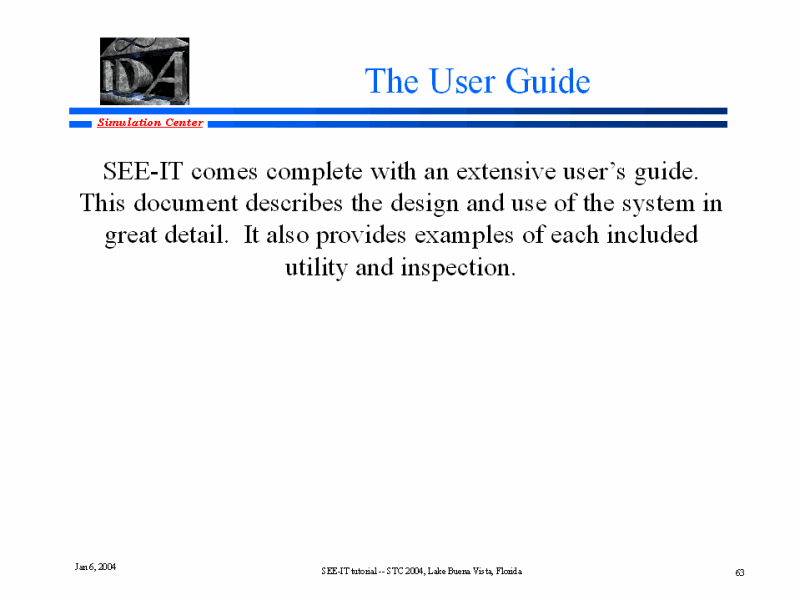

The User Guide
64

Where to go from here
