SRM.BaseSRF_MapProjection Class Reference

The BaseSRF_MapProjection abstract class. More...

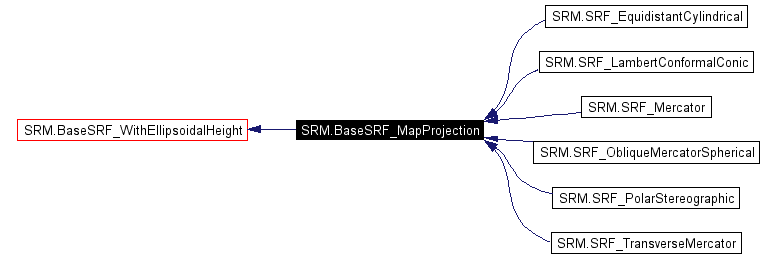

Inheritance diagram for SRM.BaseSRF_MapProjection:

Inheritance graph
[legend]
List of all members.

Public Member Functions

double calculateConvergenceOfTheMeridian (CoordSurf surf_coord) throws SrmException
 Returns the Convergence of the Meridian in radians at a position on the surface of the oblate spheroid.

double calculatePointScale (CoordSurf surf_coord) throws SrmException
 Returns the point scale at a position on the surface of the oblate spheroid.

double calculateMapAzimuth (CoordSurf src_coord, CoordSurf des_coord) throws SrmException
 Returns the map azimuth in radians between two surface coordinates.

Detailed Description

The BaseSRF_MapProjection abstract class.

Author:
David Shen
See also:
BaseSRF_WithEllipsoidalHeight, BaseSRF_3D

Member Function Documentation

double SRM.BaseSRF_MapProjection.calculateConvergenceOfTheMeridian (  CoordSurf  surf_coord  )  throws SrmException


Returns the Convergence of the Meridian in radians at a position on the surface of the oblate spheroid.

Parameters:
surf_coord in: the surface coordinate in this SRF
Returns:
the convergence of the meridian angle (in radians)
Note:
The input surface coordinate must have been created using this SRF.

double SRM.BaseSRF_MapProjection.calculateMapAzimuth (  CoordSurf  src_coord,
CoordSurf  des_coord
)  throws SrmException


Returns the map azimuth in radians between two surface coordinates.

Parameters:
src_coord in: the source surface coordinate in this SRF
des_coord in: the destination surface coordinate in this SRF
Returns:
the map azimuth angle (in radians)
Note:
The input surface coordinates must have been created using this SRF.

double SRM.BaseSRF_MapProjection.calculatePointScale (  CoordSurf  surf_coord  )  throws SrmException


Returns the point scale at a position on the surface of the oblate spheroid.

Parameters:
surf_coord in: the surface coordinate in this SRF
Returns:
the point scale length (in meters)
Note:
The input surface coordinate must have been created using this SRF.

The documentation for this class was generated from the following file:
