The SEDRIS Data Representation Model
APPENDIX A - Classes
Octant Related Features

Class Name: Octant Related Features

Superclass - <Aggregate Feature>

Subclasses

This DRM class is concrete and has no subclasses.

Definition

An instance of this DRM class specifies an aggregation of <Feature Hierarchy> instances in which each <Feature Hierarchy> component represents an octant. The octant represented by a branch is specified by the <Octant Data> link object associated with that branch. The bounding region that the <Feature Hierarchy> components occupy is defined by the <Spatial Extent> component of the <Octant Related Features> instance.

Primary Page in DRM Diagram:

Secondary Pages in DRM Diagram:

This class appears on only one page of the DRM class diagram.

Example

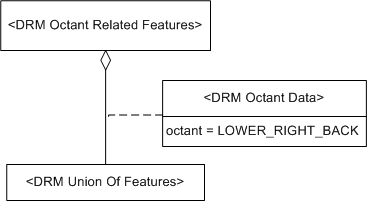

  1. Consider an aggregation that is represented in a transmittal by an <Octant Related Features> instance. The lower right back octant of the aggregation is a <Union Of Features> instance aggregated by the <Octant Related Features> instance as depicted in Figure 6.34:

    Octant Related Features, Example 1

    Figure 34 — <DRM Octant Related Features> example

FAQs

If an <Octant Related Features> instance has less than eight components, why is the data being organized under an <Octant Related Features> instance at all?

An <Octant Related Features> instance is used when a DRM object in the hierarchy contains spatial components that occupy a certain octant. These octants might not contain <Primitive Feature> instances, which is why this class can have less than eight components.

Where is the <Spatial Extent> component?

An <Octant Related Features> instance automatically has a <Spatial Extent> component, because it is a <Feature Hierarchy> instance. However, unlike other classes descended from <Feature Hierarchy>, <Octant Related Features> has a constraint stating that the <Spatial Extent> component is mandatory.

Constraints

Associated to (one-way) (inherited)

Associated by (one-way) (inherited)

Composed of (two-way) (inherited)

Composed of (two-way)

Composed of (two-way metadata) (inherited)

Component of (two-way) (inherited)

Inherited Field Elements

SE_Boolean unique_descendants; 9
SE_Boolean strict_organizing_principle; 10

Notes

Associated to Notes


Feature_Representation

An association between two <Feature Representation> instances indicates that the environmental object(s) that they represent have the semantic relationship indicated by the <Base Association Data> link object on the association relationship.


Geometry_Hierarchy

An association between a <Geometry Hierarchy> instance and a <Feature Representation> instance indicates that the environmental object(s) that they represent have the semantic relationship indicated by the <Base Association Data> link object on the association relationship.


Property_Grid

An association between a <Property Grid> instance and a <Feature Representation> instance indicates that the environmental object(s) represented by the <Feature Representation> instance and the <Property Grid> instance (or some specific cell data within that <Property Grid> instance) have the semantic relationship indicated by the <Base Association Data> link object on the association relationship. Each associated <Property Grid> instance indicates whether the entire <Property Grid> instance or only some specific cell data within it is participating in the relationship in question.

Associated from Notes


Feature_Representation

An association between two <Feature Representation> instances indicates that the environmental object(s) that they represent have the semantic relationship indicated by the <Base Association Data> link object on the association relationship.


Geometry_Hierarchy

An association between a <Geometry Hierarchy> instance and a <Feature Representation> instance indicates that the environmental object(s) that they represent have the semantic relationship indicated by the <Base Association Data> link object on the association relationship.


Property_Grid

An association between a <Property Grid> instance and a <Feature Representation> instance indicates that the environmental object(s) represented by the <Feature Representation> instance and the <Property Grid> instance (or some specific cell data within that <Property Grid> instance) have the semantic relationship indicated by the <Base Association Data> link object on the association relationship. Each associated <Property Grid> instance indicates whether the entire <Property Grid> instance or only some specific cell data within it is participating in the relationship in question.

Composed of Notes


Image_Mapping_Function

The <Image Mapping Function> components support texture mapping information for geometry that is to be derived from the <Aggregate Feature> instance by the consumer. These <Image Mapping Function> instances shall use <Image Anchor> components to specify the mapping.


Presentation_Domain

A <Presentation Domain> component is needed for <Aggregate Feature> instances that are significant only for a particular domain, such as radar.

Fields Notes

unique_descendants

If the value of the unique_descendants field is SE_TRUE, each descendant shall be unique in the sense that it shall appear in only one branch of this aggregation. Each descendant is a <Feature Representation> instance within the component tree rooted at the <Aggregate Feature> instance. If unique_descendants is SE_FALSE, at least one <Feature Representation> instance appears in more than one branch of the aggregation.

strict_organizing_principle

If the value of the strict_organizing_principle field is SE_TRUE, each branch of this aggregation strictly complies with the organizing principle for its particular subclass. If this value is SE_FALSE, at least one branch does not strictly comply with the given organizing principle. See the organizing principle constraint for each specific subclass for details.
