srm::CoordSurf_LocalTangentSpaceAzimuthalSpherical Class Reference

A CoordSurf for SRF_LocalTangentSpaceAzimuthalSpherical. More...

#include <LocalTangentSpaceAzimuthalSpherical.h>

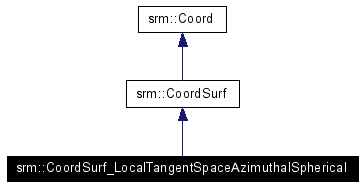

Inheritance diagram for srm::CoordSurf_LocalTangentSpaceAzimuthalSpherical:

Inheritance graph
[legend]

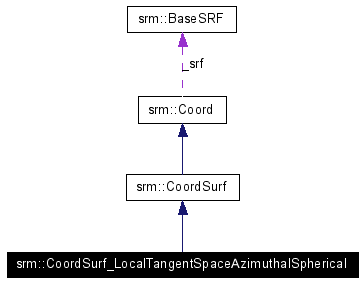

Collaboration diagram for srm::CoordSurf_LocalTangentSpaceAzimuthalSpherical:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 CoordSurf_LocalTangentSpaceAzimuthalSpherical (SRF_LocalTangentSpaceAzimuthalSpherical *srf, SRM_Long_Float azimuth=0.0, SRM_Long_Float angle=0.0)
 Constructor.

 CoordSurf_LocalTangentSpaceAzimuthalSpherical (const CoordSurf_LocalTangentSpaceAzimuthalSpherical &coord)
 Copy constructor.

void copyTo (CoordSurf_LocalTangentSpaceAzimuthalSpherical &coord) const
 Copies component values to the coordinate.

bool isEqual (const CoordSurf_LocalTangentSpaceAzimuthalSpherical &coord) const
 Returns true if the coordinate component values are identical.

void setComponentValues (SRM_Long_Float azimuth, SRM_Long_Float angle)
 Sets all coordinate component values.

SRM_Long_Float get_azimuth () const
 Returns the azimuth value.

SRM_Long_Float get_angle () const
 Returns the angle value.

void set_azimuth (SRM_Long_Float value)
 Sets the azimuth value.

void set_angle (SRM_Long_Float value)
 Sets the angle value.

virtual bool isA (Coord_ClassType type) const
 Returns true if this coordinate is of the given class type.

virtual Coord_ClassType getClassType () const
 Returns true if this SRF is of the given class type.

bool operator== (const CoordSurf_LocalTangentSpaceAzimuthalSpherical &rhs) const
 The equality operator.

bool isCompatibleWith (const CoordSurf_LocalTangentSpaceAzimuthalSpherical &rhs) const
 Returns true if the coordinates are associated with SRFs with identical parameters.

CoordSurf_LocalTangentSpaceAzimuthalSpherical & operator= (const CoordSurf_LocalTangentSpaceAzimuthalSpherical &rhs)
 The assignment operator.

Detailed Description

A CoordSurf for SRF_LocalTangentSpaceAzimuthalSpherical.

Author:
David Shen
See also:
SRF_LocalTangentSpaceAzimuthalSpherical

Definition at line 376 of file LocalTangentSpaceAzimuthalSpherical.h.

Member Function Documentation

void srm::CoordSurf_LocalTangentSpaceAzimuthalSpherical::copyTo (  CoordSurf_LocalTangentSpaceAzimuthalSpherical &  coord  )  const [inline]


Copies component values to the coordinate.

Note:
The coordinates must be associated with the same SRF instance.

This method is deprecated. Use the assignment operator.

Exceptions:
This method throws srm::Exception

Definition at line 402 of file LocalTangentSpaceAzimuthalSpherical.h.

bool srm::CoordSurf_LocalTangentSpaceAzimuthalSpherical::isCompatibleWith (  const CoordSurf_LocalTangentSpaceAzimuthalSpherical &  rhs  )  const [inline]


Returns true if the coordinates are associated with SRFs with identical parameters.

Note:
This method should be used to evaluate coordinate compatibility before calling the coordinate assignment operator to avoid raising runtime exception when operating on incompatible coordinates.

Definition at line 477 of file LocalTangentSpaceAzimuthalSpherical.h.

bool srm::CoordSurf_LocalTangentSpaceAzimuthalSpherical::isEqual (  const CoordSurf_LocalTangentSpaceAzimuthalSpherical &  coord  )  const [inline]


Returns true if the coordinate component values are identical.

Note:
This method is deprecated. Use the equality operator.

Definition at line 414 of file LocalTangentSpaceAzimuthalSpherical.h.

CoordSurf_LocalTangentSpaceAzimuthalSpherical& srm::CoordSurf_LocalTangentSpaceAzimuthalSpherical::operator= (  const CoordSurf_LocalTangentSpaceAzimuthalSpherical &  rhs  )  [inline]


The assignment operator.

Note:
This operator will check whether the coordinates are compatible.
Exceptions:
This method throws srm::Exception

Definition at line 486 of file LocalTangentSpaceAzimuthalSpherical.h.

The documentation for this class was generated from the following file:
