SRM.BaseSRF_MapProjection Class Reference

The BaseSRF_MapProjection abstract class. More...

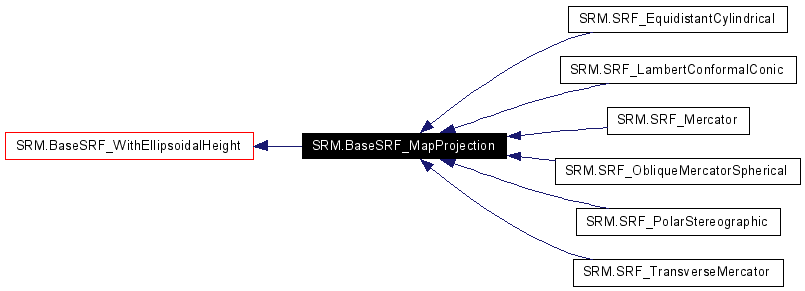

Inheritance diagram for SRM.BaseSRF_MapProjection:

[legend]List of all members.

Public Member Functions
void	setValidGeodeticRegion (int component, SRM_Interval_Type type, double lower, double upper) throws SrmException
	Set the Valid Region for this SRF in geodetic coordinates (lon/lat).
void	setExtendedValidGeodeticRegion (int component, SRM_Interval_Type type, double extended_lower, double lower, double upper, double extended_upper) throws SrmException
	Set the Extended Valid Geodetic Region for this SRF.
SRM_Valid_Region_Params	getValidGeodeticRegion (int component) throws SrmException
	Get the Valid Geodetic Region for this SRF.
SRM_Extended_Valid_Region_Params	getExtendedValidGeodeticRegion (int component) throws SrmException
	Get the Extended Valid Geodetic Region for this SRF.
double	calculateConvergenceOfTheMeridian (CoordSurf surf_coord) throws SrmException
	Returns the Convergence of the Meridian in radians at a position on the surface of the oblate spheroid.
double	calculatePointScale (CoordSurf surf_coord) throws SrmException
	Returns the point scale at a position on the surface of the oblate spheroid.
double	calculateMapAzimuth (CoordSurf src_coord, CoordSurf des_coord) throws SrmException
	Returns the map azimuth in radians between two surface coordinates.
Protected Member Functions
abstract double	comCalculation (OrmData e_constants, double[] cd_coord) throws SrmException
abstract double	pointScaleCalculation (OrmData e_constants, double[] cd_coord) throws SrmException
Protected Attributes
OrmData	_ormData

---

Detailed Description

The BaseSRF_MapProjection abstract class.

Author:

David Shen

See also:

BaseSRF_WithEllipsoidalHeight, BaseSRF_3D

---

Member Function Documentation

double SRM.BaseSRF_MapProjection.calculateConvergenceOfTheMeridian (  CoordSurf  surf_coord  )  throws SrmException

Returns the Convergence of the Meridian in radians at a position on the surface of the oblate spheroid. Parameters: surf_coord  in: the surface coordinate in this SRF Returns: the convergence of the meridian angle (in radians) Note: The input surface coordinate must have been created using this SRF.

double SRM.BaseSRF_MapProjection.calculateMapAzimuth (  CoordSurf  src_coord, CoordSurf  des_coord )  throws SrmException

Returns the map azimuth in radians between two surface coordinates. Parameters: src_coord  in: the source surface coordinate in this SRF des_coord  in: the destination surface coordinate in this SRF Returns: the map azimuth angle (in radians) Note: The input surface coordinates must have been created using this SRF. The

double SRM.BaseSRF_MapProjection.calculatePointScale (  CoordSurf  surf_coord  )  throws SrmException

Returns the point scale at a position on the surface of the oblate spheroid. Parameters: surf_coord  in: the surface coordinate in this SRF Returns: the point scale length (in meters) Note: The input surface coordinate must have been created using this SRF.

SRM_Extended_Valid_Region_Params SRM.BaseSRF_MapProjection.getExtendedValidGeodeticRegion (  int  component  )  throws SrmException

Get the Extended Valid Geodetic Region for this SRF. Note: Given a coordinate component, the last invocation of this method or the setValidGeodeticRegion method determines the valid and extended valid intervals of the coordinate component values. Parameters: component  in: the coordinate component (1 or 2) Returns: the extended valid region parameters

SRM_Valid_Region_Params SRM.BaseSRF_MapProjection.getValidGeodeticRegion (  int  component  )  throws SrmException

Get the Valid Geodetic Region for this SRF. Note: Given a coordinate component, the last invocation of this method or the setExtendedValidGeodeticRegion method determines the valid and extended valid intervals of the coordinate component values. Parameters: component  in: the coordinate component (1 or 2) Returns: the extended valid region parameters

void SRM.BaseSRF_MapProjection.setExtendedValidGeodeticRegion (  int  component, SRM_Interval_Type  type, double  extended_lower, double  lower, double  upper, double  extended_upper )  throws SrmException

Set the Extended Valid Geodetic Region for this SRF. Note: Given a coordinate component, the last invocation of this method or the setValidGeodeticRegion method determines the valid and extended valid intervals of the coordinate component values. Upper or Lower value is ignored if the interval is a semi-interval or unbounded. The Lower value must be strictly less than the Upper value. The Extended_Lower value must be strictly greater than the Lower value and the Extended_Upper value must be strictly smaller than the Lower value. Parameters: component  in: the coordinate component (1 or 2) type  in: the type of interval extended_lower  in: the extended lower value of the interval lower  in: the lower value of the interval upper  in: the upper value of the interval extended_upper  in: the extended_upper value of the interval

void SRM.BaseSRF_MapProjection.setValidGeodeticRegion (  int  component, SRM_Interval_Type  type, double  lower, double  upper )  throws SrmException

Set the Valid Region for this SRF in geodetic coordinates (lon/lat). Note: Given a coordinate component, the last invocation of this method or the setExtendedValidGeodeticRegion method determines the valid and extended valid intervals of the coordinate component values. Upper or Lower value is ignored if the interval is a semi-interval or unbounded. The Lower value must be strictly less than the Upper value. Parameters: component  in: the coordinate component (1 or 2) type  in: the type of interval lower  in: the lower value of the interval upper  in: the upper value of the interval

---

The documentation for this class was generated from the following file:

• BaseSRF_MapProjection.java

---
