SRM.Coord2D Class Reference

The Coord2D abstract class is used for representing 2D coordinates. More...

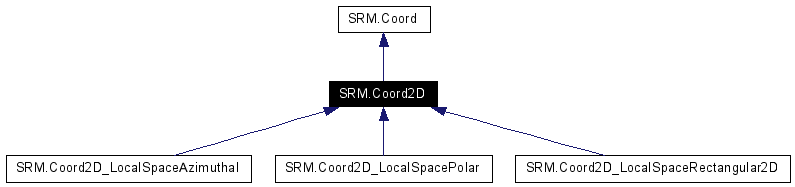

Inheritance diagram for SRM.Coord2D:

Inheritance graph
[legend]
List of all members.

Public Member Functions

double[] getValues ()
 Returns the coordinate component values as an array.

void setValues (double[] values) throws SrmException
 Sets the coordinate component values as an array.

boolean isEqual (Coord coord)
 Returns TRUE if the coordinate component values are "equal".

void copyTo (Coord2D coord) throws SrmException
 Copies the component values from this coordinate to the parameter coordinate.


Protected Member Functions

 Coord2D (BaseSRF assocSRF, Coord_ClassType type)
 Constructor setting the associated SRF and the concrete class type.


Protected Attributes

double[] _values = new double [2]
 An array to store the coordinate component values.

Detailed Description

The Coord2D abstract class is used for representing 2D coordinates.

See also:
Coord

Member Function Documentation

void SRM.Coord2D.copyTo (  Coord2D  coord  )  throws SrmException


Copies the component values from this coordinate to the parameter coordinate.

Note:
The parameter coordinate and this coordinate must be associated with the same SRF.

double [] SRM.Coord2D.getValues (   )  [virtual]


Returns the coordinate component values as an array.

Returns:
an array of size 2 containing the 2D coordinate component values

Implements SRM.Coord.

boolean SRM.Coord2D.isEqual (  Coord  coord  )  [virtual]


Returns TRUE if the coordinate component values are "equal".

Note:
Two components of type "double" are equal if their difference is within Const.EPSILON

Implements SRM.Coord.

Reimplemented in SRM.Coord2D_LocalSpaceAzimuthal, SRM.Coord2D_LocalSpacePolar, and SRM.Coord2D_LocalSpaceRectangular2D.

void SRM.Coord2D.setValues (  double  values[]  )  throws SrmException


Sets the coordinate component values as an array.

Parameters:
values in: array of size 2 containing the 2D coordinate component values

The documentation for this class was generated from the following file:
Spatial Reference Model Java API Version 4.4.0 - January 21, 2010
