SRM.Coord3D_LocalTangentSpaceCylindrical Class Reference

A Coord3D for SRF_LocalTangentSpaceCylindrical. More...

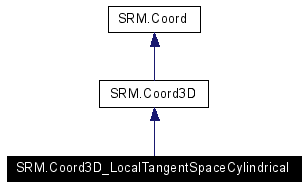

Inheritance diagram for SRM.Coord3D_LocalTangentSpaceCylindrical:

Inheritance graph
[legend]
List of all members.

Public Member Functions

 Coord3D_LocalTangentSpaceCylindrical (SRF_LocalTangentSpaceCylindrical srf)
 Constructor with initial value defaulted to [ Double.NaN, Double.NaN, Double.NaN ].

 Coord3D_LocalTangentSpaceCylindrical (SRF_LocalTangentSpaceCylindrical srf, double angle, double radius, double height)
 Constructor with input values.

 Coord3D_LocalTangentSpaceCylindrical (Coord3D_LocalTangentSpaceCylindrical original)
 Copy constructor.

void setValues (double angle, double radius, double height)
 Sets all coordinate component values.

double get_angle ()
 Returns the angle value.

double get_radius ()
 Returns the radius value.

double get_height ()
 Returns the height value.

void set_angle (double value)
 Sets the angle value.

void set_radius (double value)
 Sets the radius value.

void set_height (double value)
 Sets the height value.

boolean isEqual (Coord coord)
String toString ()
 Returns a String of coordinate component values.


Detailed Description

A Coord3D for SRF_LocalTangentSpaceCylindrical.

Author:
David Shen
See also:
SRF_LocalTangentSpaceCylindrical


The documentation for this class was generated from the following file:
Spatial Reference Model Java API Version 4.4.0 - January 21, 2010
