Table 6.89—DRM_External_Feature_Face_Ring
|
Property |
Description |
||||||
|
Superclass |
|||||||
|
Class |
· <DRM External Feature Face Ring> |
||||||
|
Subclass |
· none |
||||||
|
Definition |
This DRM class defines a one-directional topological relationship between a <DRM Regular Feature Face> and the ordered collection of one or more <DRM Feature Edge>s that define its outer boundary. |
||||||
|
Example(s) |
· The outer boundary of a <DRM Regular Feature Face> representing a lake is defined by two <DRM Feature Edge>s, one defining the north shore of the lake and the other defining the south shore. These two <DRM Feature Edge>s are the components of an <DRM External Feature Face Ring>, which is in turn a component of the <DRM Regular Feature Face>. The <DRM Edge Direction> associated with each <DRM Feature Edge> indicates its orientation with respect to the ring.
|
||||||
|
Inherited field elements |
|
||||||
|
Field elements |
|
||||||
|
Associated to (one-way) (inherited) |
· one or more {ordered} <DRM Feature Edge>s through <DRM Edge Direction>s |
||||||
|
Associated to (one-way) |
· none |
||||||
|
Associated by (one-way) (inherited) |
· none |
||||||
|
Associated by (one-way) |
· none |
||||||
|
Associated with (two-way) (inherited) |
· none |
||||||
|
Associated with (two-way) |
· none |
||||||
|
Composed of (two-way) (inherited) |
· none |
||||||
|
Composed of (two-way) |
· none |
||||||
|
Composed of (two-way metadata) (inherited) |
· none |
||||||
|
Composed of (two-way metadata) |
· none |
||||||
|
Component of (two-way) (inherited) |
· none |
||||||
|
Component of (two-way) |
|||||||
|
Constraints |
|||||||
|
Notes |
none |
||||||
|

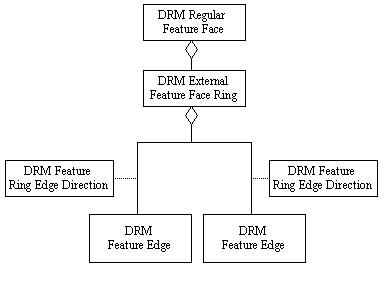

Class diagram |
