Transmittal Summary

The SEDRIS Data Representation Model APPENDIX A - Classes Transmittal Summary

Class Name: Transmittal Summary

Superclass - <SEDRIS Abstract Base>

Subclasses

This DRM class is concrete and has no subclasses.

Definition

An instance of this DRM class summarizes the content of the transmittal for which its aggregate <Transmittal Root> instance serves as root object, in terms of:

Environmental domains represented (e.g., terrain, ocean)
Types of data used (e.g. geometry, features, data tables)
DRM classes used
EDCS Classifications used
Spatial reference frames used

Primary Page in DRM Diagram:

Secondary Pages in DRM Diagram:

Example

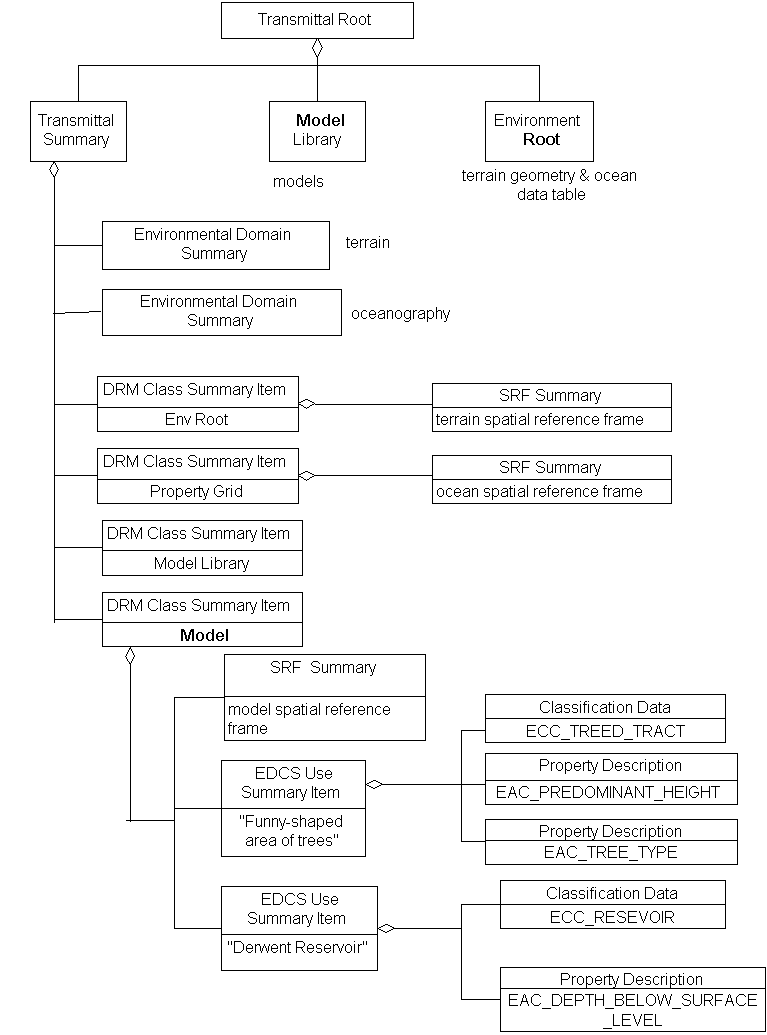

A <Transmittal Summary> for a transmittal containing a <Model Library> and an <Environment Root>.

FAQs

How are the environmental domains summarized?: The <Transmittal Summary> can aggregate a list of <Environmental Domain Summary> instances. Each <Environmental Domain Summary> represents one of the domains for which data is provided.
How are the SEDRIS classes used summarized?: The <Transmittal Summary> can aggregate a list of <DRM Class Summary Items>. Each <DRM Class Summary Item> represents one of the classes used.
How are the classifications summarized?: Each classification (i.e. the ECC and the sets of EACs used with it) that is used in the transmittal is summarized using a <EDCS Use Summary Item>. Each <EDCS Use Summary Item> is a component of the <DRM Class Summary Item> that represents the class that uses the classification within the transmittal.
How are the spatial reference frames summarized?: Each spatial reference frame that is used in the transmittal is summarized using a <SRF Summary>. Each <SRF Summary> is a component of the <DRM Class Summary Item> that represents the class that uses the spatial reference frame within the transmittal.

Inherited Field Elements

This class has no inherited field elements.

Field Elements

SE_Present_In	features_present;
SE_Present_In	geometry_present;
SE_Present_In	geometry_topology_present;
SE_Present_In	data_tables_present;	(notes)
SE_Present_In	priority_values_present;	(notes)
SE_Present_In	mobility_values_present;	(notes)
SE_Present_In	thermal_values_present;
SE_Present_In	terrain_lods_present;
SE_Present_In	two_D_features_flag;
SE_Boolean	models_present;
SE_Boolean	images_present;
SE_Boolean	sounds_present;
SE_Boolean	symbols_present;
SE_Boolean	colours_present;	(notes)
SE_Colour_Model	colour_model;	(notes)
SE_Boolean	EDCS_usage_list_is_comprehensive;	(notes)

Notes

Fields Notes

data_tables_present

 Indicates that <Data Table> instances of some kind are present
 somewhere in the transmittal.

priority_values_present

 Indicates that <Rendering Priority Level> instances are present
 somewhere in the transmittal.

mobility_values_present

 Indicates that <Property> instances exist somewhere in the
 transmittal, the EAC codes of which specify mobility, a.k.a.
 trafficability, information, e.g.
 EAC_SURFACE_TRAFFICABILITY_GROUP_SIMNET

colours_present

 Indicates whether <Colour> instances are present in the transmittal.
 If no <Colour> instances are present, then the value of the
 colour_model field is not applicable.

colour_model

 Interpreted by the Level 0 API only if colours_present is set to
 SE_TRUE.

 The colour model used by the data provider for all <Colour> instances
 in the transmittal. For instance, if this field's value is
 SE_CLR_MDL_RGB, then any <Colour Data> instance in the transmittal
 shall be an <RGB Colour>; otherwise, the transmittal is invalid.

EDCS_usage_list_is_comprehensive

 whether <EDCS Use Summary Item> is comprehensive
