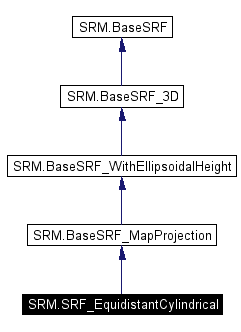

Inheritance diagram for SRM.SRF_EquidistantCylindrical:
Public Member Functions | |
| SRF_EquidistantCylindrical (SRM_ORM_Code orm, SRM_HSR_Code hsr, SRF_EC_Params params) throws SrmException | |
| Constructor by SRF parameter object. | |
| SRF_EquidistantCylindrical (SRM_ORM_Code orm, SRM_HSR_Code hsr, double origin_longitude, double standard_latitude, double central_scale, double false_easting, double false_northing) throws SrmException | |
| Constructor by individual SRF parameters. | |
| Coord3D | createCoordinate3D () |
| Create specific 3D coordinate for SRF_EquidistantCylindrical with [ Double.NaN, Double.NaN, Double.NaN ]. | |
| Coord3D | createCoordinate3D (double coord_comp1, double coord_comp2, double coord_comp3) |
| Create specific 3D coordinate for SRF_EquidistantCylindrical with input values. | |
| CoordSurf | createSurfaceCoordinate () |
| Create specific Surface coordinate for SRF_EquidistantCylindrical with [ Double.NaN, Double.NaN ]. | |
| CoordSurf | createSurfaceCoordinate (double coord_comp1, double coord_comp2) |
| Create specific Surface coordinate for SRF_EquidistantCylindrical with input values. | |
| SRF_EC_Params | getSRFParameters () |
| Returns the SRF parameter object. | |
| double | get_origin_longitude () |
| Returns the origin_longitude SRF parameter value. | |
| double | get_standard_latitude () |
| Returns the standard_latitude SRF parameter value. | |
| double | get_central_scale () |
| Returns the central_scale SRF parameter value. | |
| double | get_false_easting () |
| Returns the false_easting SRF parameter value. | |
| double | get_false_northing () |
| Returns the false_northing SRF parameter value. | |
| CoordSurf | getAssociatedSurfaceCoordinate (Coord3D coord) throws SrmException |
| Returns a surface coordinate associated with a 3D coordinate for SRF_EquidistantCylindrical. | |
| Coord3D | getPromotedSurfaceCoordinate (CoordSurf surf_coord) throws SrmException |
| Returns a 3D coordinate representing the same location as specified by a surface coordinate for SRF_EquidistantCylindrical. | |
| boolean | isEqual (BaseSRF srf) |
| String | toString () |
| Returns a String with the parameter values. | |
